Toyota CAMRY 挡风玻璃刮水器 — Figure 8501

Toyota CAMRY EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 11 PNC and OE references.

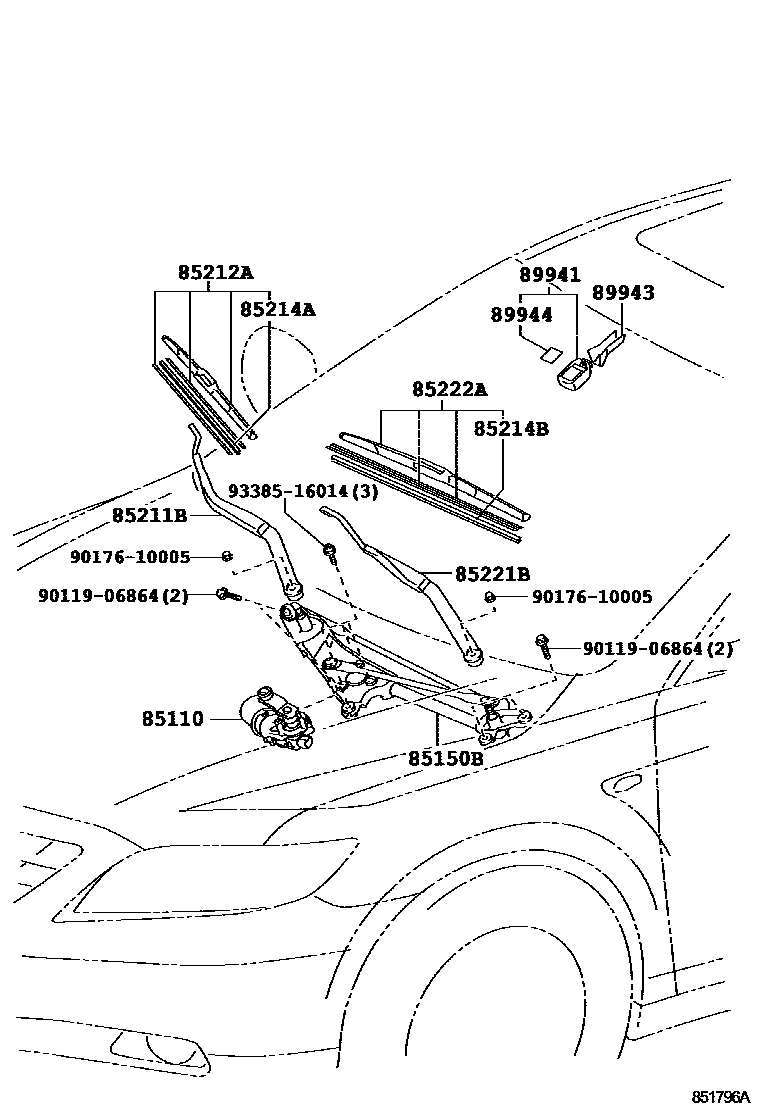

Toyota CAMRY 挡风玻璃刮水器 EPC diagram — 851796A
挡风玻璃刮水器 — 851796A (200606 – 999999)

PNC and OE references

PNCPart nameOE numbers
85110Windshield wiper motor assembly85110-06090 · 85110-06100
85150BWiper connecting rod assembly85150-06090 · 85150-06100
85211BRight front wiper arm85211-06080 · 85211-06090
85212ARight front wiper blade85212-06080 · 85212-06090
85214ARight wiper rubber strip85214-06110 · 85214-06120
85214BLeft wiper rubber strip85214-06110 · 85214-06120
85221BLeft front wiper arm85221-06080 · 85221-06090
85222ALeft front wiper blade85222-06080 · 85222-06090
89941rain sensor89941-42010
89943Rain sensor cover89943-42010
89944Rain sensor tape89944-42010
