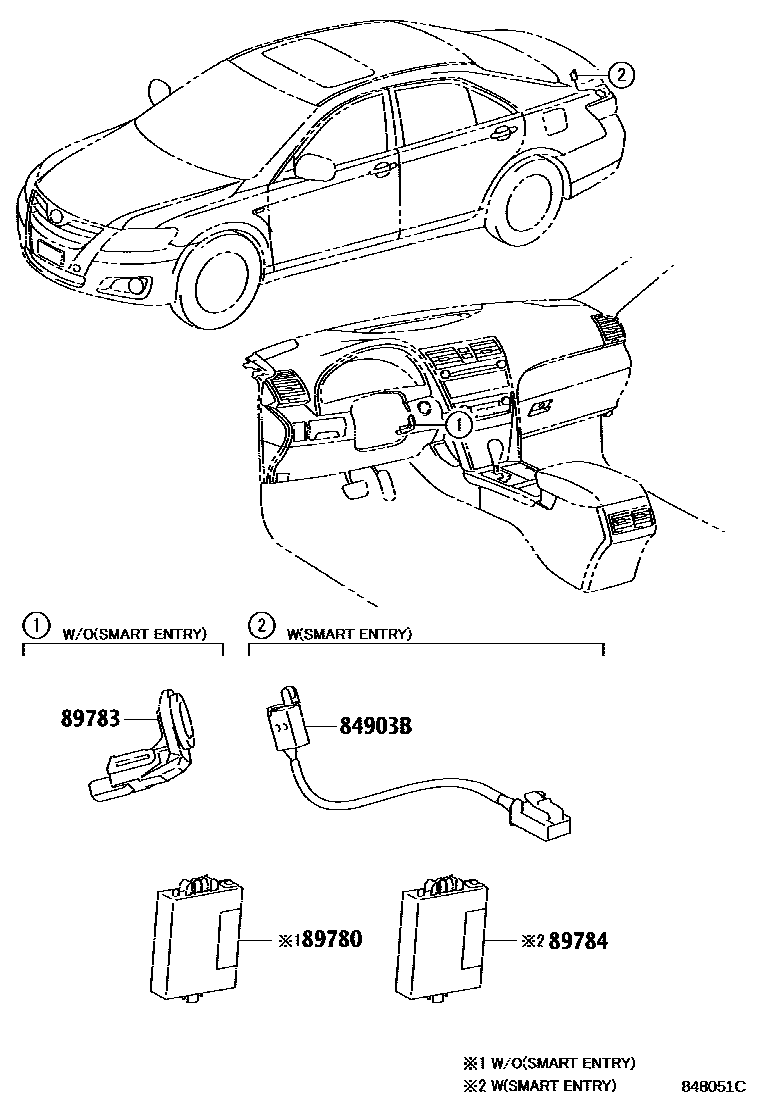

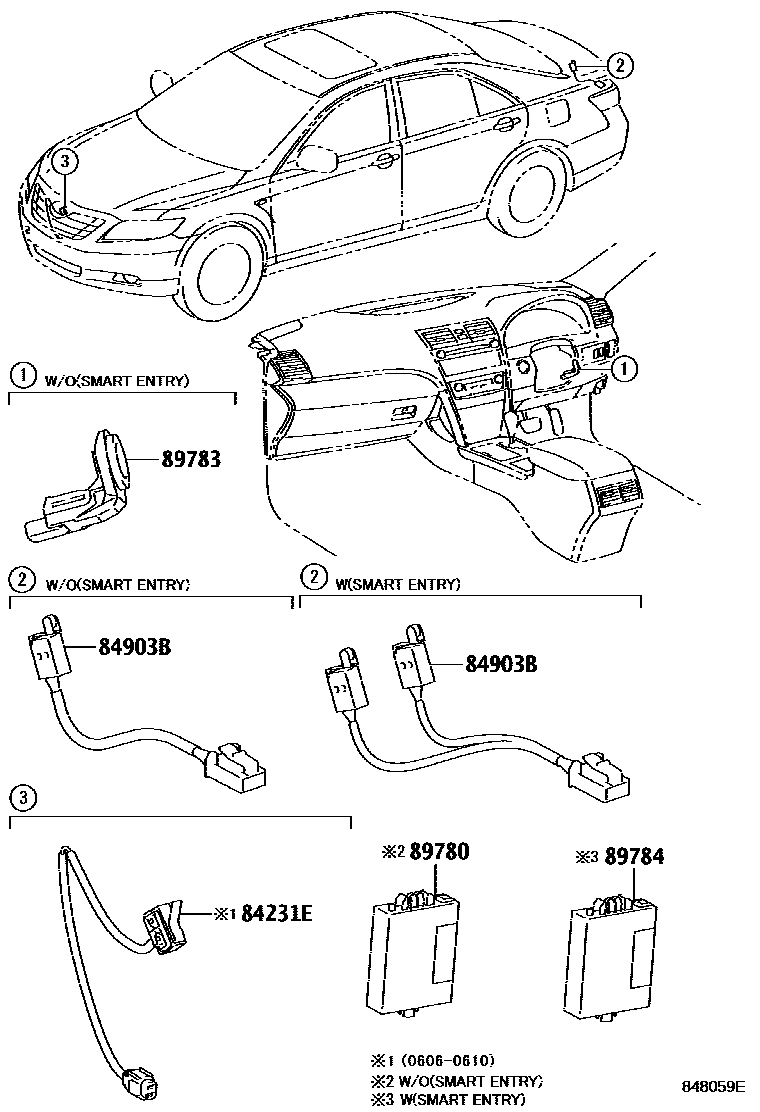

Toyota CAMRY 防盗装置 — Figure 8424
Toyota CAMRY EPC diagram 8424, 防盗装置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84231E | Door control light switch (anti-theft) | 84231-33140 |
| 84903B | Door unlock switch sub-assembly | 84903-06010 · 84903-33160 · 84903-33170 |
| 89780 | Transceiver key ECU assembly | 89780-33160 · 89780-33190 |
| 89783 | transceiver key amplifier | 89783-33120 · 89783-71010 · 89783-71011 · 89783-71012 |
| 89784 | Shutdown code system ECU | 89784-33011 |
