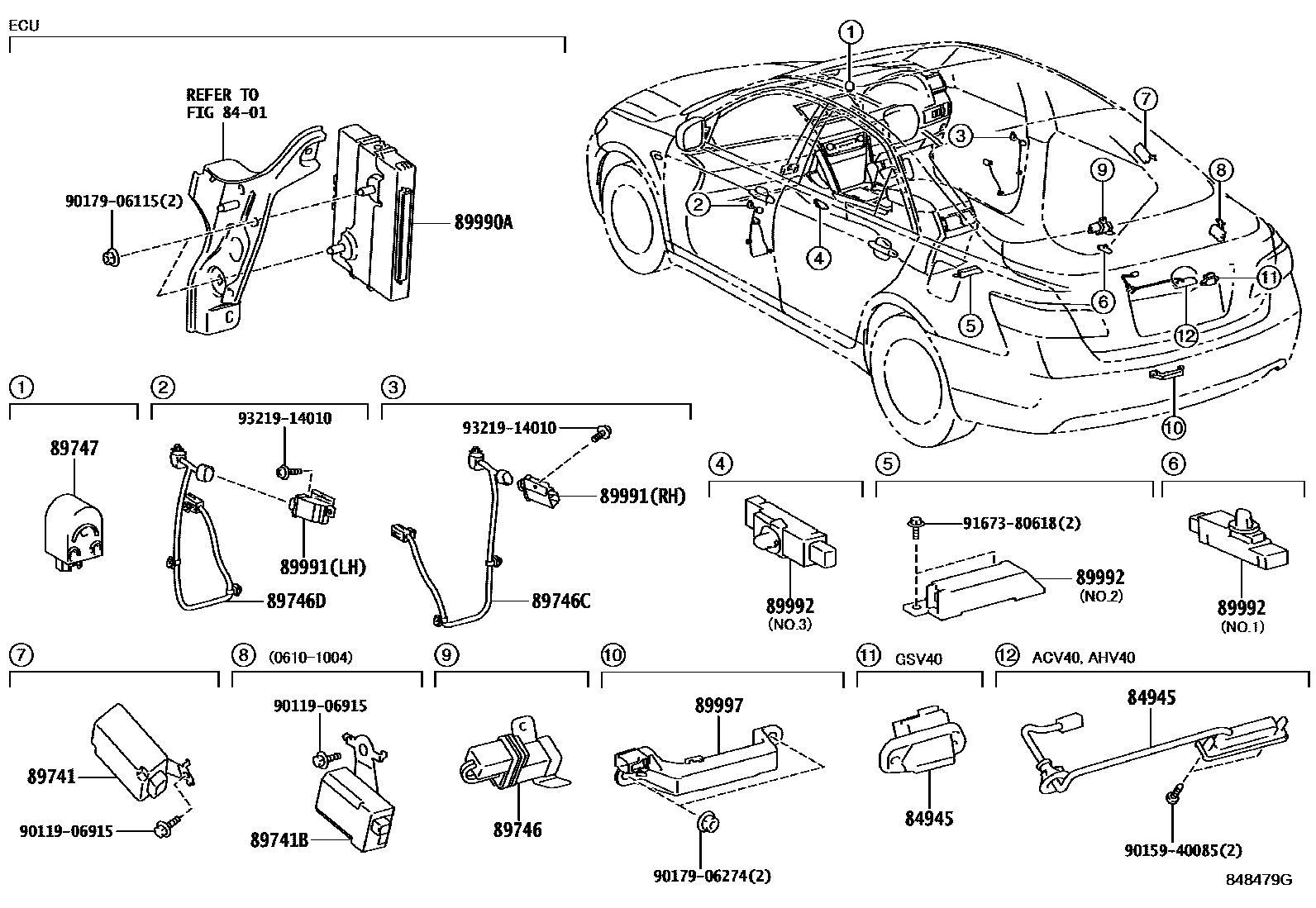

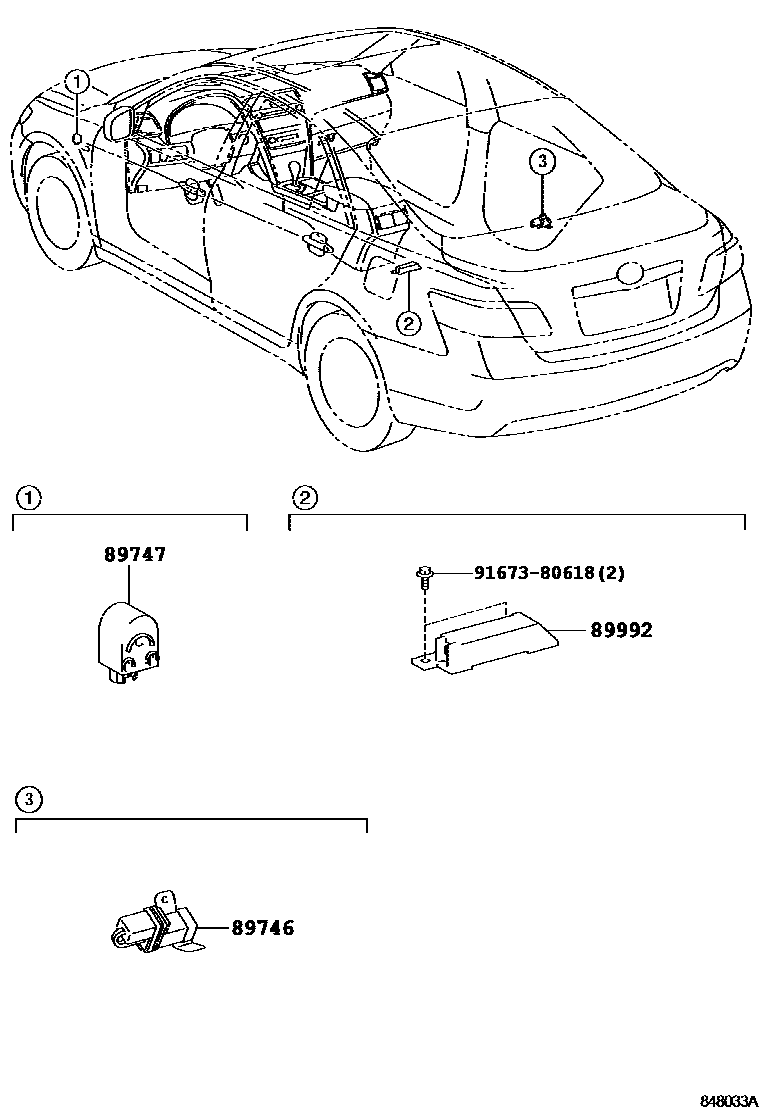

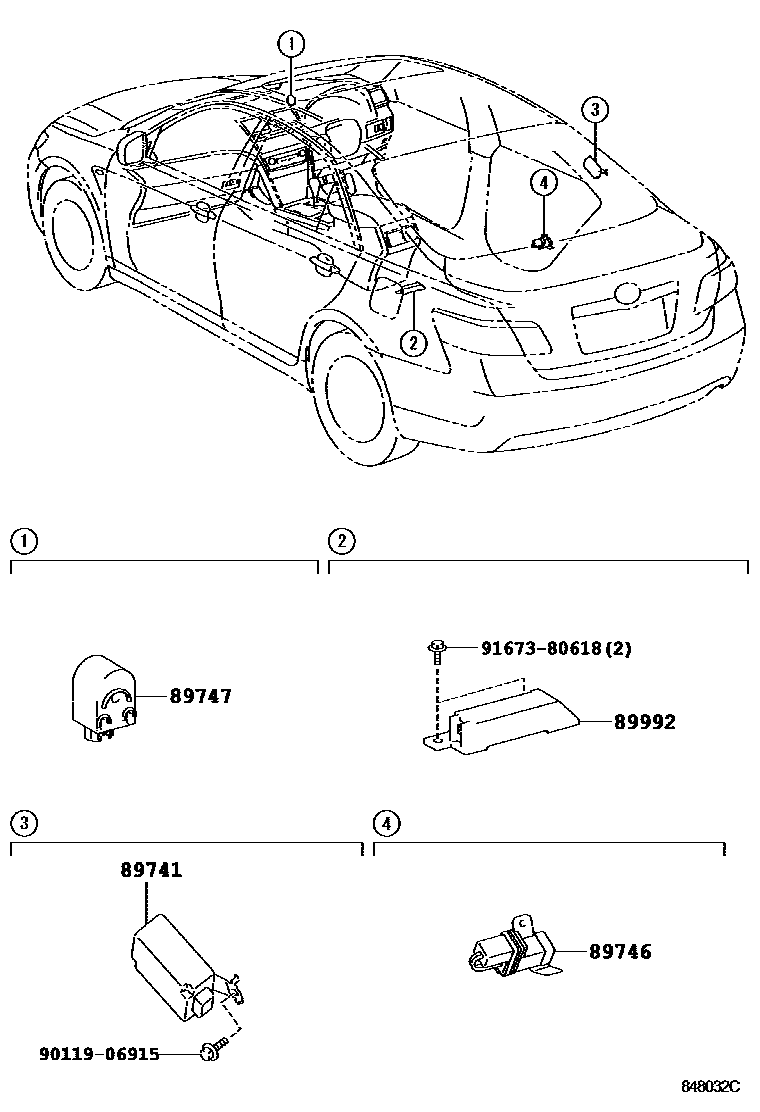

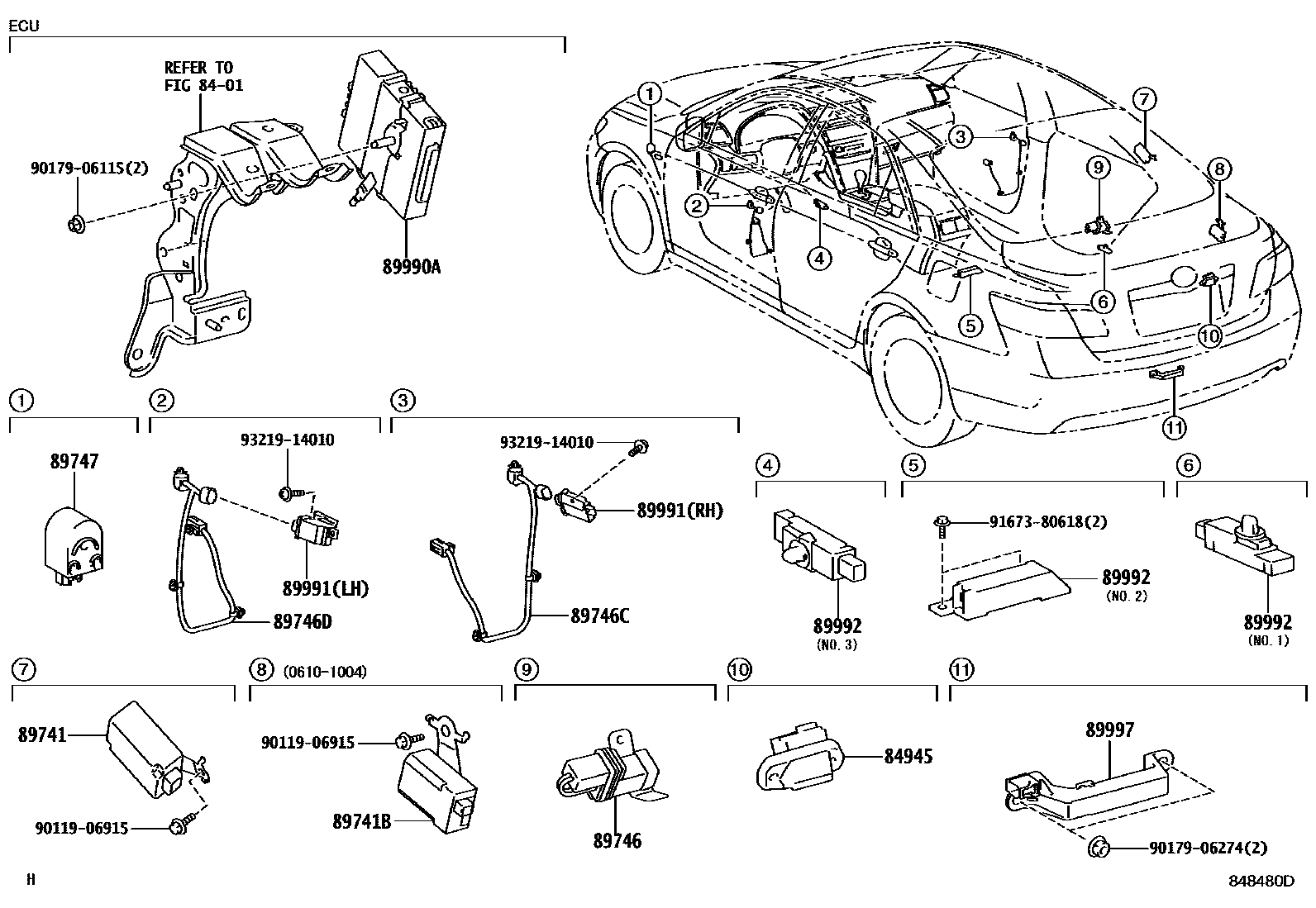

Toyota CAMRY 遥控门锁 — Figure 8420
Toyota CAMRY EPC diagram 8420, 遥控门锁, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84840-33090 · 84905-33010 · 84945-33010 |
| 89741 | door control receiver | 89740-33030 · 89740-33031 · 89740-33070 · 89740-33071 · 89741-AC080 |
| 89741B | Door control receiver No. 2 | 89740-33040 · 89740-33080 |
| 89746 | Remote door lock filter | 89746-33090 |
| 89746C | No. 1 electronic key wiring harness | 89746-33010 |
| 89746D | No. 2 electronic key wiring harness | 89746-33020 |
| 89747 | Remote door lock buzzer | 89747-48020 |
| 89990A | Smart key ECU assembly | 89990-33011 · 89990-33021 · 89990-33070 · 89990-33090 · 89990-33130 · 89990-33131 · 89990-33132 · 89990-33151 · 89990-33152 · 89990-33153 |
| 89991 | Door electronic key oscillator | 89991-30040 · 89991-30050 |
| 89992 | Car electronic key oscillator | 89992-33030 · 89992-33040 · 89992-33060 · 89992-42010 |
| 89997 | electronic key antenna | 89997-30070 · 89997-41010 |
