Toyota CAMRY 开关和继电器和ECU — Figure 8401

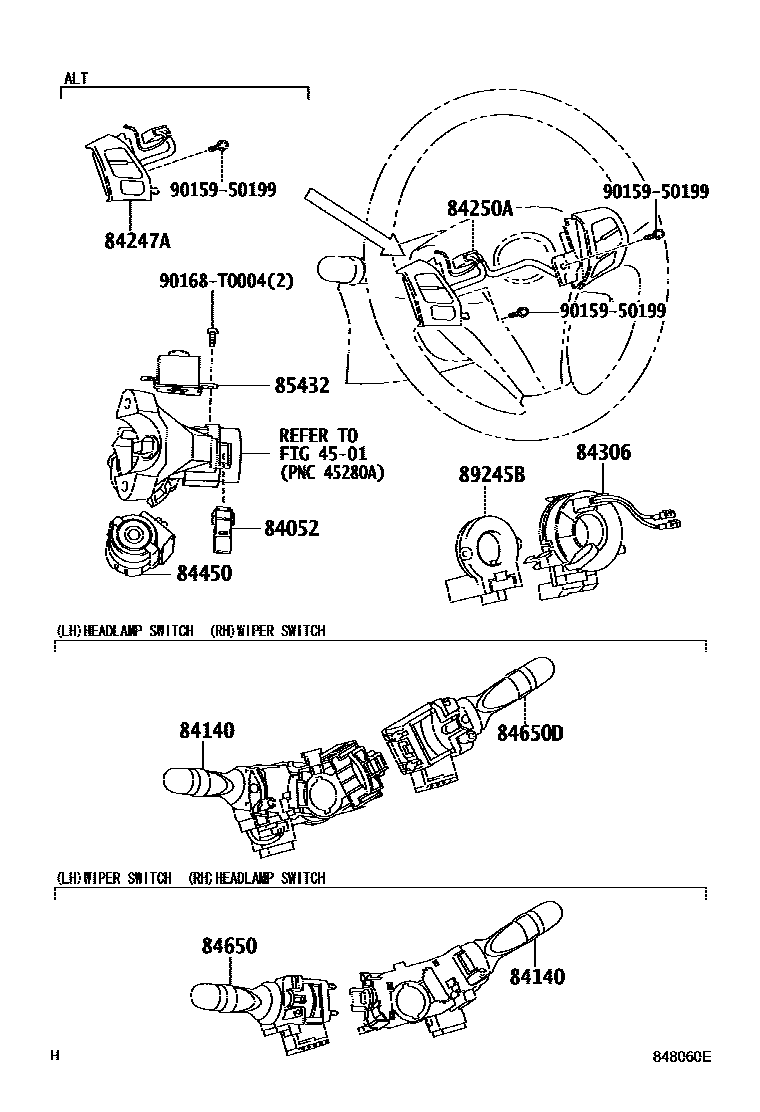

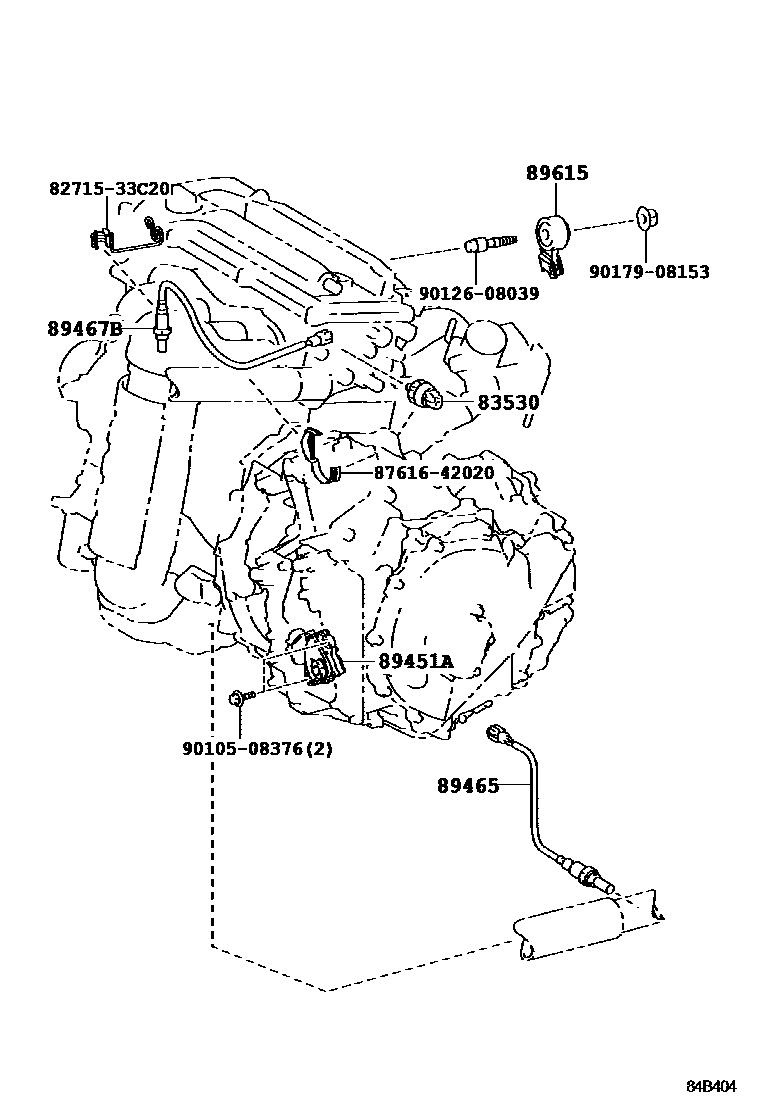

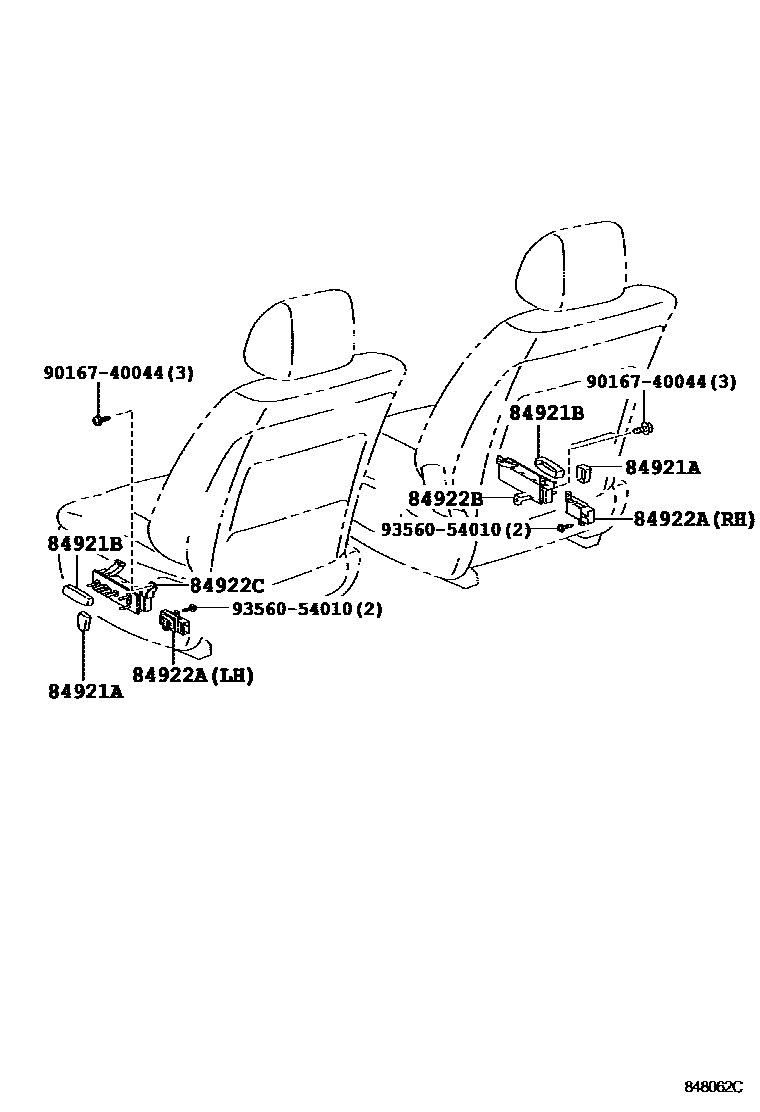

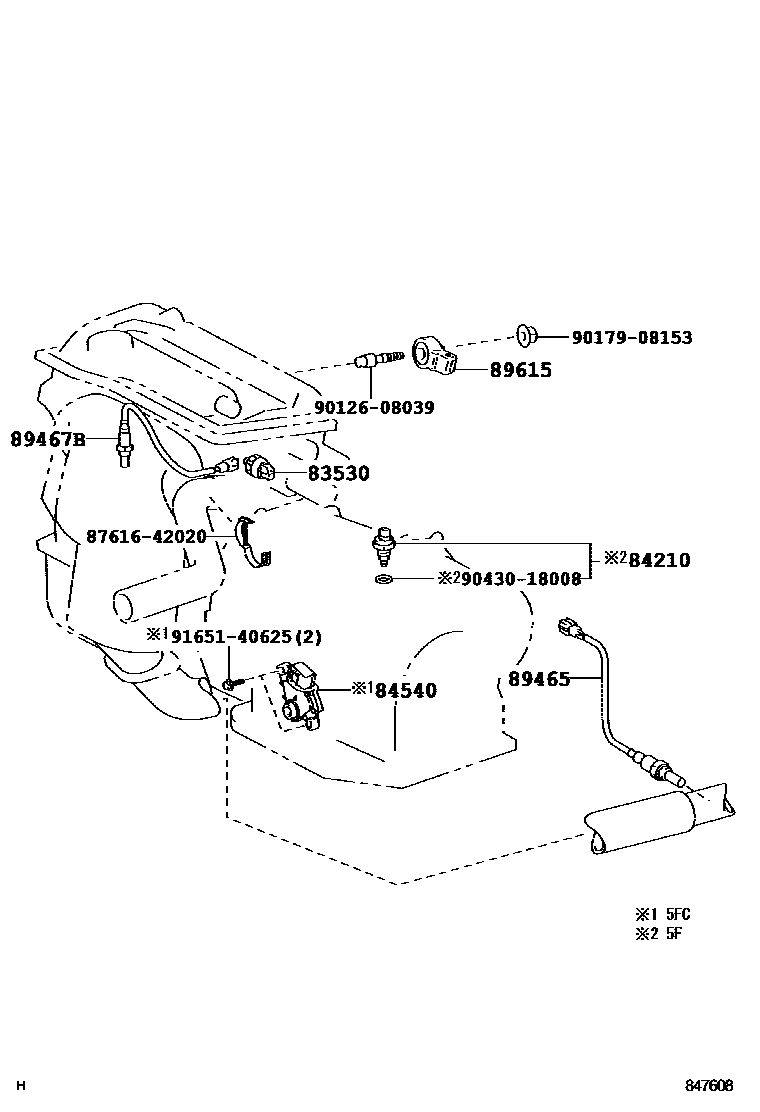

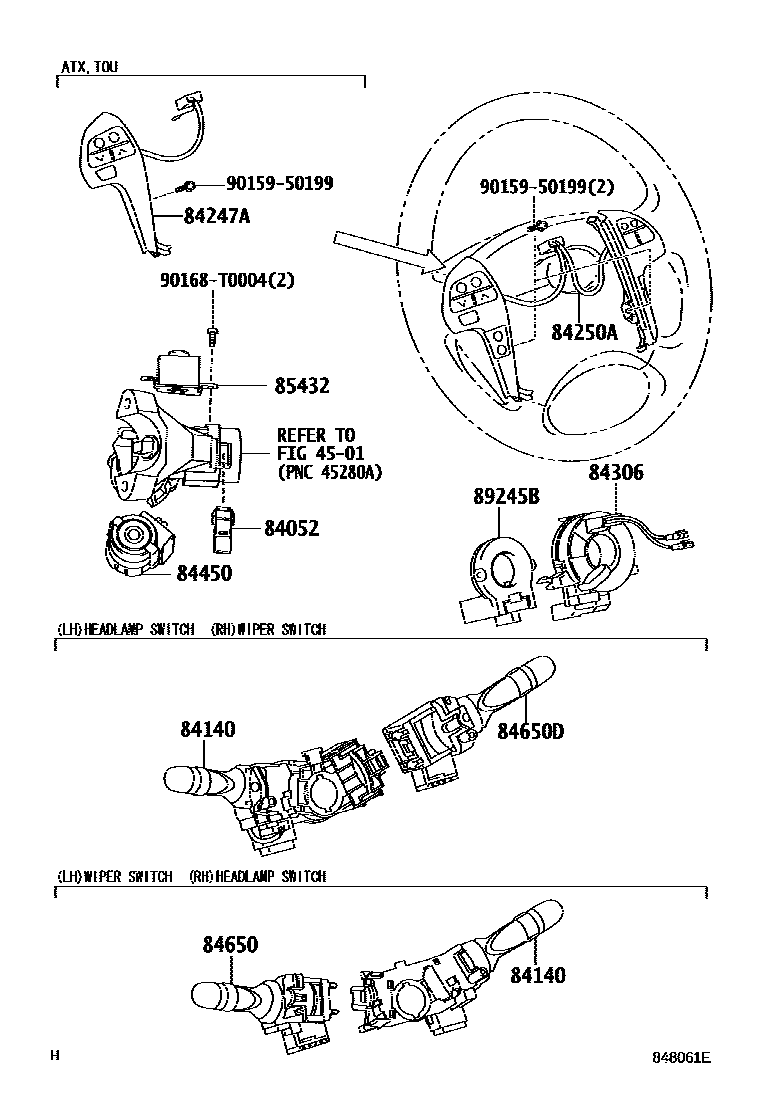

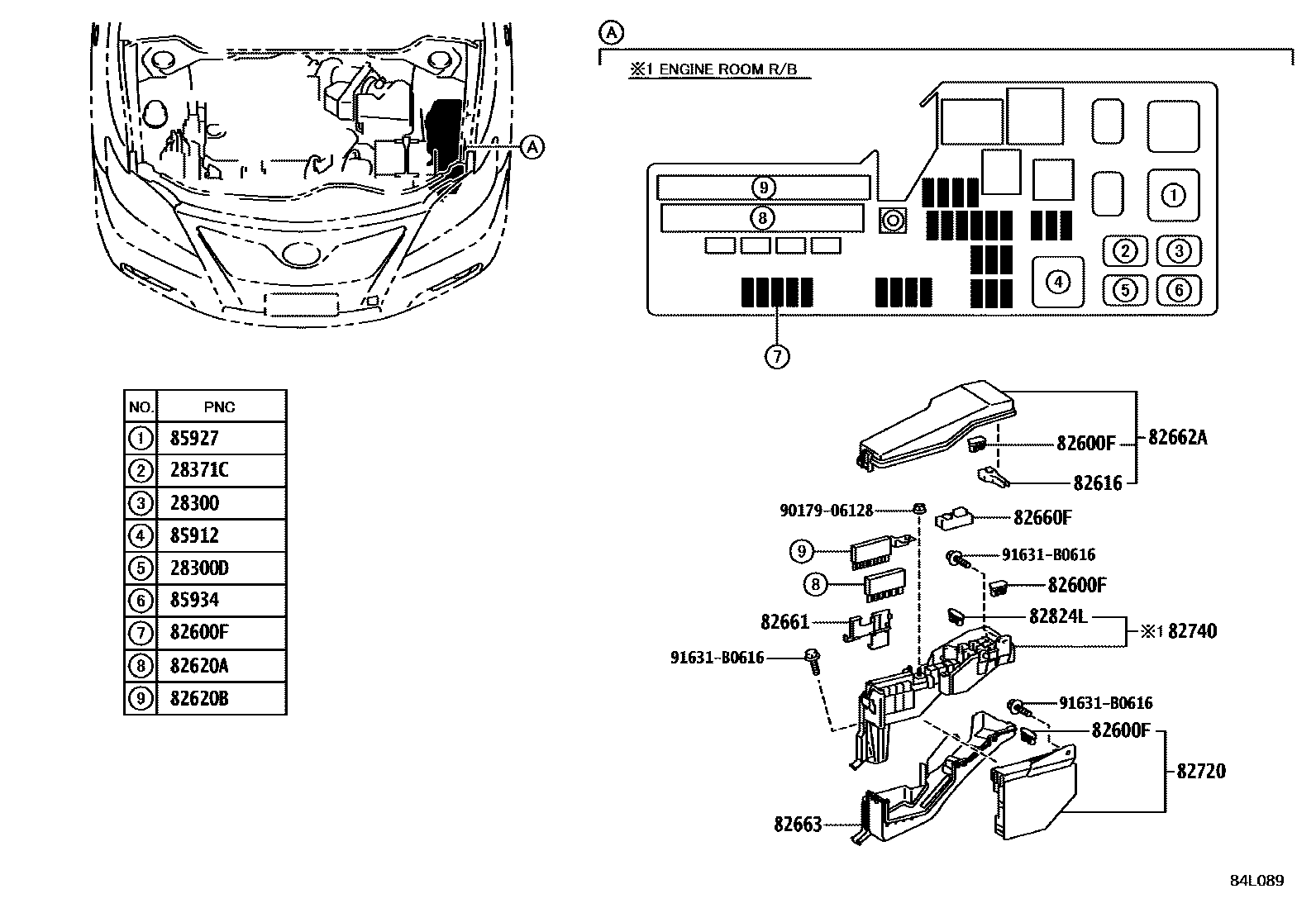

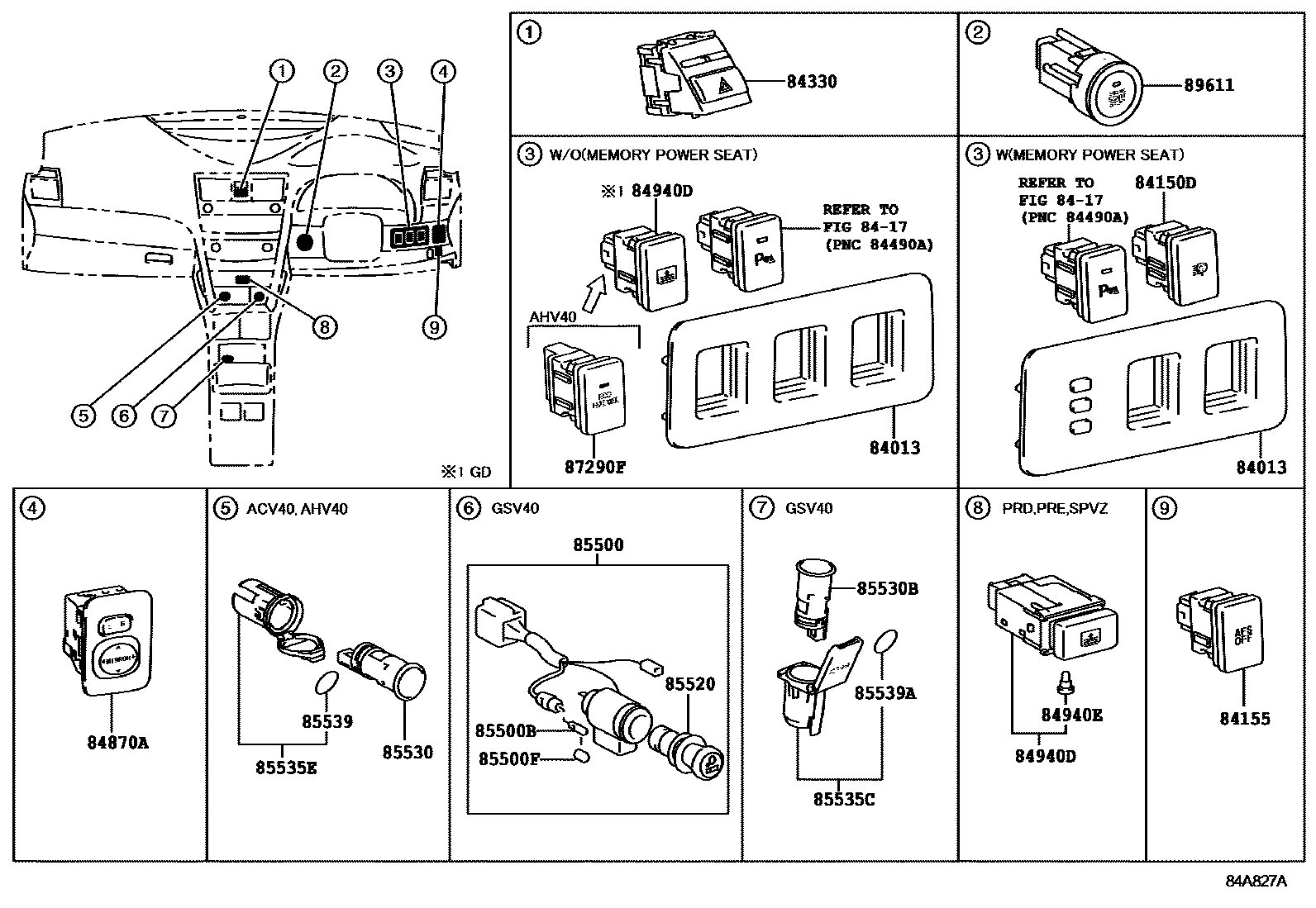

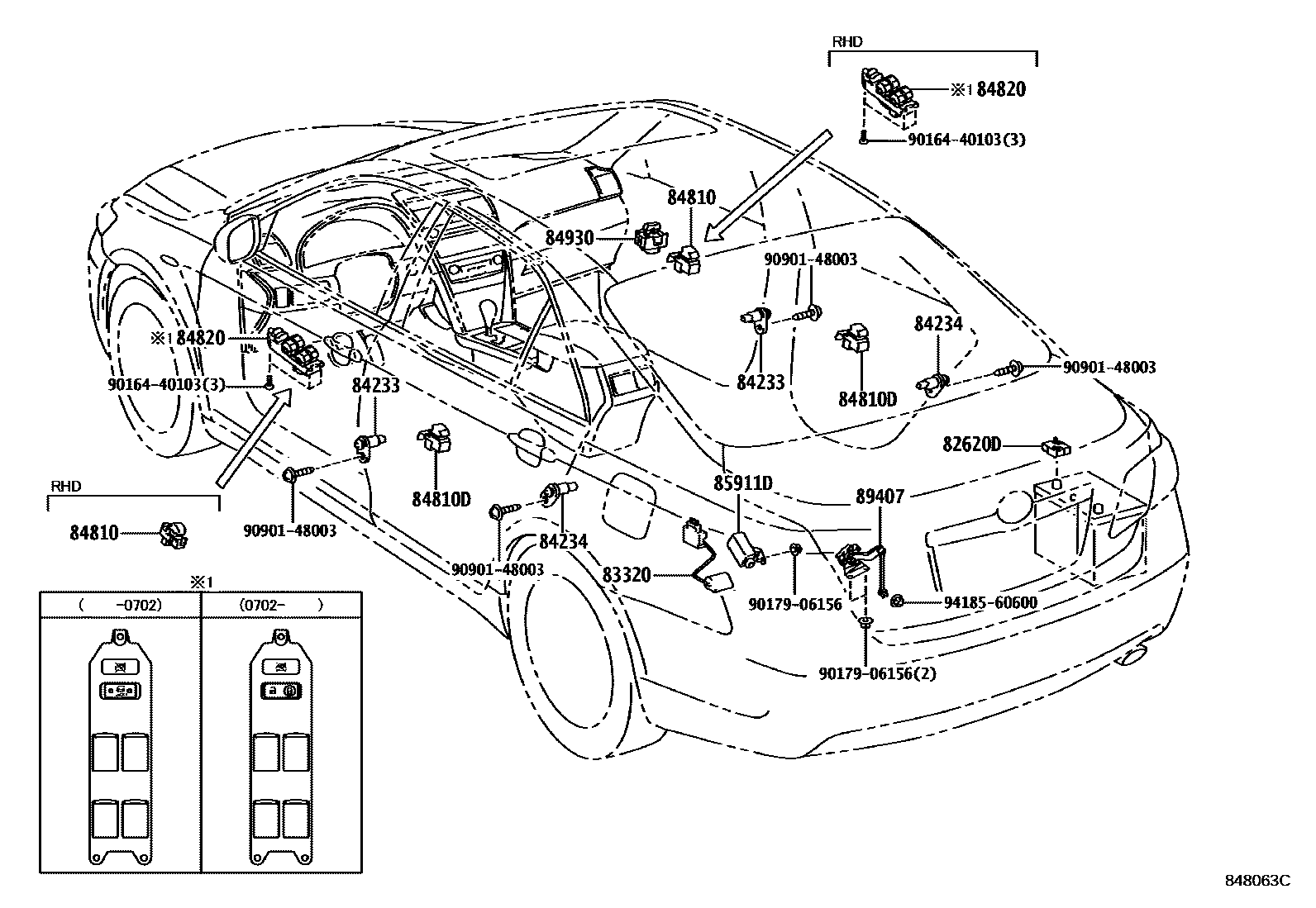

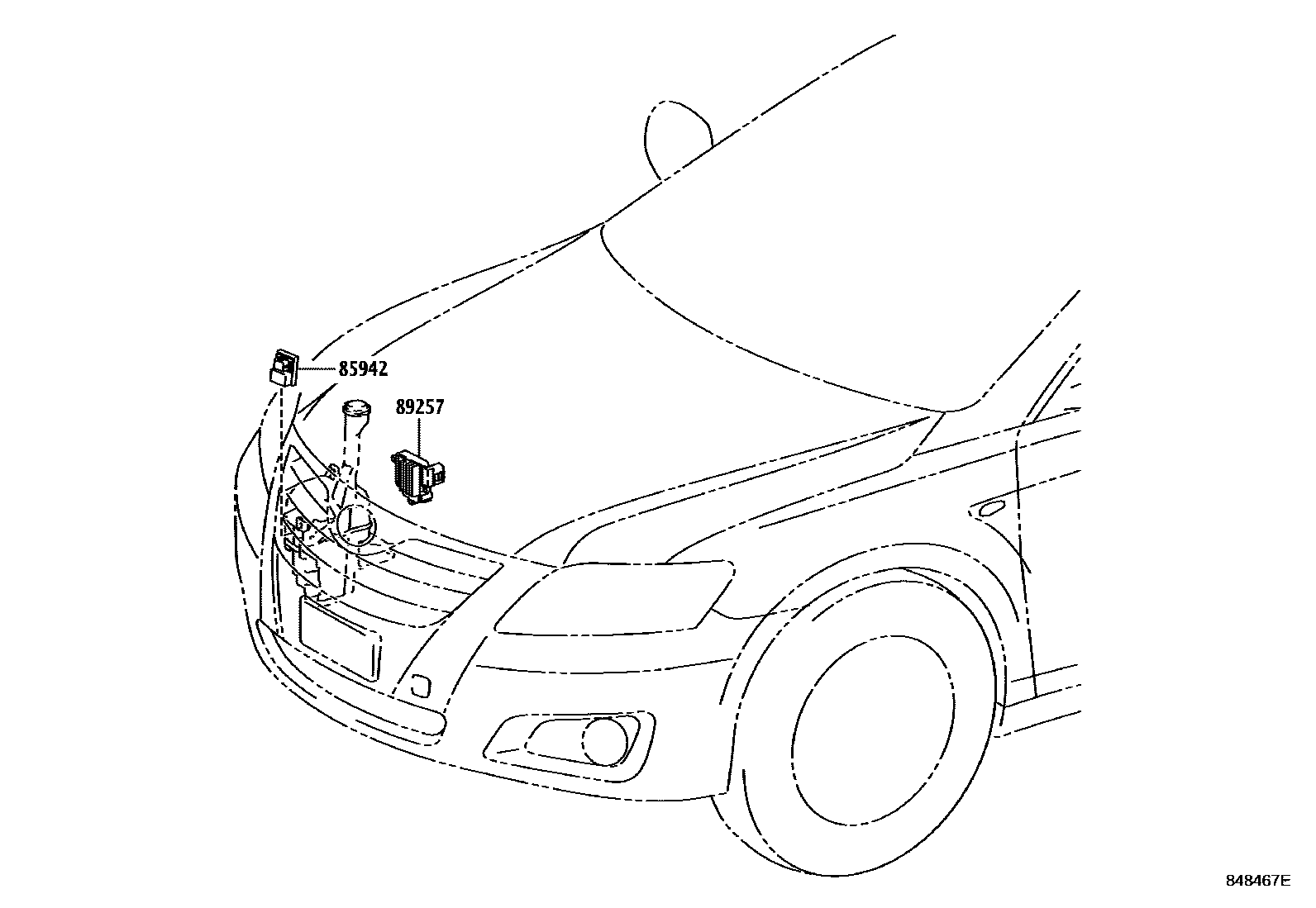

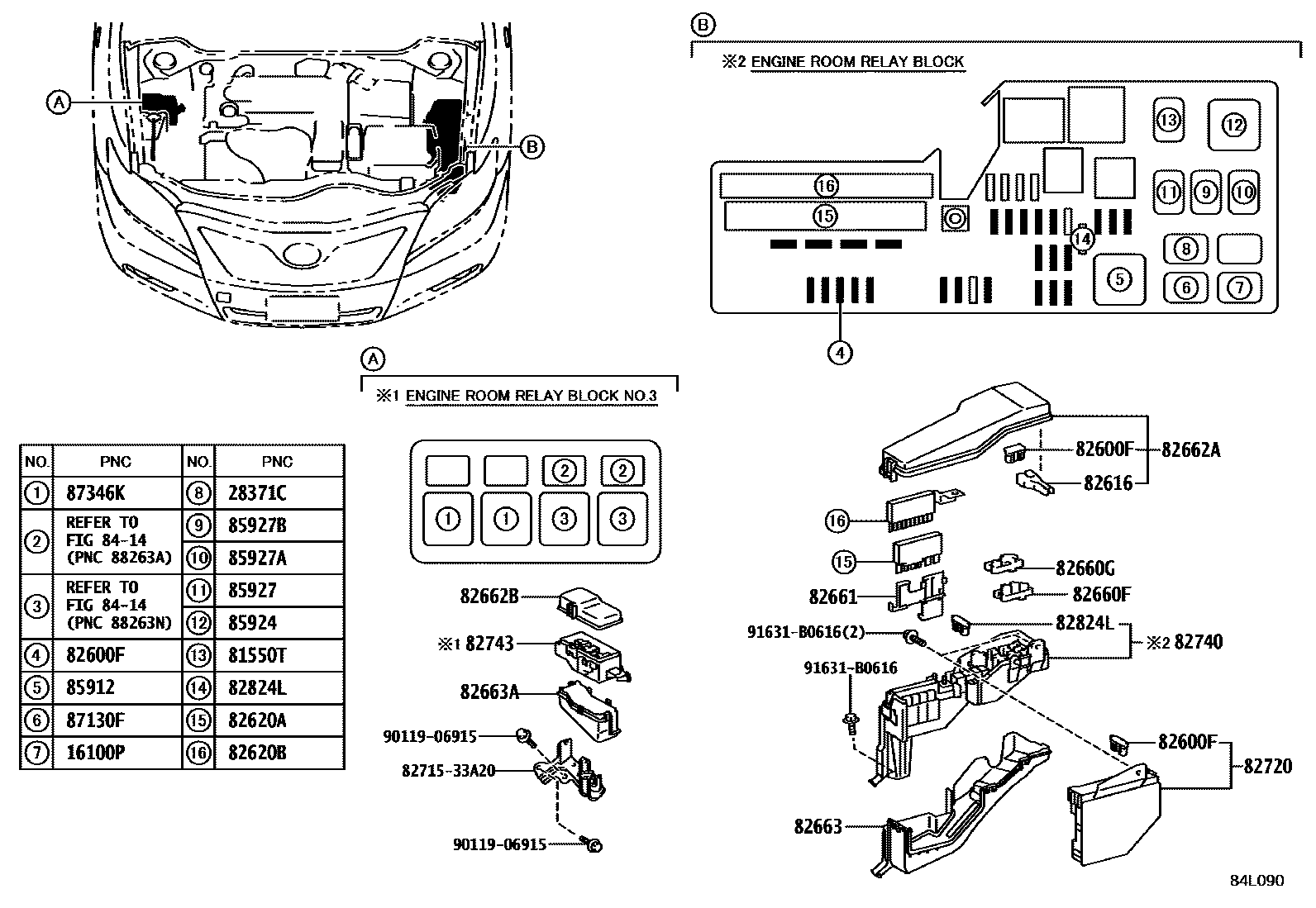

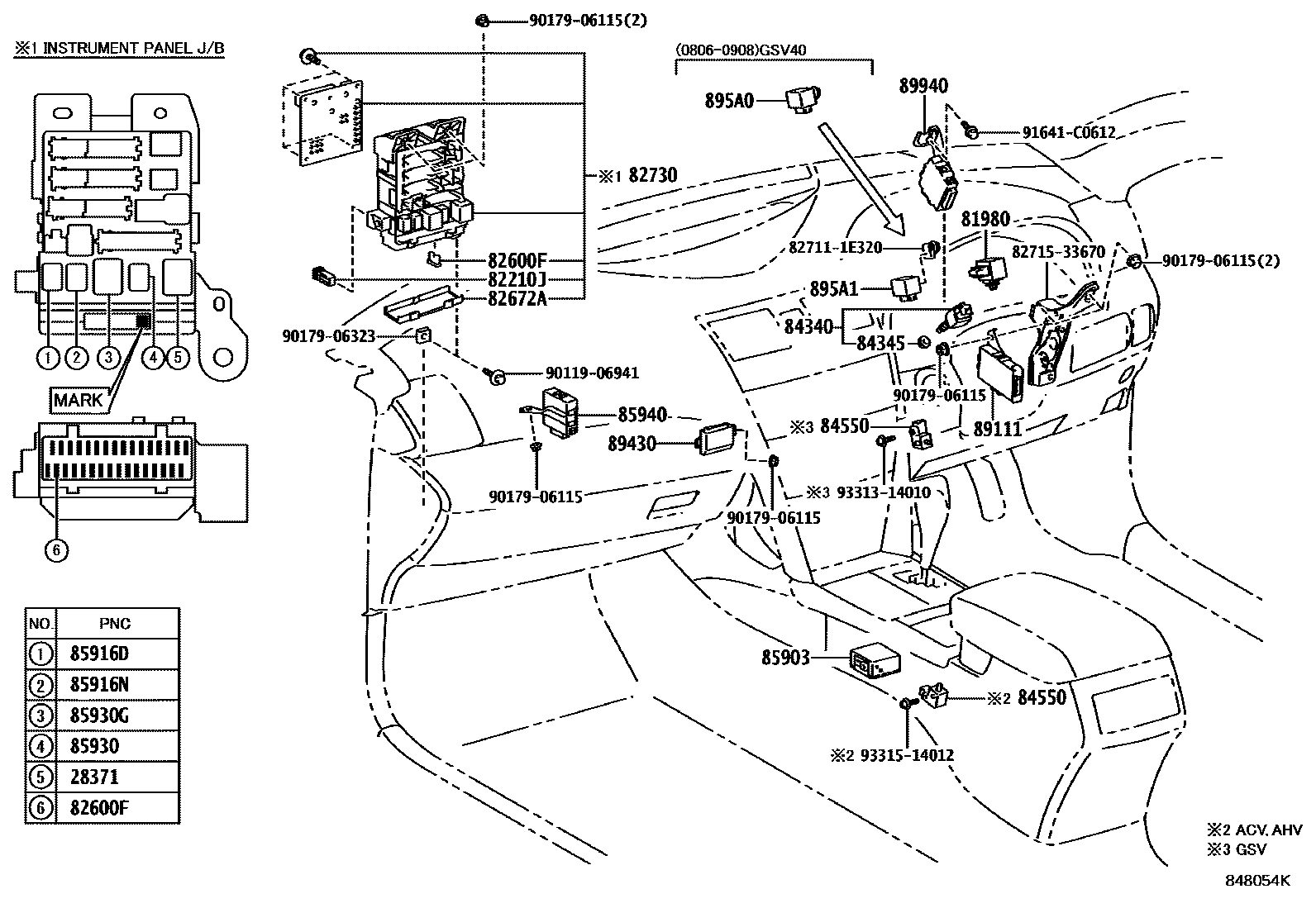

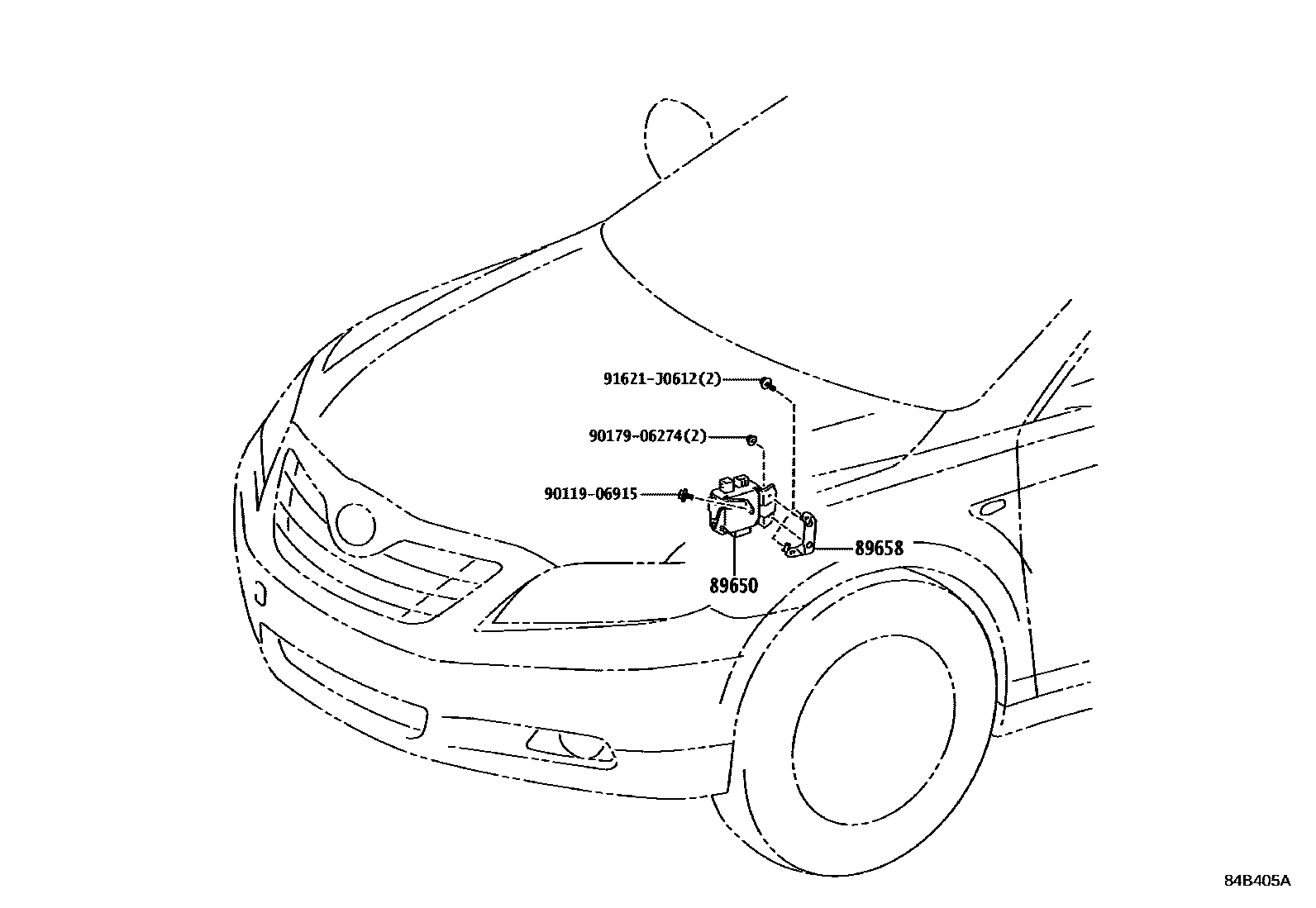

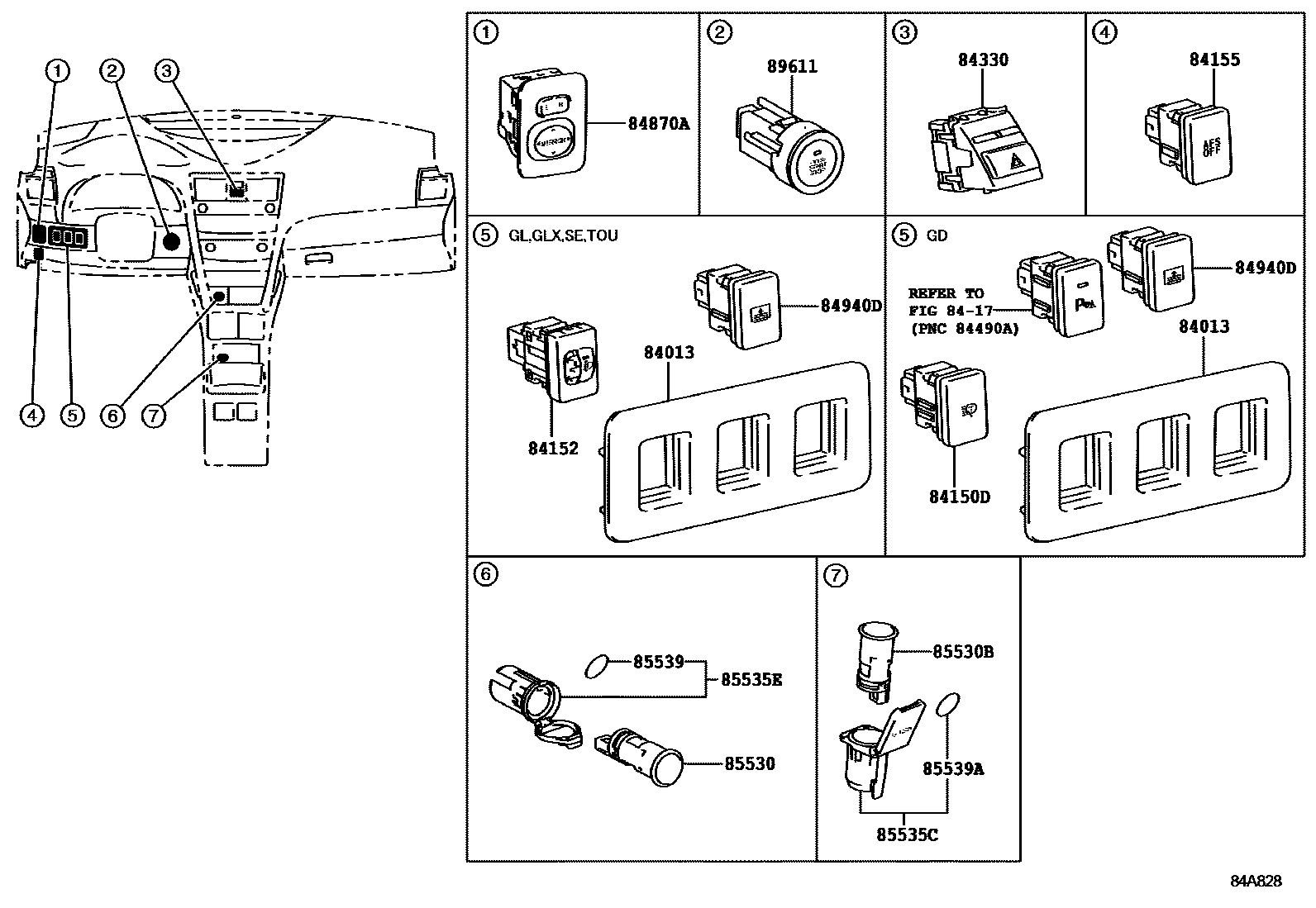

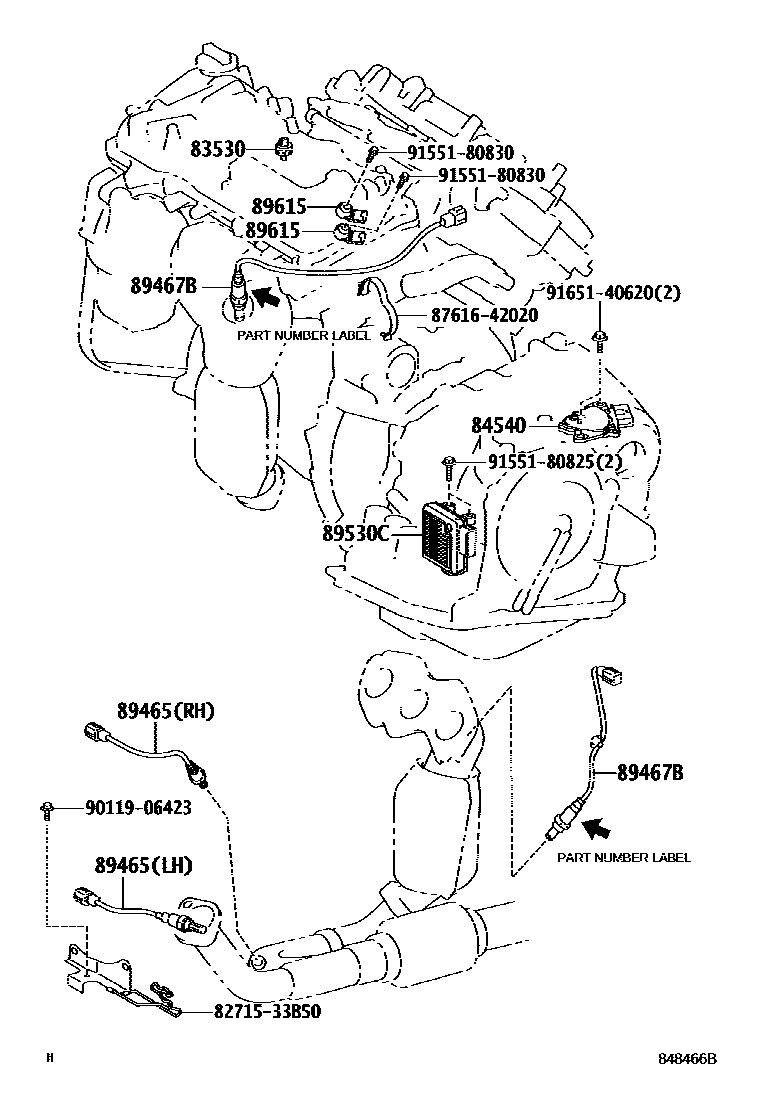

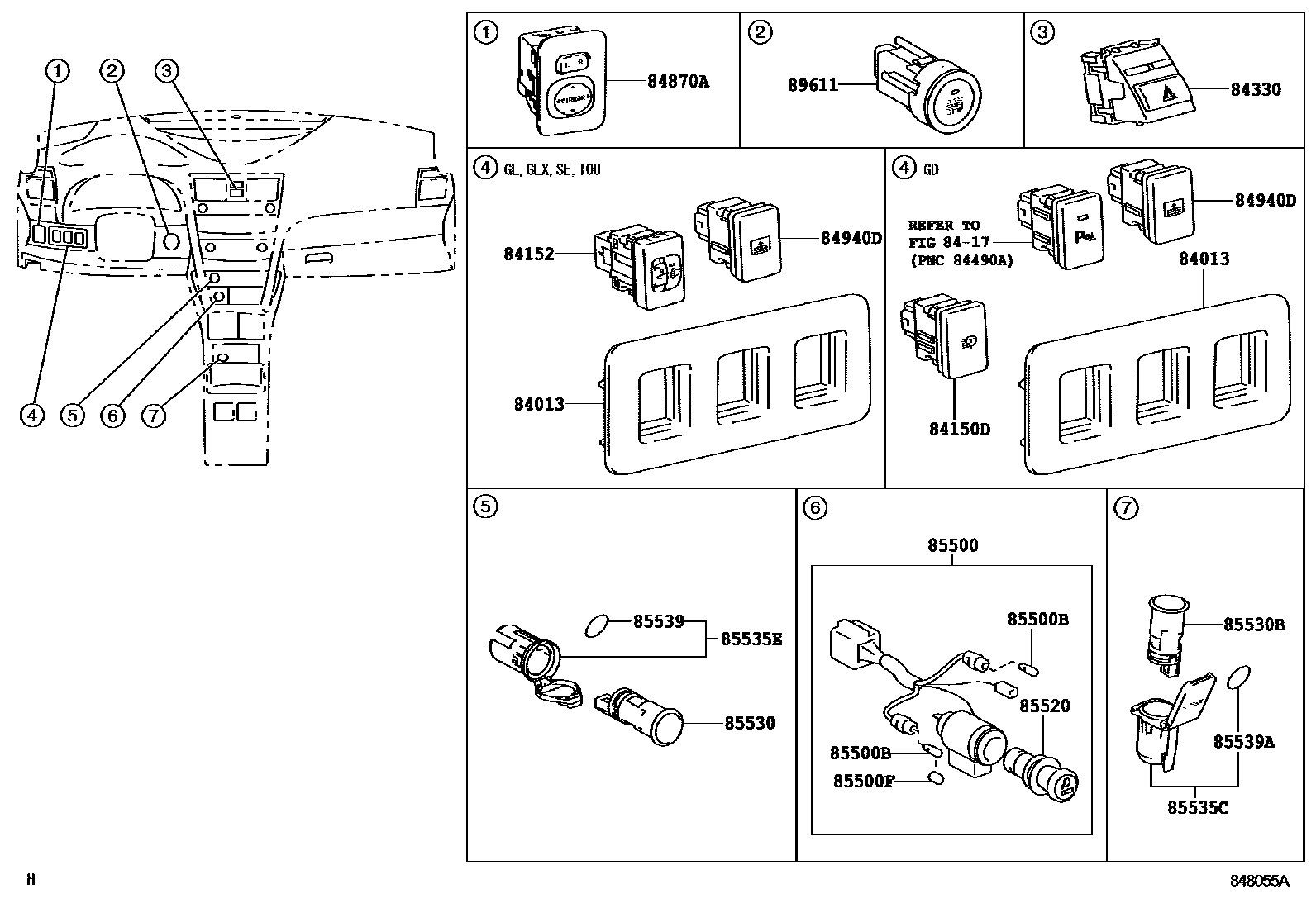

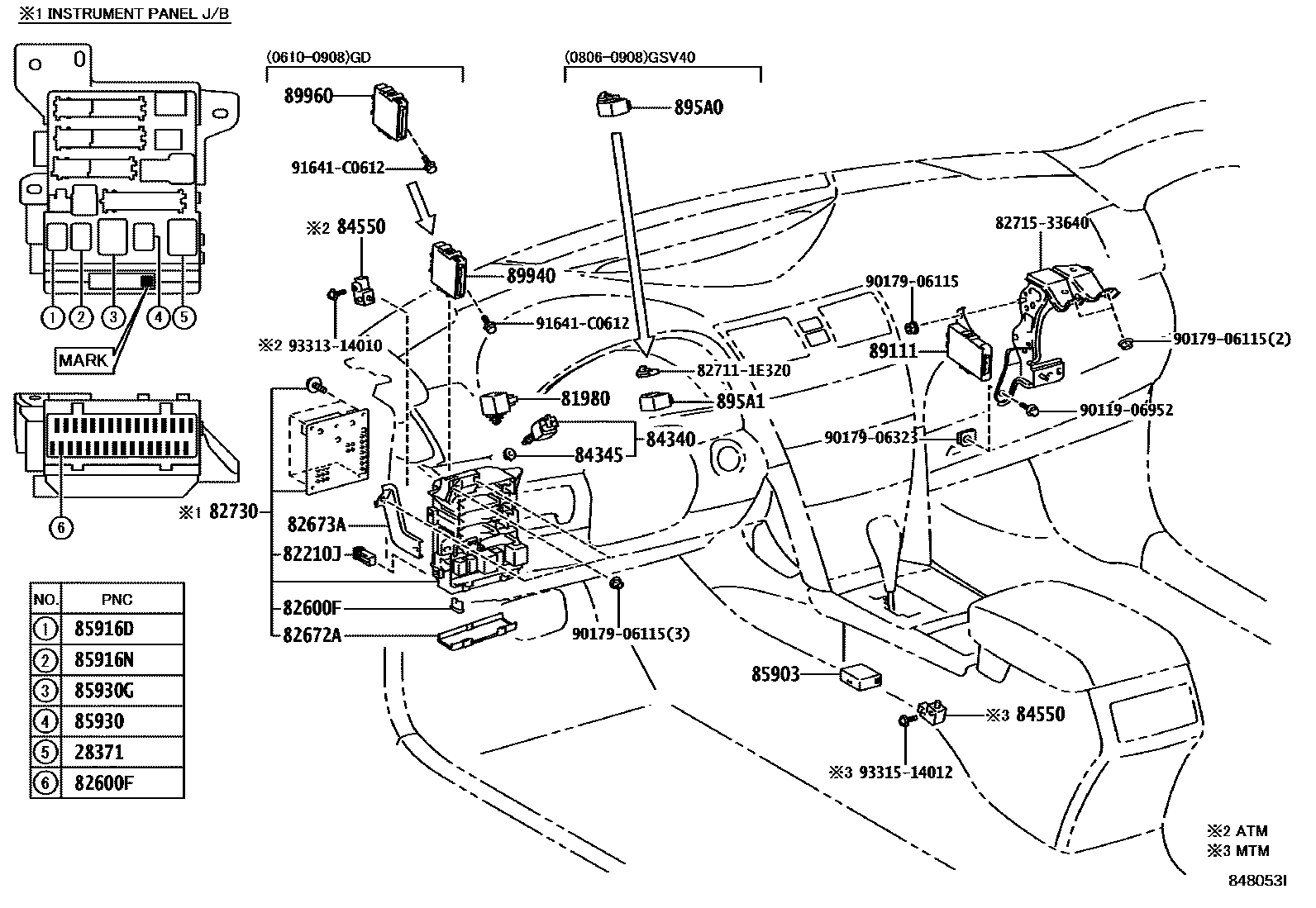

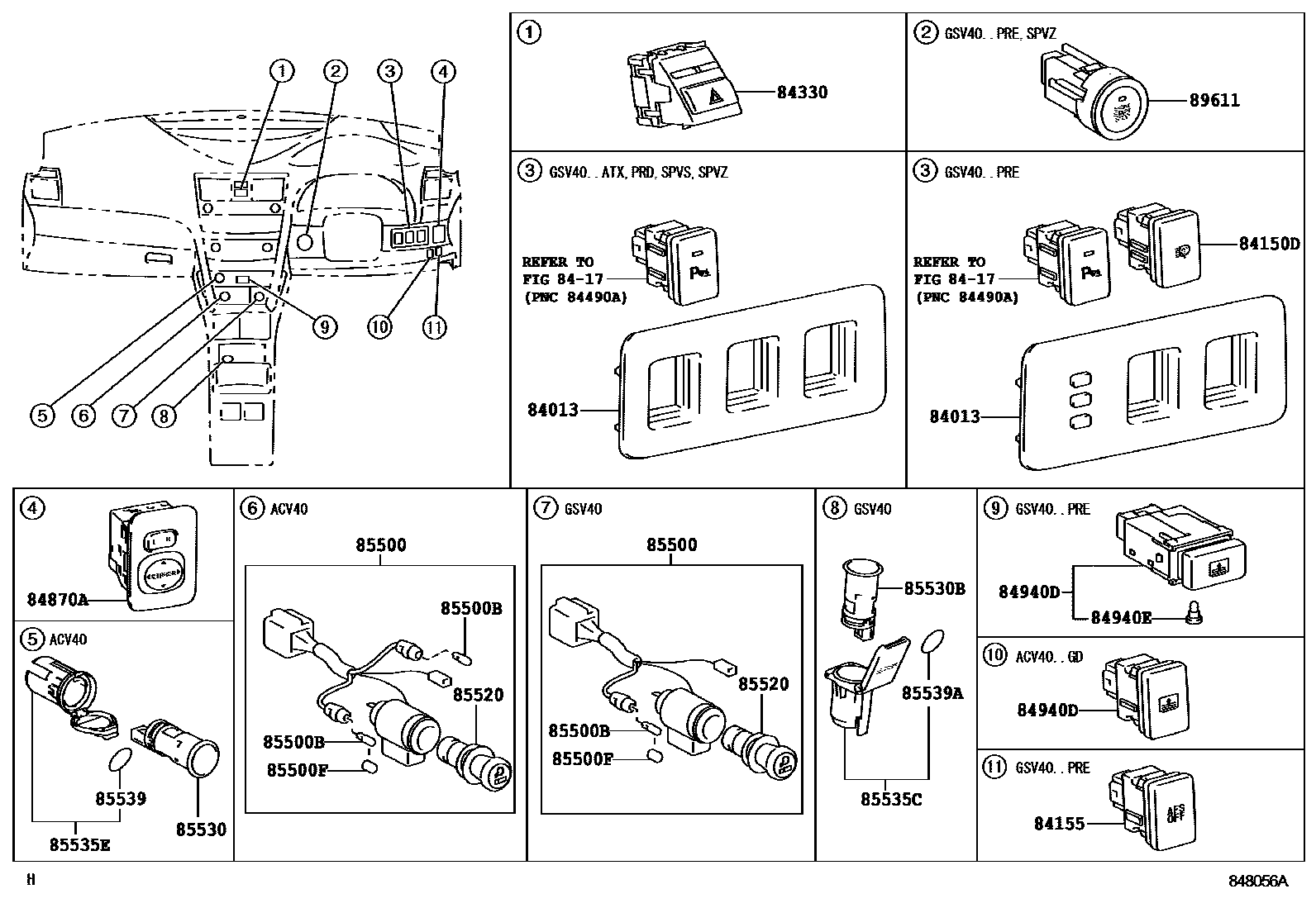

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 18 images and 98 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02028 |
| 28300 | Starter relay assembly | 28300-28010 |
| 28300D | starter cutoff relay | 90987-02027 |
| 28371 | No. 1 ignition relay | 90987-02025 |
| 28371C | No. 2 ignition relay | 90987-02027 |
| 81550T | Reversing light relay | 90987-02027 |
| 81980 | Turn signal flasher relay assembly | 81980-06030 · 81980-30170 |
| 82210J | fuse | 90982-08283 |
| 82600F | Spare fuse | 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33030 |
| 82620B | Fuse box assembly | 82620-07050 |
| 82620D | Fuse box assembly | 82620-33040 |
| 82660F | Relay assembly | 82660-07010 · 82660-33010 |
| 82660G | Relay assembly | 82660-07010 |
| 82661 | No. 1 relay box cover | 82661-07020 |
| 82662A | No. 1 relay box upper cover | 82662-33140 · 82662-33150 · 82662-33270 |
| 82662B | No. 2 relay box upper cover | 82662-33260 |
| 82663 | Relay box lower cover | 82663-33070 |
| 82663A | No. 2 relay box lower cover | 82663-33090 |
| 82672A | Junction box cover | 82672-33320 |
| 82673A | Junction box bracket | 82673-33020 |
| 82720 | Engine room junction box assembly | 82720-33100 · 82720-33110 · 82720-33140 · 82720-33150 |
| 82730 | Instrument panel junction box assembly | 82730-33510 · 82730-33520 · 82730-33530 · 82730-33540 · 82730-33550 · 82730-33560 · 82730-33830 · 82730-33840 · 82730-33850 · 82730-33860 · 82730-33870 · 82730-33880 · 82730-33B90 · 82730-33C00 · 82730-33C10 · 82730-33C20 · 82730-33C30 · 82730-33C40 · 82730-33D50 |
| 82740 | Engine room relay box assembly | 82740-33010 · 82740-33020 |
| 82743 | Engine room No. 3 relay box | 82743-33030 |
| 82824L | Shorting pin | 82824-41010 |
| 83320 | Fuel gauge sensor assembly | 83320-33100 · 83320-33110 · 83320-33130 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-0K020 · 84052-71010 |
| 84140 | Headlight dimmer switch assembly | 84140-06280 · 84140-06281 · 84140-06360 · 84140-06361 · 84140-06370 · 84140-06430 |
| 84150D | Headlight washer switch assembly | 84150-33050 |
| 84152 | Headlight beam height adjustment switch | 84152-52100 |
| 84155 | Headlight rotary main switch | 84155-28010 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-33130 · 84250-33210 · 84250-33240 · 84250-33250 |
| 84306 | Spiral cable sub-assembly | 84306-06110 · 84306-06120 · 84306-48030 |
| 84340 | brake light switch assembly | 84340-69015 · 84340-69025 · 84340-69075 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84450 | Ignition or starter switch assembly | 84450-0K010 |
| 84540 | Neutral start switch assembly | 84540-33010 · 84540-48010 |
| 84550 | Parking brake switch assembly | 84550-16060 · 84550-33010 |
| 84650 | Windshield wiper switch assembly | 84652-06160 · 84652-06230 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06220 · 84652-0K061 |
| 84810 | Electric window lift switch assembly | 84810-06050 |
| 84810D | Rear electric window lift switch assembly | 84810-06050 |
| 84820 | Electric window lift main switch assembly | 84820-06090 · 84820-06110 · 84820-0D130 · 84820-0D140 · 84820-33270 · 84820-52250 |
| 84922B | Front right electric seat switch | 84070-33040 · 84922-06070 · 84922-06090 |
| 84922C | Front left electric seat switch | 84922-06060 · 84922-06080 |
| 84930 | Door control switch assembly | 84930-12250 · 84930-42030 |
| 84940D | Rear sunshade switch assembly | 84940-33040 · 84940-33050 |
| 84940E | Rear sunshade light bulb | 90010-01121 |
| 85432 | Key interlock solenoid valve | 85432-0K010 |
| 85500 | Cigarette lighter assembly | 85500-33050 · 85500-33060 |
| 85500B | Cigarette lighter bulb | 90981-11014 · 90981-11018 |
| 85500F | Cigarette lighter bulb cover | 84998-10510 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85530B | No. 1 rear power socket assembly | 85530-42010 |
| 85535C | Rear power outlet cover | 85535-33060 · 85535-33130 |
| 85539 | Power socket attention labels | 85539-60020 |
| 85539A | Note label on rear power outlet | 85539-60020 |
| 85903 | Shift lock control ECU sub-assembly | 85903-52010 · 85903-52020 |
| 85911D | Rear sun visor relay | 85911-06020 |
| 85912 | defogger relay | 90987-04010 |
| 85916D | fog light relay | 90987-02027 |
| 85916N | Tail light relay | 90987-02027 |
| 85924 | Ignition control relay | 90987-02025 |
| 85927 | cooling fan relay | 90987-02025 · 90987-02027 · 90987-T2001 · 90987-T2002 |
| 85927A | Cooling fan relay No. 2 | 90080-87009 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 · 90987-T2001 |
| 85930 | Electric window relay assembly | 90987-02027 |
| 85930G | ACC relay | 90987-02025 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 85940 | Windshield wiper relay assembly | 85940-33120 · 85940-33180 |
| 85942 | Headlight washer control relay | 85942-30020 · 85942-58010 |
| 87130F | No. 1 battery blower relay | 90987-02027 |
| 87290F | ECO switch assembly | 87290-33040 |
| 87346K | PTC heater relay | 90987-02025 |
| 89111 | Network gateway ECU | 89111-33010 · 89111-33040 |
| 89245B | steering sensor | 89245-33050 |
| 89257 | Cooling fan ECU | 89257-30080 |
| 89407 | Right rear height control sensor sub-assembly | 89407-41010 |
| 89430 | Exterior rearview mirror control ECU assembly | 89430-33100 |
| 89451A | shift lever position sensor | 89451-48010 |
| 89465 | oxygen sensor | 89465-06210 · 89465-06220 · 89465-06230 |
| 89467B | air fuel ratio sensor | 89467-33080 · 89467-33090 · 89467-33130 · 89467-33170 · 89467-33180 · 89467-33190 |
| 89530C | Transmission control ECU assembly | 89530-33020 · 89530-33021 · 89530-33030 · 89530-33031 · 89530-33160 |
| 895A0 | Brake light control relay assembly | 895A0-33010 |
| 895A1 | brake light control relay | 895A1-12010 |
| 89611 | One-button start switch | 89611-33010 · 89611-33011 · 89611-33012 · 89611-52010 · 89611-52011 · 89611-52012 · 89611-52013 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-33090 |
| 89658 | Power steering ECU bracket | 89658-33020 |
| 89940 | Headlight rotating ECU assembly | 89940-33030 · 89940-33160 · 89940-33170 |
| 89960 | Headlight beam height adjustment ECU assembly | 89960-33260 |
