Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

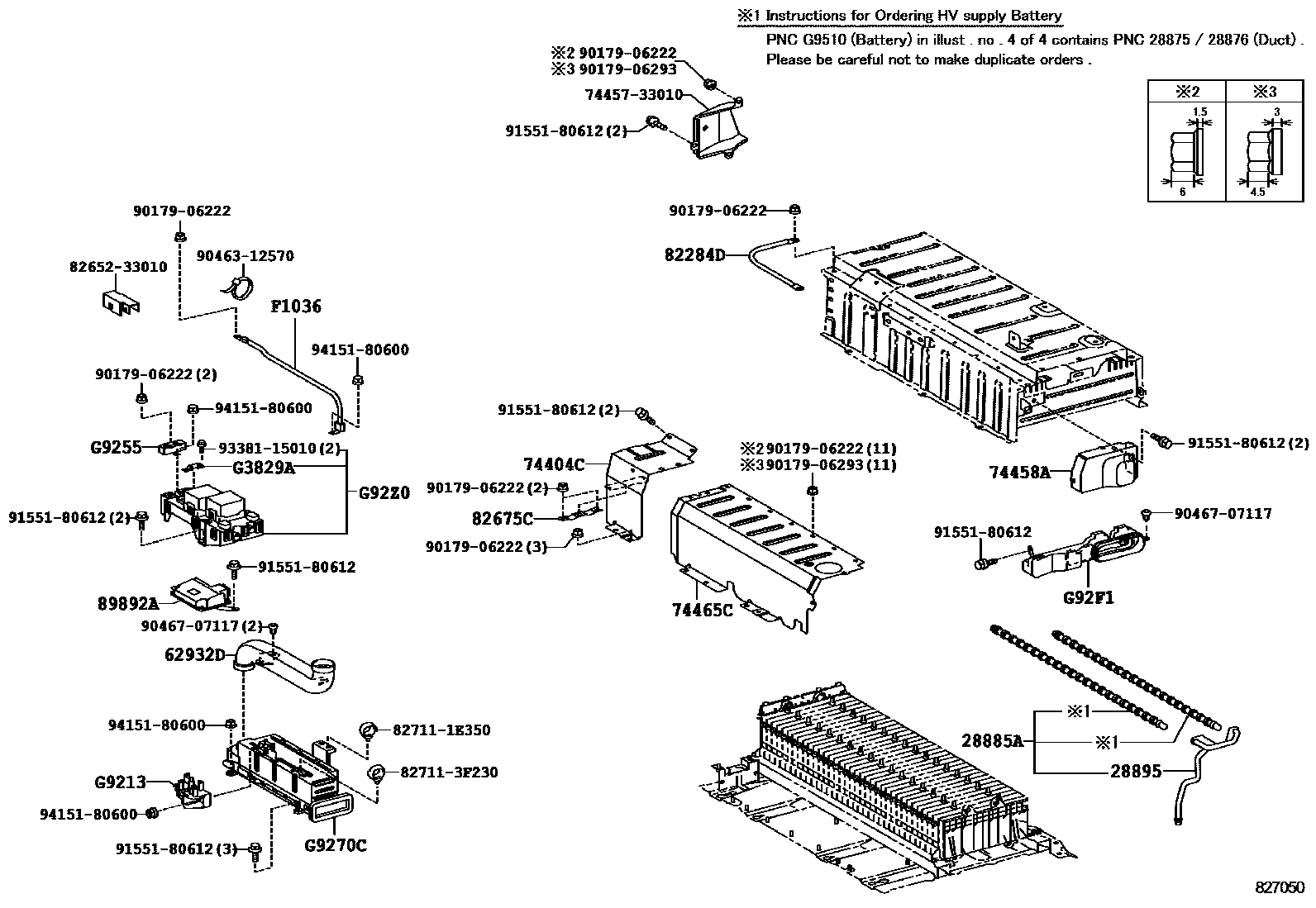

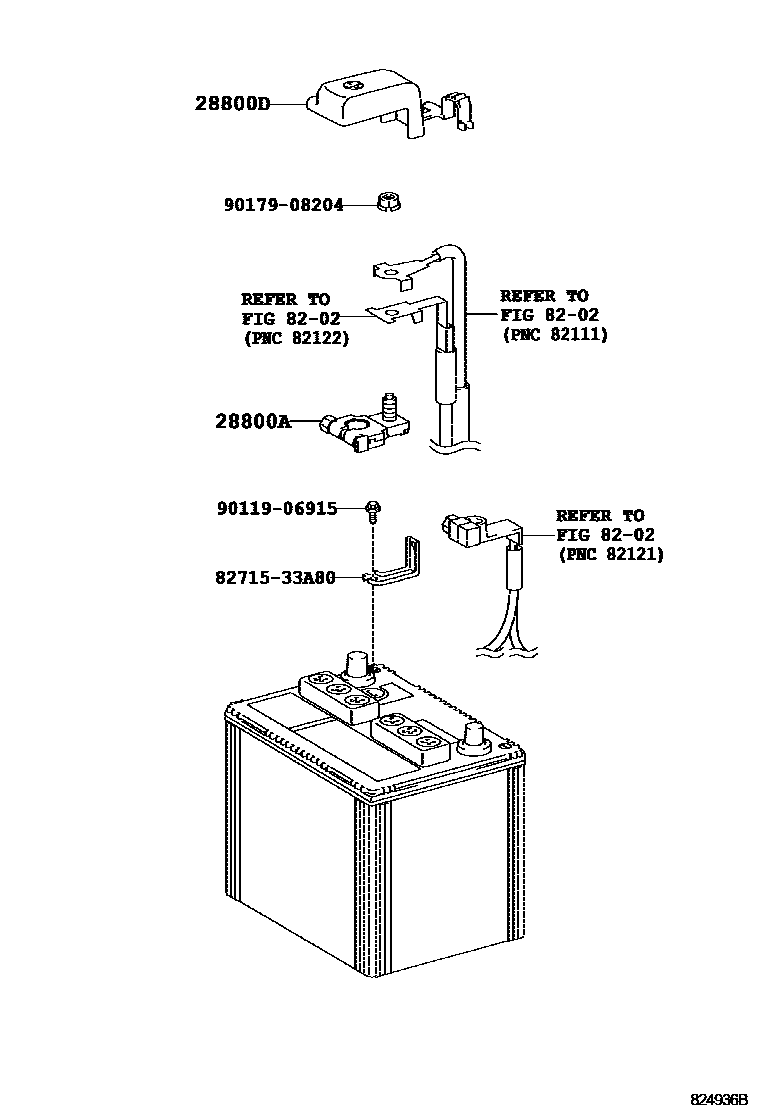

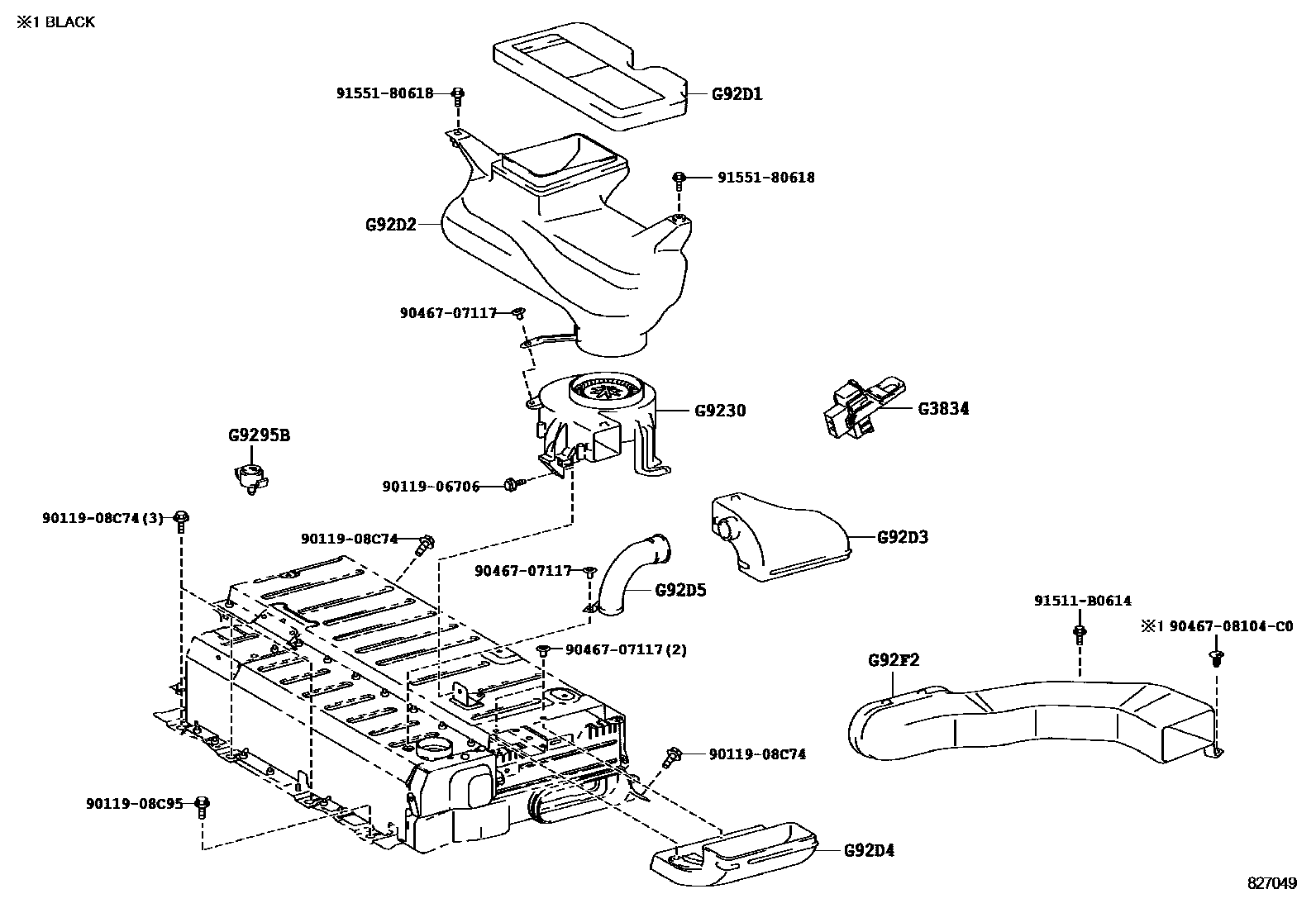

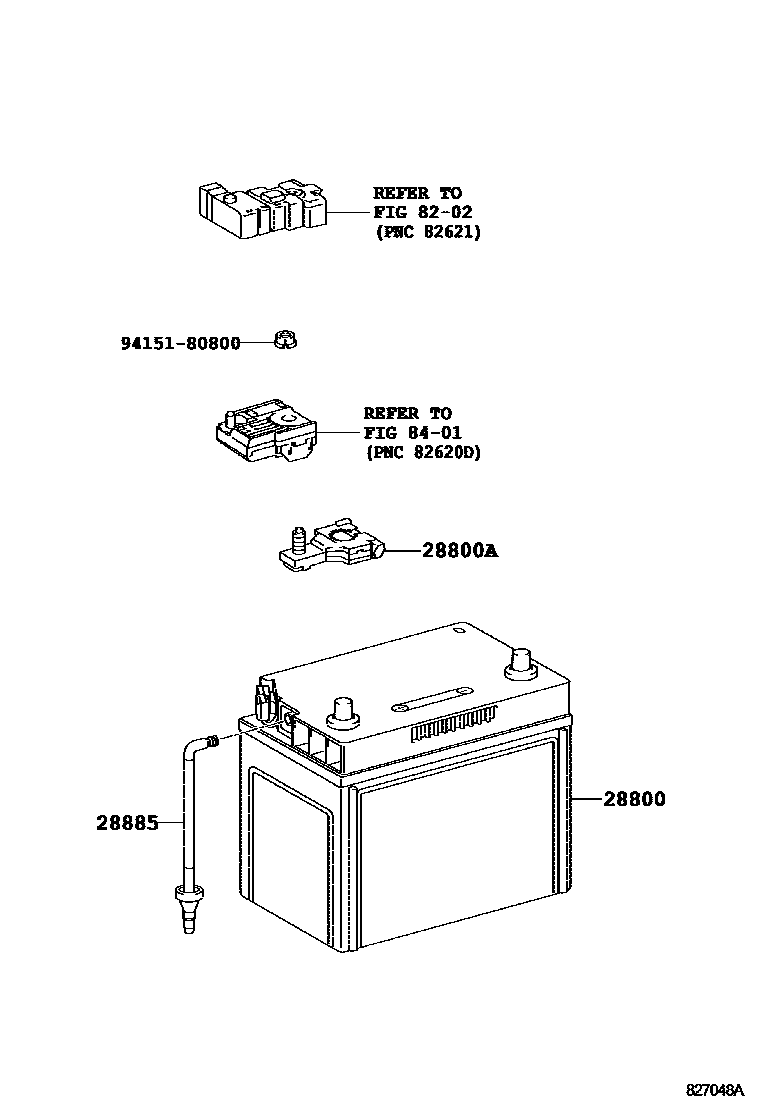

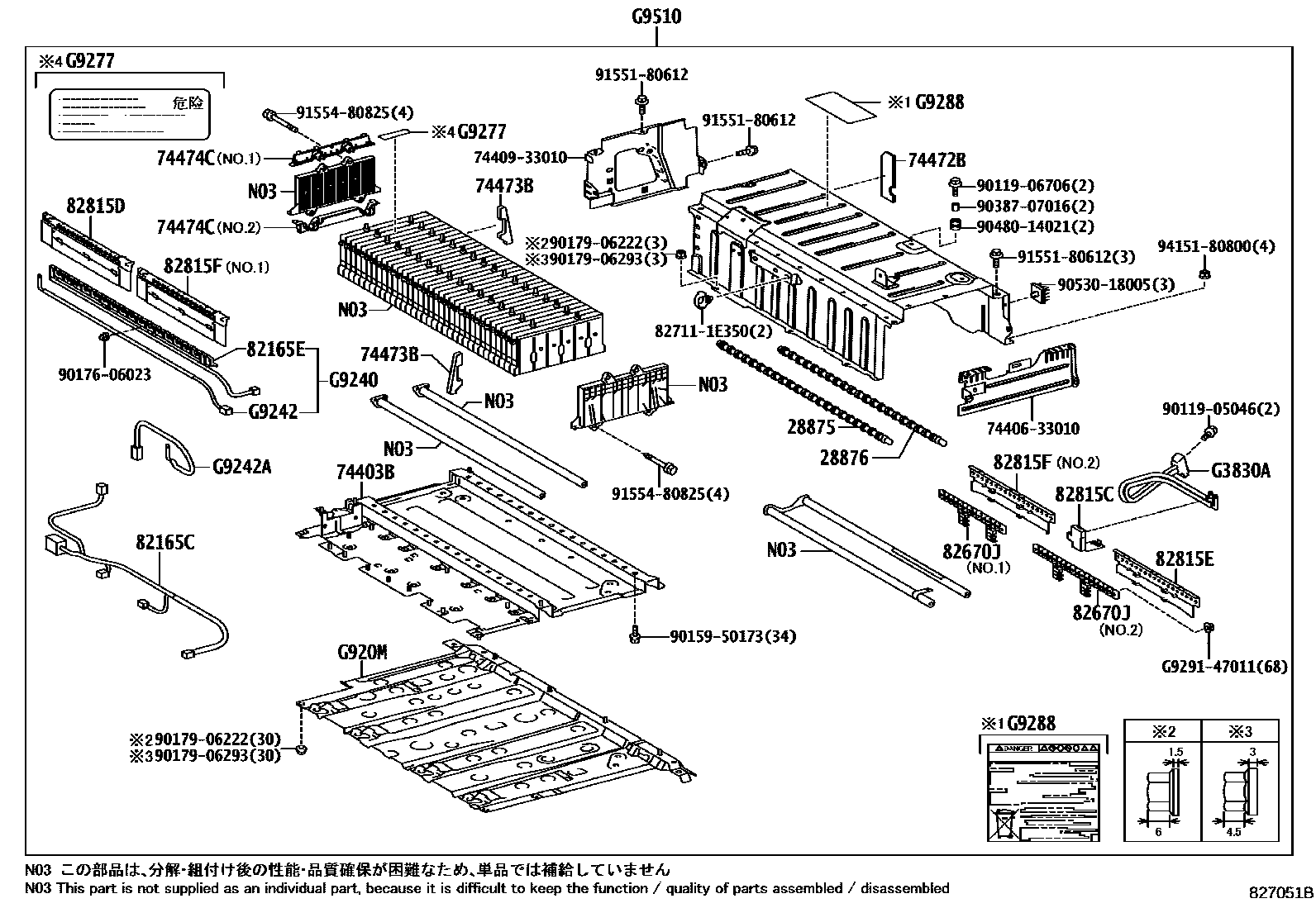

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-28060 · 28800-28061 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05061 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 |
| 28875 | Battery No. 1 insulation tube | 28875-28020 |
| 28876 | Battery No. 2 insulation tube | 28876-28020 |
| 28885 | Battery room ventilation hose | 28885-28080 |
| 28885A | Battery room ventilation hose | 28885-28090 |
| 28895 | Battery insulation rubber | 28895-28040 |
| 62932D | Internal ventilation duct | 62963-33010 |
| 74403B | Battery bracket sub-assembly | 74403-33030 |
| 74404C | Battery upper bracket sub-assembly | 74404-33130 |
| 74458A | No. 1 battery cover | 74458-33010 |
| 74465C | No. 5 battery bracket plate | 74465-33010 |
| 74472B | Battery carrier gasket | 74472-33010 |
| 74473B | No. 3 battery holder cushion | 74473-47020 |
| 74474C | No. 2 battery separator | 74473-47010 · 74474-47010 |
| 82165C | No. 2 frame wiring harness | 82165-33020 |
| 82165E | Battery pack wiring harness | 82165-33030 |
| 82284D | Ground wire | 82284-33010 |
| 82670J | Junction box assembly | 82670-33120 · 82670-47070 |
| 82675C | Terminal block | 82675-33070 |
| 82815C | No. 1 wire harness protector cover | 82815-33320 |
| 82815D | No. 2 wire harness protector cover | 82815-47130 |
| 82815E | No. 3 wire harness protector cover | 82815-47140 |
| 82815F | No. 4 wire harness protector cover | 82815-33240 · 82815-33250 · 82815-47140 |
| 89892A | battery voltage sensor | 89892-33010 |
| F1036 | No. 1 converter wiring harness sub-assembly | F1036-33010 |
| G3829A | Electric vehicle fuse | 90982-11051 |
| G3830A | Electric vehicle battery plug assembly | G3830-33011 |
| G3834 | Service plug handle | G9530-30020 |
| G920M | HV battery bracket sub-assembly | G920M-33010 |
| G9213 | Inverter terminals | G9213-33010 |
| G9230 | Battery cooling blower assembly | G9230-33020 |
| G9240 | Battery junction box assembly with cable | G9240-33010 |
| G9242 | Main battery cable | G9242-33020 |
| G9242A | No. 2 main battery cable | G9242-33010 |
| G9255 | Noise filter capacitor | G9255-33010 |
| G9270C | HV converter | G9270-33011 · G9270-33040 · G9270-33041 |
| G9277 | AA battery warning label | G9277-47020 |
| G9288 | Battery charging precautions label | G9288-47100 |
| G9295B | Battery cover lock | G9295-30020 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06050 |
| G92D2 | No. 2 HV battery air inlet | G92D2-06050 |
| G92D3 | No. 3 HV battery air inlet | G92D3-33010 |
| G92D4 | No. 4 HV battery air inlet | G92D4-33010 |
| G92D5 | No. 5 HV battery air inlet | G92D5-33010 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-33010 |
| G92F2 | No. 2 HV battery exhaust duct | G92F2-33010 |
| G92Z0 | HV battery junction box assembly | G92Z0-33010 |
| G9510 | HV power supply battery assembly | G9510-33040 |
