Toyota CAMRY 高位刹车灯 — Figure 8117

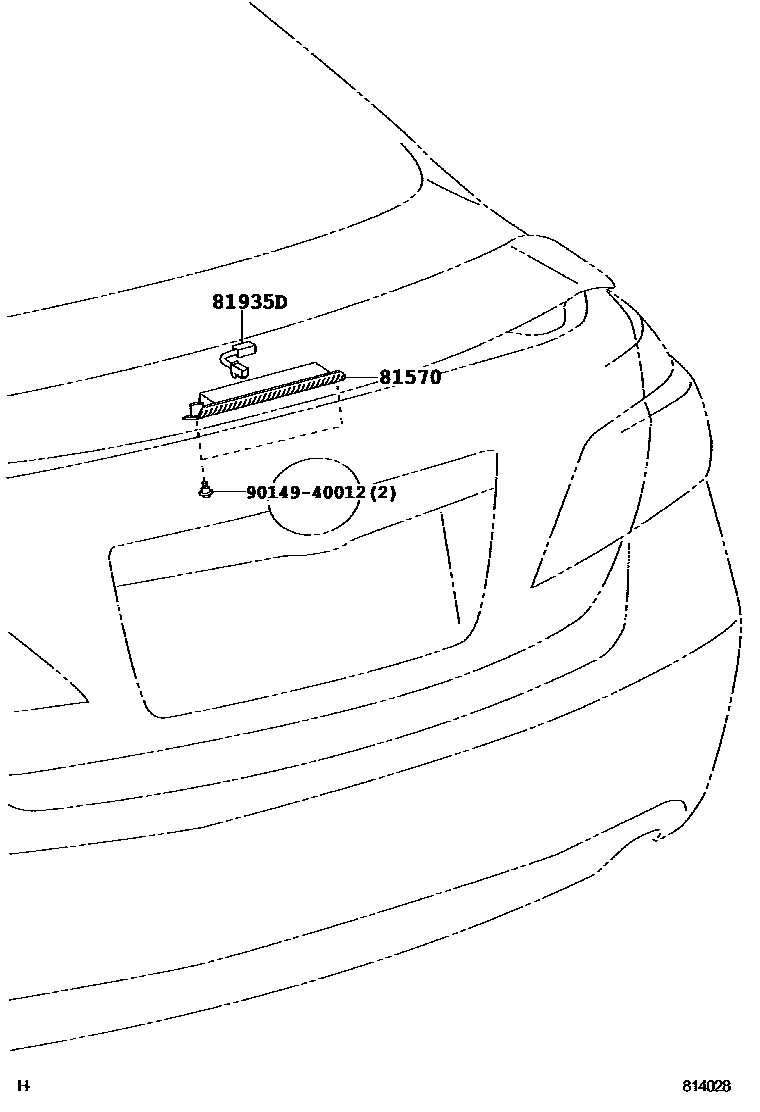

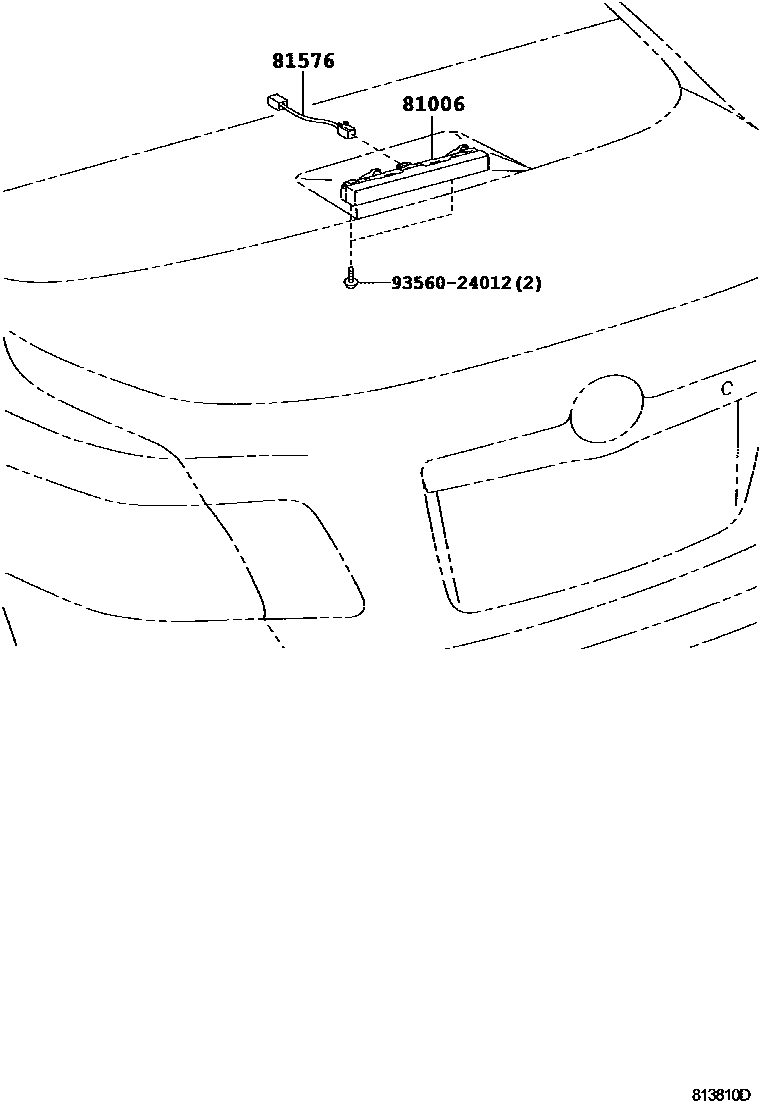

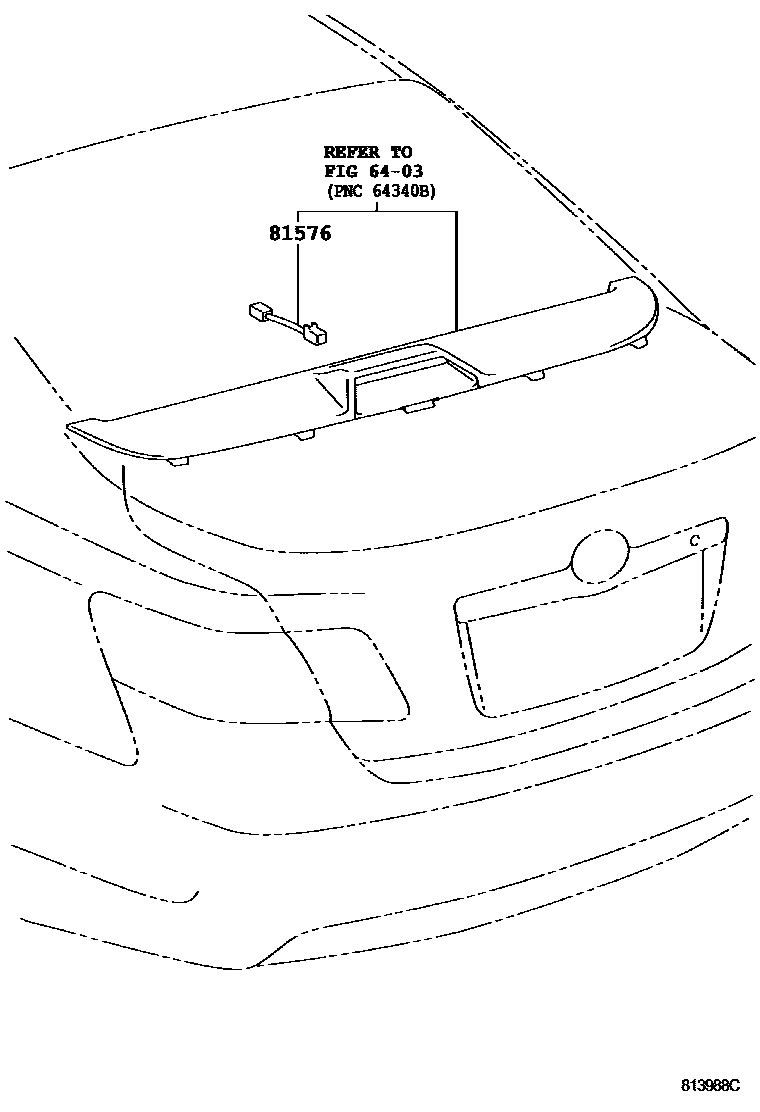

Toyota CAMRY EPC diagram 8117, 高位刹车灯, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81006 | central brake light assembly | 81006-33010 |
| 81570 | Central brake light assembly | 81570-42070 · 81570-42071 |
| 81576 | Central brake light holder and wiring harness | 81576-06020 · 81576-33010 · 81576-33011 |
| 81935D | Central brake light wire assembly | 81935-06010 |
