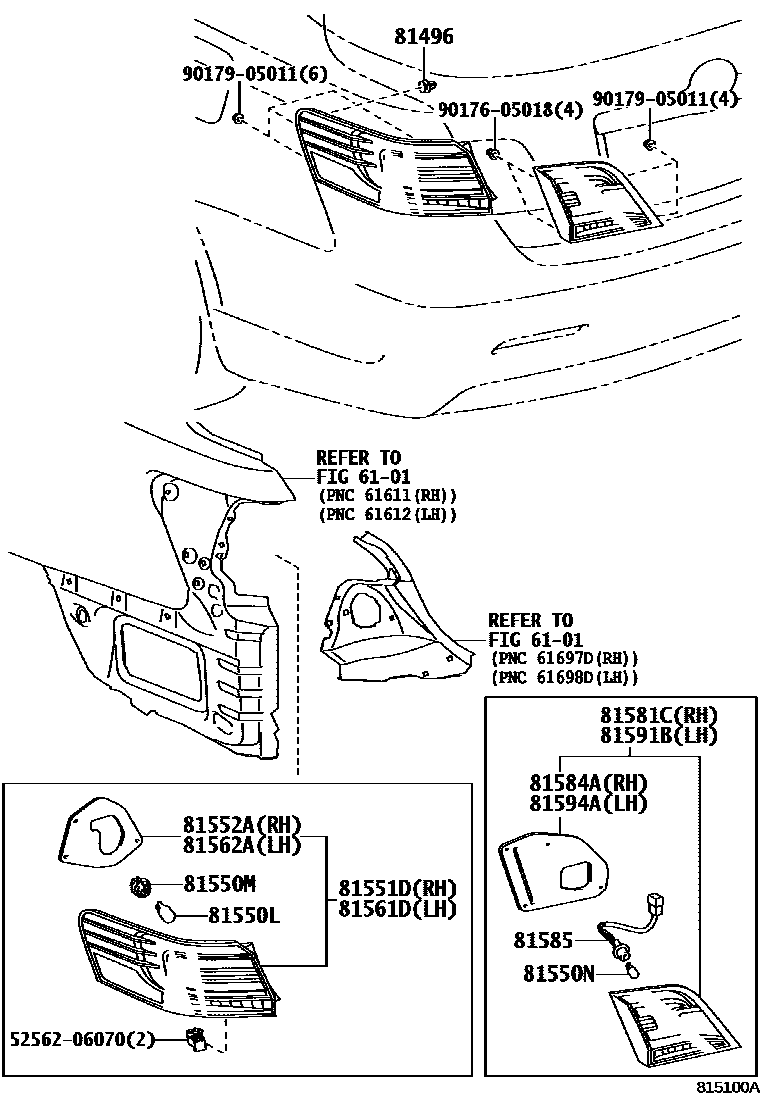

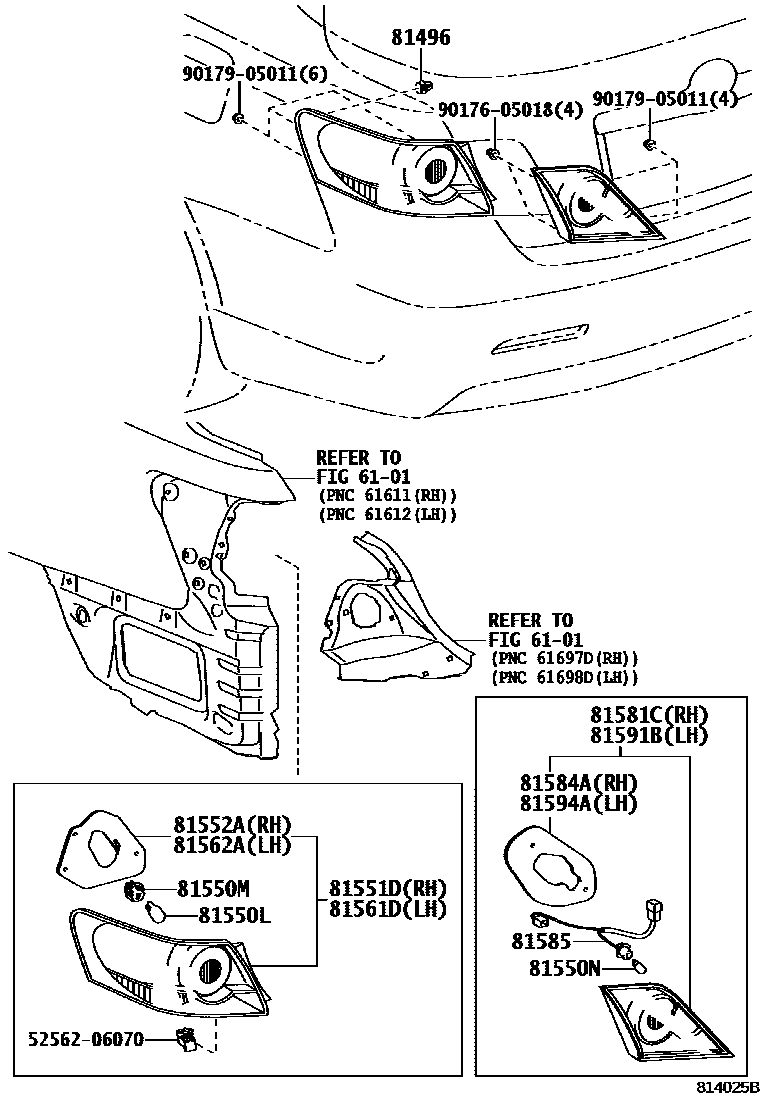

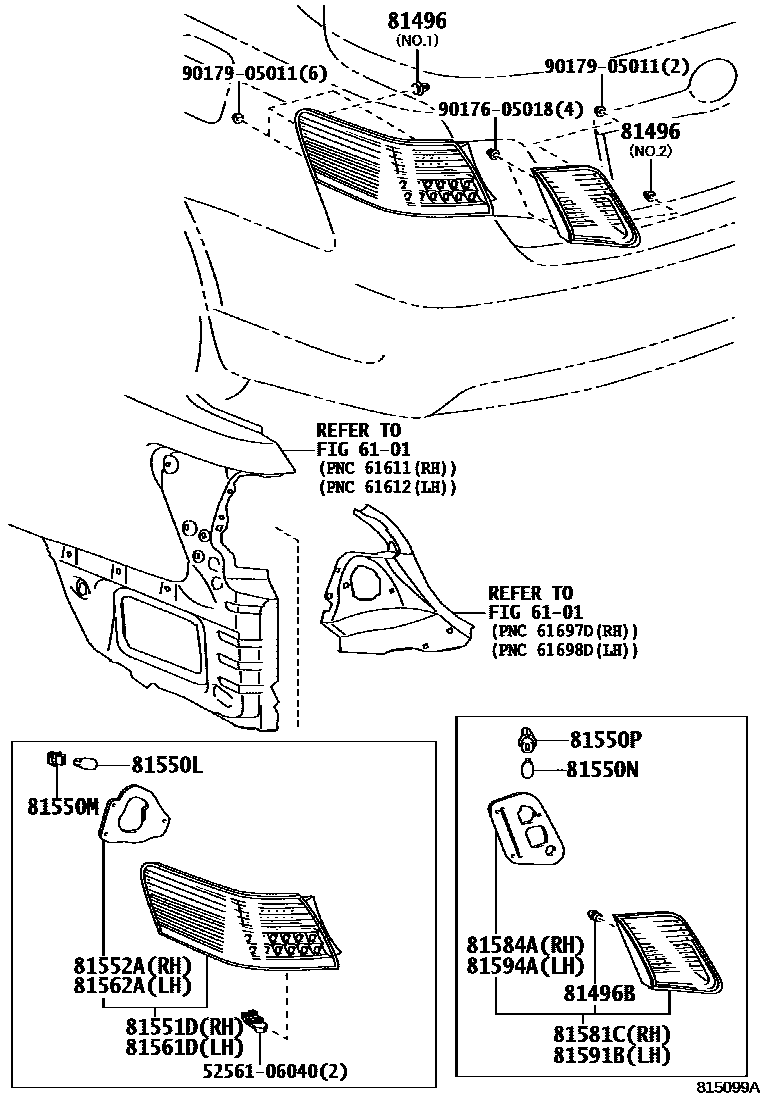

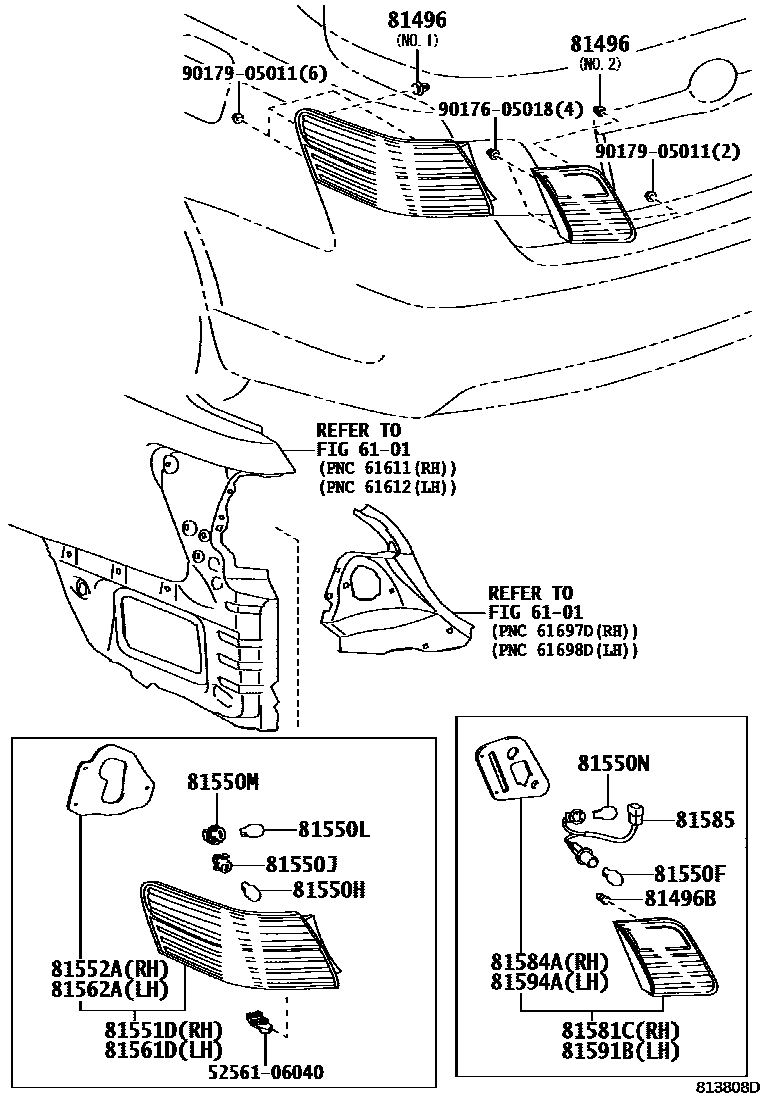

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-33010 · 81496-60010 |
| 81496B | Rear light guide block | 81496-33020 |
| 81550F | tail light bulb | 99132-12050 |
| 81550H | Tail and brake light bulbs | 99132-8Y002 |
| 81550J | Tail and brake light holders | 90075-8Y003 |
| 81550L | Rear turn signal light bulb | 90981-15021 · 90981-8Y021 · 90981-8Y440 |
| 81550M | Rear turn signal lamp holder | 90069-81071 · 90069-8Y440 · 90075-8Y004 |
| 81550N | reversing light bulb | 90981-11059 · 90981-8Y059 |
| 81550P | Reversing light lamp holder | 81585-06350 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-06271 · 81551-06301 · 81551-06410 · 81551-06420 · 81551-06440 · 81551-06460 · 81551-8Y005 |
| 81552A | Right rear combination light gasket | 81552-06271 · 81552-06410 · 81552-06411 · 81552-06412 · 81552-06440 · 81552-06441 · 81552-06442 · 81552-8Y004 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-06271 · 81561-06301 · 81561-06410 · 81561-06420 · 81561-06440 · 81561-06460 · 81561-8Y005 |
| 81562A | Left rear combination light gasket | 81552-06271 · 81552-06410 · 81552-06411 · 81552-06412 · 81552-06440 · 81552-06441 · 81552-06442 · 81552-8Y004 |
| 81581C | Right rear light lampshade and lamp body | 81581-06161 · 81581-06201 · 81581-06320 · 81581-06330 · 81581-06350 · 81581-06370 · 81671-8Y003 |
| 81584A | Right rear light gasket | 81584-06161 · 81584-06320 · 81584-06321 · 81672-8Y001 |
| 81585 | Rear lamp holder and wiring harness | 81585-06161 · 81585-06320 · 81675-8Y003 |
| 81591B | Left rear light shade and body | 81591-06161 · 81591-06201 · 81591-06320 · 81591-06330 · 81591-06350 · 81591-06370 · 81681-8Y003 |
| 81594A | Left rear light gasket | 81584-06161 · 81584-06320 · 81584-06321 · 81672-8Y001 |
