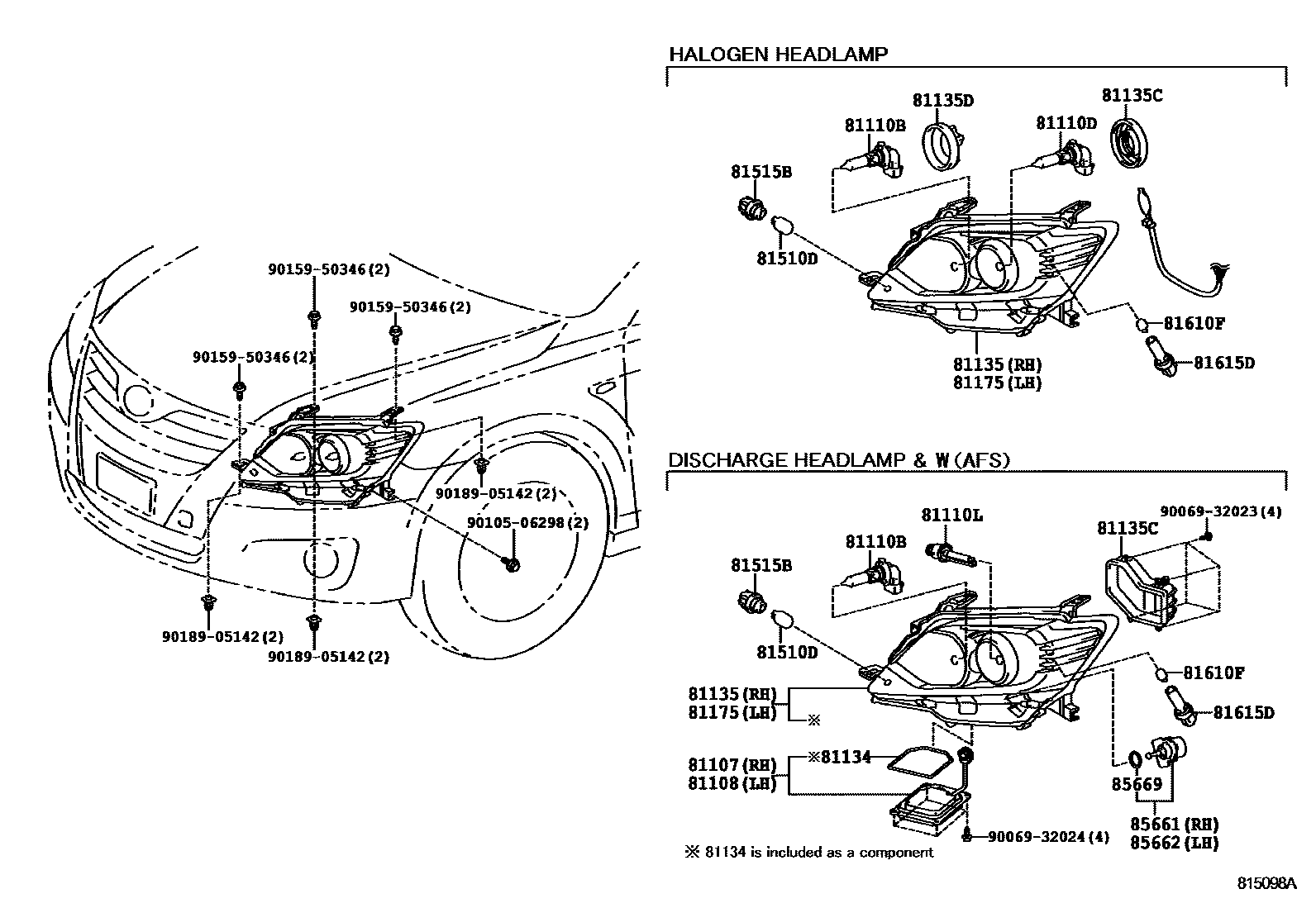

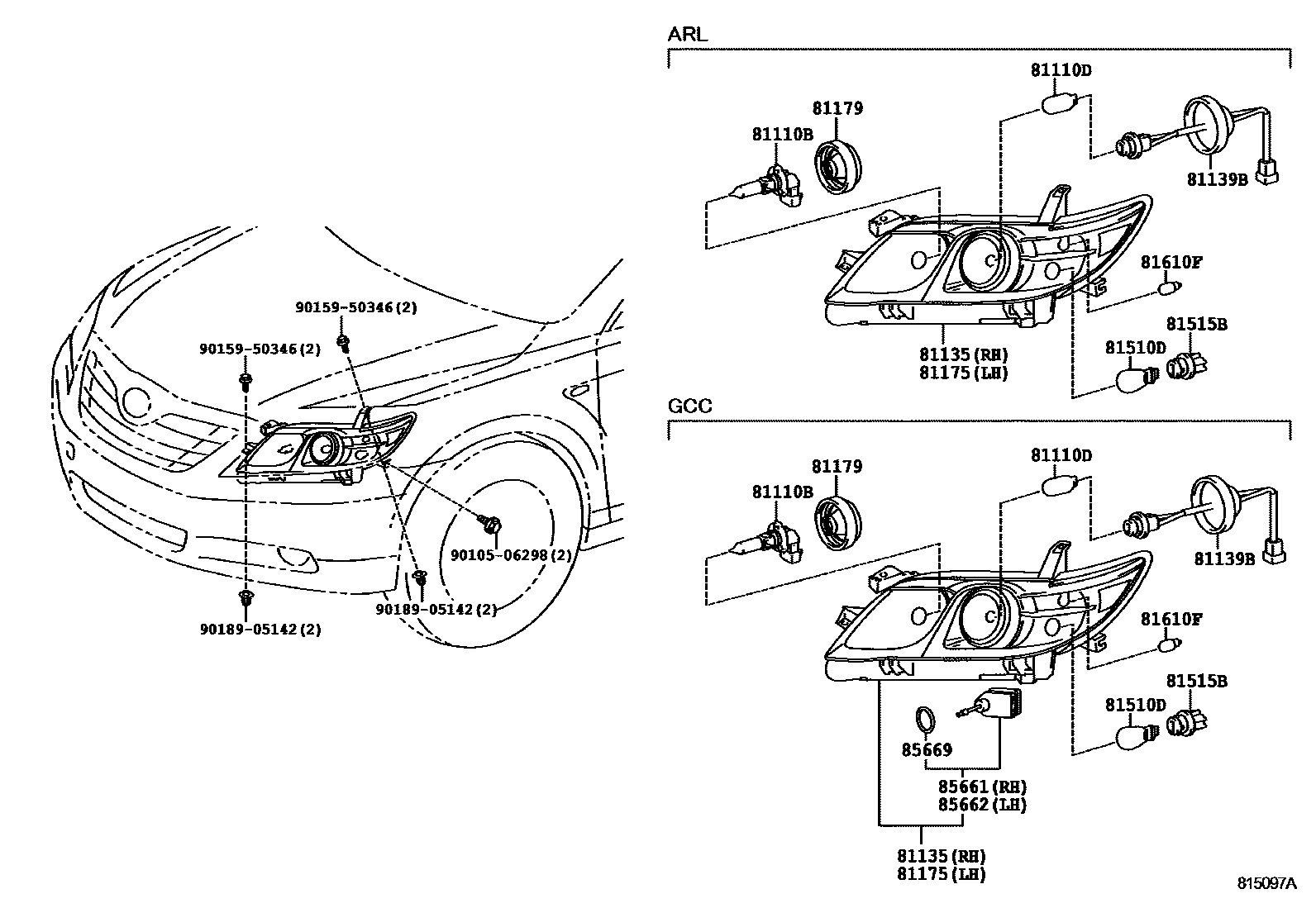

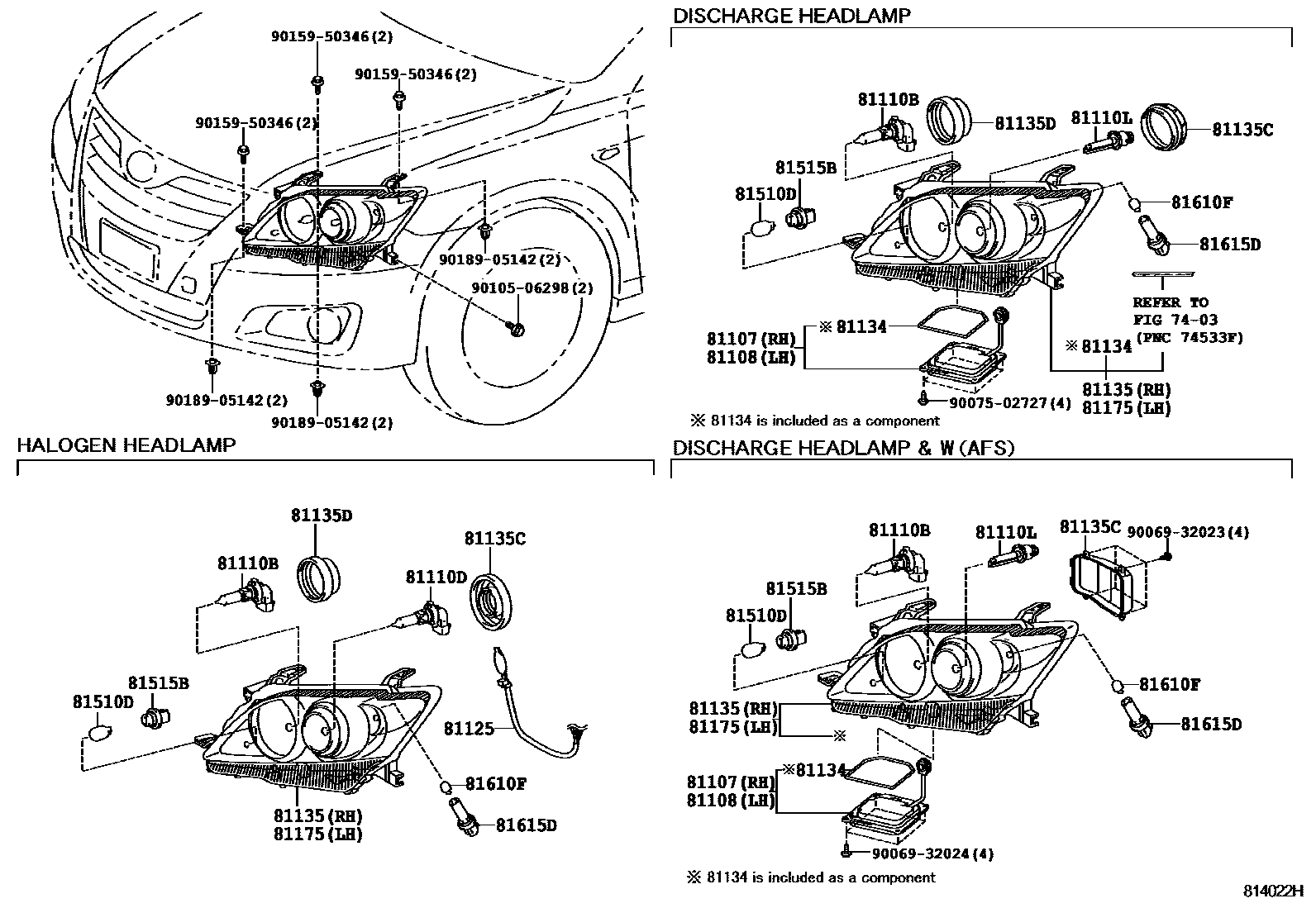

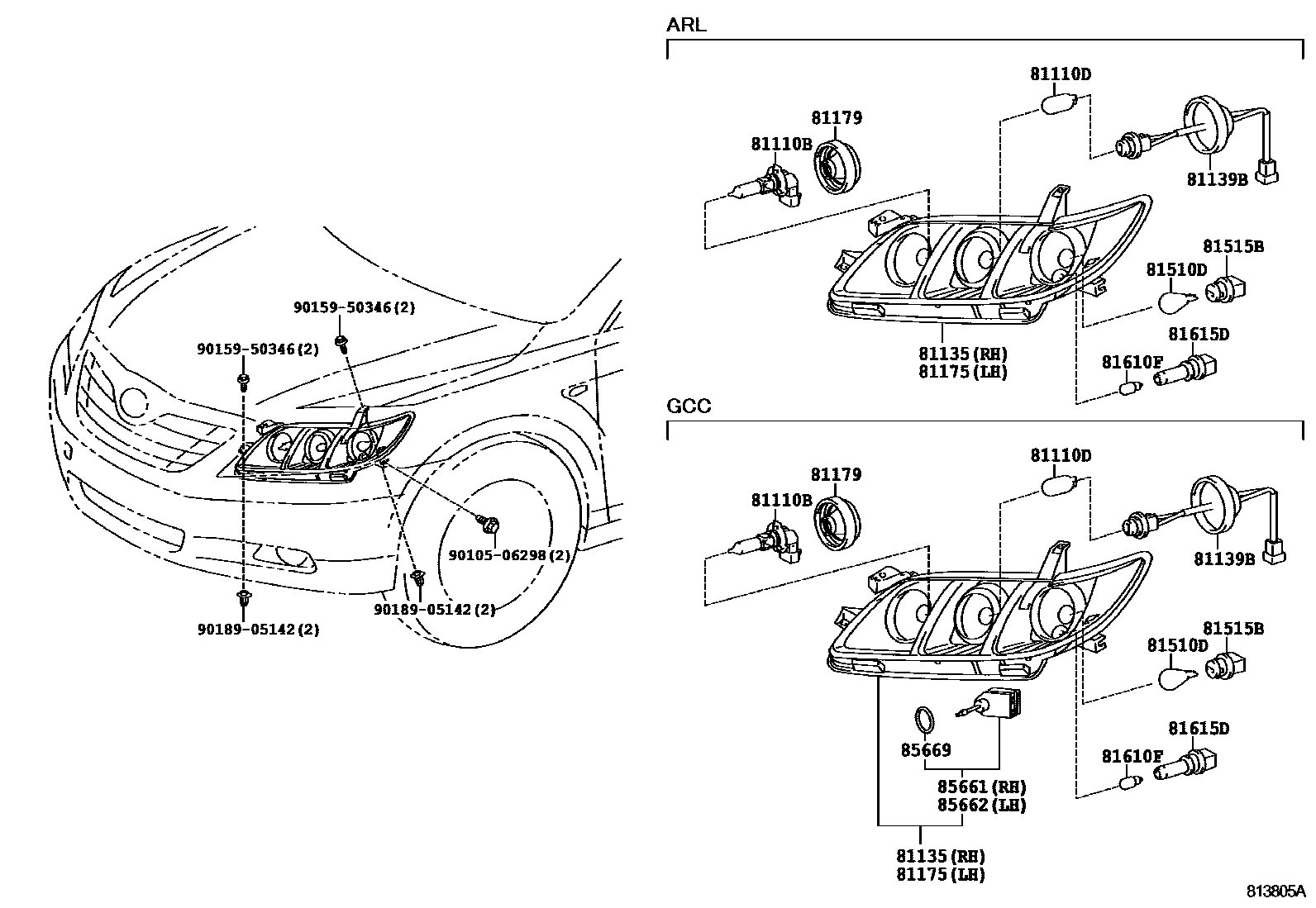

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-06231 · 81107-06232 · 81107-8C004 |
| 81108 | Left headlight control ECU sub-assembly | 81107-06231 · 81107-06232 · 81107-8C004 |
| 81110B | Bulb (for headlight No. 1) | 90981-13066 · 90981-8Y001 |
| 81110D | Bulb (for headlight No. 2) | 90981-13075 · 90981-8Y003 |
| 81110L | Discharge headlight bulb | 90981-20013 · 90981-20021 · 90981-20024 |
| 81125 | headlight wire | 81125-06241 |
| 81134 | headlight gasket | 81117-8C001 · 81134-06231 · 90075-68007 |
| 81135 | Right headlight assembly assembly | 81130-06341 · 81130-06351 · 81130-06361 · 81130-06650 · 81130-06700 · 81130-06710 · 81130-06711 · 81130-06720 · 81130-06721 · 81130-06730 · 81130-06731 · 81130-06740 · 81130-06741 · 81130-06750 · 81130-06770 · 81130-06771 · 81130-8Y006 · 81130-8Y007 · 81130-8Y008 · 81130-8Y009 · 81145-06221 · 81145-06371 · 81145-06460 · 81145-06680 · 81145-8C005 |
| 81135C | No. 1 headlight rear cover | 81135-06231 · 81135-06690 · 81135-8C005 · 81139-06241 · 81175-06231 · 81175-06460 |
| 81135D | No. 2 headlight rear cover | 81135-06760 · 81135-13270 · 81135-8C006 |
| 81139B | headlight lamp holder | 81128-06710 · 81128-06711 · 81128-06770 · 81128-06771 · 81139-8Y002 |
| 81175 | Left headlight assembly assembly | 81170-06341 · 81170-06351 · 81170-06361 · 81170-06650 · 81170-06700 · 81170-06710 · 81170-06711 · 81170-06720 · 81170-06721 · 81170-06730 · 81170-06731 · 81170-06740 · 81170-06741 · 81170-06750 · 81170-06770 · 81170-06771 · 81170-8Y006 · 81170-8Y007 · 81170-8Y008 · 81170-8Y009 · 81185-06221 · 81185-06371 · 81185-06460 · 81185-06680 · 81185-8C005 |
| 81179 | Headlight lamp holder cover | 81179-8Y001 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 · 99132-8Y001 |
| 81515B | Front turn signal lamp holder | 81515-8Y002 · 90069-81073 · 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90069-81043 · 90069-81072 · 90075-8C006 |
| 85661 | Right headlight beam height adjustment motor | 85661-28010 · 85661-28011 · 85661-8Y002 |
| 85662 | Left headlight beam height adjustment motor | 85661-8Y002 · 85691-28010 · 85691-28011 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-8Y002 · 90075-99120 |
