Toyota CAMRY accelerator pedal connecting rod — Figure 7801

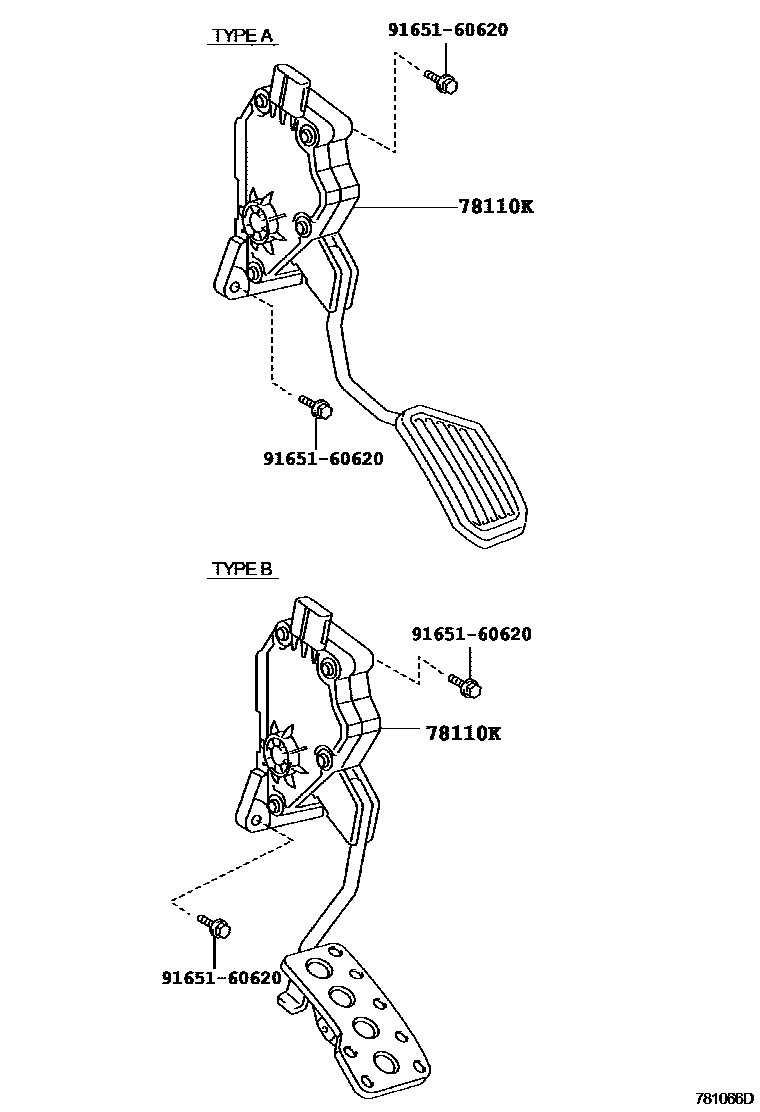

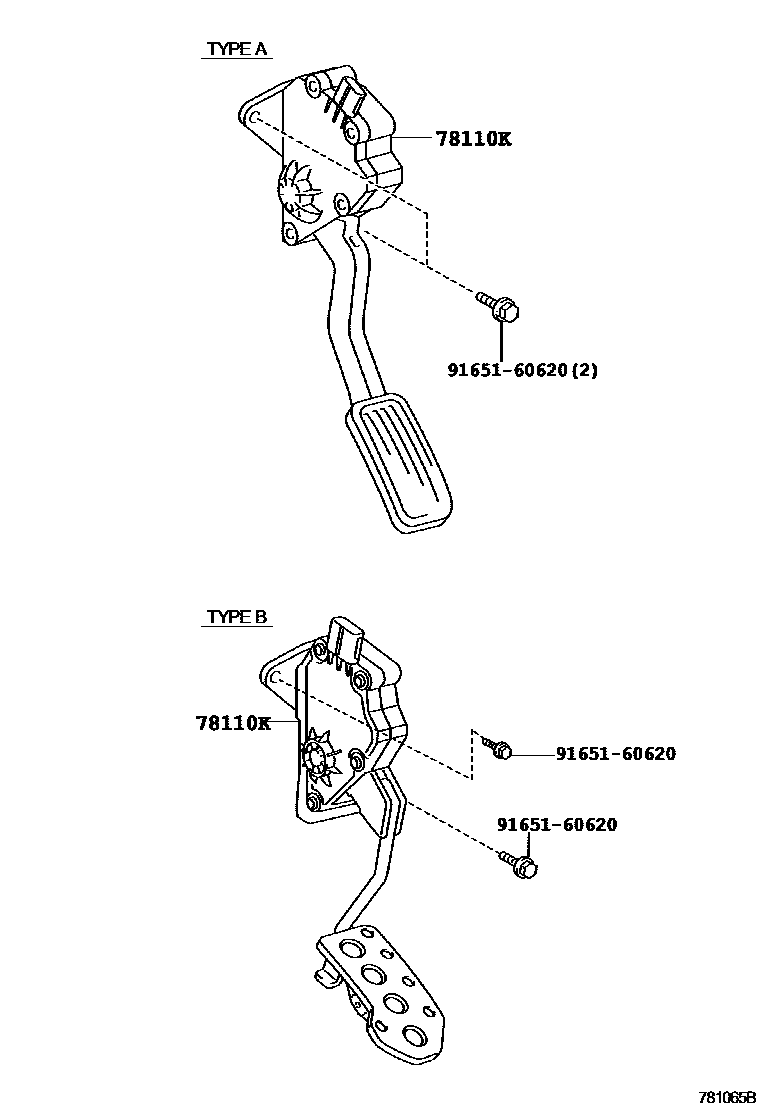

Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 1 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-33010 · 78110-33011 · 78110-33020 · 78110-33050 · 78110-33051 · 78110-33060 · 78110-33110 · 78110-33120 |
