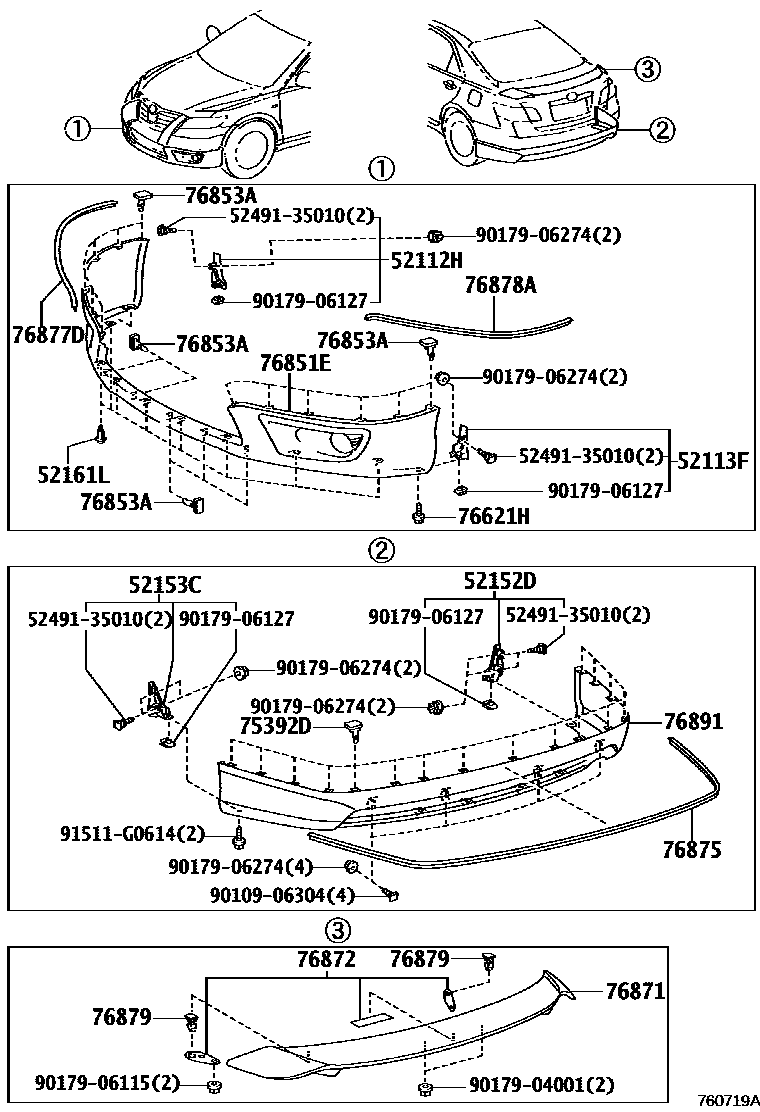

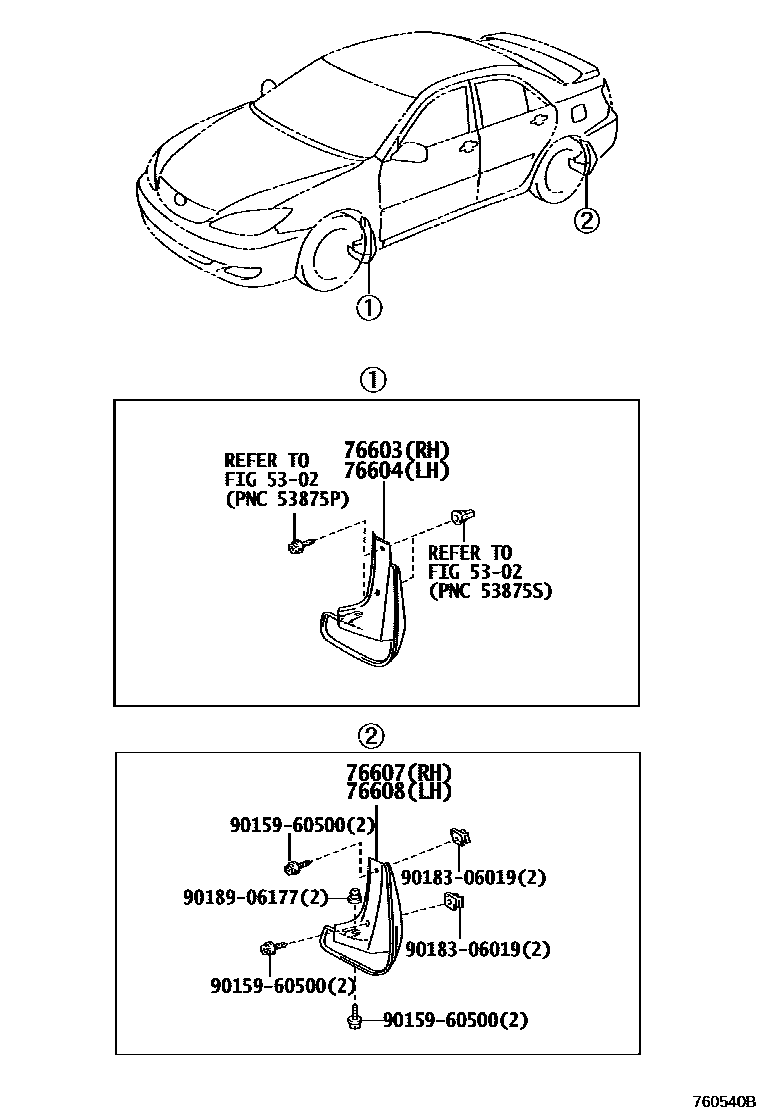

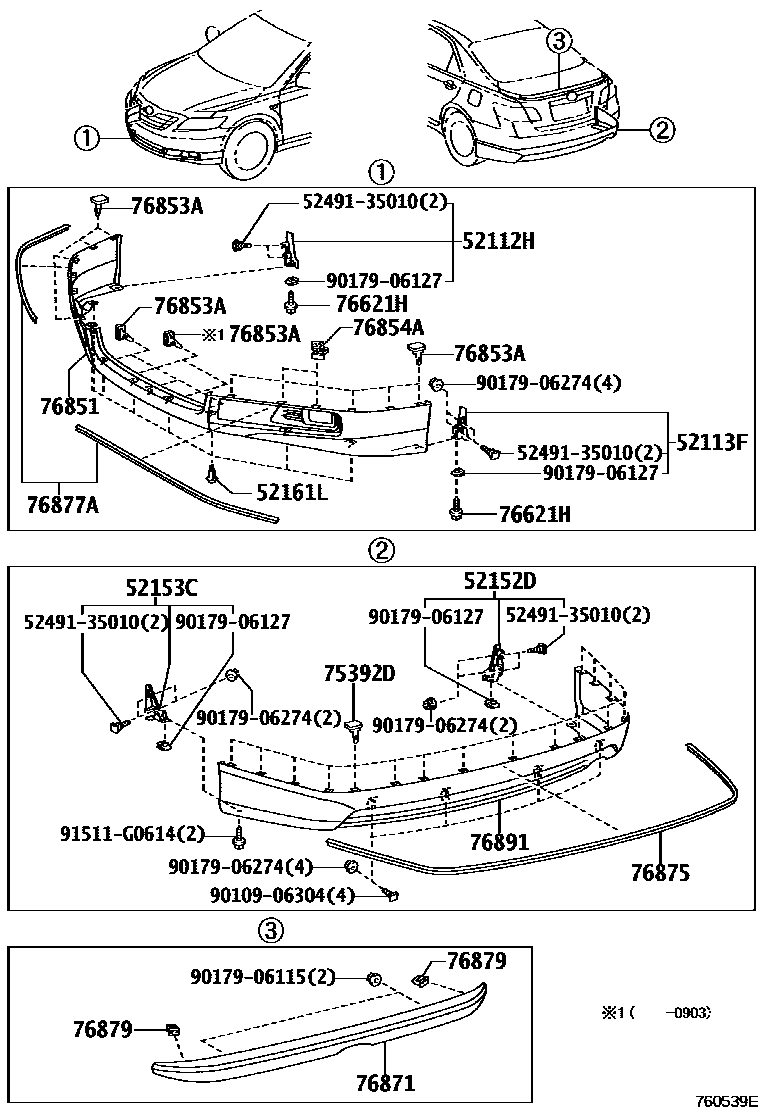

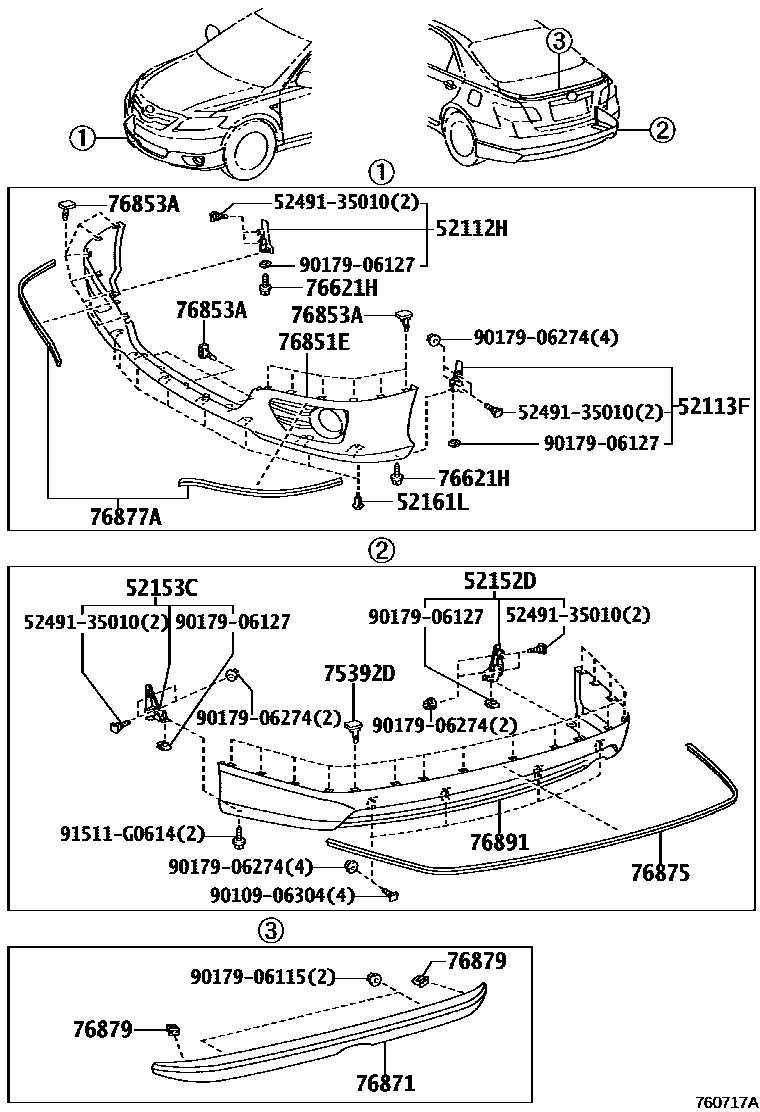

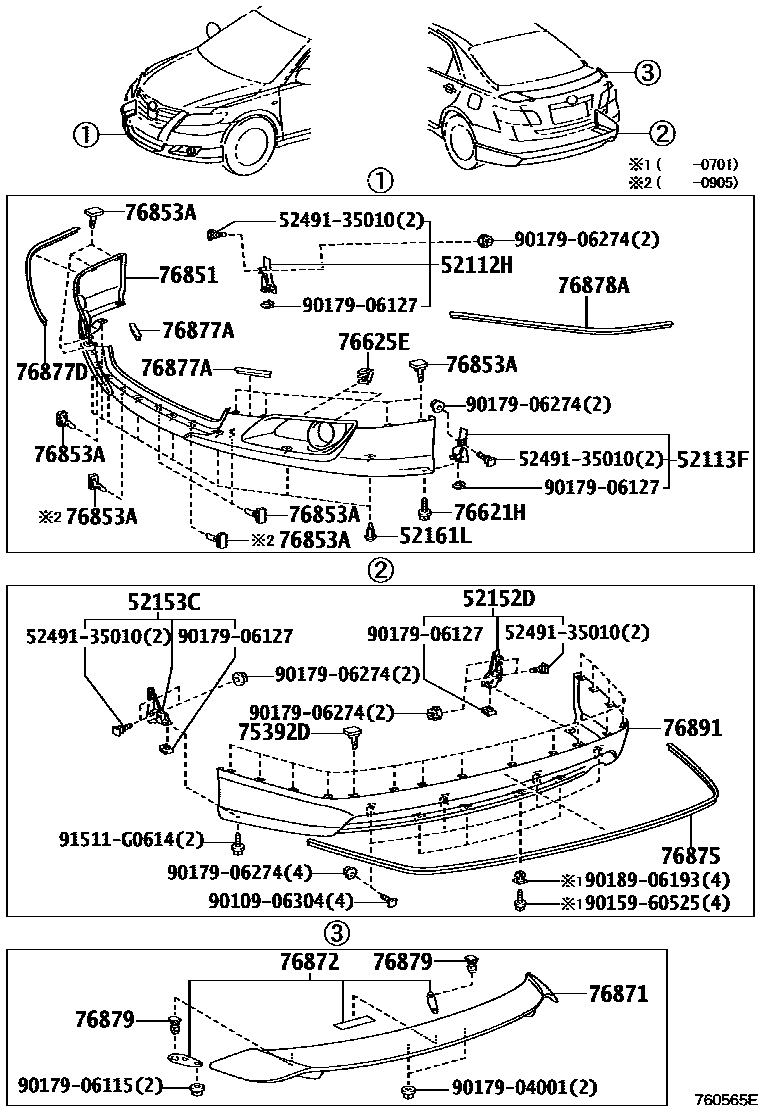

Toyota CAMRY 挡泥板和扰流板 — Figure 7601
Toyota CAMRY EPC diagram 7601, 挡泥板和扰流板, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52112H | Front bumper right extension | 52112-06020 · 52112-06030 · 52112-06050 · 52112-06060 |
| 52113F | Front bumper left extension | 52113-06020 · 52113-06030 · 52113-06050 · 52113-06060 |
| 52152D | Rear bumper right extension | 52152-06020 · 52152-06030 |
| 52153C | Rear bumper left extension | 52153-06020 · 52153-06030 |
| 52161L | front spoiler insert | 52161-16010 |
| 75392D | External protective strip fixings | 75392-35200 |
| 76603 | Right front fender fender sub-assembly | 76621-06020 · 76621-8Y001 |
| 76604 | Left front fender fender sub-assembly | 76622-06020 · 76622-8Y001 |
| 76607 | Right rear side fender sub-assembly | 76625-06020 · 76625-06040 · 76625-06901 · 76625-8Y002 |
| 76608 | Left rear side fender sub-assembly | 76626-06020 · 76626-06040 · 76626-06901 · 76626-8Y002 |
| 76621H | Bolt No. 1 | 91511-G0614 |
| 76625E | clip | 76879-44010 |
| 76851 | front spoiler cover | 76851-06903 · 76851-06904 |
| 76851E | front spoiler | 76851-06907 · 76851-06908 |
| 76853A | No. 1 front spoiler fixings | 75392-35200 |
| 76854A | No. 2 front spoiler fixing piece | 76854-33020 |
| 76871 | rear spoiler | 76085-06901 · 76871-06907 |
| 76872 | No. 1 rear spoiler protective strip | 76872-09010 |
| 76879 | No. 1 rear spoiler clip | 76879-12040 · 76879-24020 |
| 76891 | No. 1 rear spoiler | 76891-06903 · 76891-06904 |
