Toyota CAMRY 后防护条 — Figure 7504

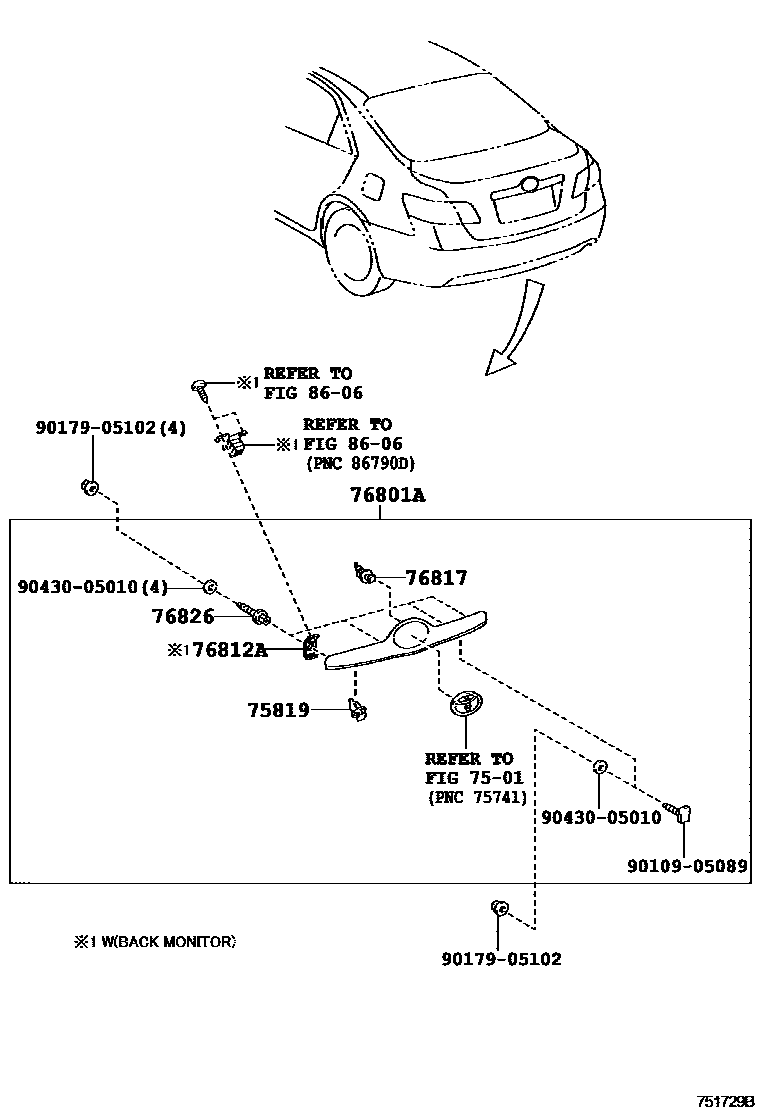

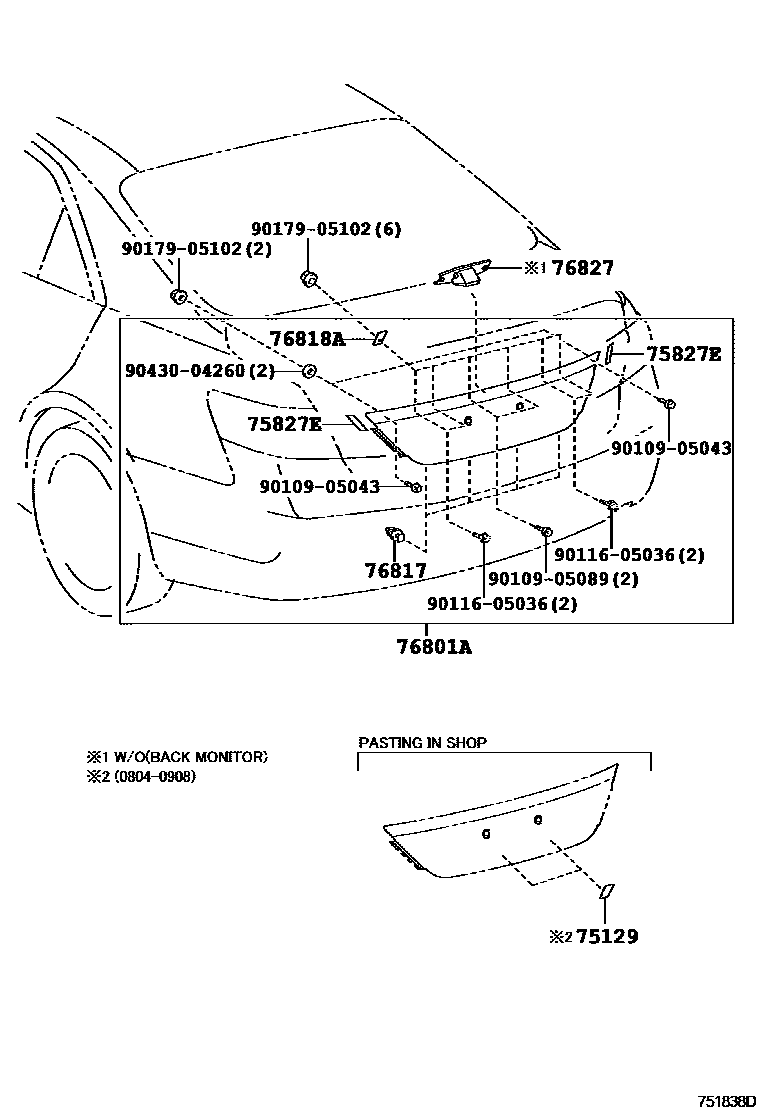

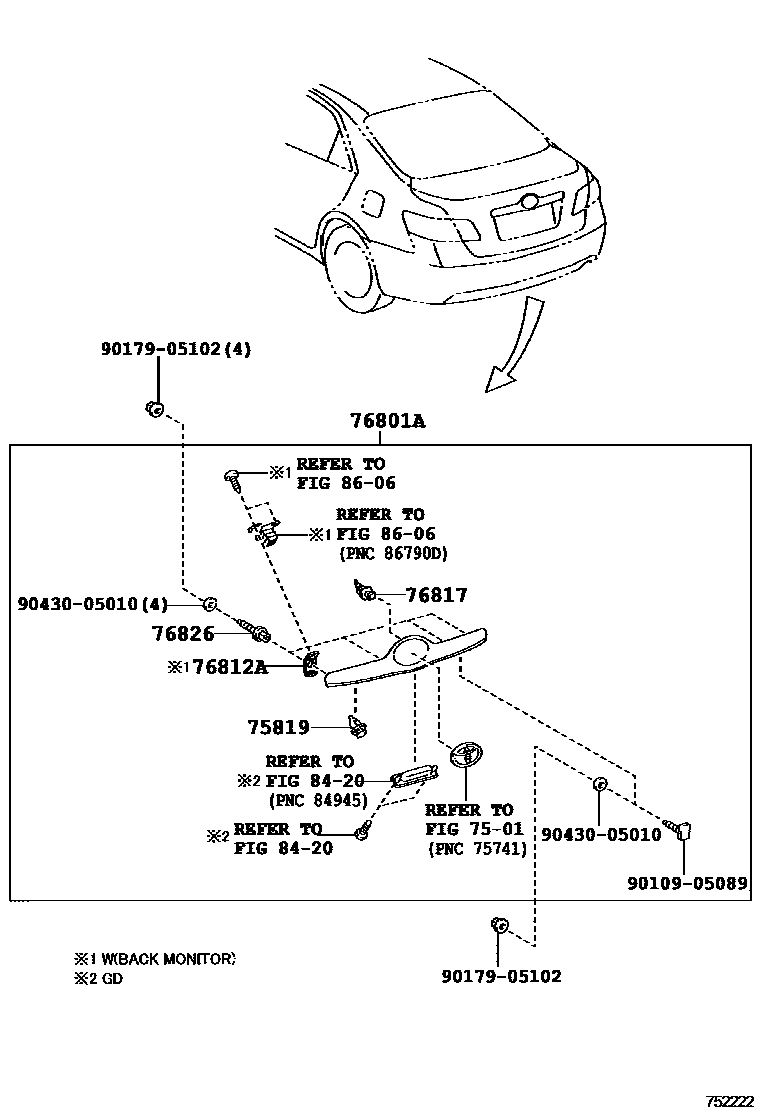

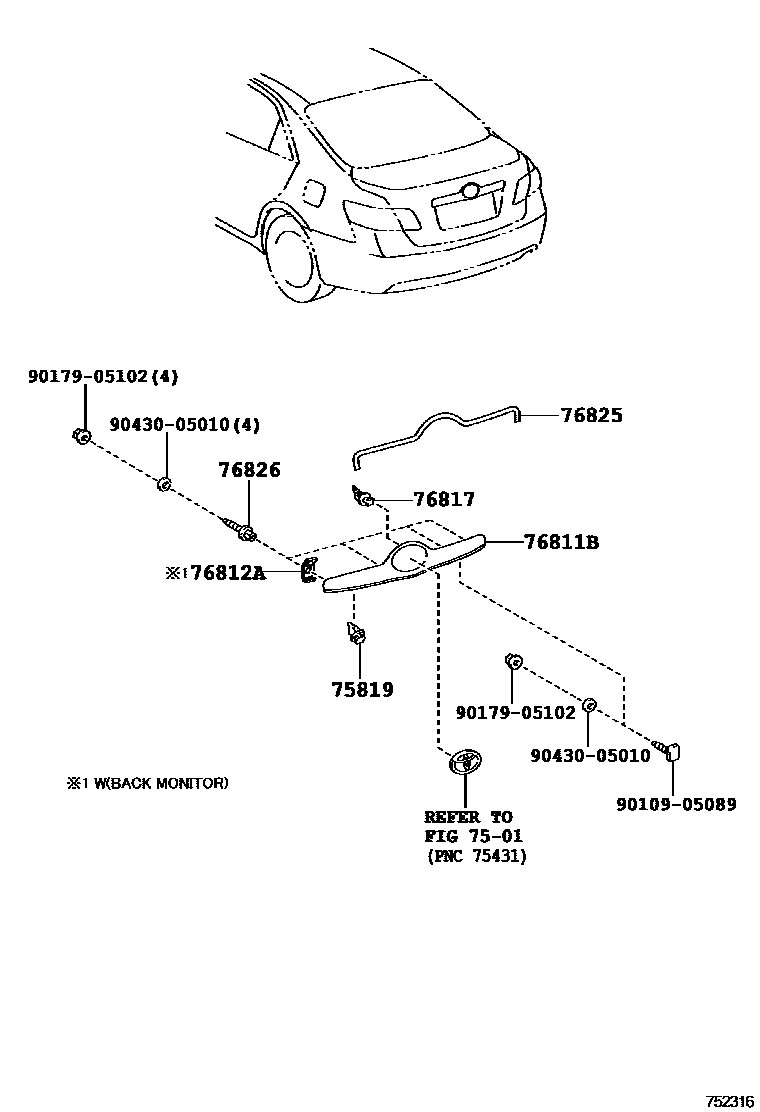

Toyota CAMRY EPC diagram 7504, 后防护条, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75129 | rear license plate cushion | 75129-YC010 |
| 75819 | Trunk door protective strip clip | 75819-33010 |
| 75827E | Trunk door protective strip protective cover | 75827-06040 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-06410 · 76801-33190 · 76801-33200 · 76801-33210 |
| 76811B | Trunk door exterior trim strip | 76811-33260 · 76811-33270 |
| 76812A | No. 2 rear door exterior trim strip | 76812-06010 · 76812-33010 |
| 76817 | Rear door exterior decorative strip clip | 76817-12060 · 76817-60030 |
| 76818A | Luggage trim strip lining No. 1 | 76818-06040 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-33040 |
| 76826 | No. 1 rear door trim strip fixing | 90116-05036 |
| 76827 | No. 2 rear door trim strip fixings | 76827-06010 |
