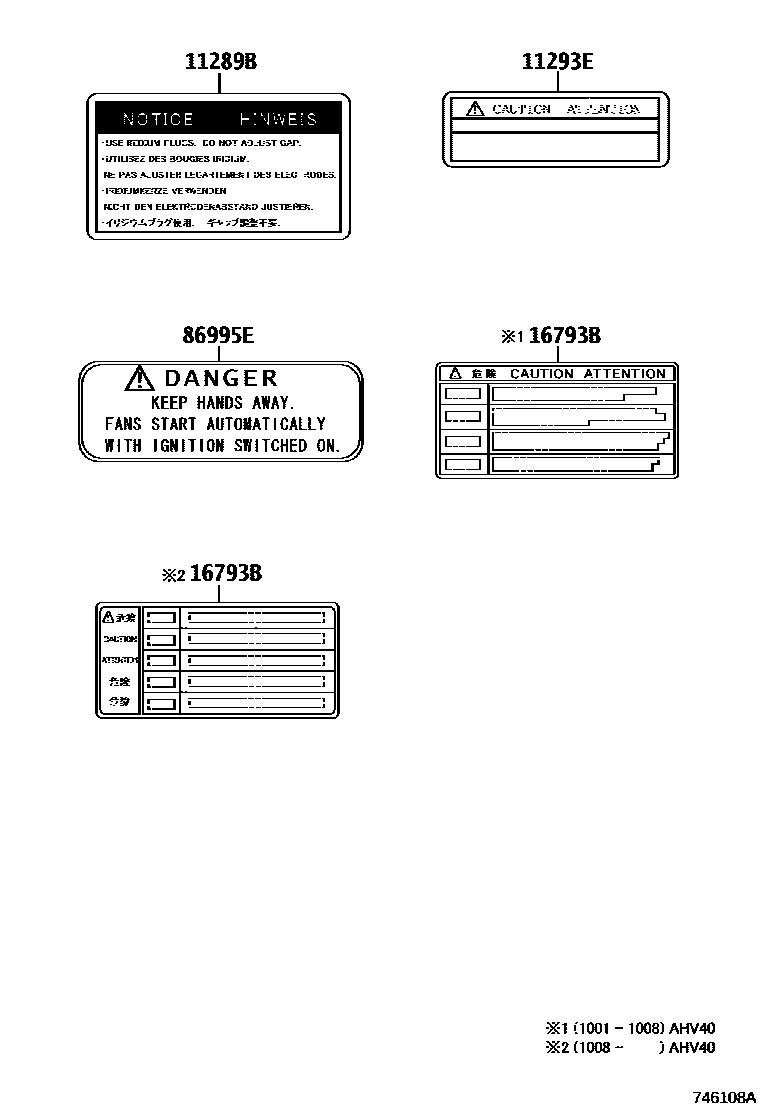

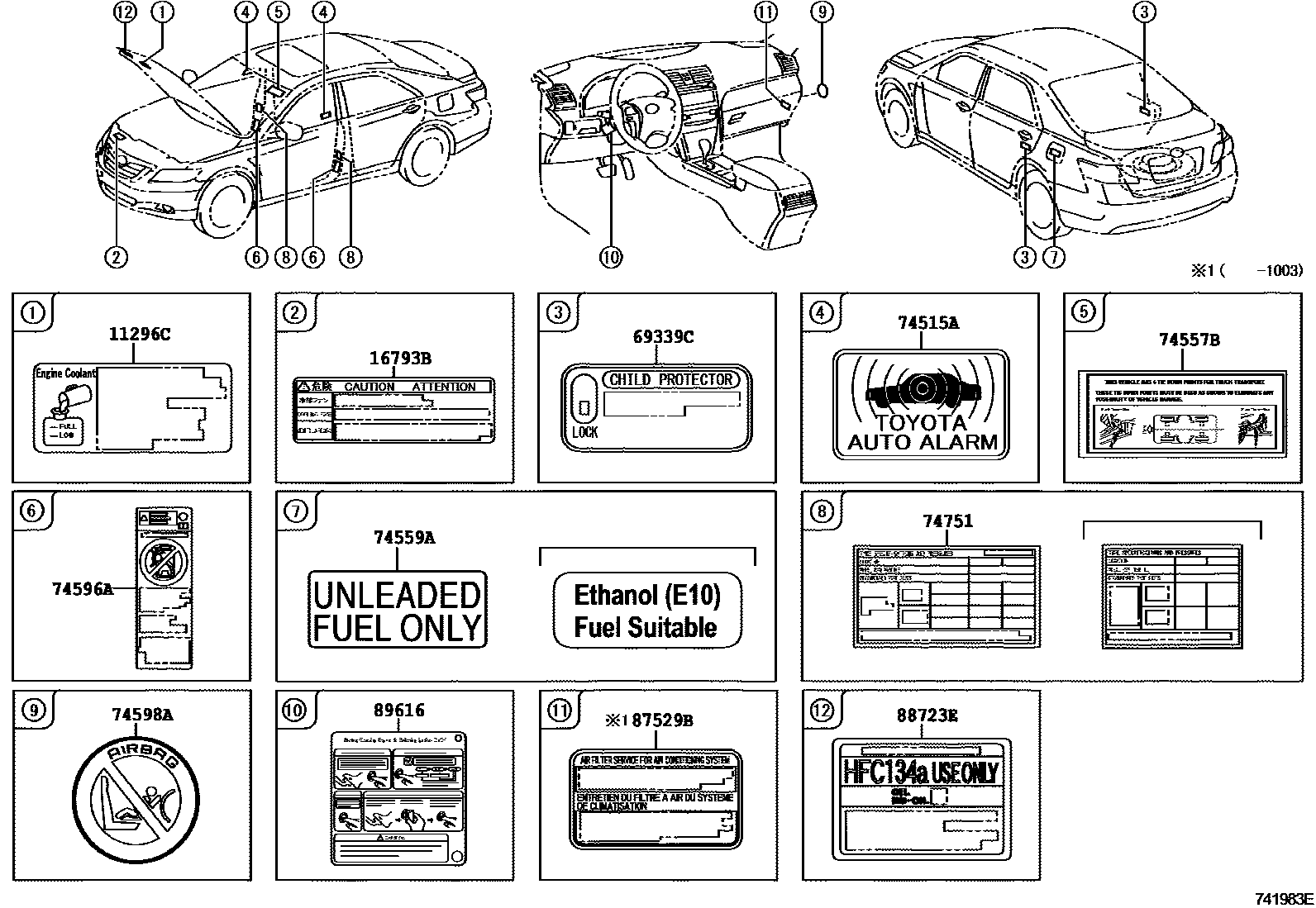

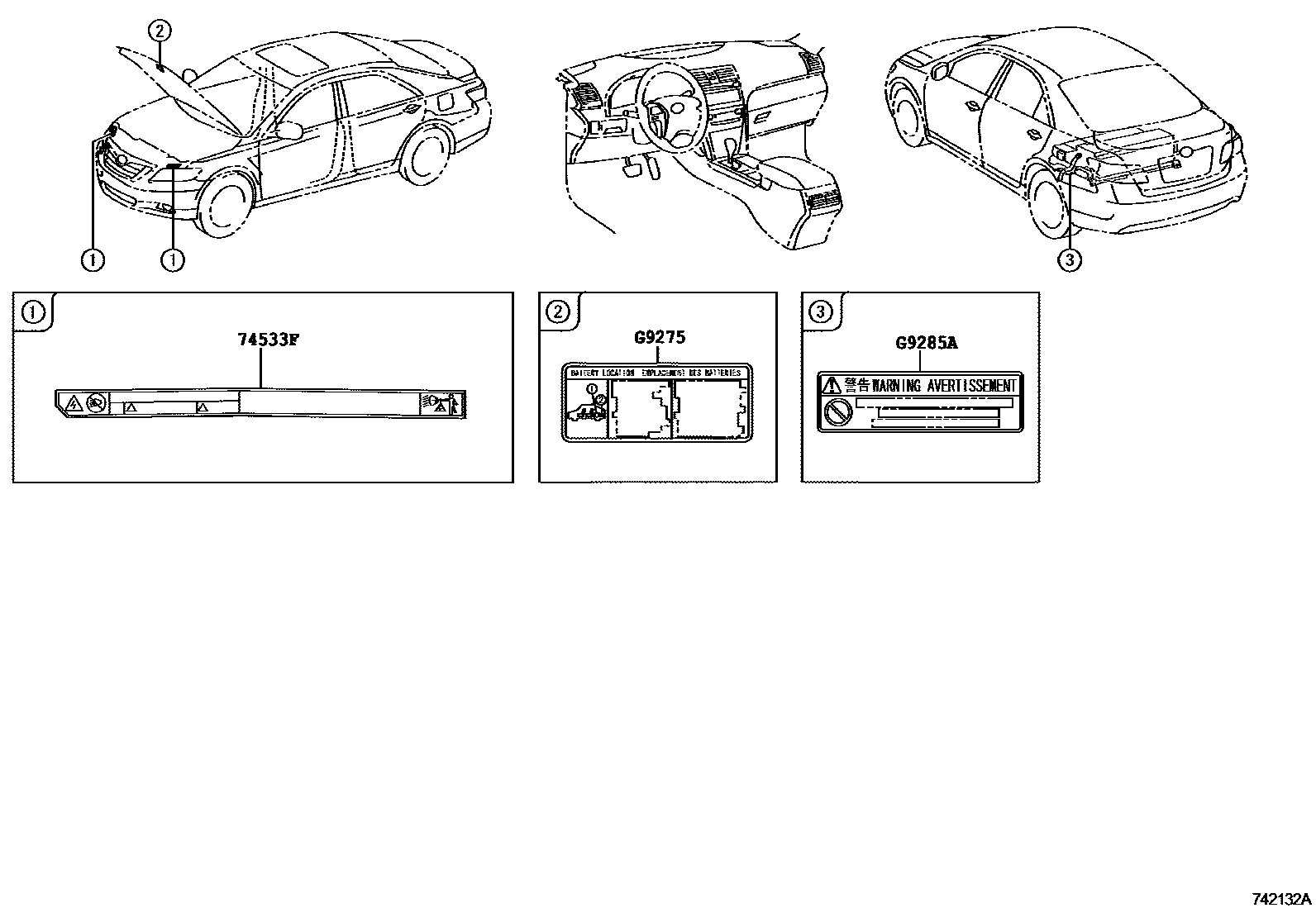

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11289B | spark plug caution label | 11289-28010 |
| 11293E | Engine No. 2 Warning Label | 11293-28110 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 16793B | Cooling fan information label | 16793-28010 · 16793-28020 · 16793-46010 |
| 69339C | Child Restraint Information Label | 69339-YC030 |
| 74515A | Anti-theft warning nameplate | 74515-33020 |
| 74533F | Headlight voltage warning label | 74533-8C000 |
| 74557B | Transport hook warning label | 74557-YC010 |
| 74559A | Fuel warning plate | 74559-06030 · 74559-YA010 |
| 74596A | Side air bag warning label | 74596-30040 · 74596-53020 |
| 74598A | Passenger air bag warning label | 74598-YC010 |
| 74751 | tire pressure information label | 42661-06540 · 42661-06560 · 42661-06570 · 42661-06600 · 42661-06610 · 42661-06670 |
| 86995E | warning label | 88723-8Y001 |
| 87529B | Cabin filter information label | 87529-06010 |
| 88723E | Cooler maintenance warning label | 88723-06060 · 88723-06120 · 88723-YC020 |
| 89616 | Launch information labels with one click | 89616-30051 |
| G9275 | No. 1 battery warning label | G9275-47030 |
| G9285A | HV Battery No. 1 Warning Label | G9279-47040 |
