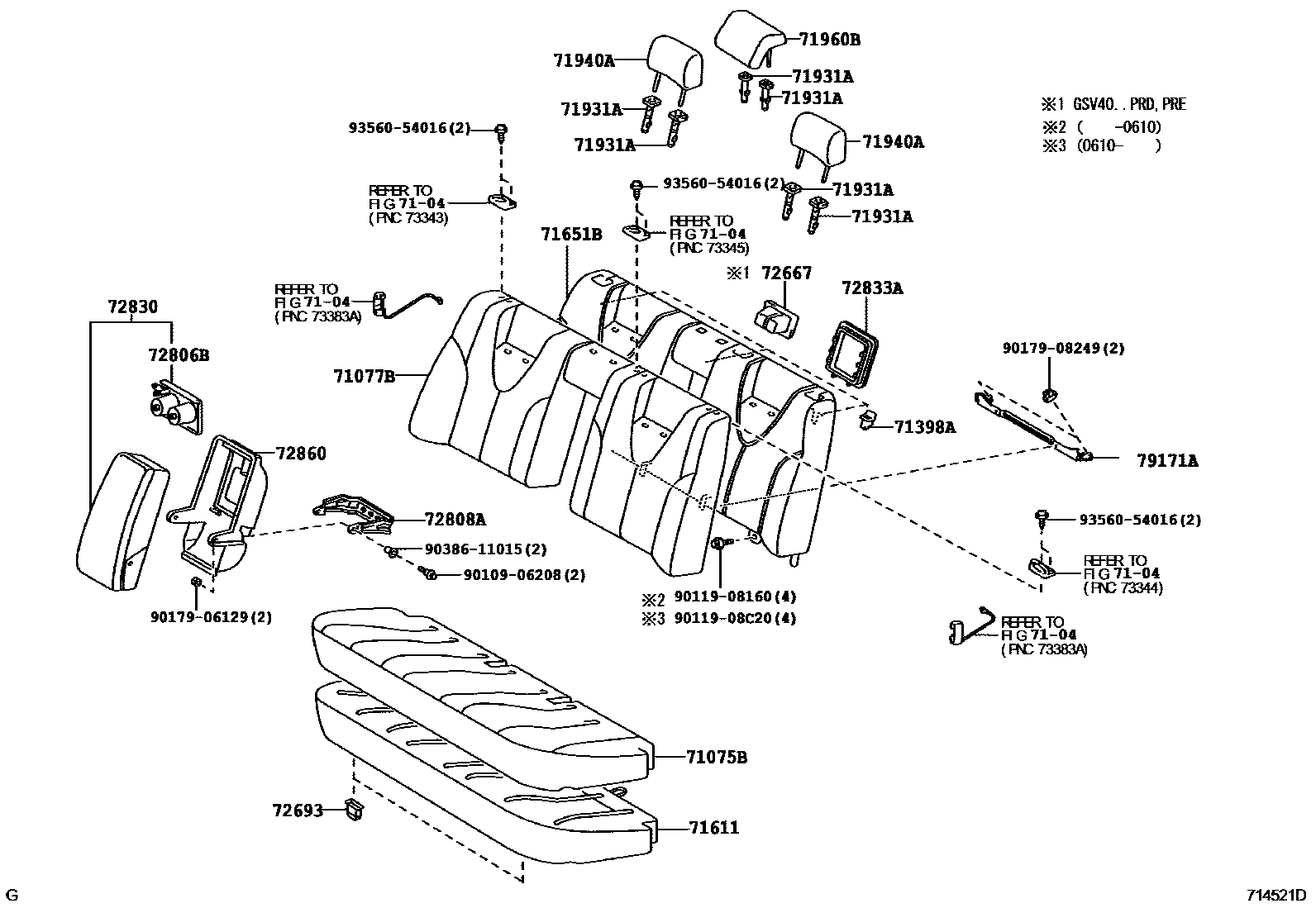

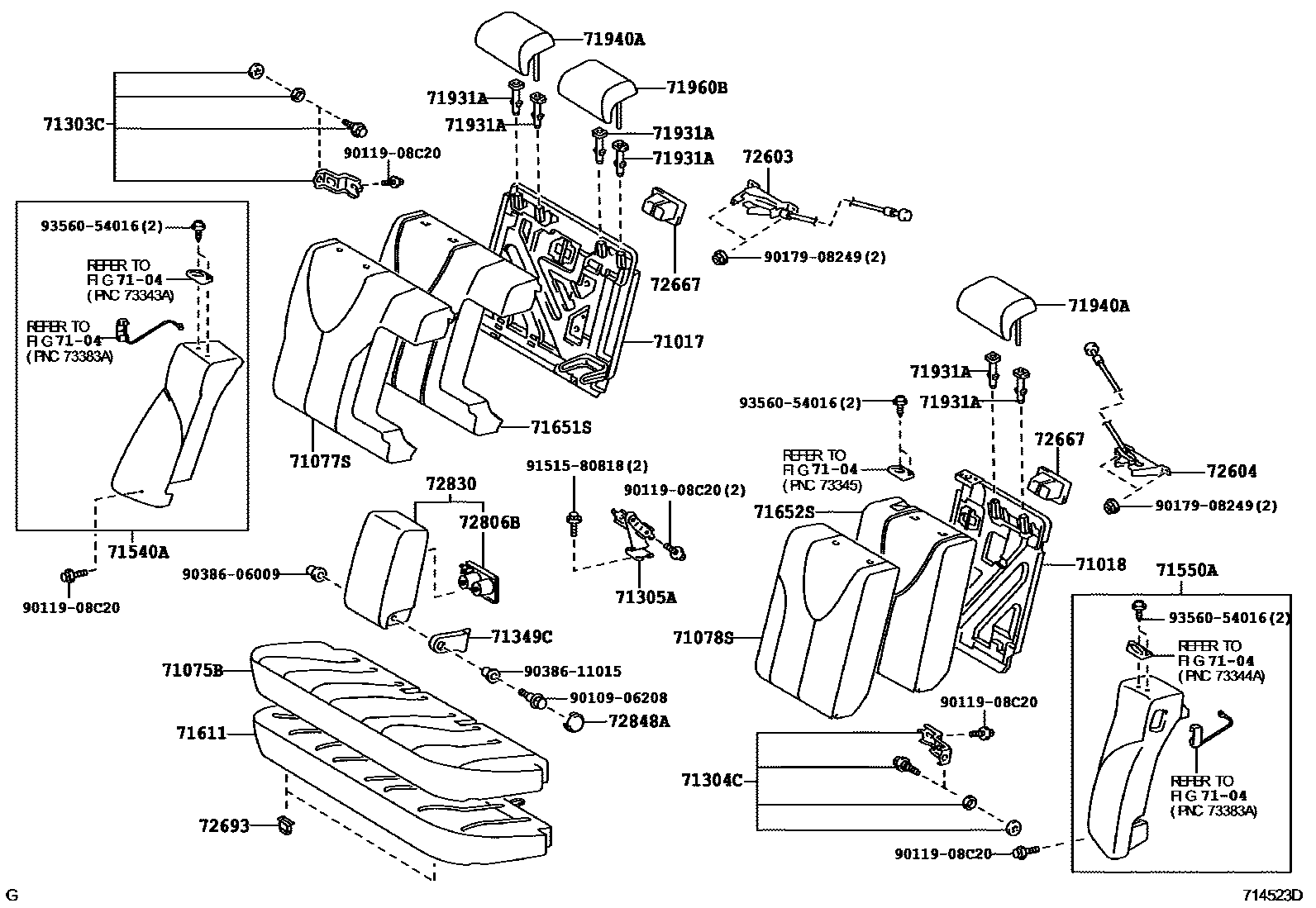

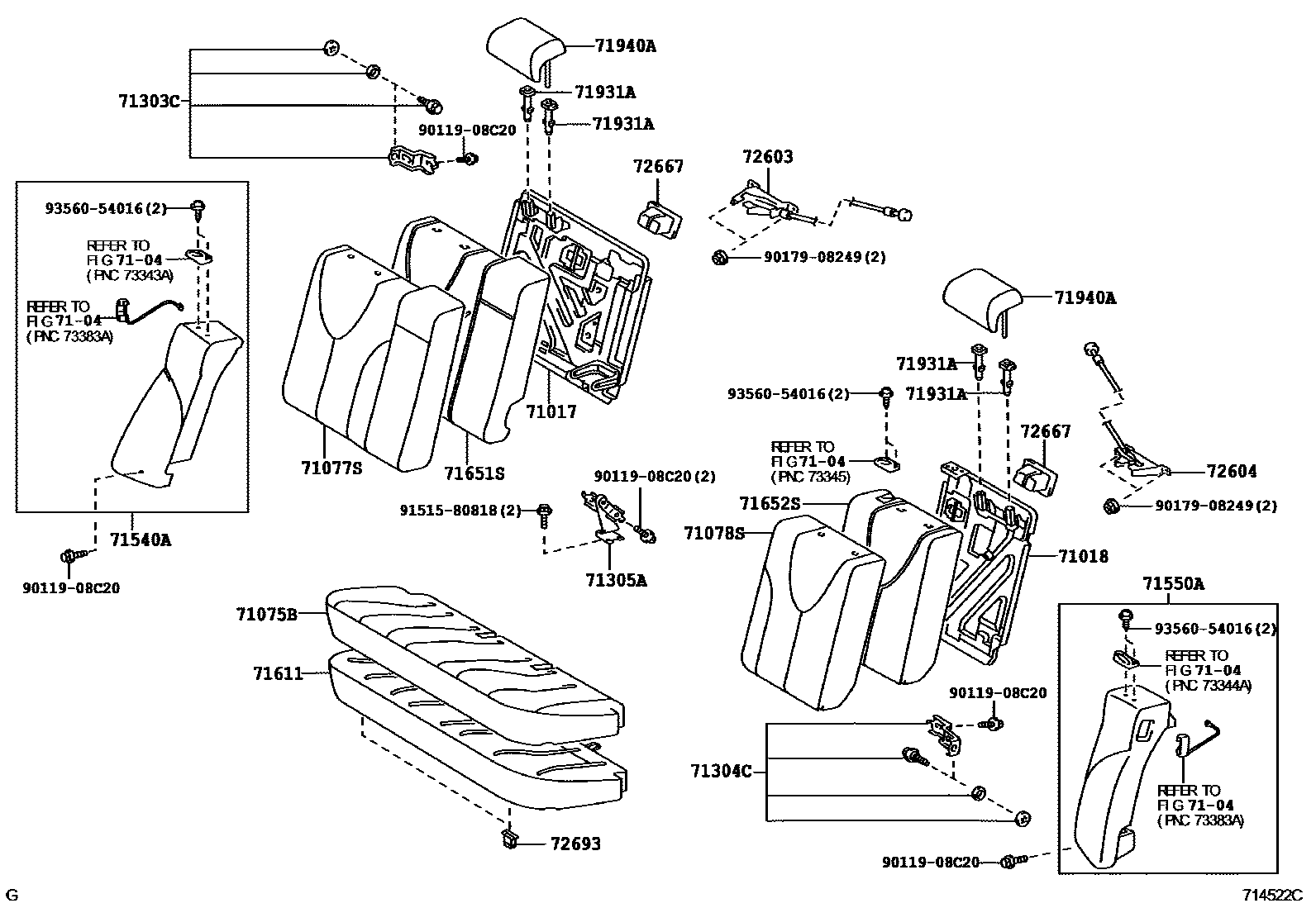

Toyota CAMRY 后排座椅和座椅滑轨 — Figure 7102
Toyota CAMRY EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-06120 · 71017-06130 |
| 71018 | Rear left seat back frame sub-assembly | 71018-06080 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-06040 · 71303-06041 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-06040 · 71303-06041 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-06050 |
| 71349C | Rear seat back hinge cover | 71349-06020 |
| 71611 | Rear seat cushion cushion | 71503-06130 · 71503-06140 · 71503-06150 |
| 71651B | Rear seat back cushions (for bench seats) | 71651-06160 · 71651-06180 · 71651-06290 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-06140 · 71651-06150 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-06090 |
| 72603 | Rear right seat back lock sub-assembly | 72630-33060 |
| 72604 | Rear left seat back lock sub-assembly | 72640-33060 |
| 72667 | Rear seat back locking frame | 72667-06020 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72808A | Seat center armrest bracket sub-assembly | 72883-06040 |
| 72833A | Seat center armrest inner panel | 72831-06060 |
| 72848A | No. 1 seat armrest cover | 72848-06020 |
| 79171A | Seat bracket No. 1 | 79001-06010 |
