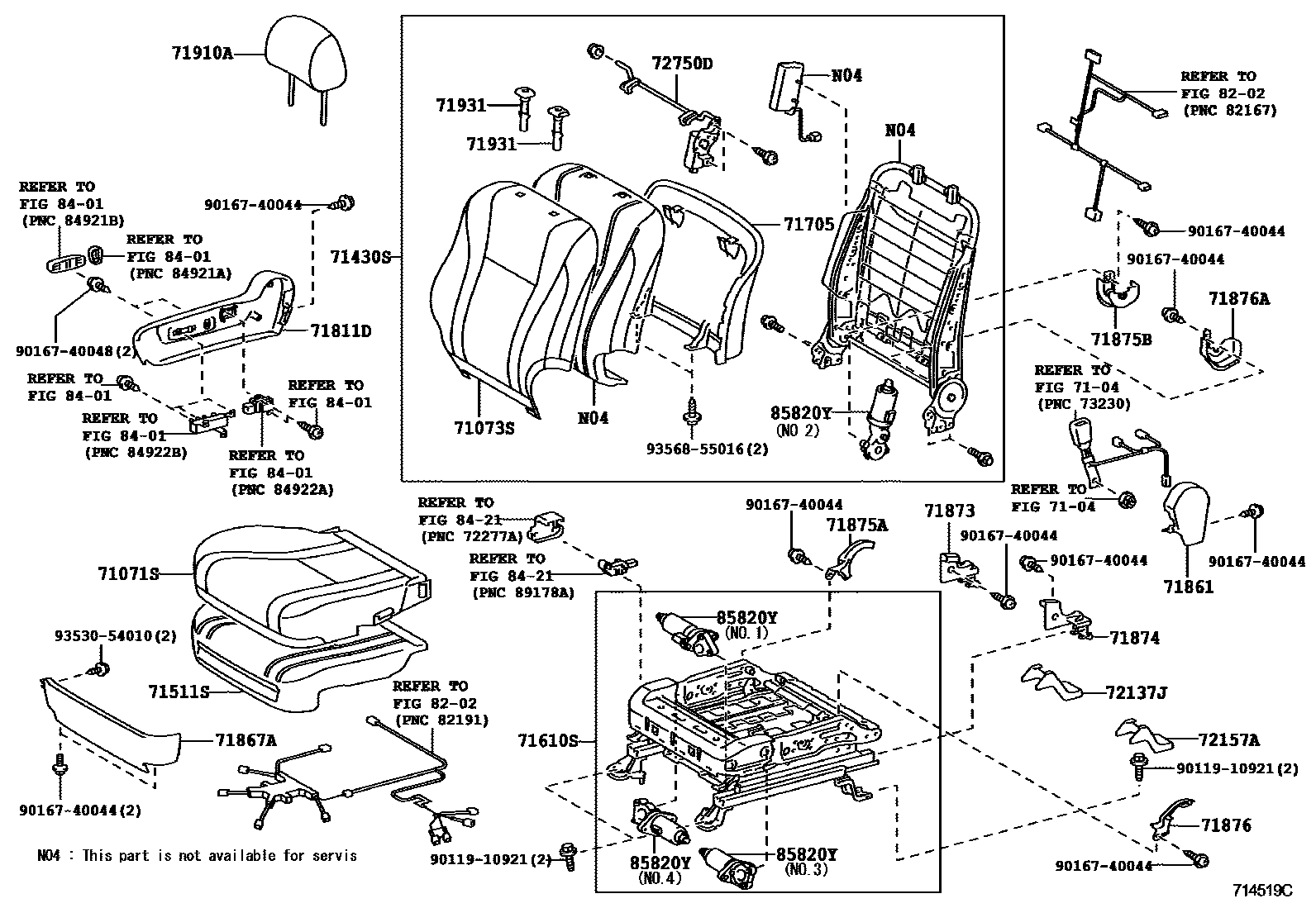

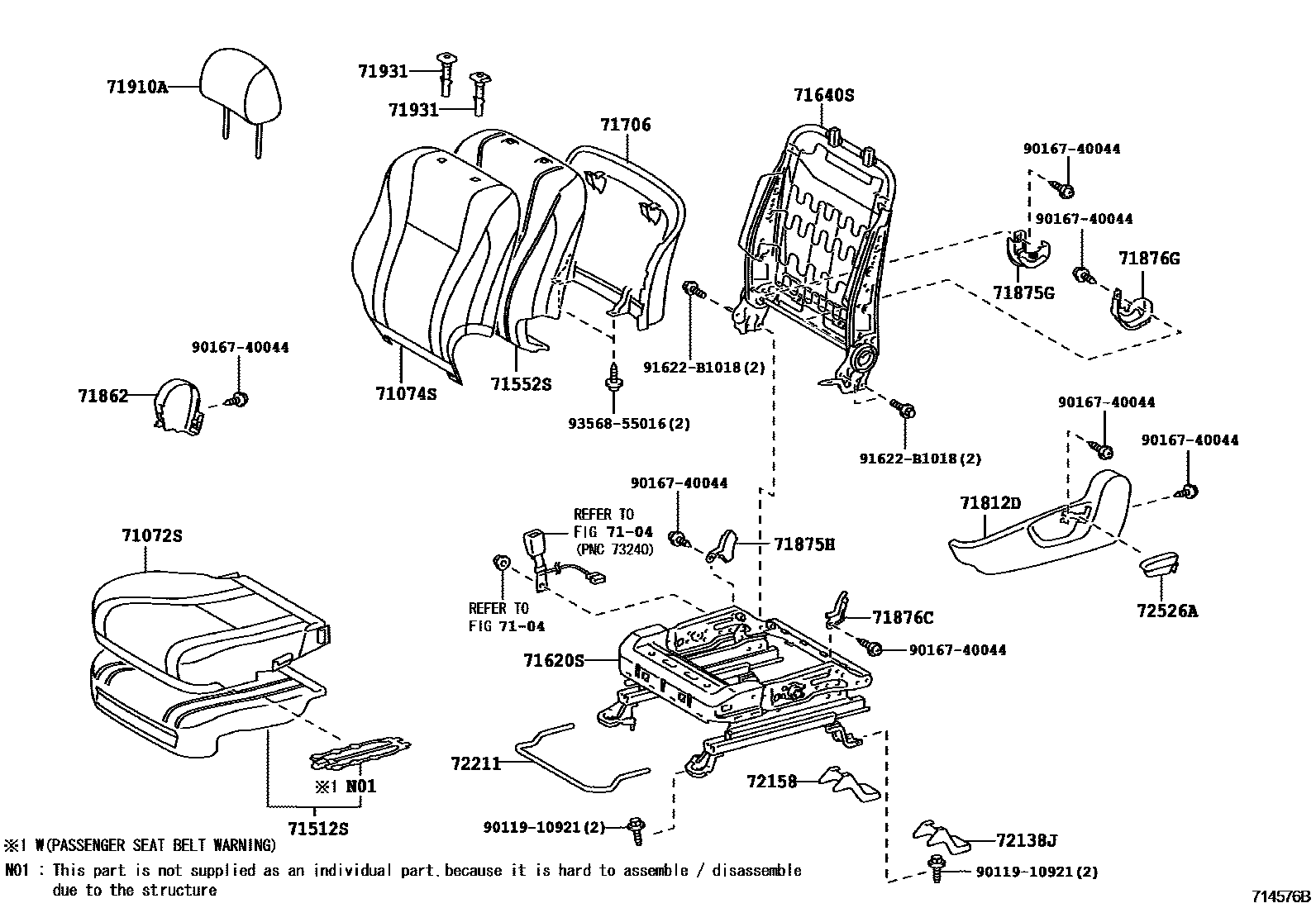

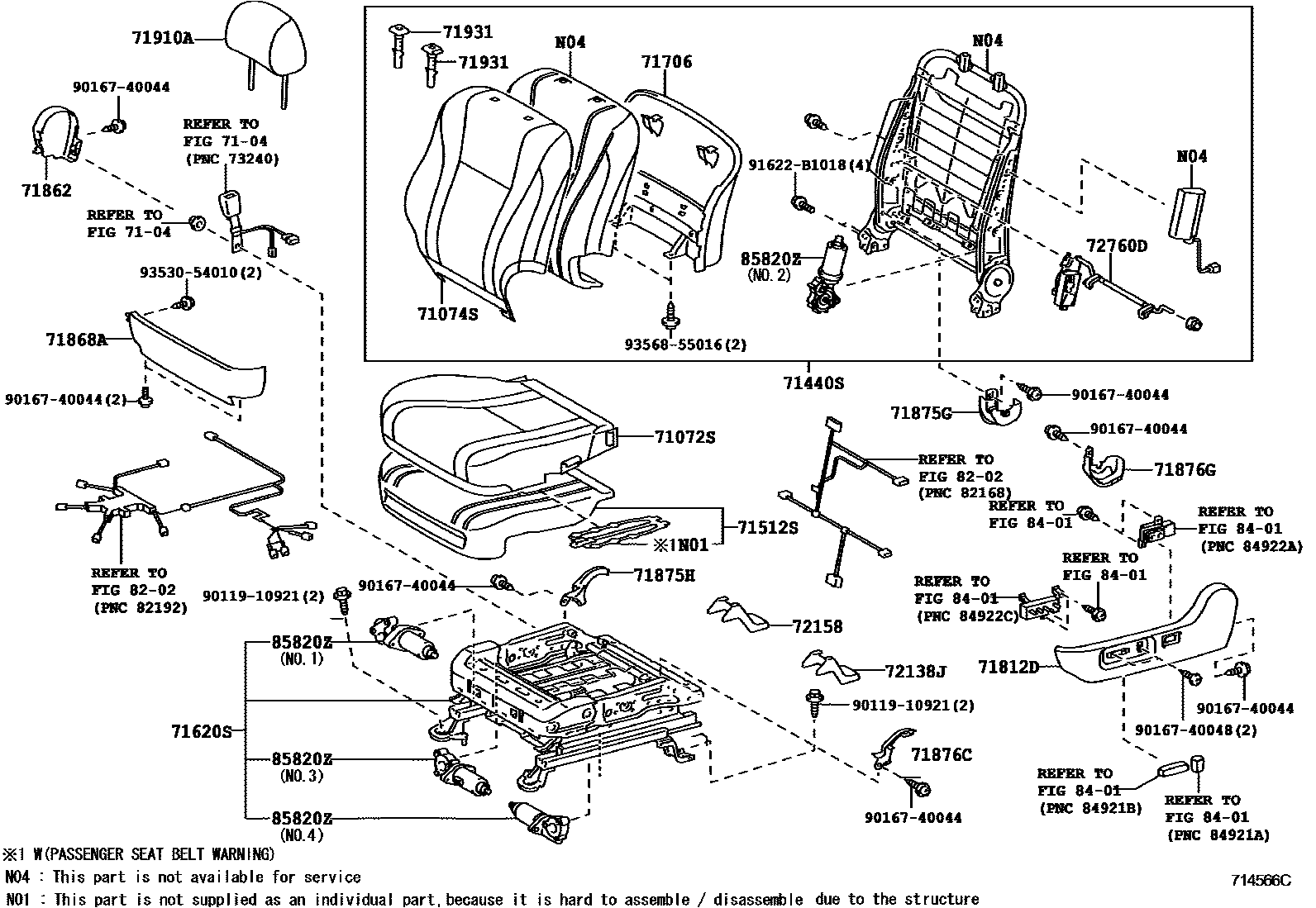

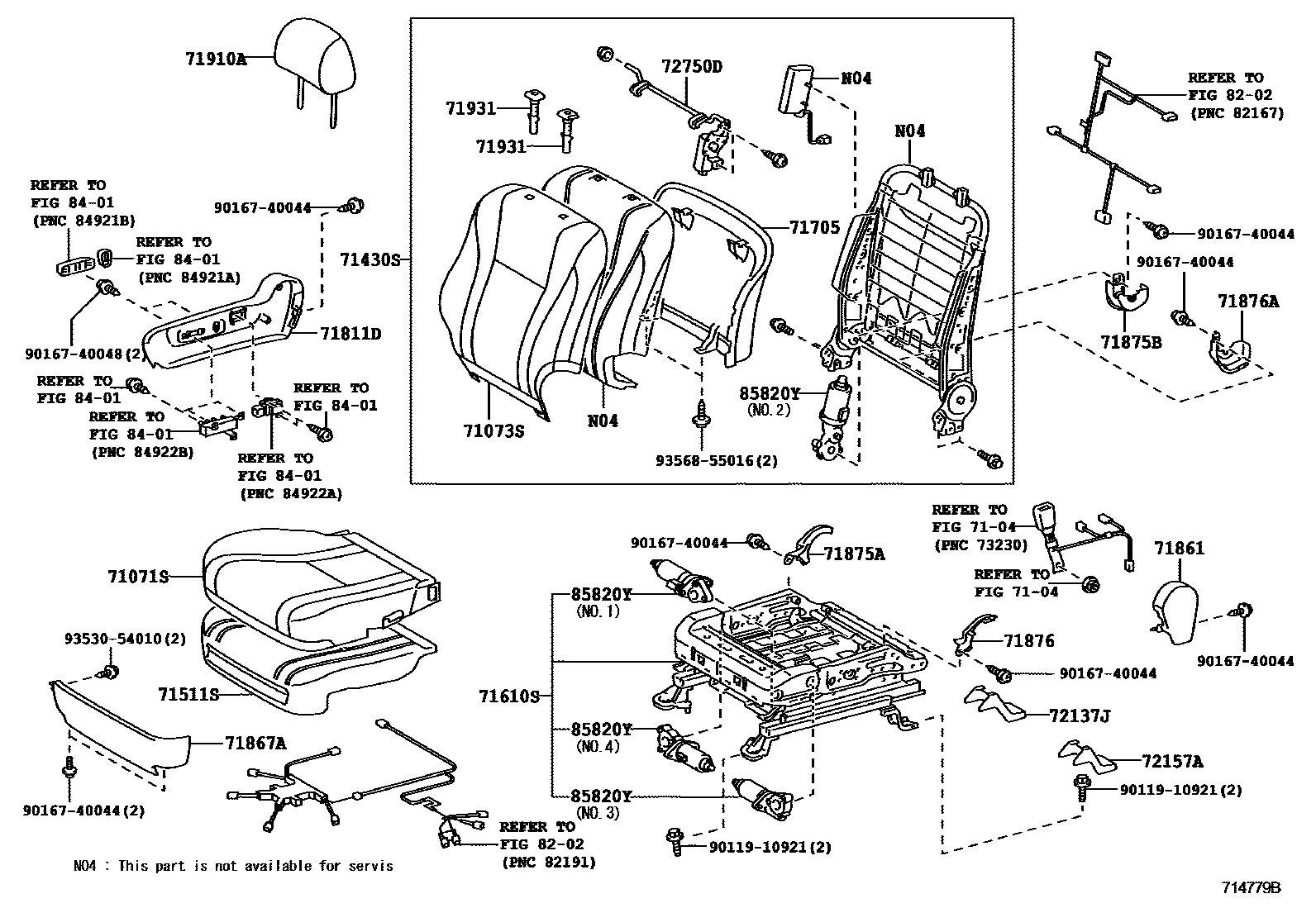

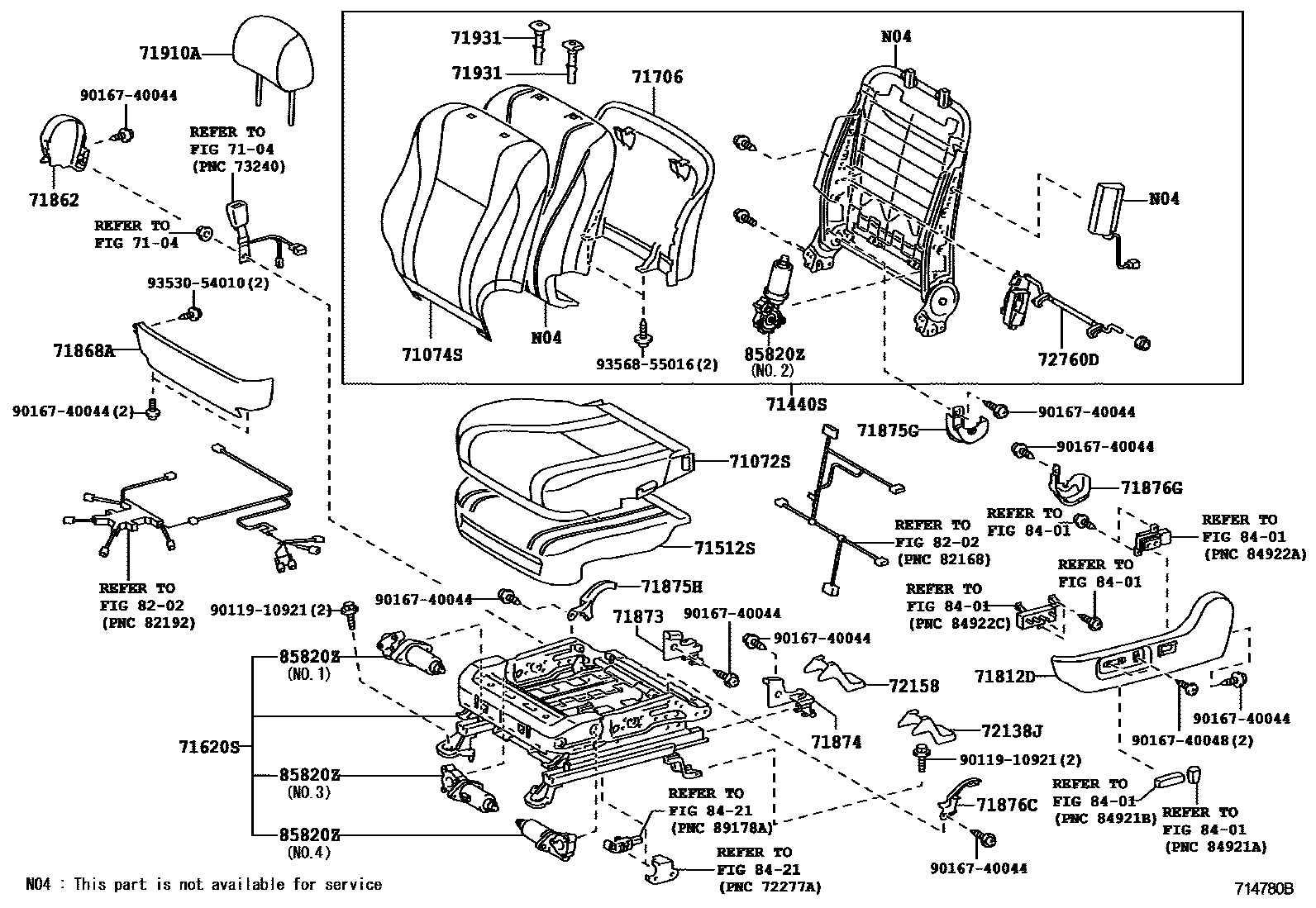

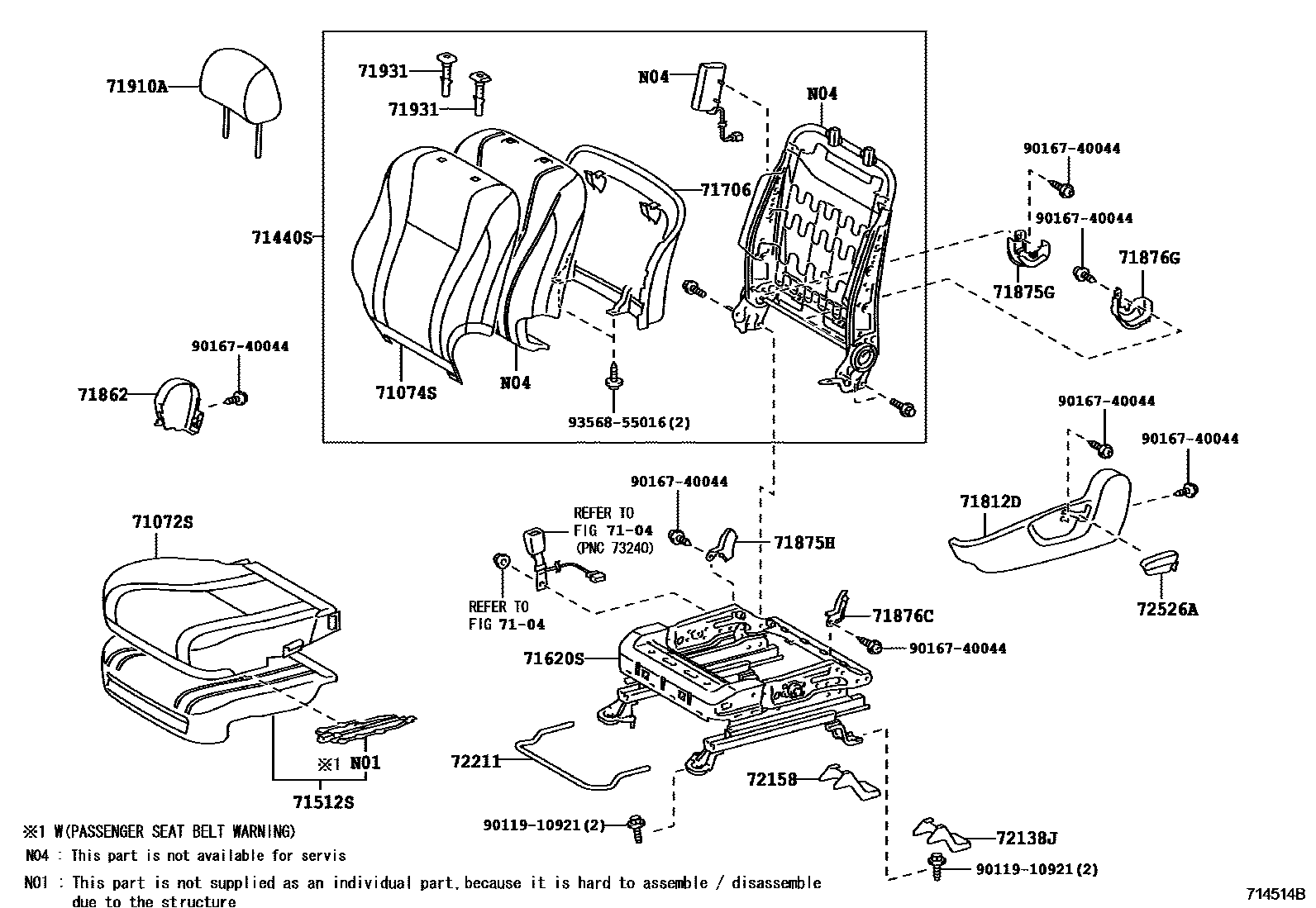

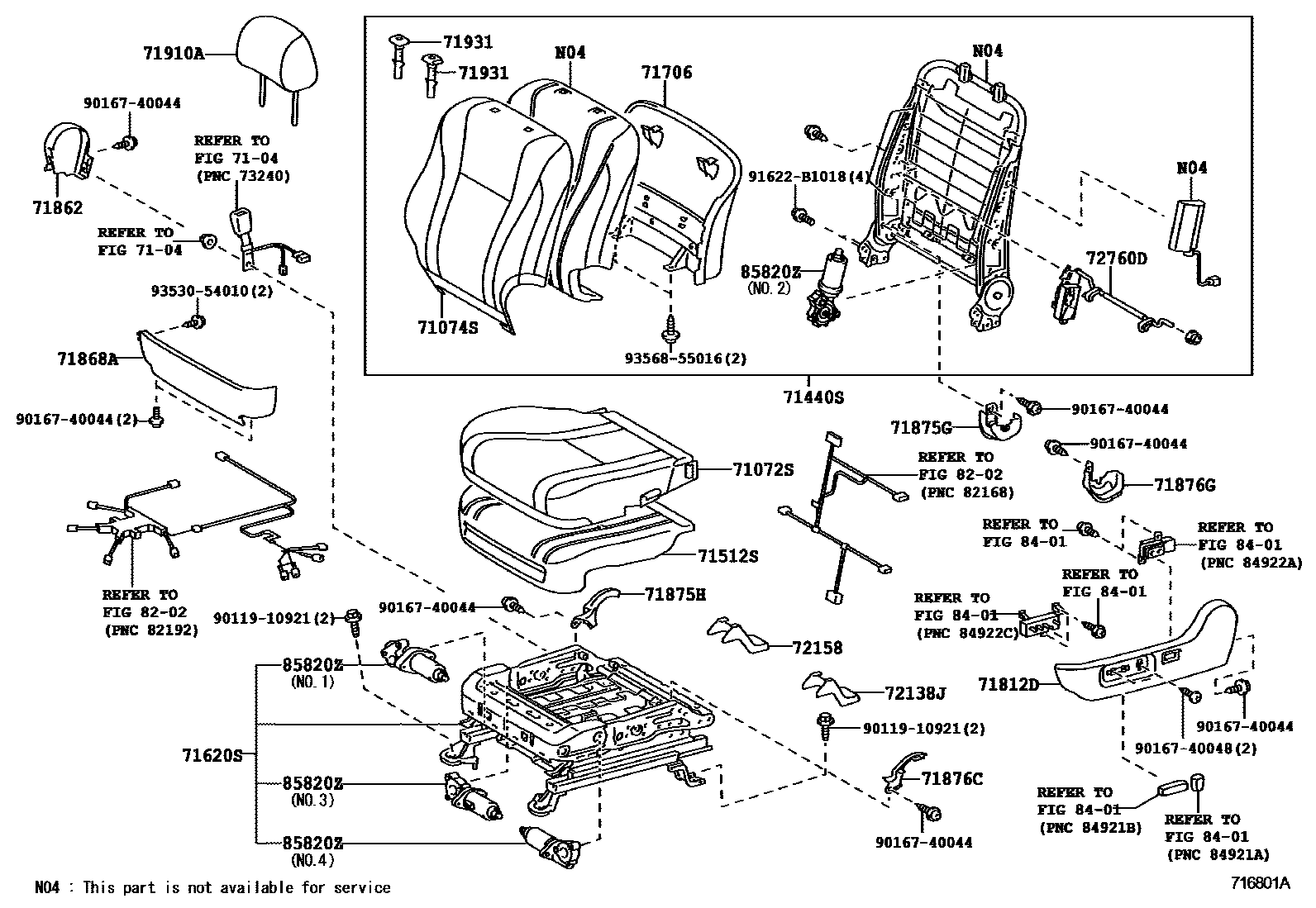

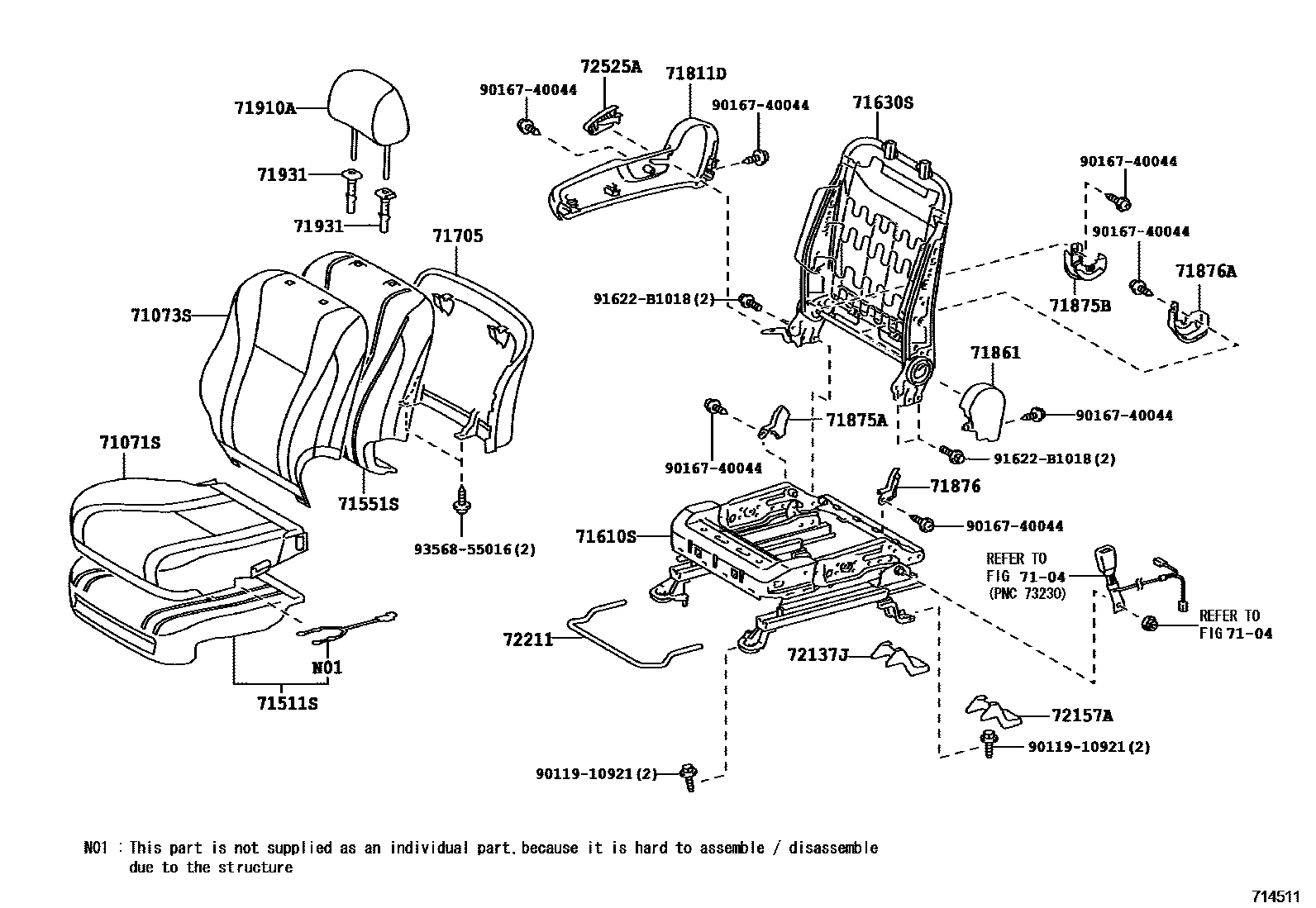

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101

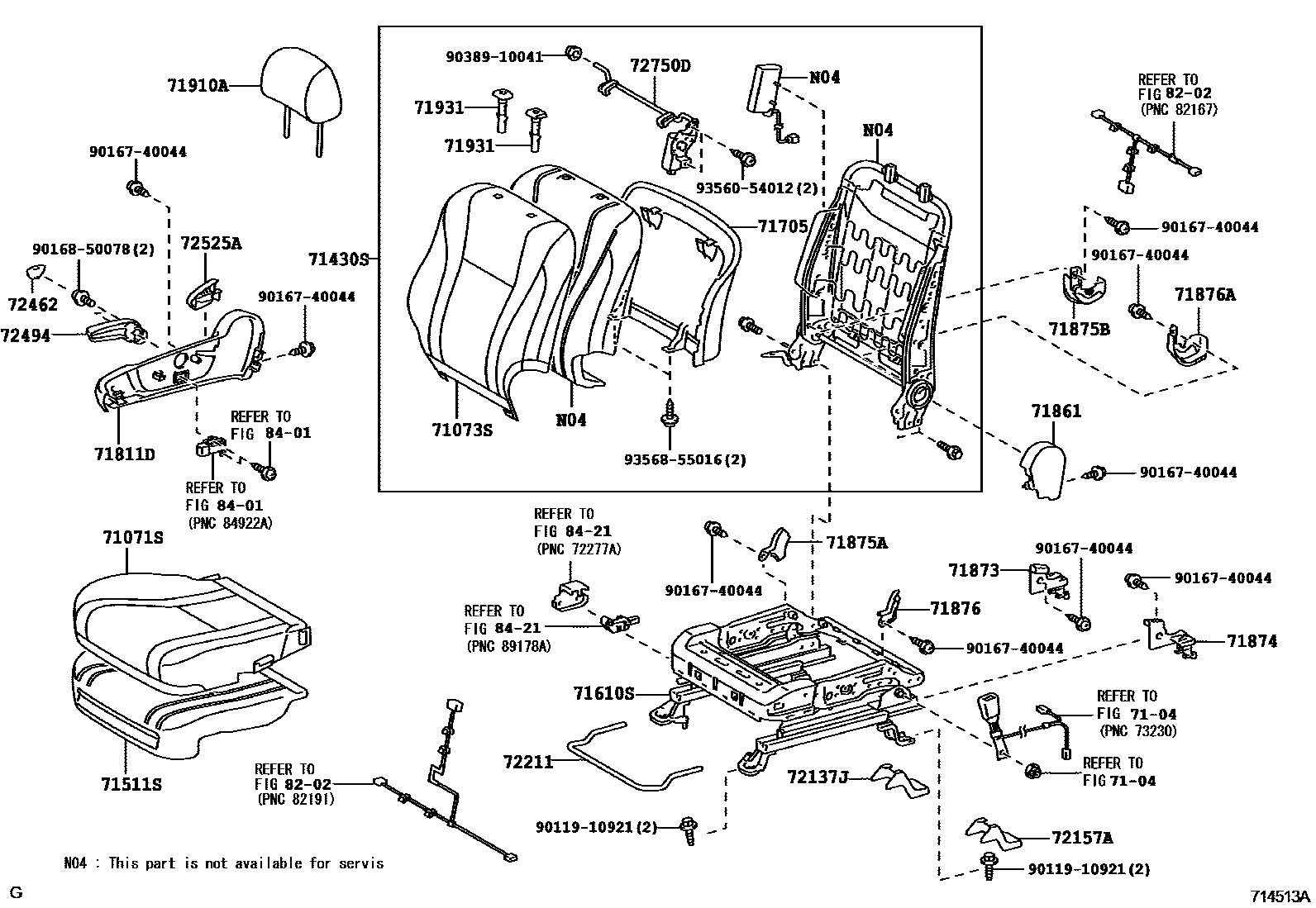

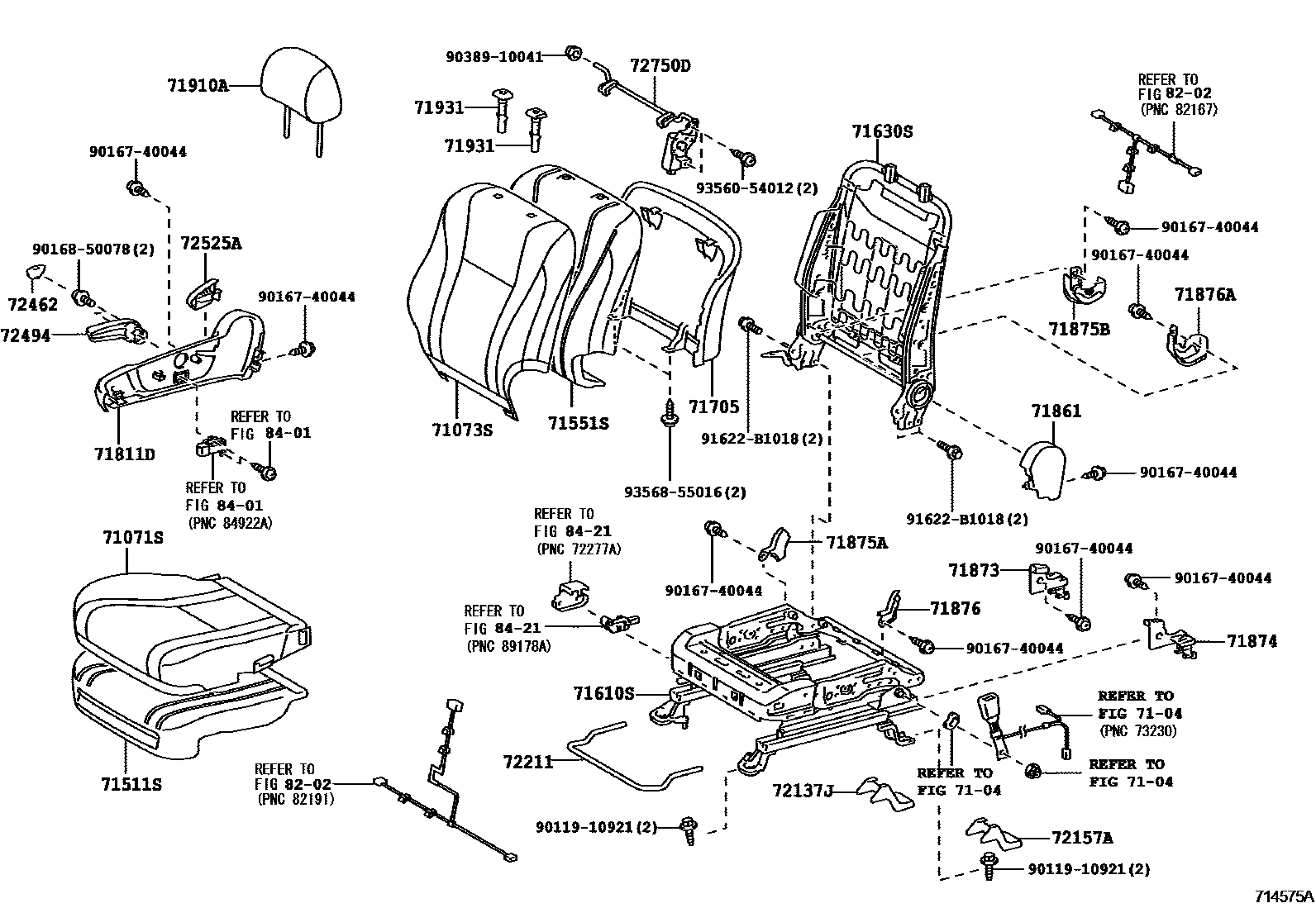

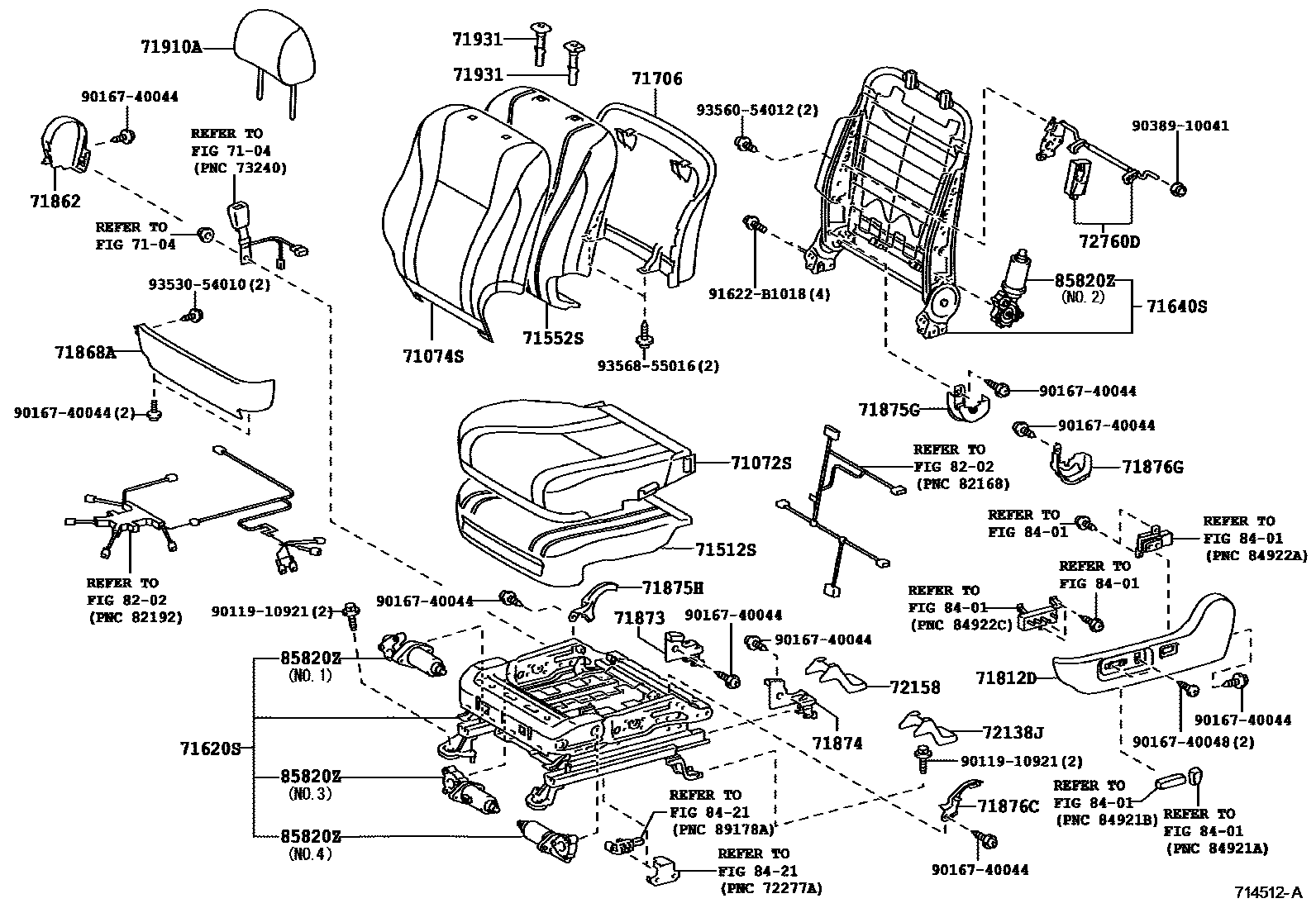

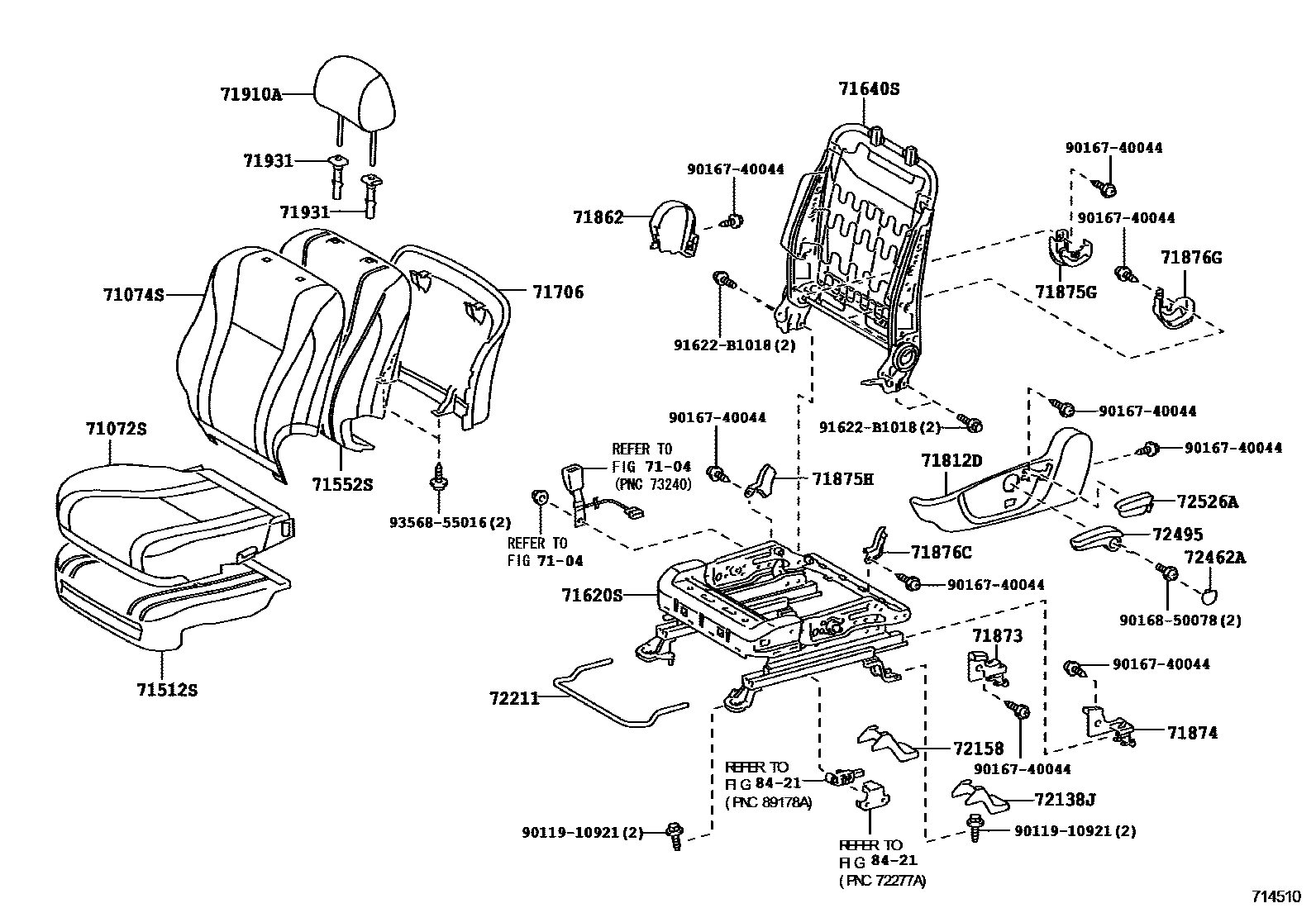

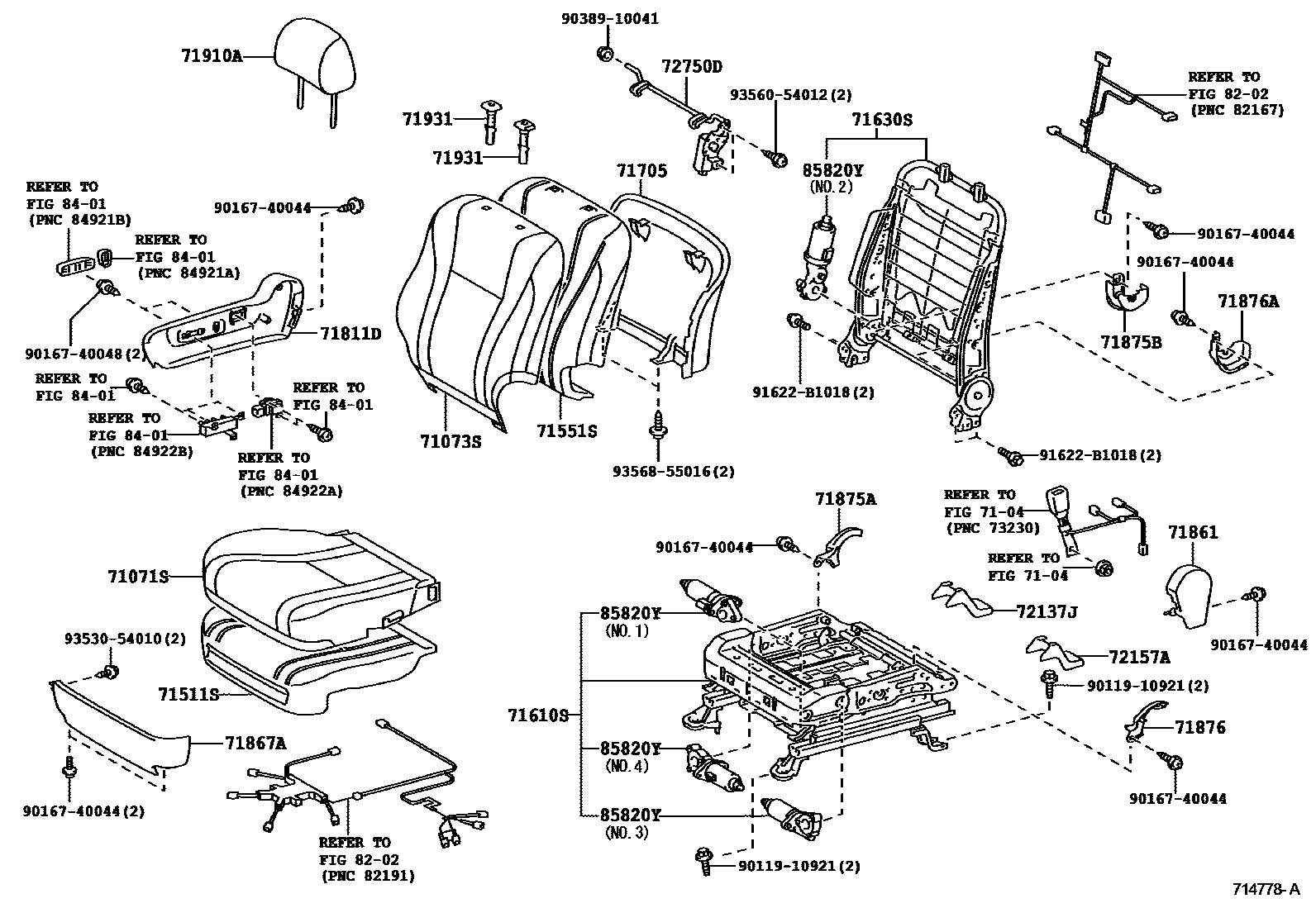

Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 13 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06010 · 71501-06020 · 71501-06030 · 71511-06360 · 71511-06370 · 71511-06380 · 71511-06390 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-06110 · 71502-06130 · 71502-06140 · 71502-06150 · 71502-06230 · 71502-06240 · 71512-06130 · 71512-06140 · 71512-06150 · 71512-06160 · 71512-06170 · 71512-06180 · 71512-06190 · 71512-06200 · 71512-06210 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06230 · 71551-06240 · 71551-06260 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06170 · 71552-06180 · 71552-06210 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-06090 · 71610-06100 · 71610-06110 · 71610-06120 · 71610-06150 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-06100 · 71620-06110 · 71620-06120 · 71620-06130 · 71620-06160 · 71620-06210 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-06270 · 71630-06280 · 71630-06300 · 71630-06320 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-06210 · 71640-06250 · 71640-06270 |
| 71705 | Front right seat back panel sub-assembly | 71705-06070 |
| 71706 | Front left seat back panel sub-assembly | 71706-06030 |
| 71873 | Front right seat cushion lower guard panel | 71873-06330 |
| 71874 | Front left seat cushion lower guard | 71874-06310 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-06320 · 71875-06380 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06380 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-06410 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06410 |
| 72211 | Seat slide adjustment handle | 72211-06030 |
| 72750D | Right lumbar support adjuster assembly | 72750-06030 |
| 72760D | Left lumbar support adjuster assembly | 72760-06040 |
| 85820Y | Electric seat motor assembly | 85801-06010 · 85801-06030 · 85801-06050 · 85801-06070 |
| 85820Z | Electric seat motor assembly | 85801-06020 · 85801-06040 · 85801-06060 · 85801-06080 |
