Toyota CAMRY 锁芯组件 — Figure 6712

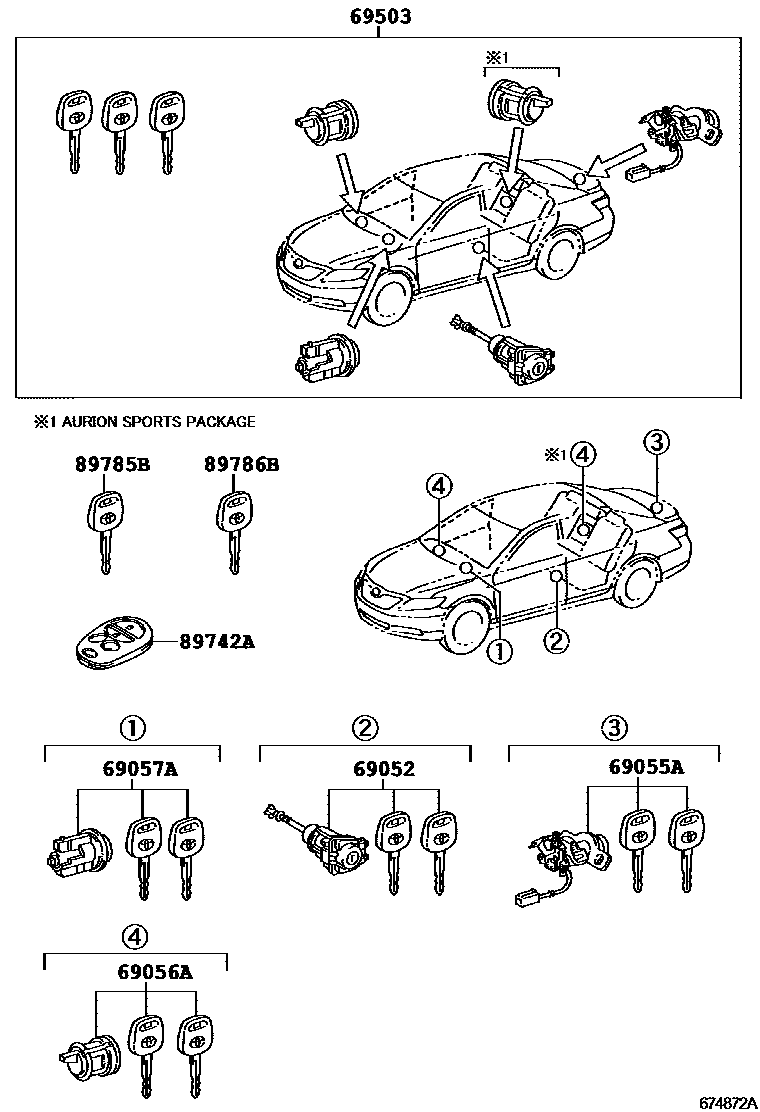

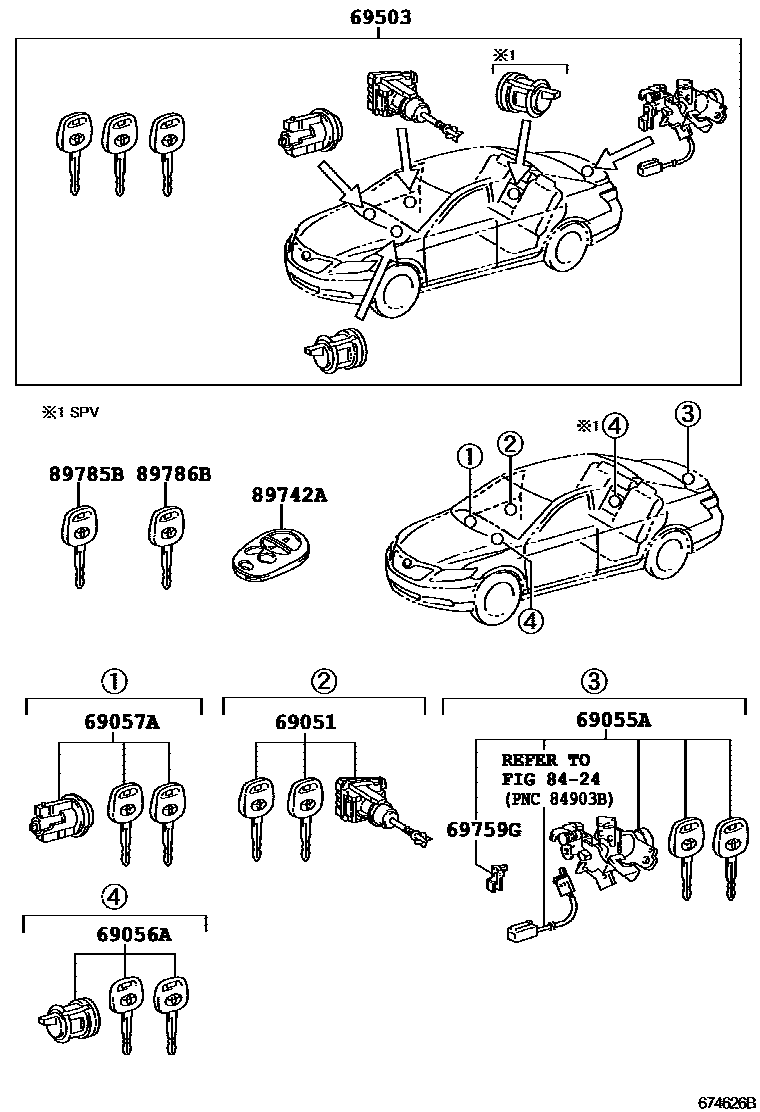

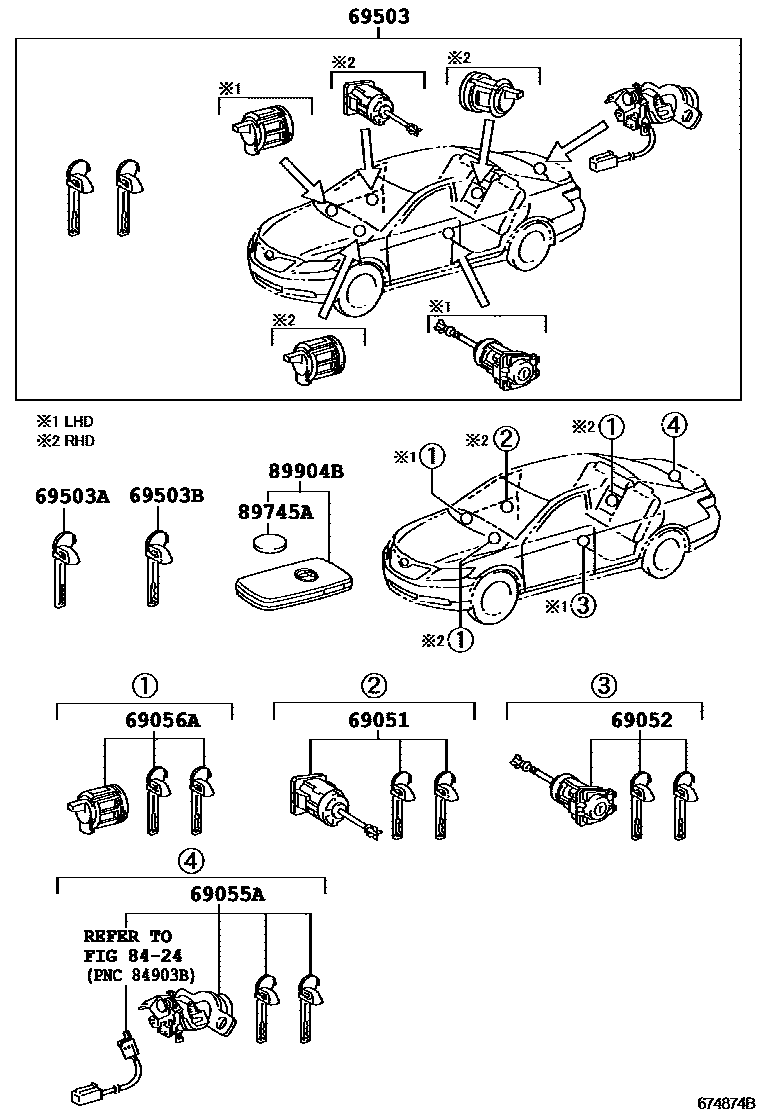

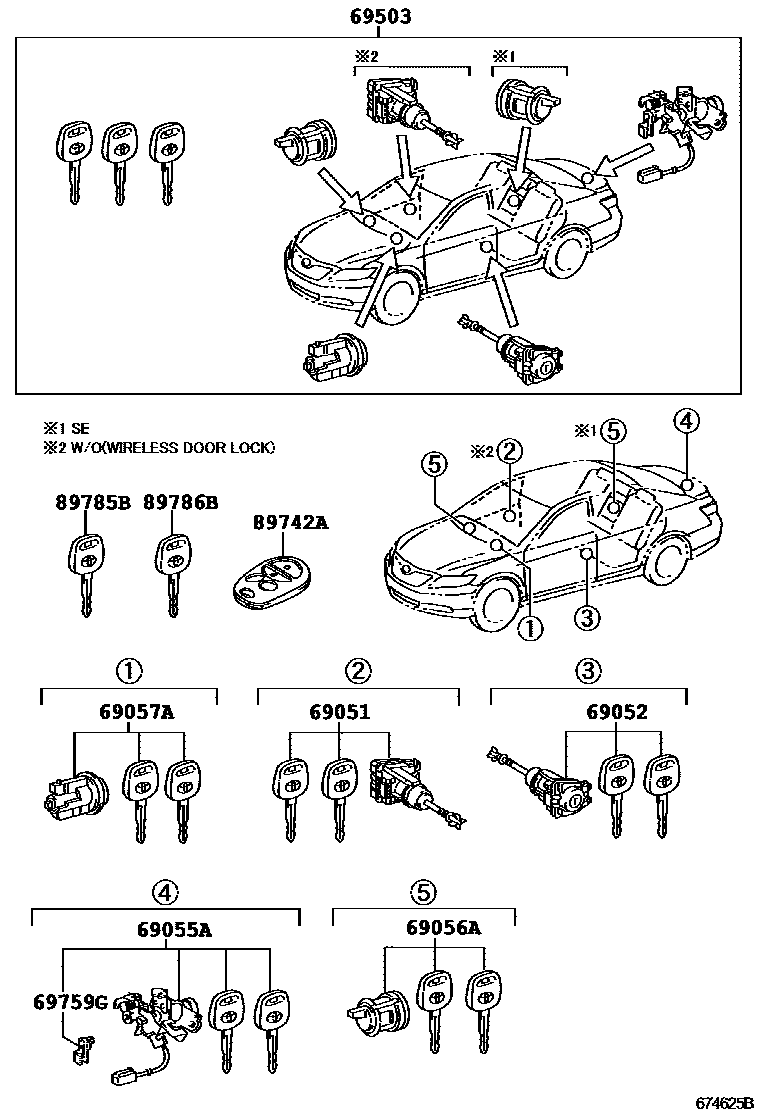

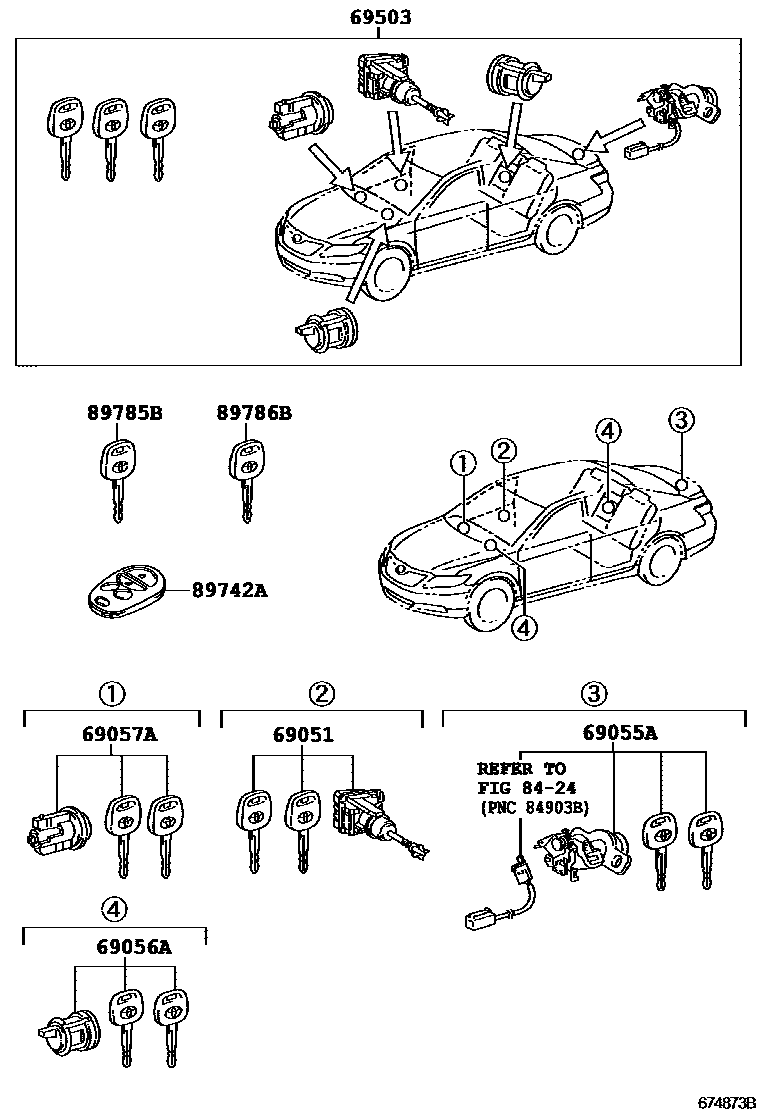

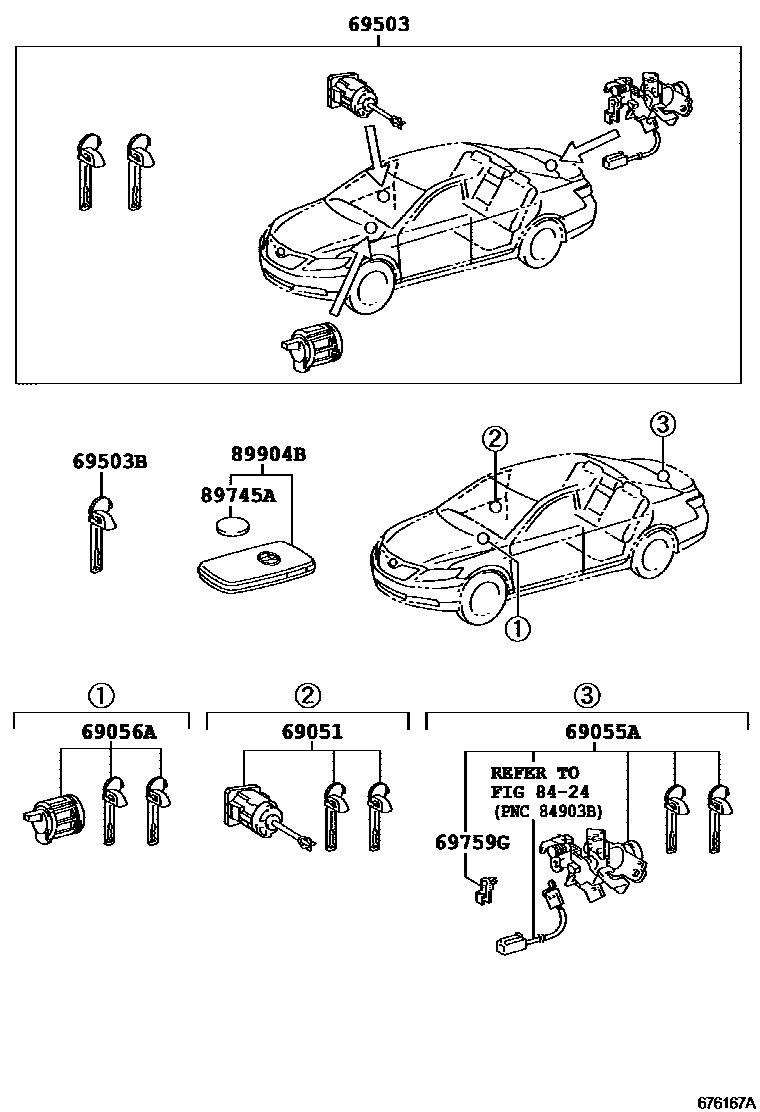

Toyota CAMRY EPC diagram 6712, 锁芯组件, with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-06040 · 69051-33300 |
| 69052 | Left door lock cylinder and key assembly | 69052-04020 · 69052-33330 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06070 · 69055-06090 · 69055-06130 · 69055-06140 · 69055-33450 · 69055-33470 · 69055-33480 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06040 · 69056-33200 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-04030 |
| 69503 | Door lock cylinder components | 69005-06350 · 69005-06360 · 69005-06370 · 69005-06380 · 69005-06390 · 69005-06420 · 69005-06430 · 69005-06460 · 69005-33B30 · 69005-33B50 · 69005-33C30 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 69759G | Trunk door lock core buckle | 69759-06020 · 69759-24080 |
| 89742A | remote key | 89742-06030 · 89742-AC080 |
| 89745A | Transmitter battery | 89745-52020 · 89745-52030 |
| 89785B | transceiver key master transmitter | 89785-08020 |
| 89786B | transceiver key secondary transmitter | 89786-08020 |
| 89904B | Electronic key transmitter sub-assembly | 89904-33100 · 89904-33181 · 89904-33310 · 89904-33390 · 89904-33430 |
