Toyota CAMRY 前门板和前门玻璃 — Figure 6701

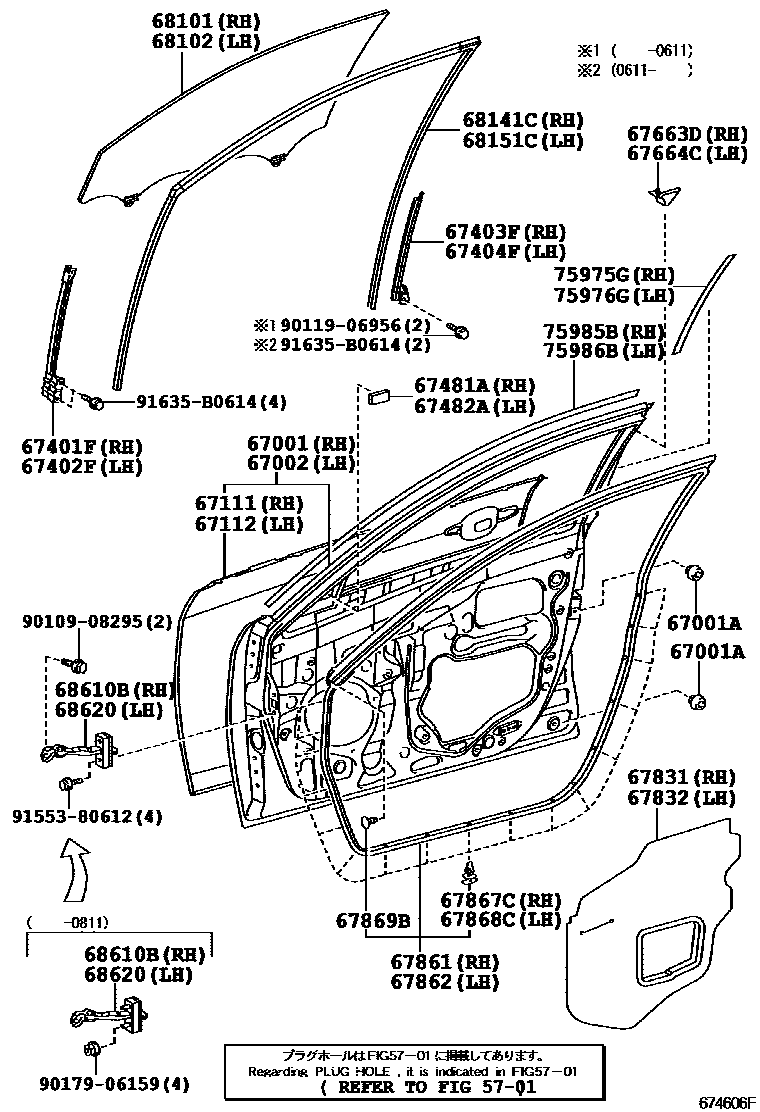

Toyota CAMRY EPC diagram 6701, 前门板和前门玻璃, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-06130 · 67001-06160 |
| 67001A | Front door panel cushion | 90541-09117 |
| 67002 | Left front door panel sub-assembly | 67002-06130 · 67002-06160 |
| 67111 | Outer right front door panel | 67111-06080 · 67111-06090 |
| 67112 | Outer left front door panel | 67112-06080 · 67112-06090 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-06080 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-06080 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-06060 · 67403-06061 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-06060 · 67404-06061 |
| 67481A | Right front door front lower door frame seal | 67481-06020 |
| 67482A | Left front door front lower door frame seal | 67481-06020 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-06070 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-06070 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-06040 |
| 67664C | Left door frame decorative strip | 67664-06040 |
| 67831 | Right front door access hole cover | 67831-06090 |
| 67832 | Left front door access hole cover | 67832-06090 |
| 67861 | Right front door seal | 67861-06070 |
| 67862 | Left front door seal | 67862-06070 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67868-30030 |
| 68101 | Right front door glass sub-assembly | 68101-06130 |
| 68102 | Left front door glass sub-assembly | 68102-06130 |
| 68141C | Right front door glass lift channel | 68141-06070 |
| 68151C | Left front door glass lift channel | 68151-06060 |
| 68171B | Right front door glass inner sealing strip | 68171-06070 |
| 68172A | Left front door glass inner sealing strip | 68172-06070 |
| 68610B | Right front door opening limiter assembly | 68610-06070 · 68610-06071 |
| 68620 | Left front door opening limiter assembly | 68620-06070 · 68620-06071 |
| 75975G | Right front door trim strip No. 2 | 75975-06020 |
| 75976G | Left front door trim strip No. 2 | 75976-06020 |
| 75985B | Right front door trim strip No. 3 | 75985-06020 |
| 75986B | Left front door No. 3 trim | 75986-06020 |
