Toyota CAMRY 车顶内衬和消声垫 — Figure 6402

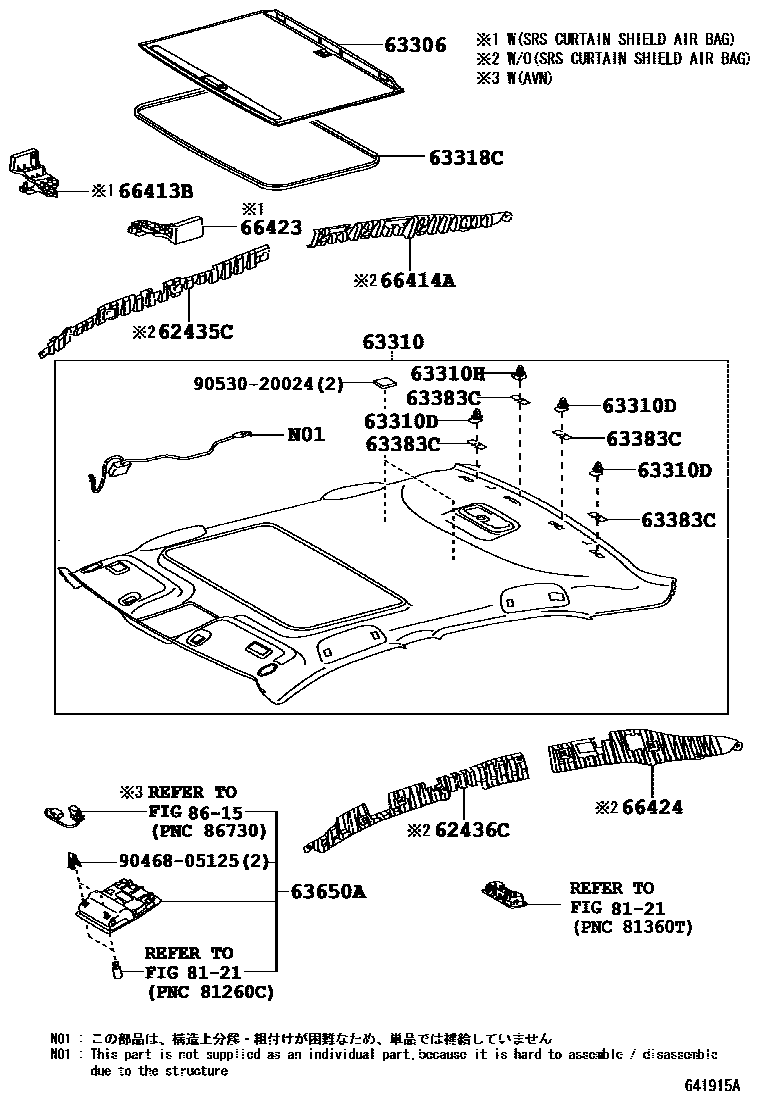

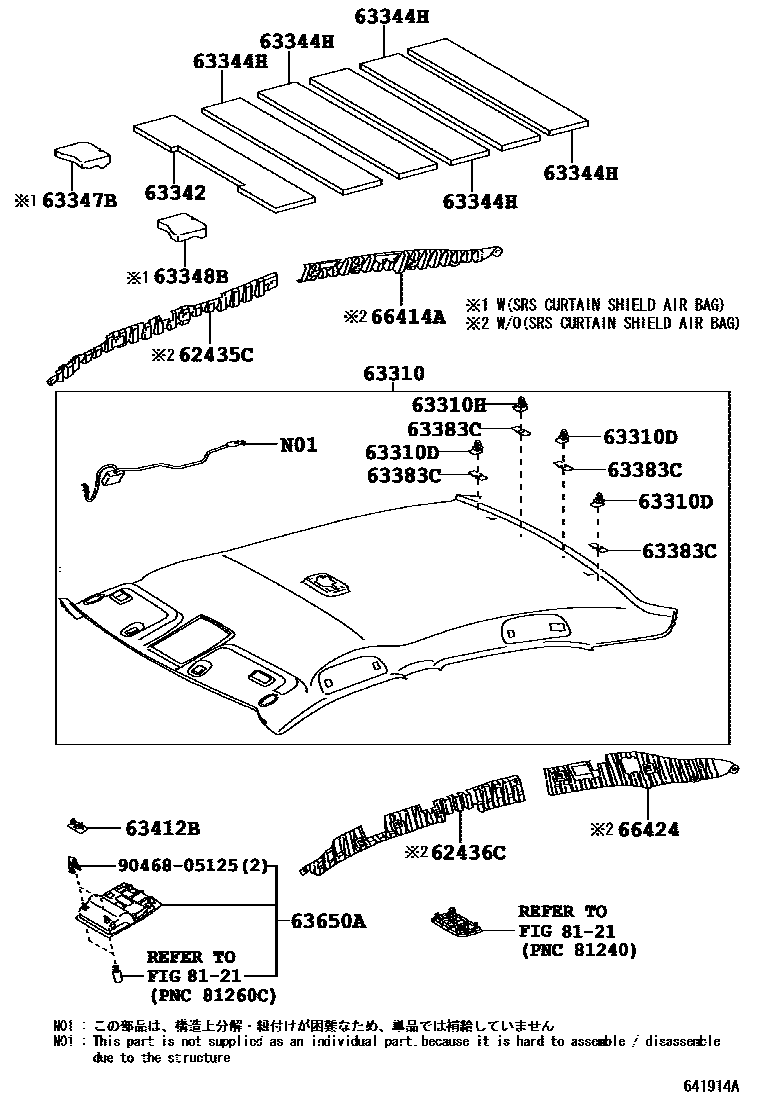

Toyota CAMRY EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62435C | Roof right side rail decorative pad | 62435-06100 |
| 62436C | Roof left side rail decorative pad | 62436-06100 |
| 63310D | headliner clip | 90467-09126 |
| 63310H | Clip (for headliner) | 90467-10181 |
| 63342 | No. 2 roof muffler pad | 63342-06120 |
| 63344H | No. 4 roof silencer mat | 63344-06140 |
| 63347B | Roof right longitudinal beam muffler pad | 63347-06030 |
| 63348B | Roof left side rail silencer pad | 63348-06030 |
| 63383C | Rear headliner trim fasteners | 63383-24030 |
| 63412B | roof console fixings | 63412-33010 |
| 66413B | Right front longitudinal member spacer | 66413-33050 |
| 66414A | Right rear longitudinal member spacer | 66414-06100 |
| 66423 | Left front longitudinal member spacer | 66423-33050 |
| 66424 | Left rear longitudinal member spacer | 66424-06100 |
