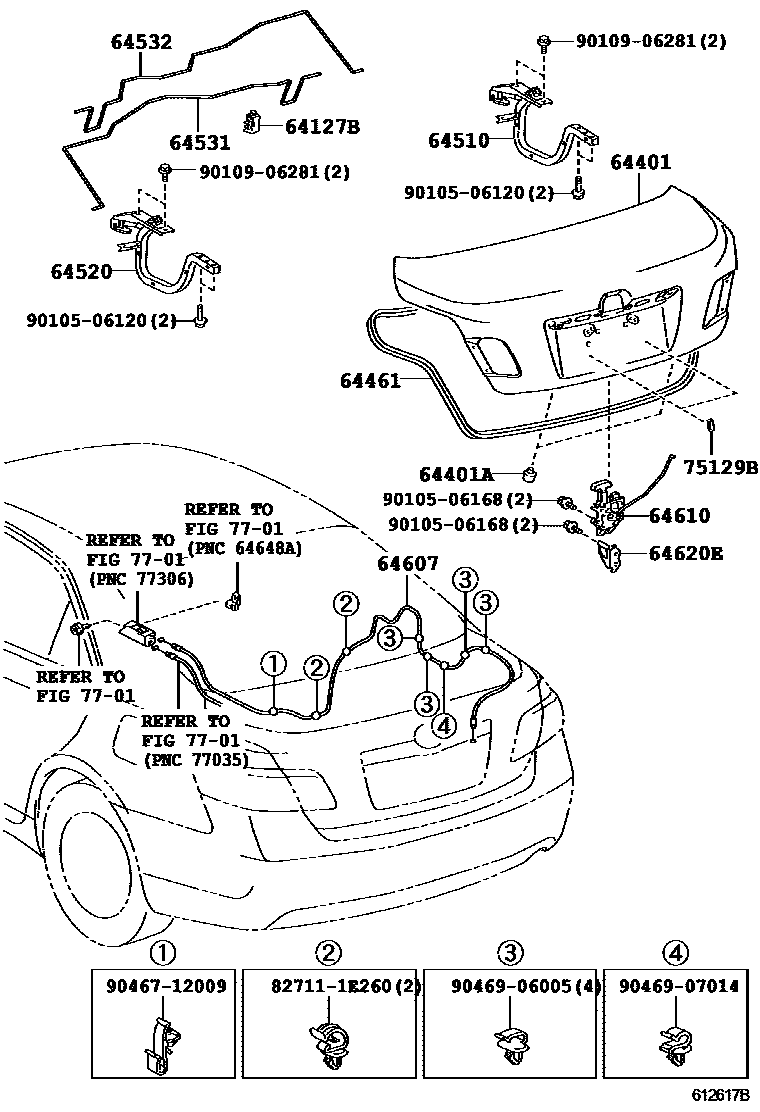

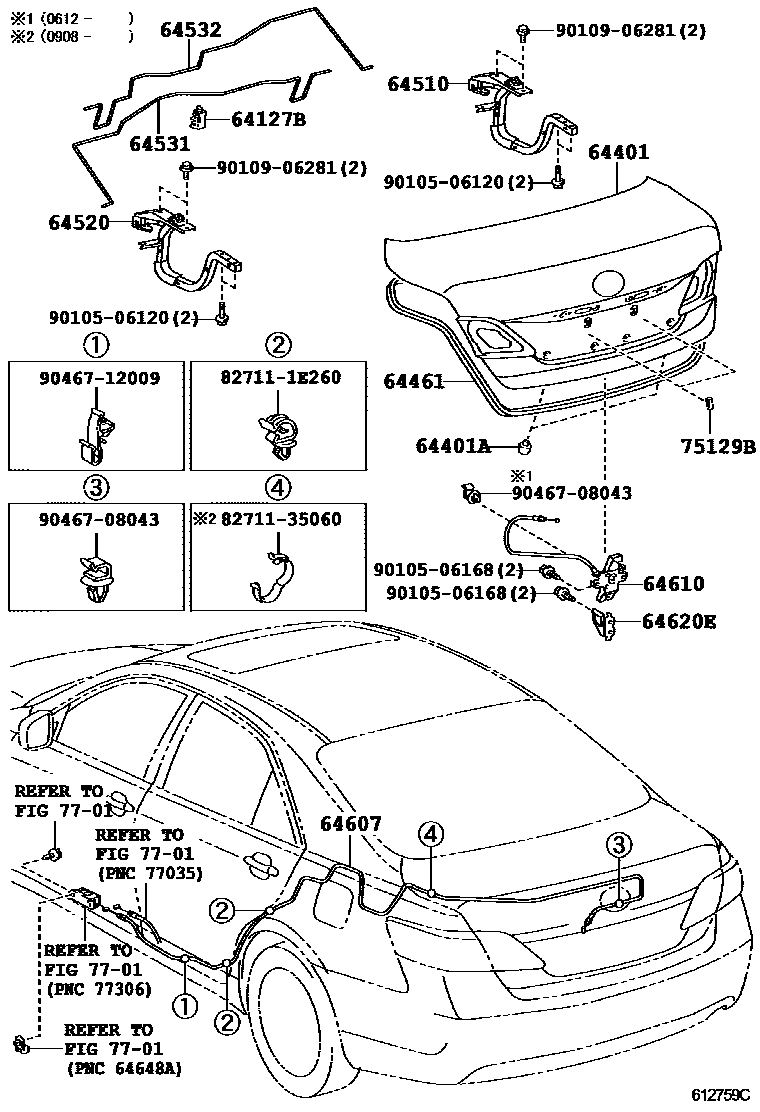

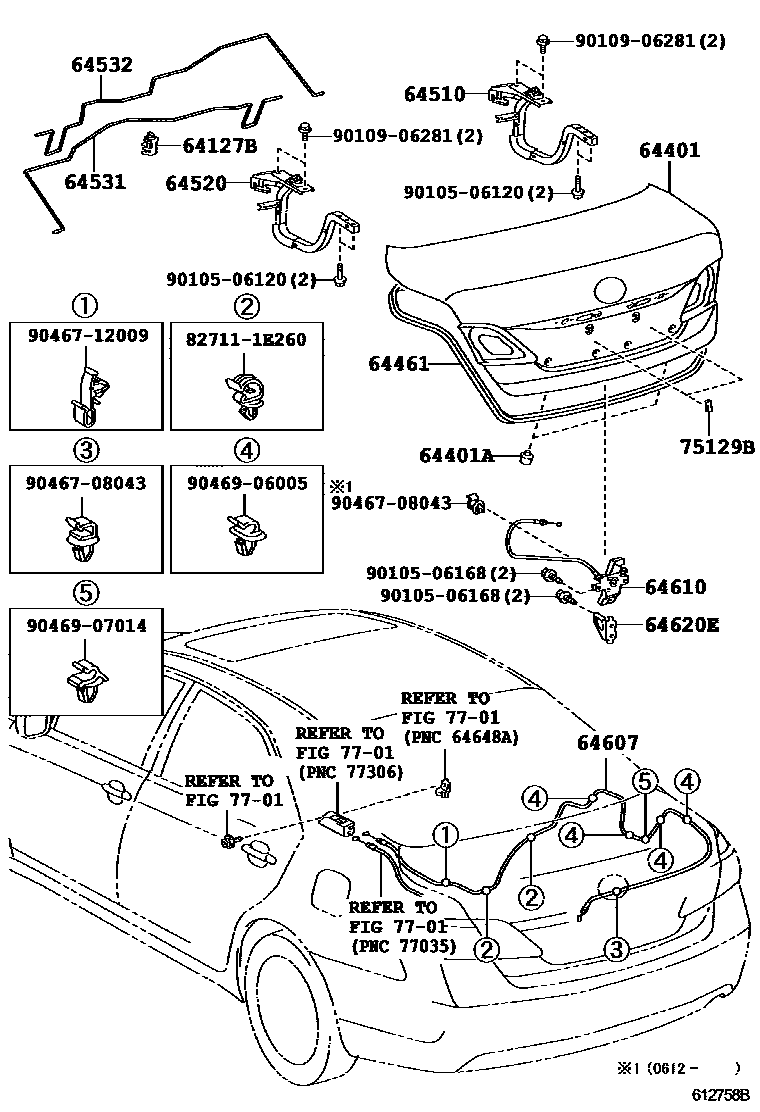

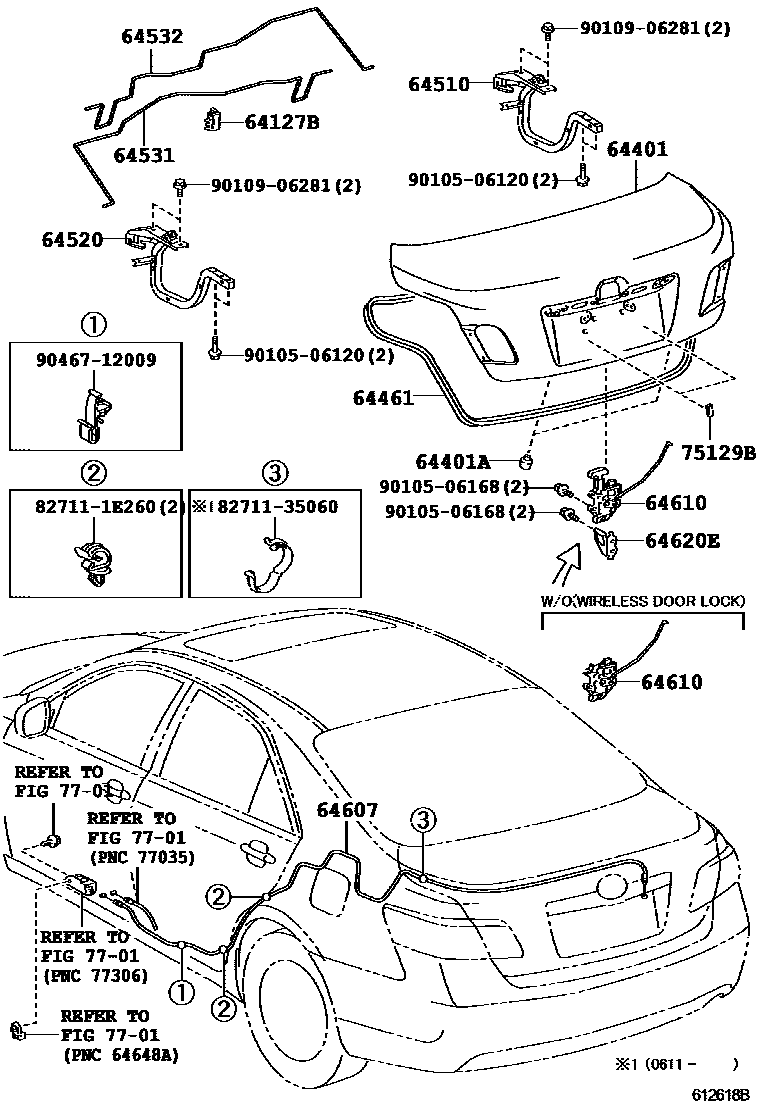

Toyota CAMRY 行李箱门和行李箱锁 — Figure 6105
Toyota CAMRY EPC diagram 6105, 行李箱门和行李箱锁, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33060 |
| 64401 | Trunk door panel sub-assembly | 64401-06370 · 64401-06380 · 64401-06390 · 64401-06400 · 64401-06420 · 64401-06430 · 64401-06500 · 64401-06510 · 64401-06540 · 64401-06550 |
| 64401A | Cushion pad (for luggage compartment door panel) | 90541-09116 |
| 64461 | Trunk door seal | 64461-06080 |
| 64510 | Trunk door right hinge assembly | 64510-06060 · 64510-06061 · 64510-06080 · 64510-06081 |
| 64520 | Trunk door left hinge assembly | 64510-06060 · 64510-06061 · 64510-06080 · 64510-06081 |
| 64531 | Trunk door right hinge torsion bar | 64531-06120 · 64531-06140 · 64531-06150 · 64531-06200 |
| 64532 | Trunk door left hinge torsion bar | 64532-06140 · 64532-06160 · 64532-06170 · 64532-06220 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-06080 · 64607-06110 · 64607-06120 · 64607-06130 · 64607-06180 |
| 64610 | Trunk door lock assembly | 64600-06020 · 64600-33130 · 64610-33090 |
| 64620E | Trunk door lock assembly | 64621-33010 |
| 75129B | rear license plate cushion | 75129-YC010 |
