Toyota CAMRY 天窗板和背窗玻璃 — Figure 6104

Toyota CAMRY EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 31 PNC and OE references.

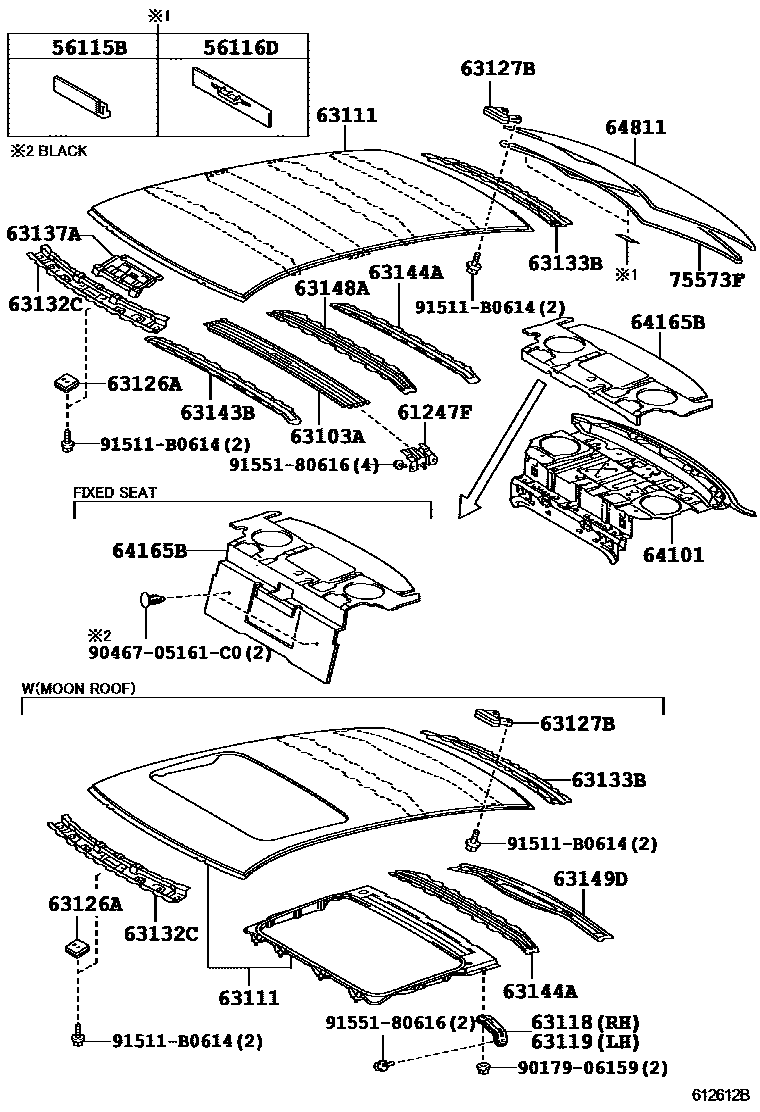

Toyota CAMRY 天窗板和背窗玻璃 EPC diagram — 612612B
天窗板和背窗玻璃 — 612612B (200606 – 999999)
Toyota CAMRY 天窗板和背窗玻璃 EPC diagram — 612613C
天窗板和背窗玻璃 — 612613C (200606 – 999999)

PNC and OE references

PNCPart nameOE numbers
56115BBack window glass stop No. 156115-30120
56116DNo. 2 stopper for back window glass56116-22050
61247FRoof inner longitudinal beam reinforcement61247-33010
63103ARoof panel reinforcement sub-assembly63103-06060
63111roof panel63101-06901 · 63111-06360
63118Right roof panel bracket63118-33030
63119Left roof panel bracket63118-33030
63126AWindshield roof shock absorber63126-33020
63127BFrame shock absorber on rear window63127-33020
63132CWindshield inner roof panel63132-33070
63133Bback window frame63133-06070
63137ANo. 1 ceiling light bracket63137-33090
63143BNo. 3 roof panel reinforcement63143-33080
63144ANo. 4 roof panel reinforcement63144-33110 · 63144-33120
63148ANo. 7 roof panel reinforcement63148-33030
63149DNo. 8 roof panel reinforcement63149-33020
63201GSliding sunroof glass sub-assembly63201-33100
63203FSliding sunroof frame sub-assembly63203-33100
63205ASliding sunroof transmission cable sub-assembly63205-48010
63217GRight sliding sunroof trim63217-48030
63218GSliding sunroof trim, left63218-48030
63247ERight rear sliding sunroof drain hose63247-33010
63248ELeft rear sliding sunroof drain hose63248-33010
63249ESliding skylight drain hose63249-33090
63251HSliding skylight seal63251-30090
63260ASliding sunroof driving gear sub-assembly63260-33100 · 63260-33101
63669BSliding skylight drain seal63669-50010
64101Upper back panel sub-assembly64101-06190 · 64101-06210
64165BNo. 1 upper back panel hole cover64165-06100 · 64165-06120 · 64165-06180
64811back window glass64811-06220
75573FProtective strip for rear window75573-33020
