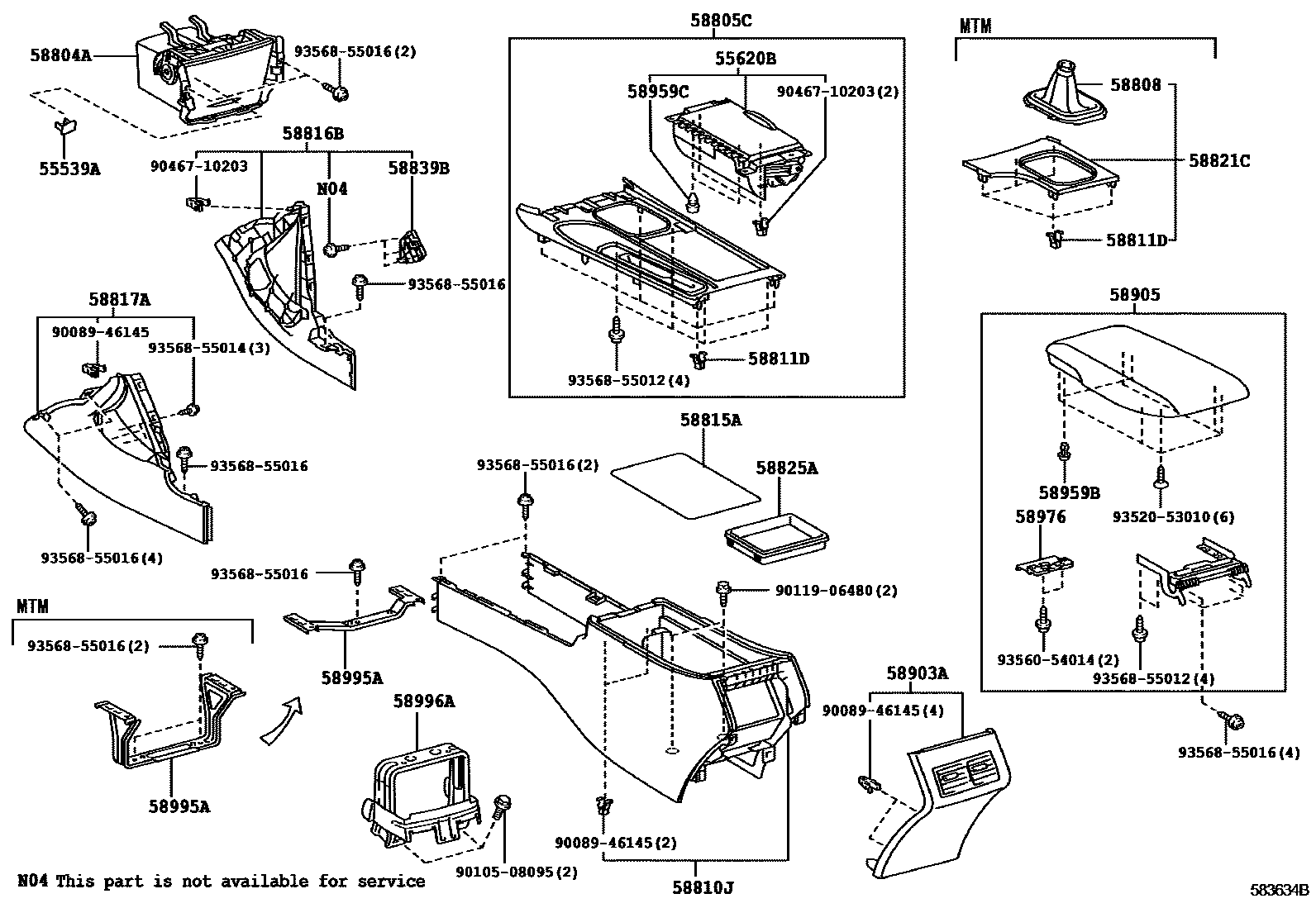

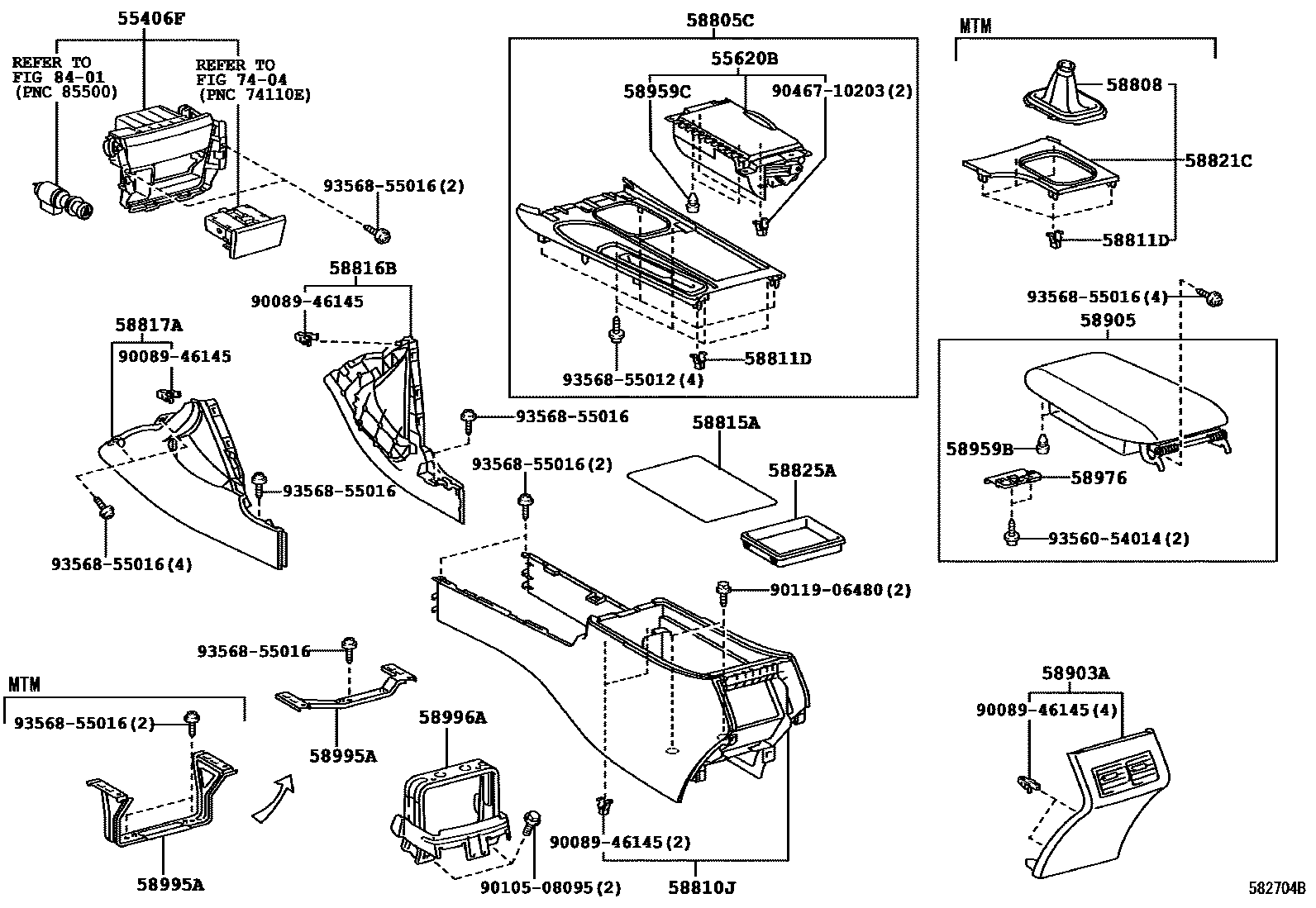

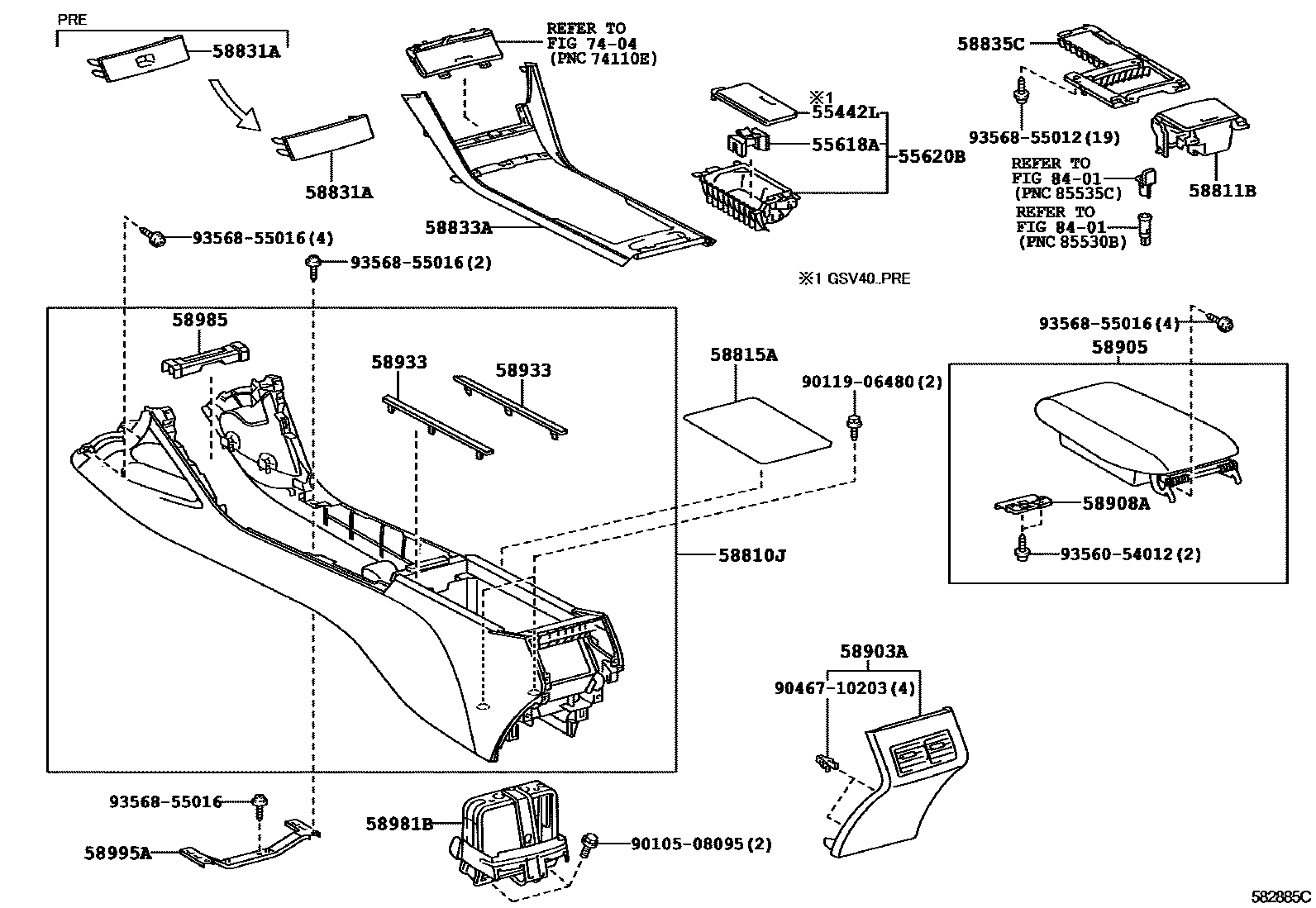

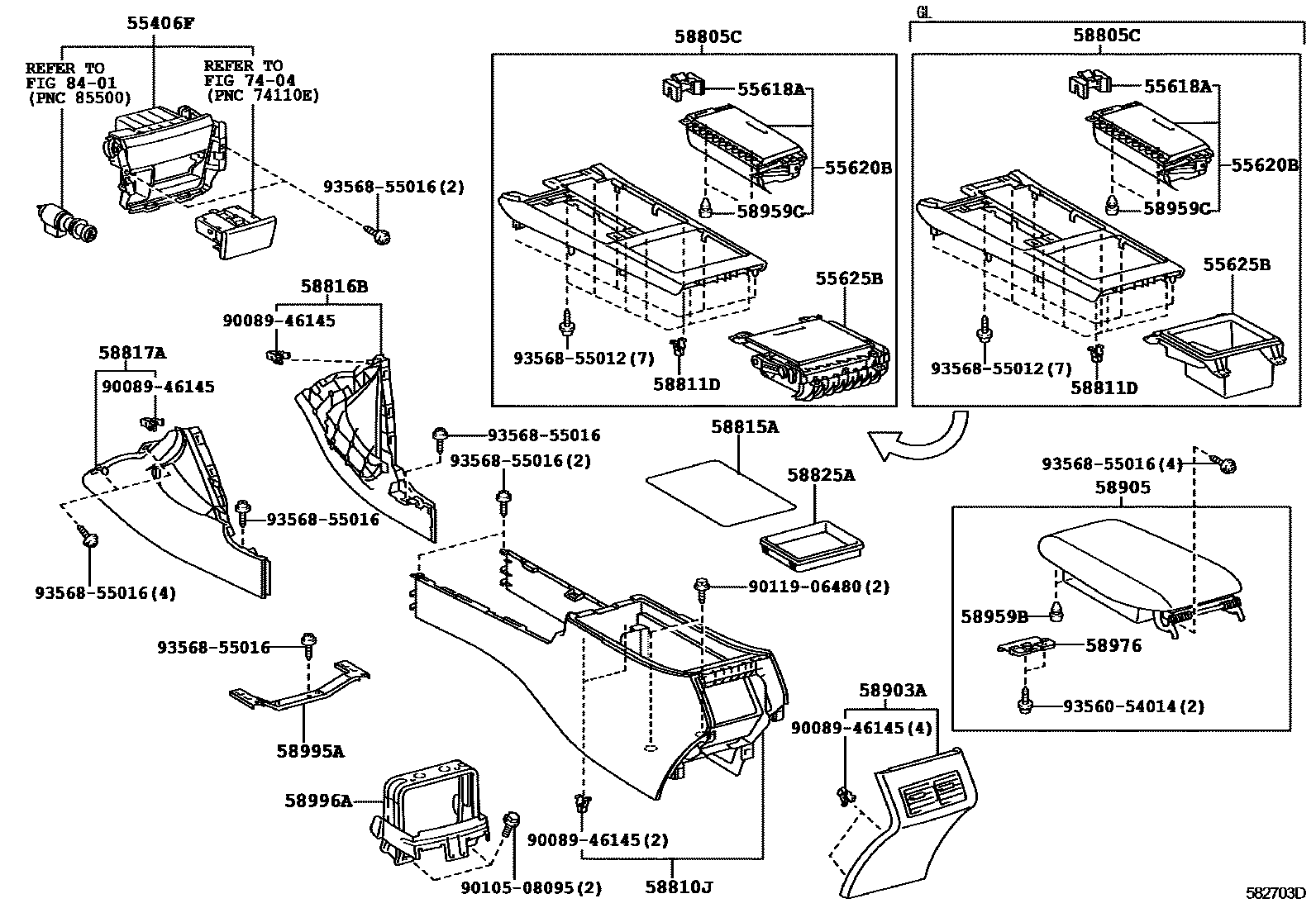

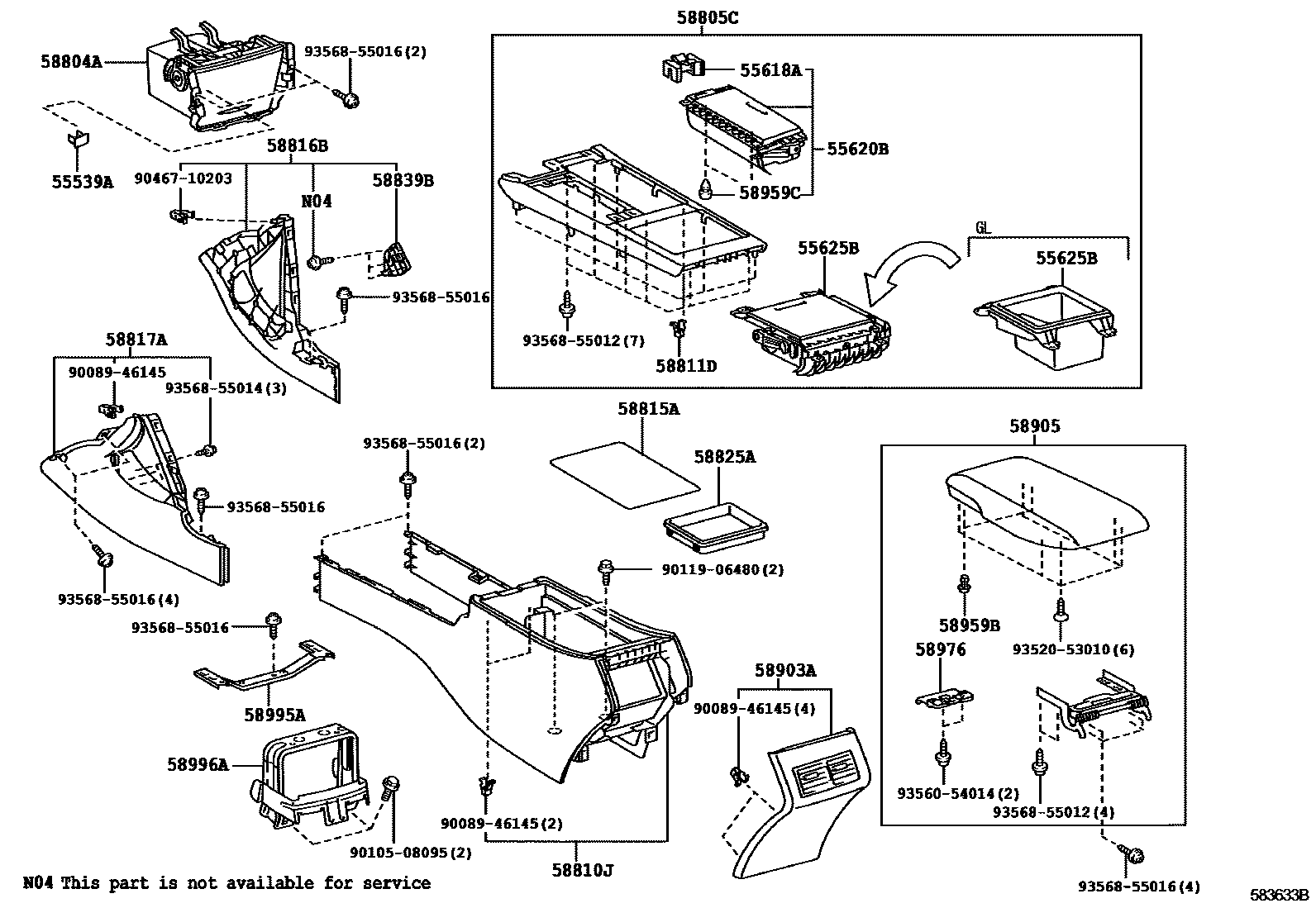

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 6 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55406F | Center instrument cluster lower decorative panel sub-assembly | 55406-33100 |
| 55442L | Dashboard storage box cover | 55442-06100 |
| 55618A | Armrest box cup holder | 55618-06080 · 55618-33010 |
| 55620B | Dashboard cup holder | 55620-06140 · 55620-06200 · 55620-06320 · 55620-33180 · 55620-33230 · 55620-33240 · 55620-33250 · 55620-33260 · 55620-33310 |
| 55625B | Dashboard cup holder tray | 55625-06050 · 55625-33050 · 55625-33060 · 55625-33100 |
| 58804A | Armrest box upper panel sub-assembly | 58804-33670 |
| 58811B | armrest box | 58801-06070 · 58801-06110 · 58801-06111 · 58801-06211 |
| 58811D | Clip (for armrest box) | 90089-46145 |
| 58815A | Armrest box felt pad | 58815-06050 |
| 58825A | Armrest box groove | 58825-06040 |
| 58831A | Front armrest box upper panel decorative parts | 58831-06310 · 58831-06320 · 58831-06480 · 58831-06490 |
| 58835C | Armrest box decorative parts | 58835-06010 |
| 58908A | Armrest box lid lock assembly | 58908-33030 |
| 58959B | Armrest box cover cushion | 58959-60060 |
| 58959C | Armrest box cover cushion | 58959-60060 |
| 58976 | Armrest box lid lock | 58976-YA011 |
| 58981B | Armrest Box No. 1 Installation Fixing Bracket | 58981-06020 |
| 58985 | Armrest box fixing bracket | 58985-06040 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-06050 · 58995-06060 · 58995-06120 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-06050 · 58996-06051 |
