Toyota CAMRY 浅盘形地板和车身下背板 — Figure 5801

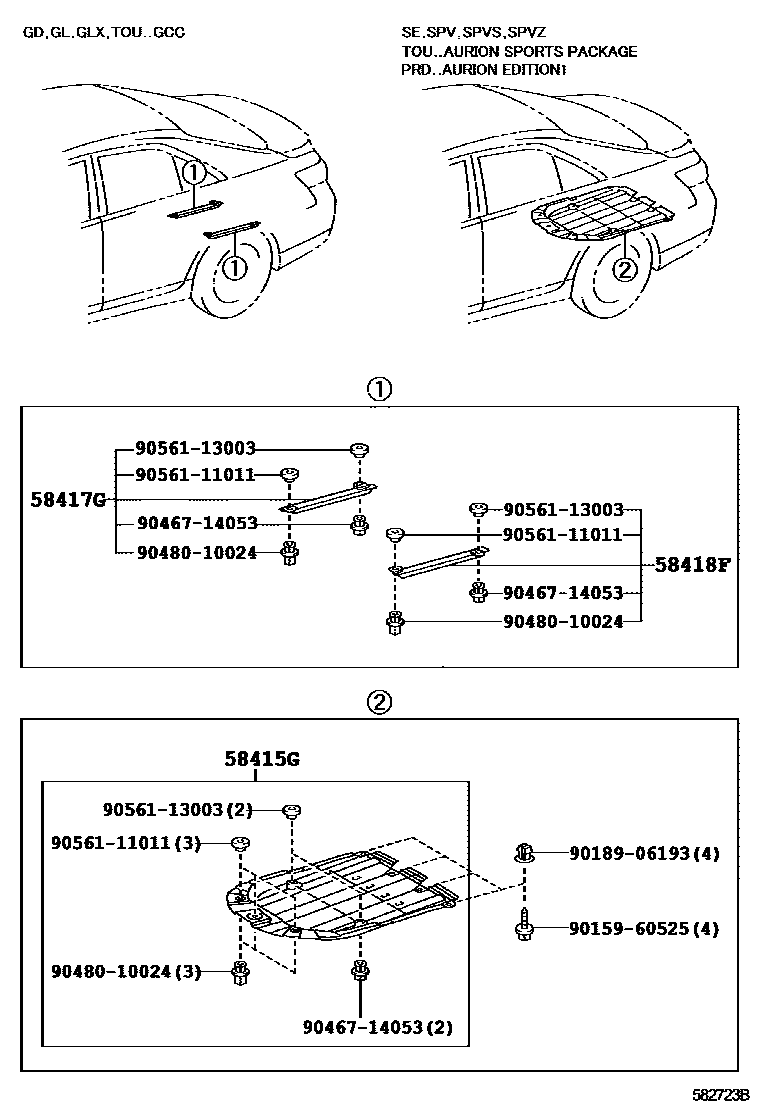

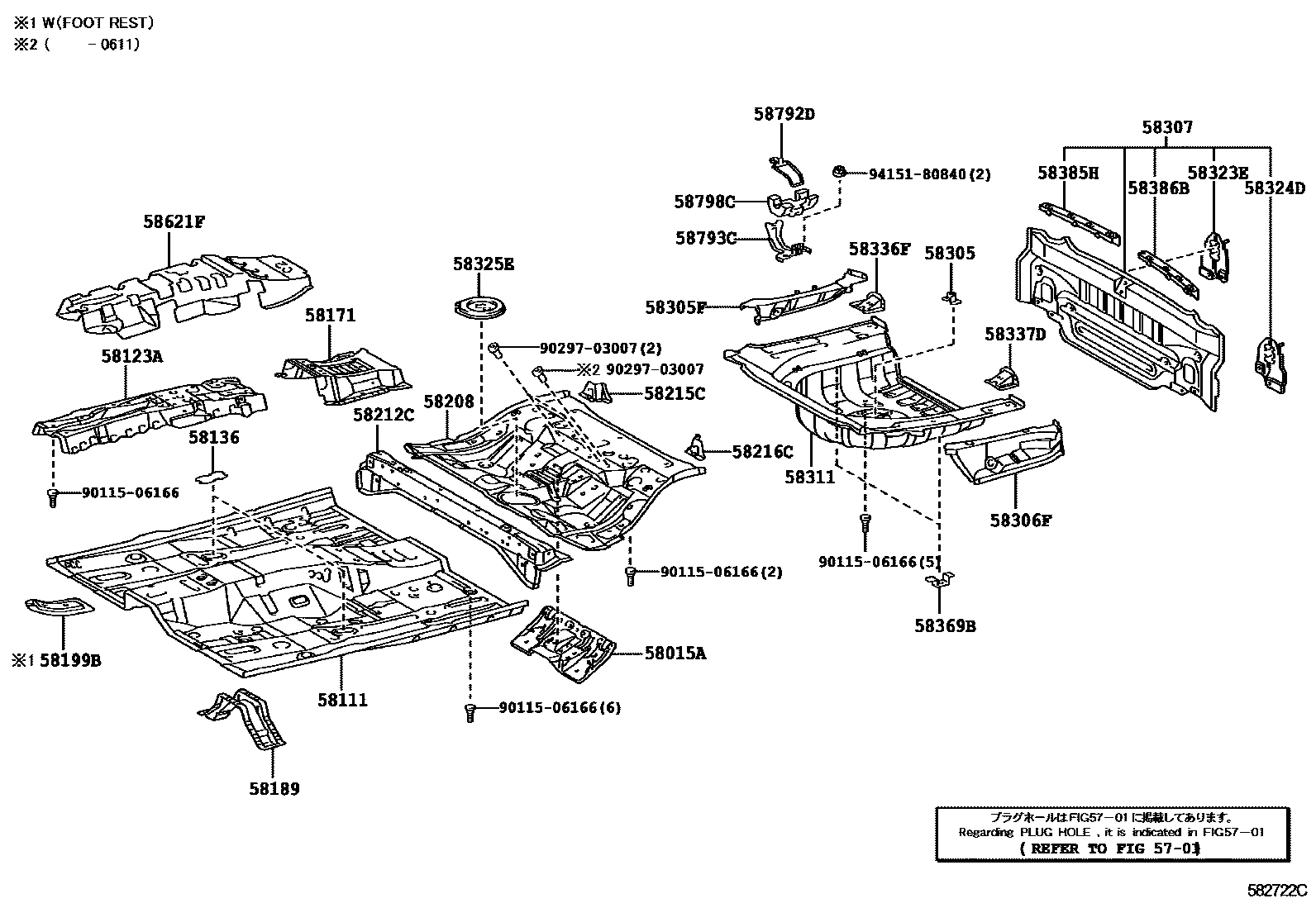

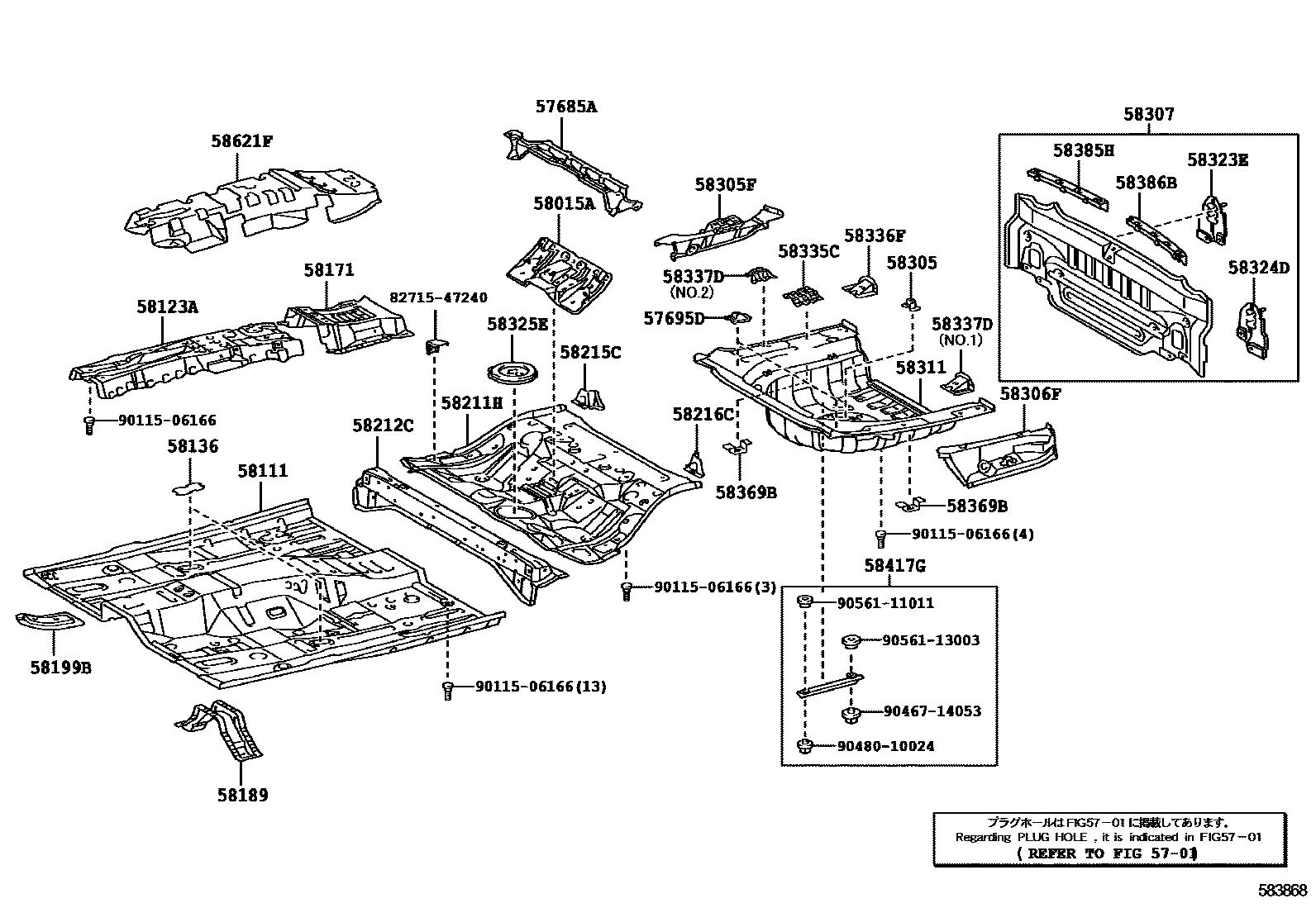

Toyota CAMRY EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57685A | Rear floor No. 1 right mounting bracket | 57685-33010 |
| 57695D | Rear floor No. 2 right mounting bracket | 57695-33020 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-06080 · 58015-06100 |
| 58111 | front floor pan | 58111-06110 |
| 58123A | shift lever bracket | 58013-06080 |
| 58136 | Front floor hole cover | 58136-06020 |
| 58171 | Parking brake base reinforcement | 58171-06060 |
| 58189 | Exhaust pipe clamp bracket reinforcement | 58189-33050 · 58189-33070 |
| 58199B | Footrest reinforcement | 58199-06030 |
| 58208 | central floor base | 58211-06130 · 58211-06150 |
| 58211H | central floor base | 58211-06190 |
| 58212C | Center floor front floor | 58212-06050 |
| 58215C | Center floor No. 2 right reinforcement | 58215-33040 |
| 58216C | Center floor No. 2 left reinforcement | 58216-33030 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-YC010 |
| 58305F | Rear floor right side panel sub-assembly | 58305-06080 · 58305-06150 |
| 58306F | Rear floor left side panel sub-assembly | 58306-06050 · 58306-06080 |
| 58307 | Body lower back panel sub-assembly | 58307-06130 |
| 58311 | rear floor pan | 58311-06090 · 58311-06110 |
| 58323E | Rear bumper arm right bracket reinforcement | 58323-06050 · 58323-06051 |
| 58324D | Rear bumper arm left bracket reinforcement | 58324-06050 · 58324-06051 |
| 58325E | Rear floor access hole cover | 58325-06030 |
| 58335C | Front floor right panel | 58335-33020 |
| 58336F | Rear floor bottom panel right reinforcement | 58336-06050 |
| 58337D | Rear floor bottom left reinforcement | 58337-06040 · 58337-33040 |
| 58369B | No. 3 fuel pipe bracket | 58369-33010 |
| 58385H | Rear bumper cover No. 1 bracket | 58385-33030 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-33010 |
| 58415G | Rear floor panel No. 1 | 58415-06030 |
| 58417G | Rear floor panel No. 3 | 58417-06010 |
| 58418F | Rear floor panel No. 4 | 58418-06010 |
| 58621F | Center console silencer No. 1 | 58621-06110 |
| 58792D | jack stand | 58792-33010 |
| 58793C | Jack Bracket No. 1 | 58793-06040 |
| 58798C | Jack bracket cushion | 58798-06030 |
