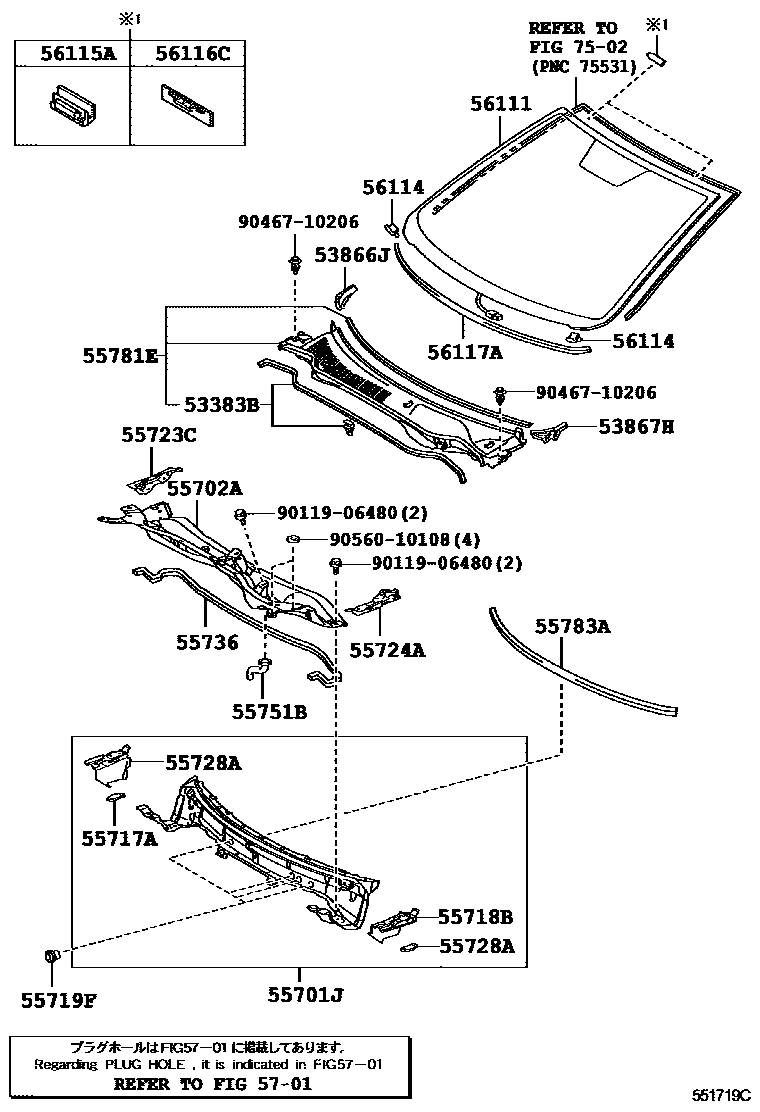

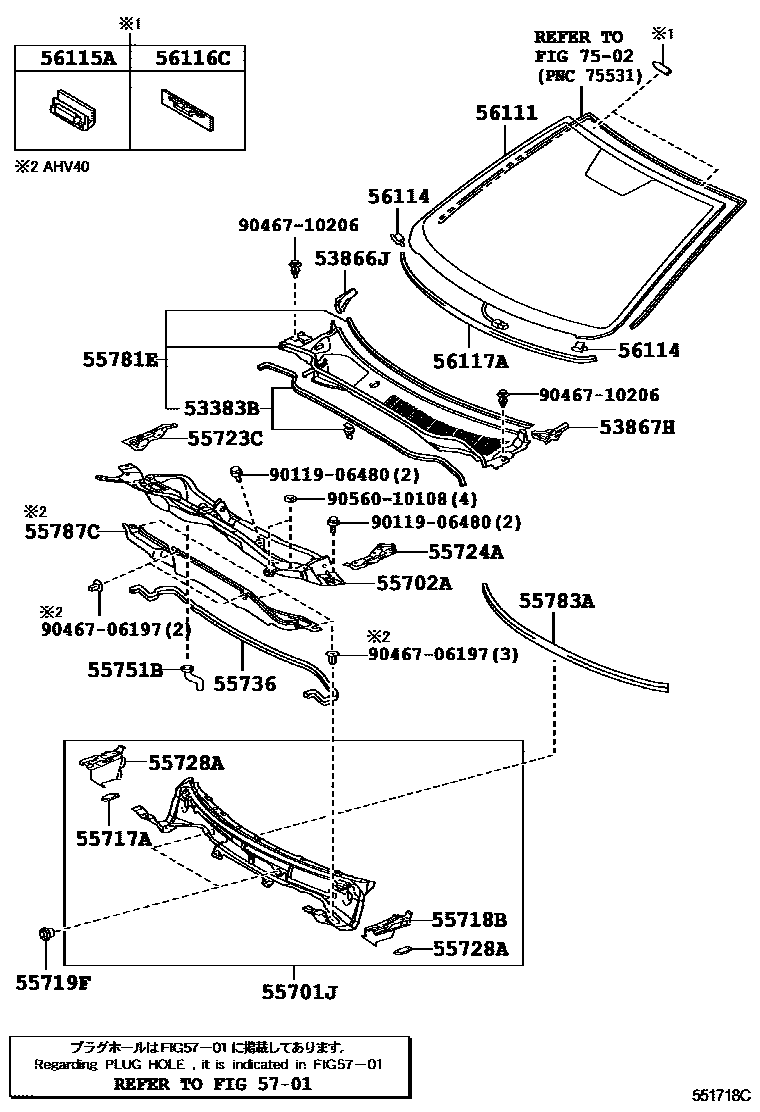

Toyota CAMRY 前围板和挡风玻璃 — Figure 5503
Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-06090 · 53383-06100 |
| 53866J | Right front fender to cowl side seal | 53866-33060 |
| 53867H | Left front fender to cowl side seal | 53867-33060 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06160 · 55701-06170 |
| 55702A | Front cowl upper outer front panel sub-assembly | 55702-06060 · 55702-06070 · 55702-06110 |
| 55717A | Upper right inner panel of cowl | 55717-06100 |
| 55718B | Upper left inner panel of front wall | 55718-06100 |
| 55719F | Front lower panel seal | 55719-33020 |
| 55723C | Right front wall upper side reinforcement | 55723-06090 |
| 55724A | Left front wall upper side reinforcement | 55724-06100 |
| 55728A | Engine cover block reinforcement | 55728-06070 |
| 55736 | Waterproof cover plate seal | 55736-06050 · 55736-06060 |
| 55751B | Front no. 1 water hose | 55751-33010 · 55751-33020 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-06110 · 55708-06120 |
| 55783A | Front cowl upper cover silencer pad | 55783-06070 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-06020 |
| 56111 | windshield | 56101-06905 · 56101-06906 · 56101-06907 · 56101-06908 · 56101-06929 · 56101-06930 · 56101-06931 · 56101-06932 · 56101-06933 |
| 56114 | windshield stopper | 56114-33050 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
