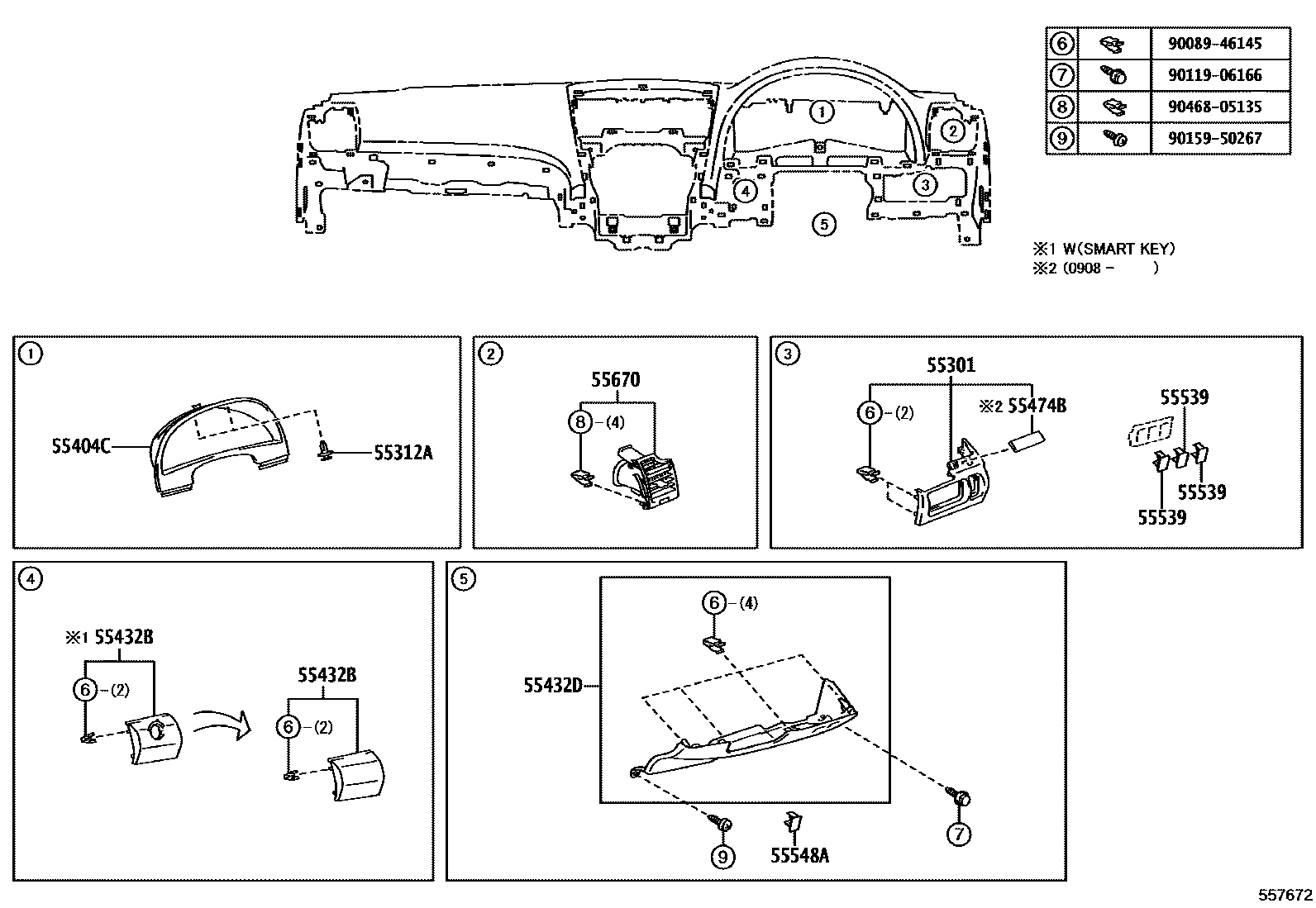

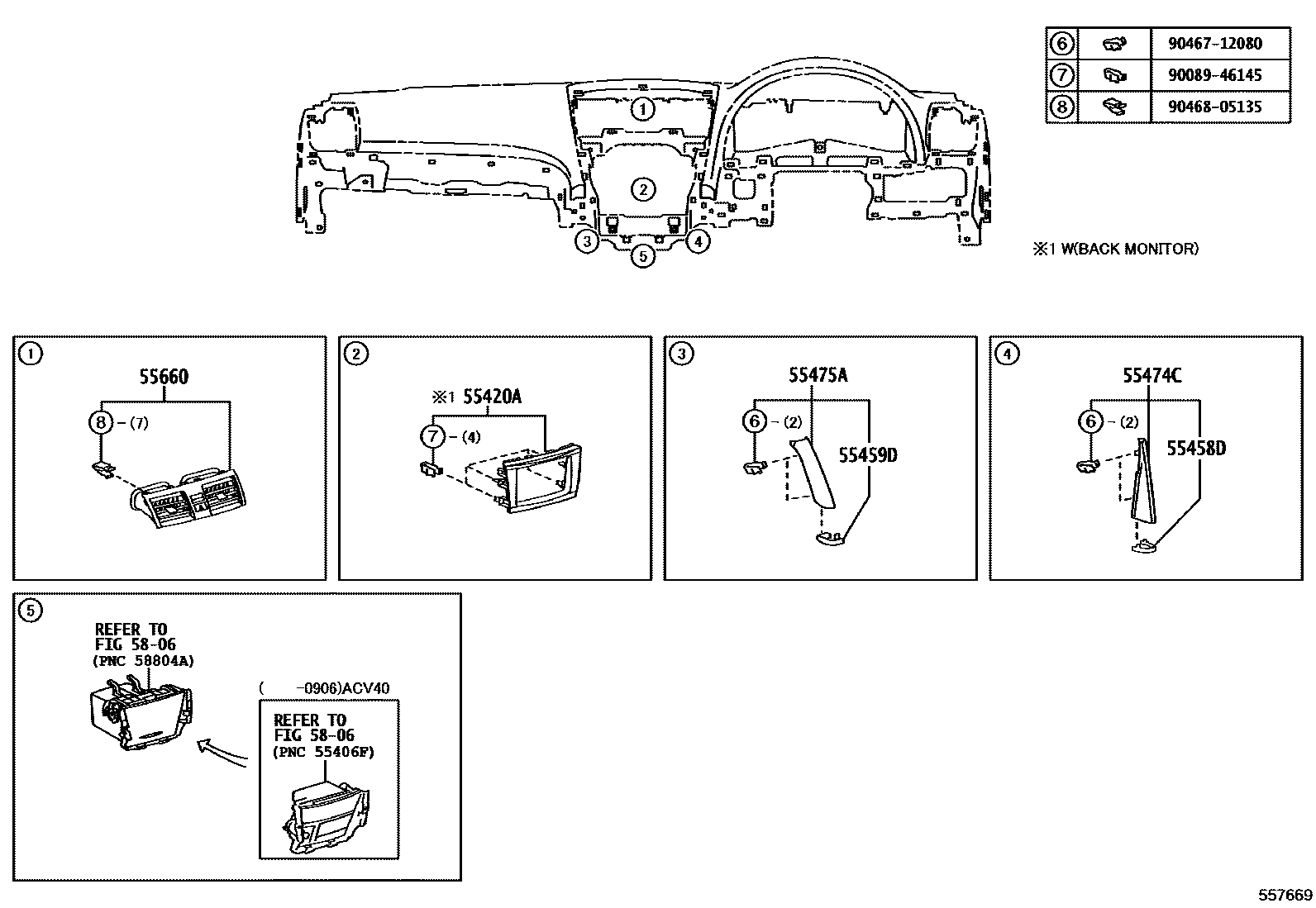

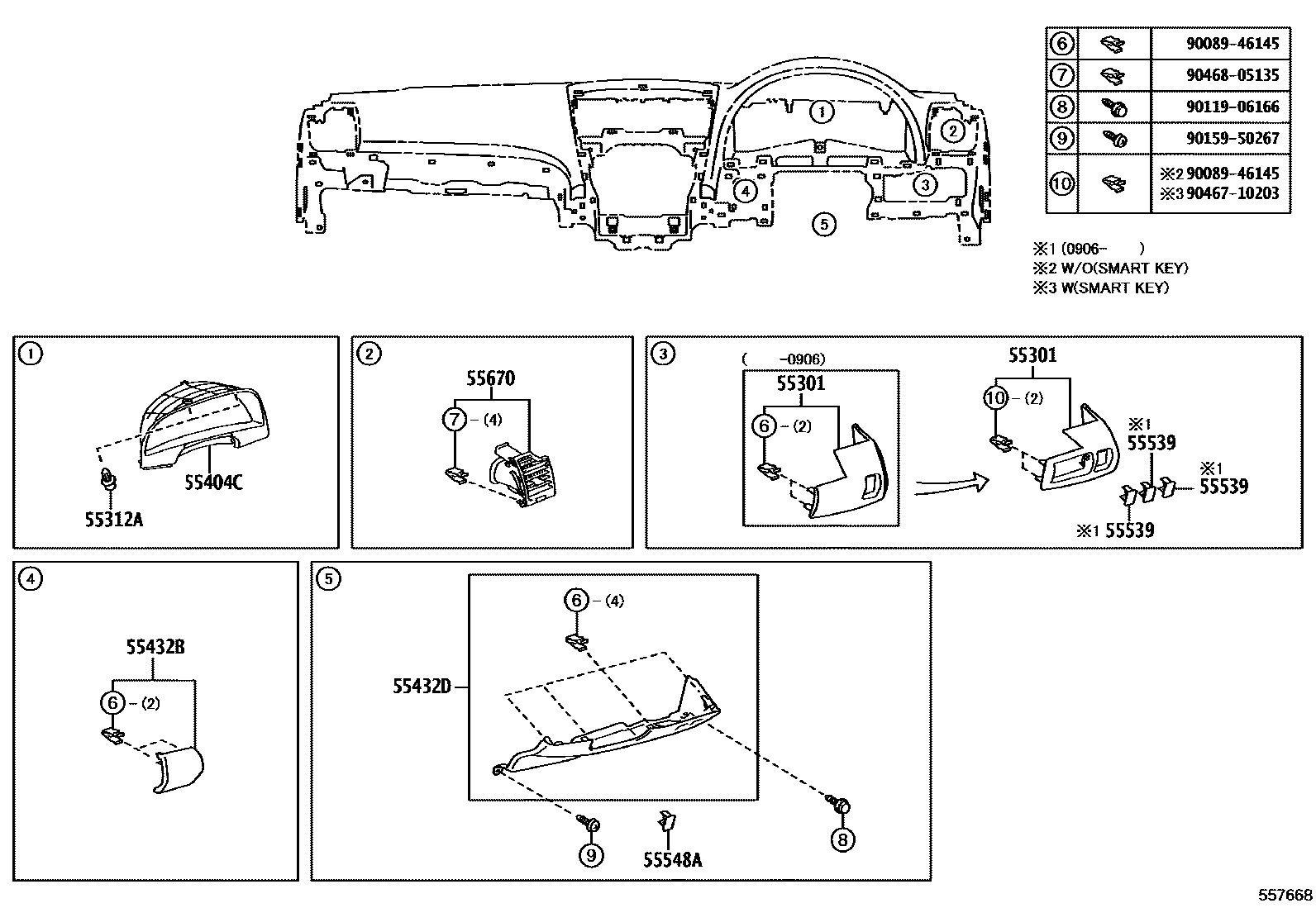

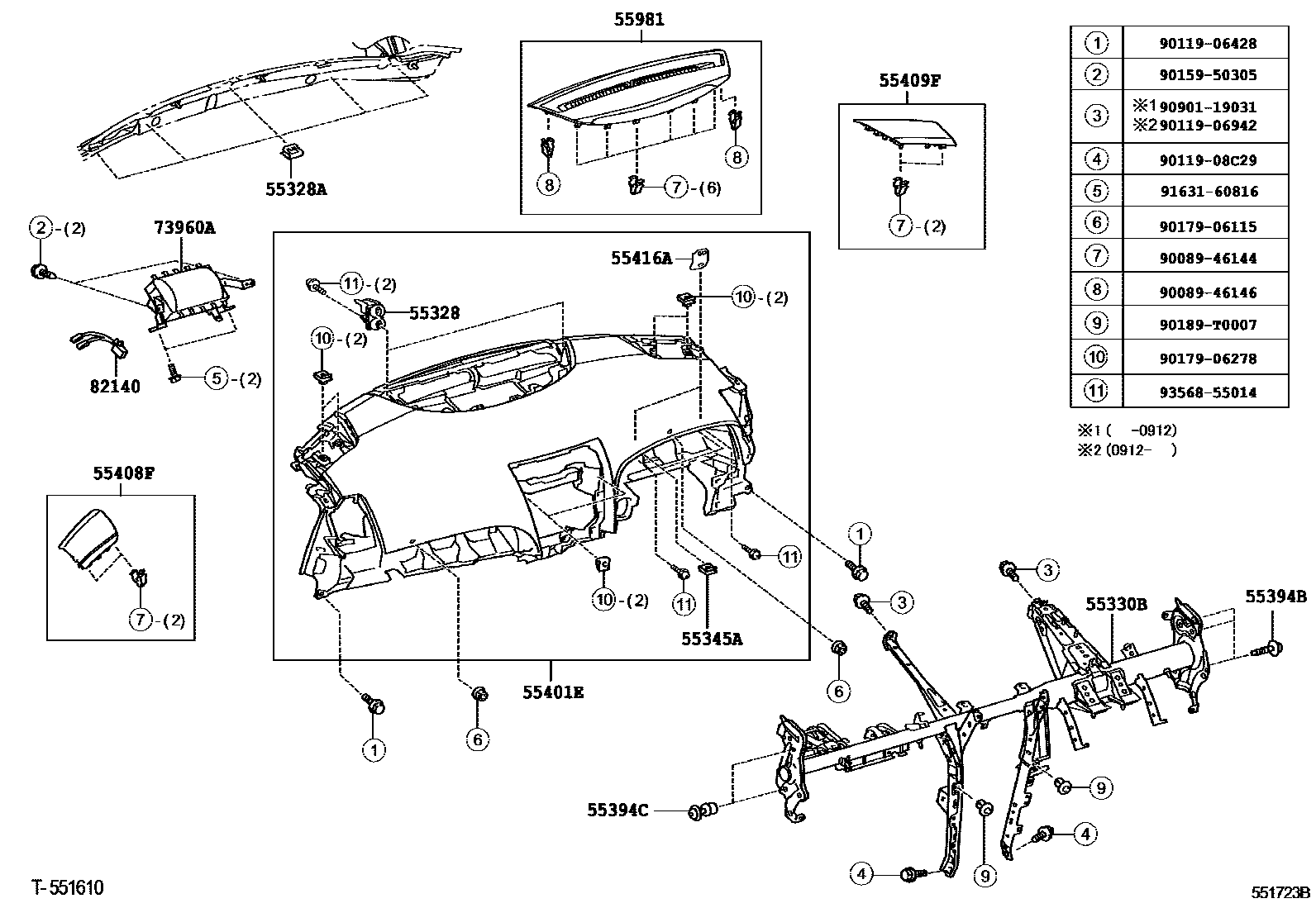

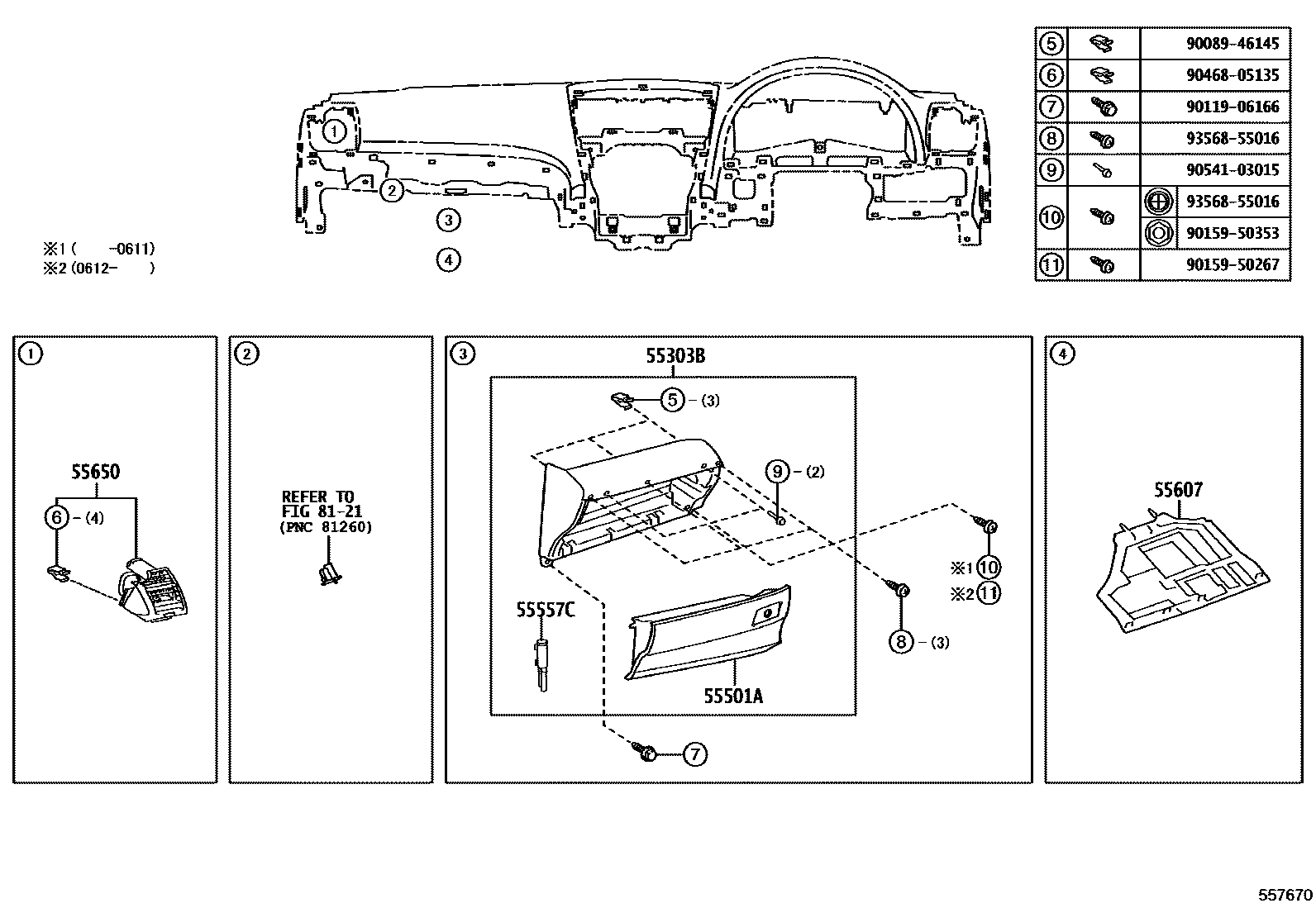

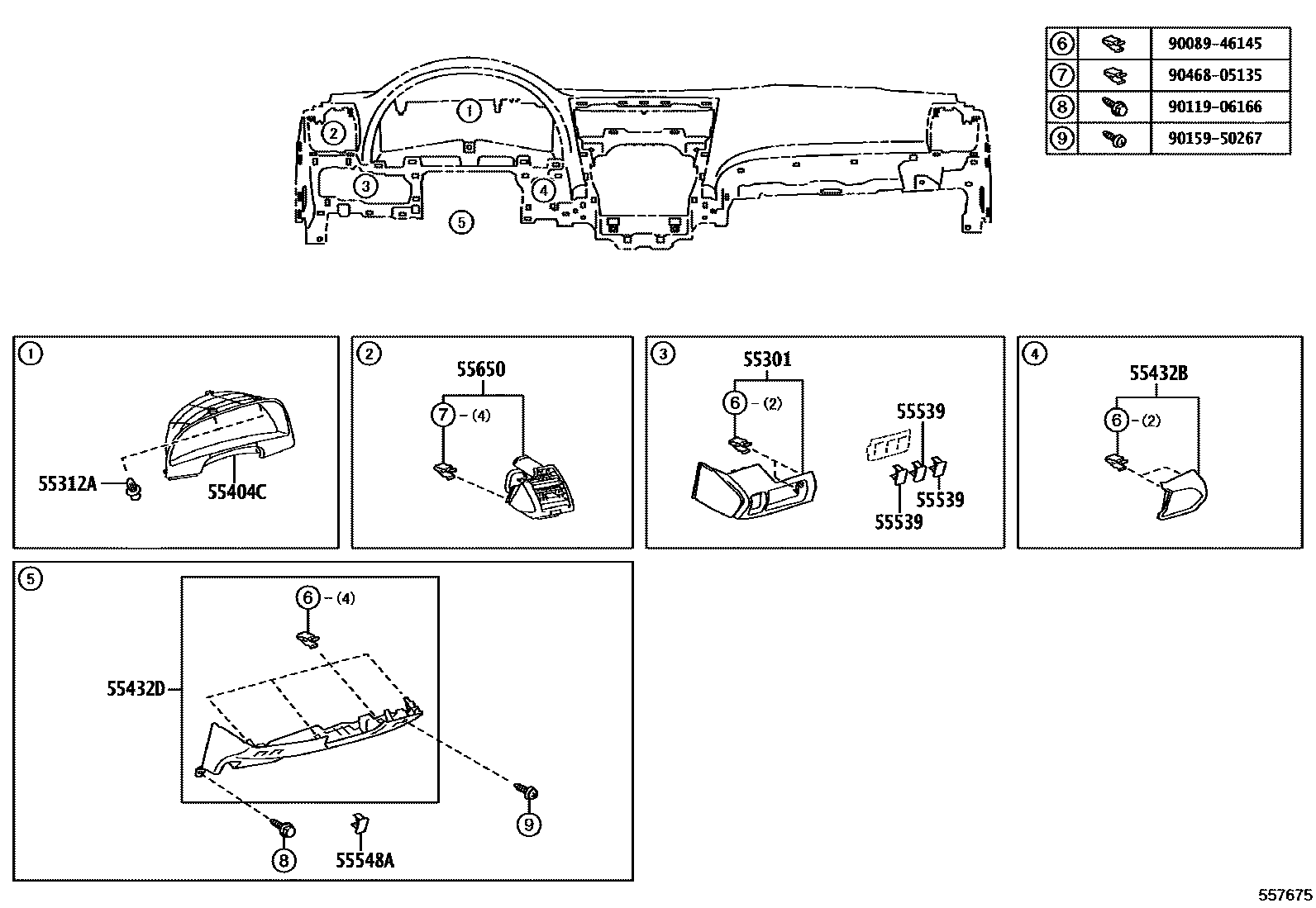

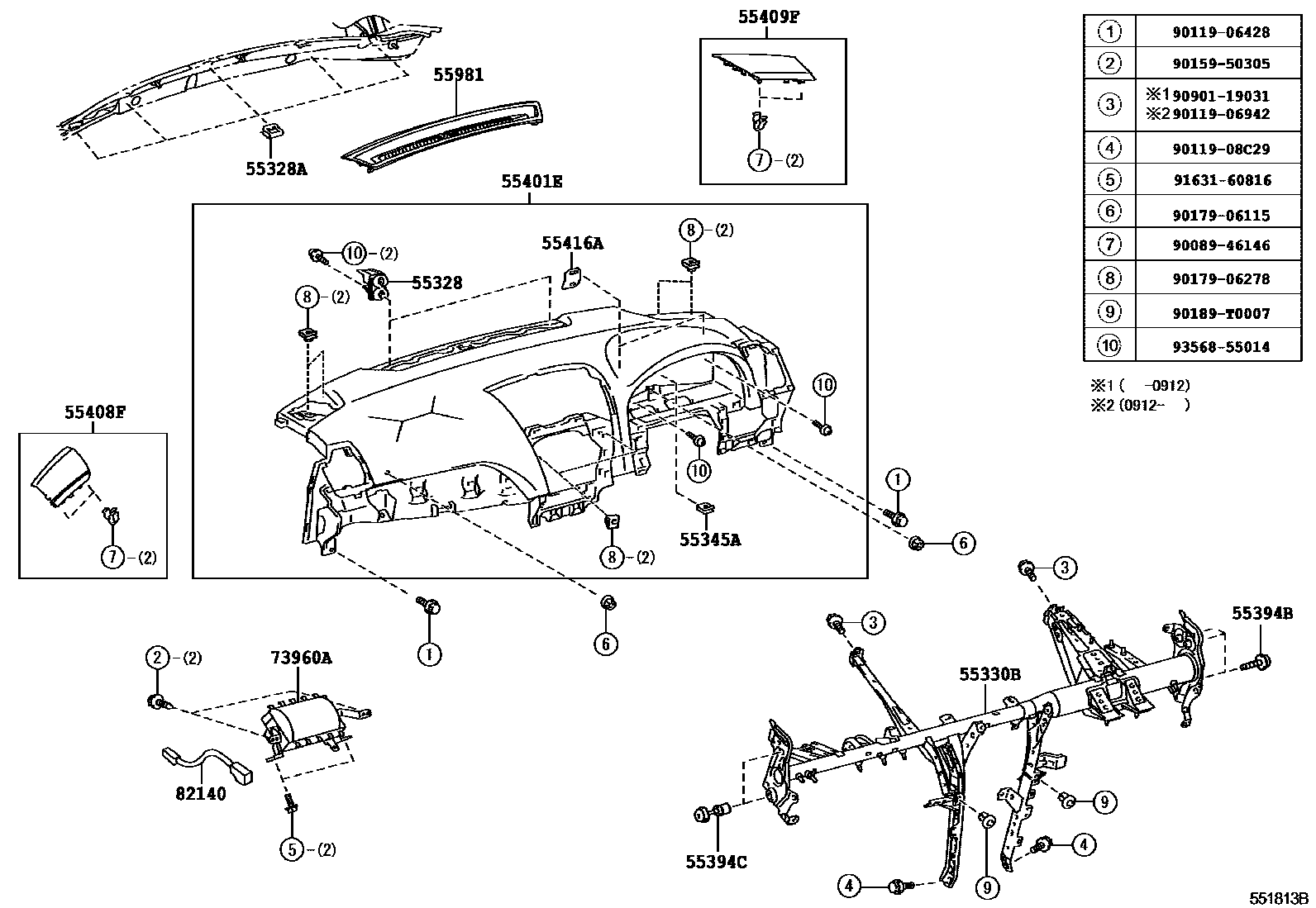

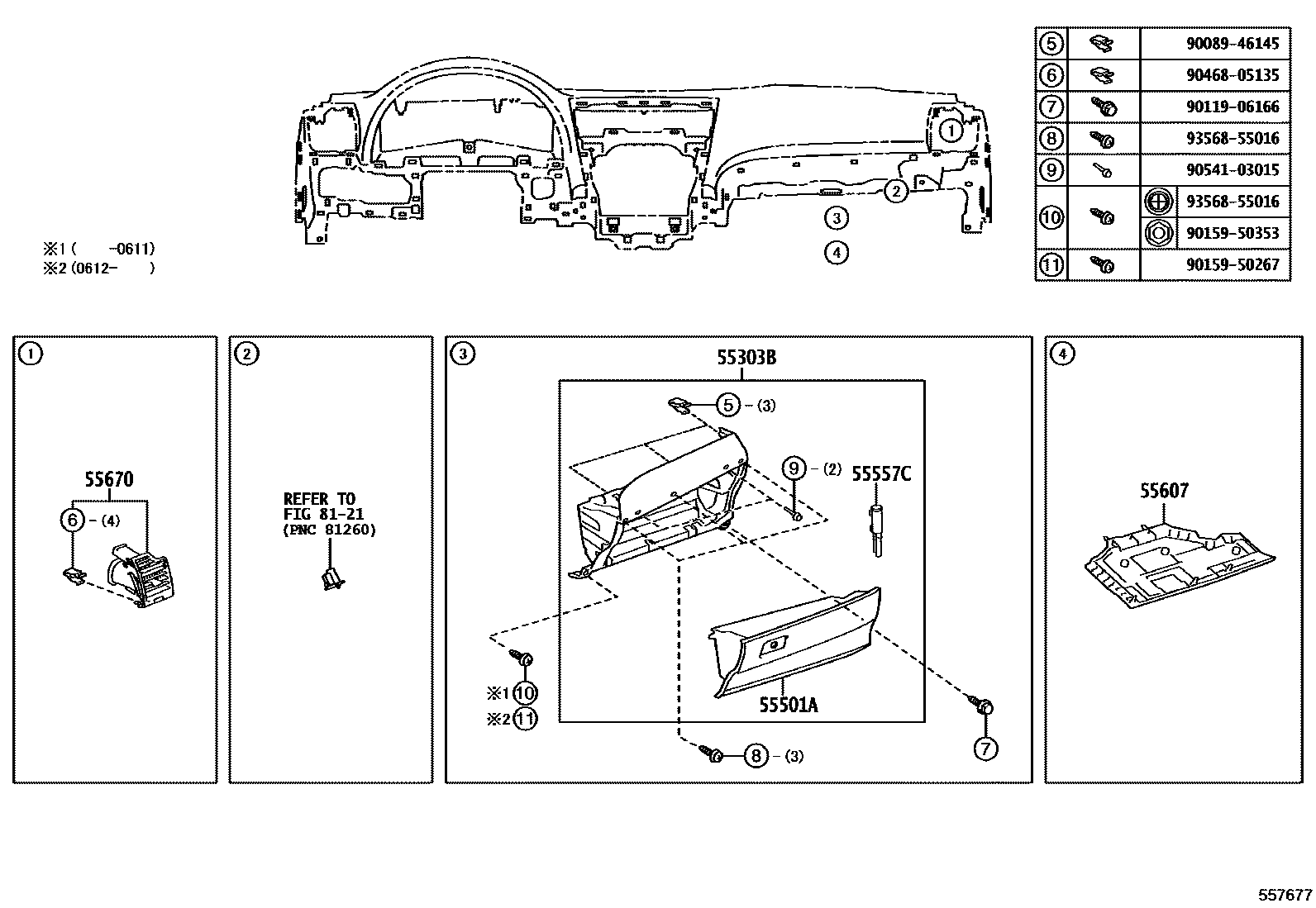

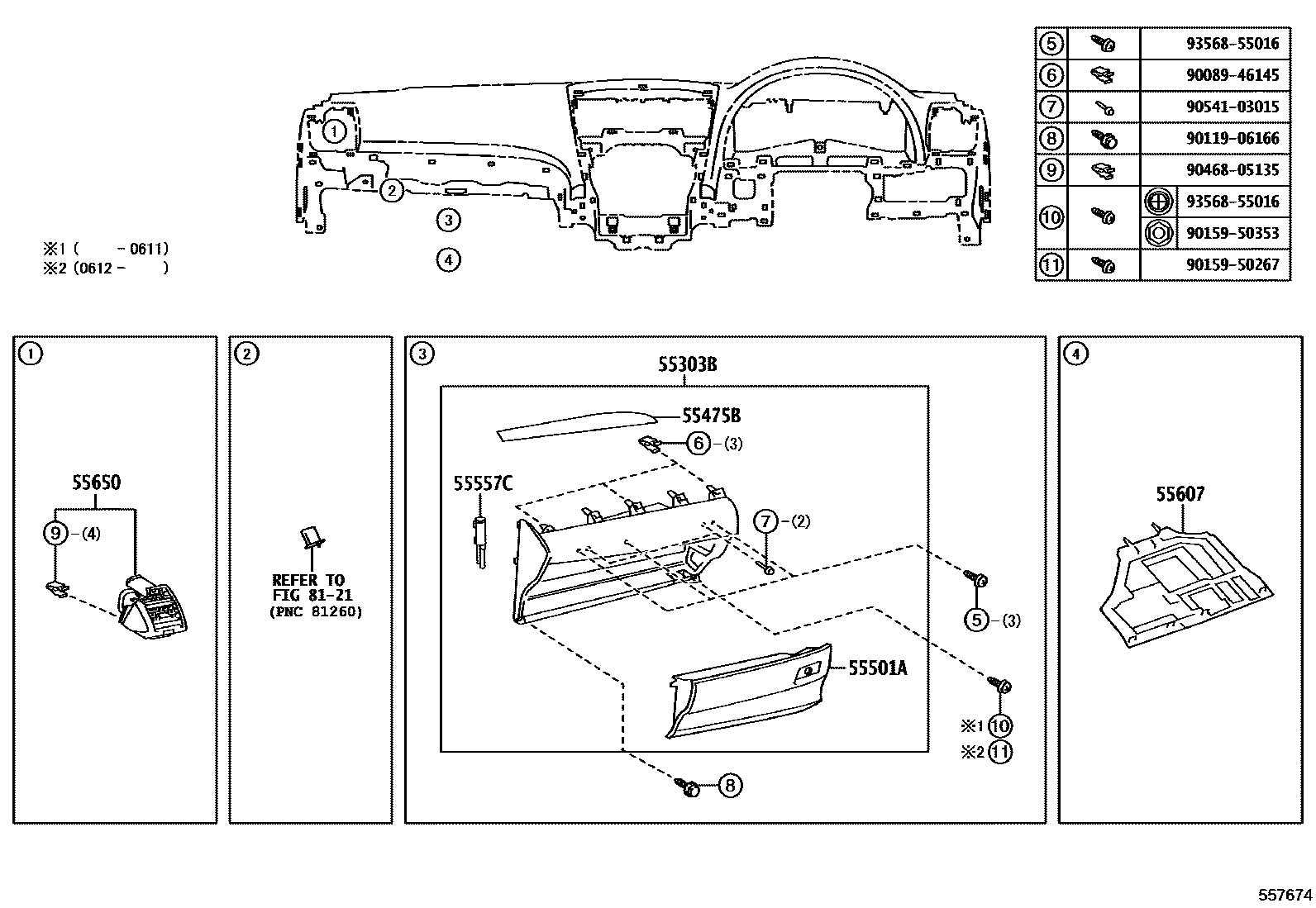

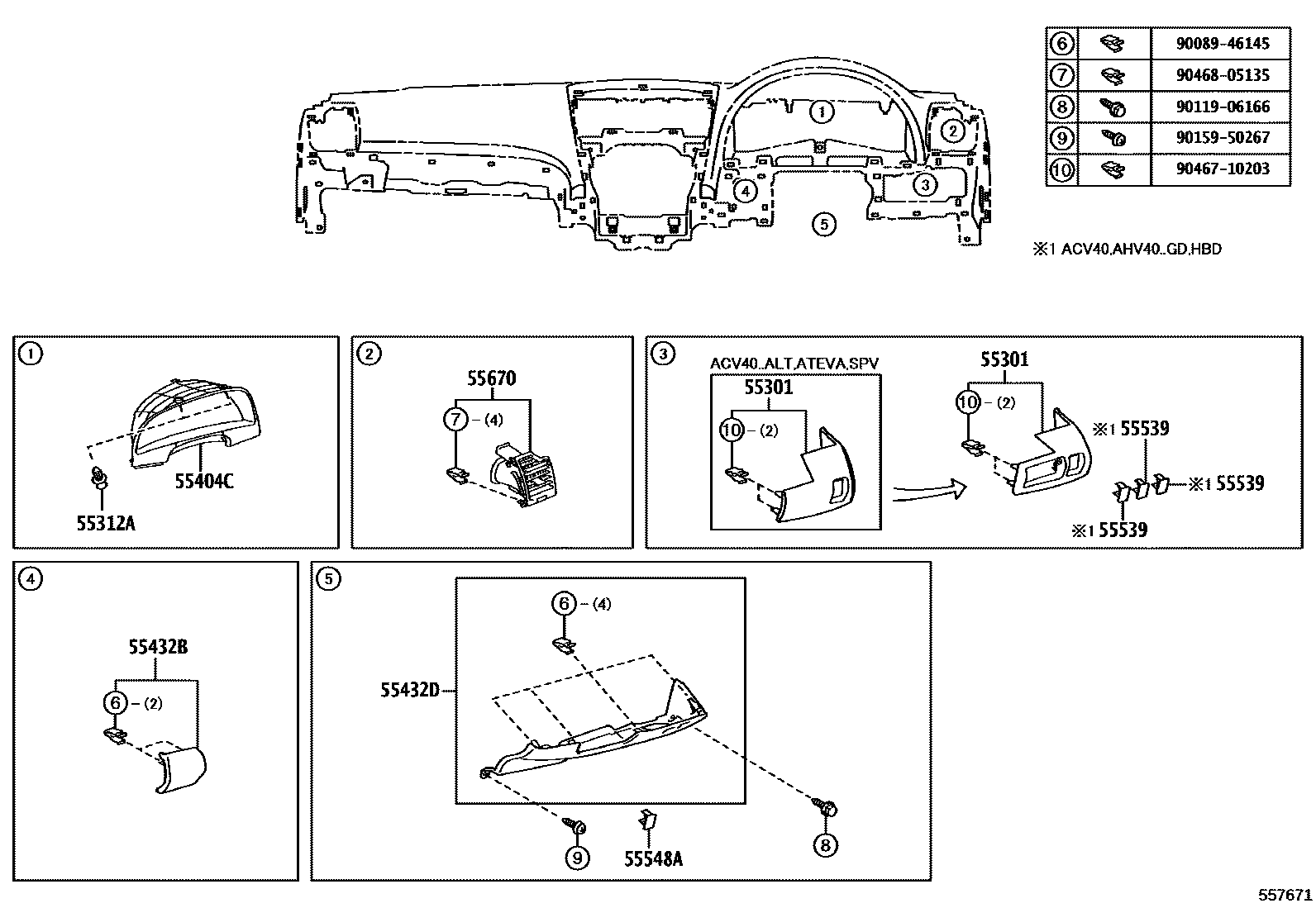

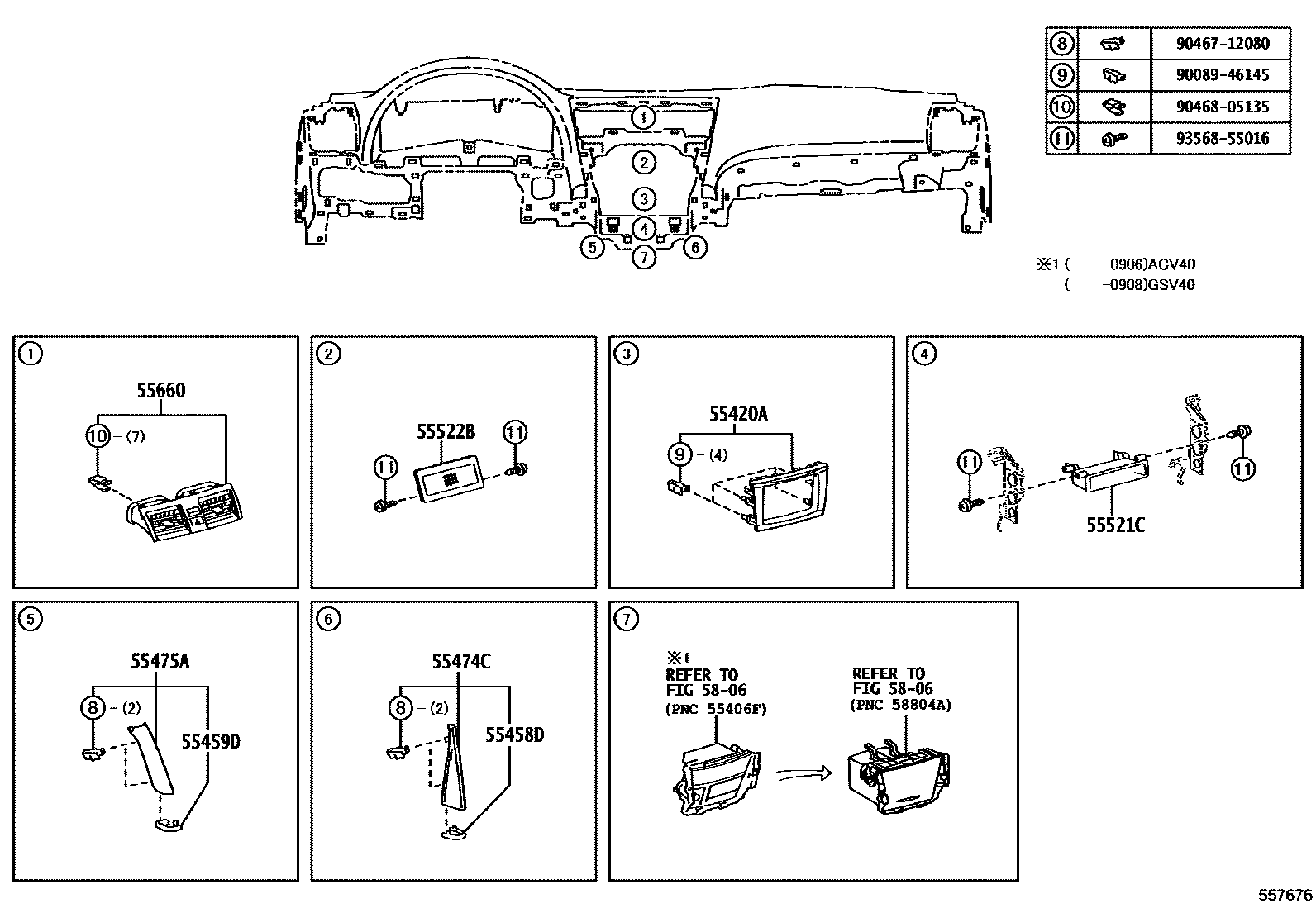

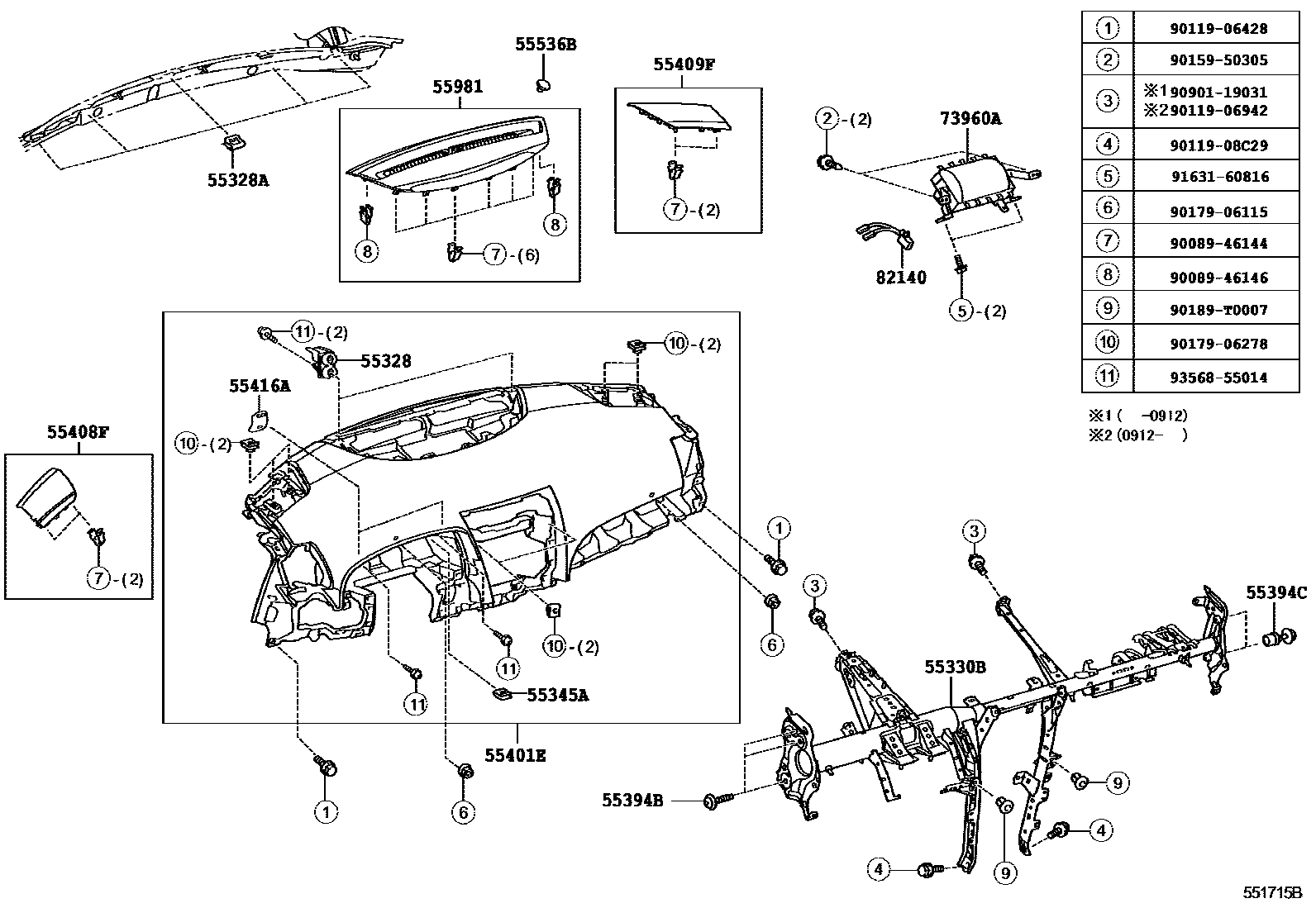

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 13 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55328 | Instrument panel pin 1 | 55328-30140 · 55328-50160 |
| 55328A | Dashboard No. 3 stay | 55328-30160 · 55328-33120 · 55328-48110 · 55328-50170 |
| 55330B | Instrument panel reinforcement assembly | 55330-06150 · 55330-06151 · 55330-06160 · 55330-06161 · 55330-06280 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55394B | Dashboard bolts | 55394-30021 |
| 55394C | Dashboard bolts | 55394-33041 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-06040 · 55404-06041 · 55404-06050 · 55404-06051 |
| 55416A | Instrument cover No. 1 fixing piece | 55416-30140 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-06040 |
| 55458D | Instrument panel lower right cover | 55458-06050 |
| 55459D | Instrument panel lower left cover | 55459-06050 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-06130 · 55474-06200 |
| 55475B | Center instrument cluster decorative panel trim parts | 55475-06110 · 55475-06130 · 55475-06210 |
| 55521C | stereo system hole cover | 55521-0A010 · 55521-16030 |
| 55522B | Radio tuner opening cover | 55522-0K010 · 55522-52020 |
| 55557C | Glovebox lid damper | 55557-33030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06050 · 55607-06060 · 55607-06130 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06110 |
| 82140 | Instrument panel wiring harness assembly | 82140-06020 |
