Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

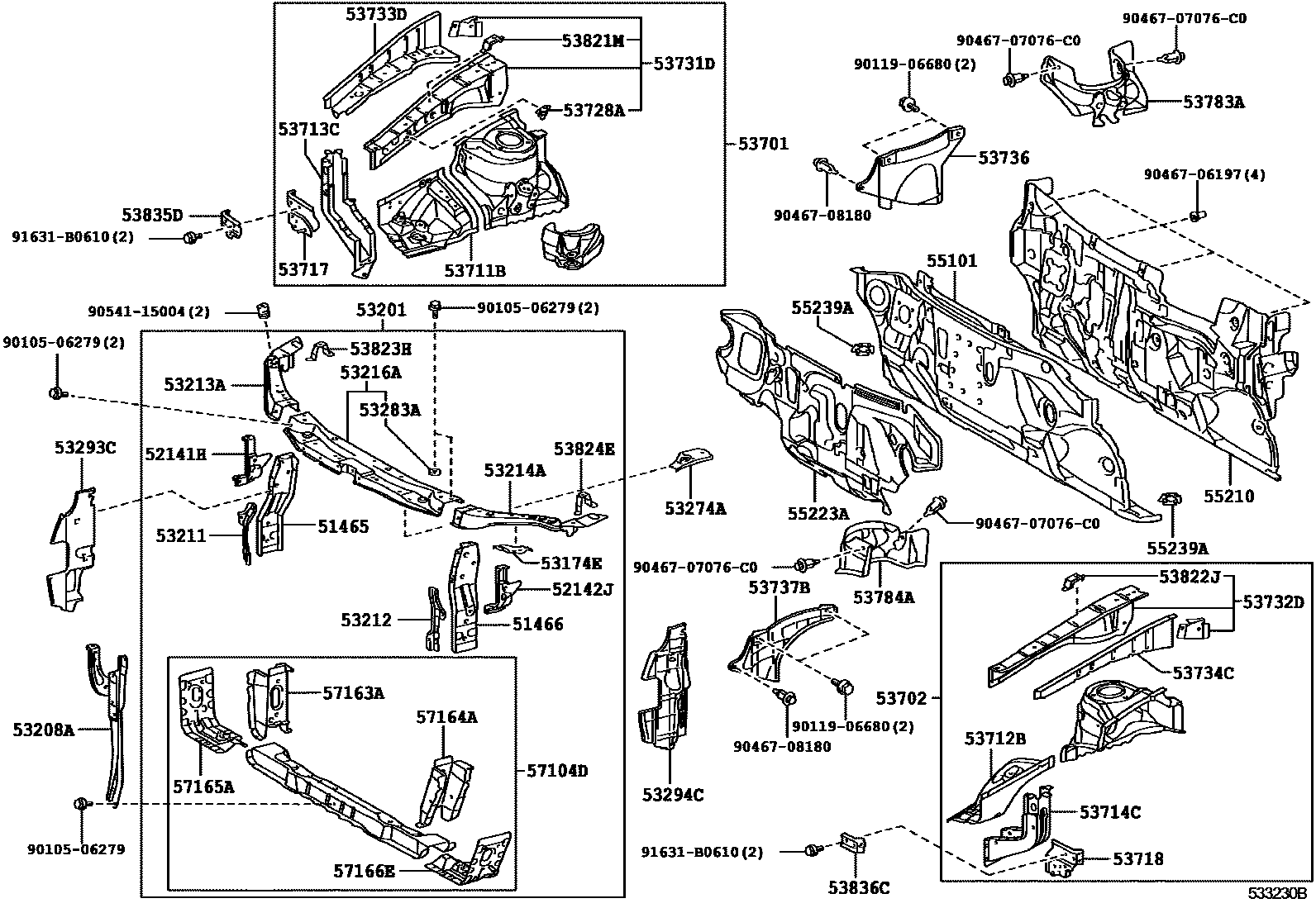

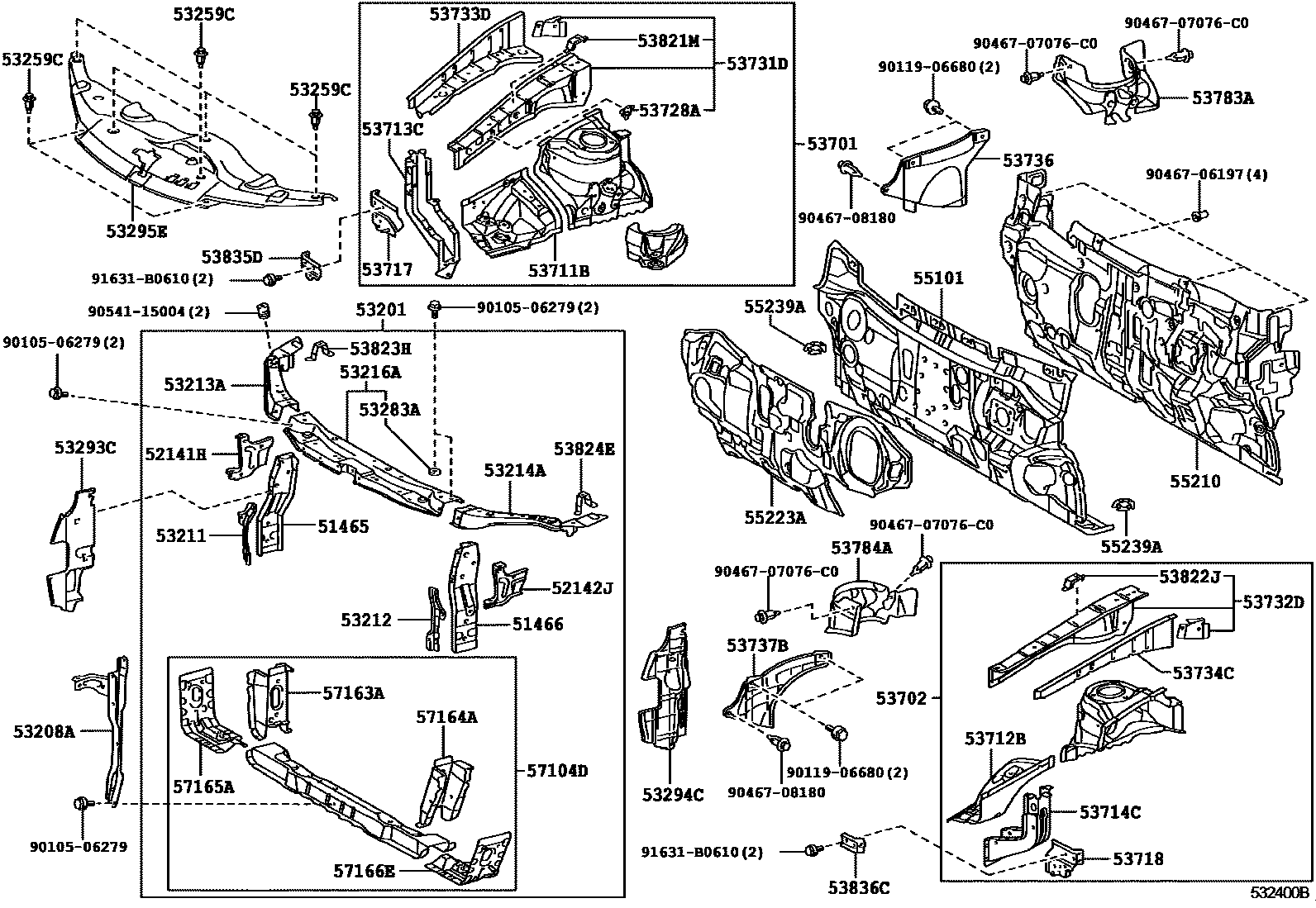

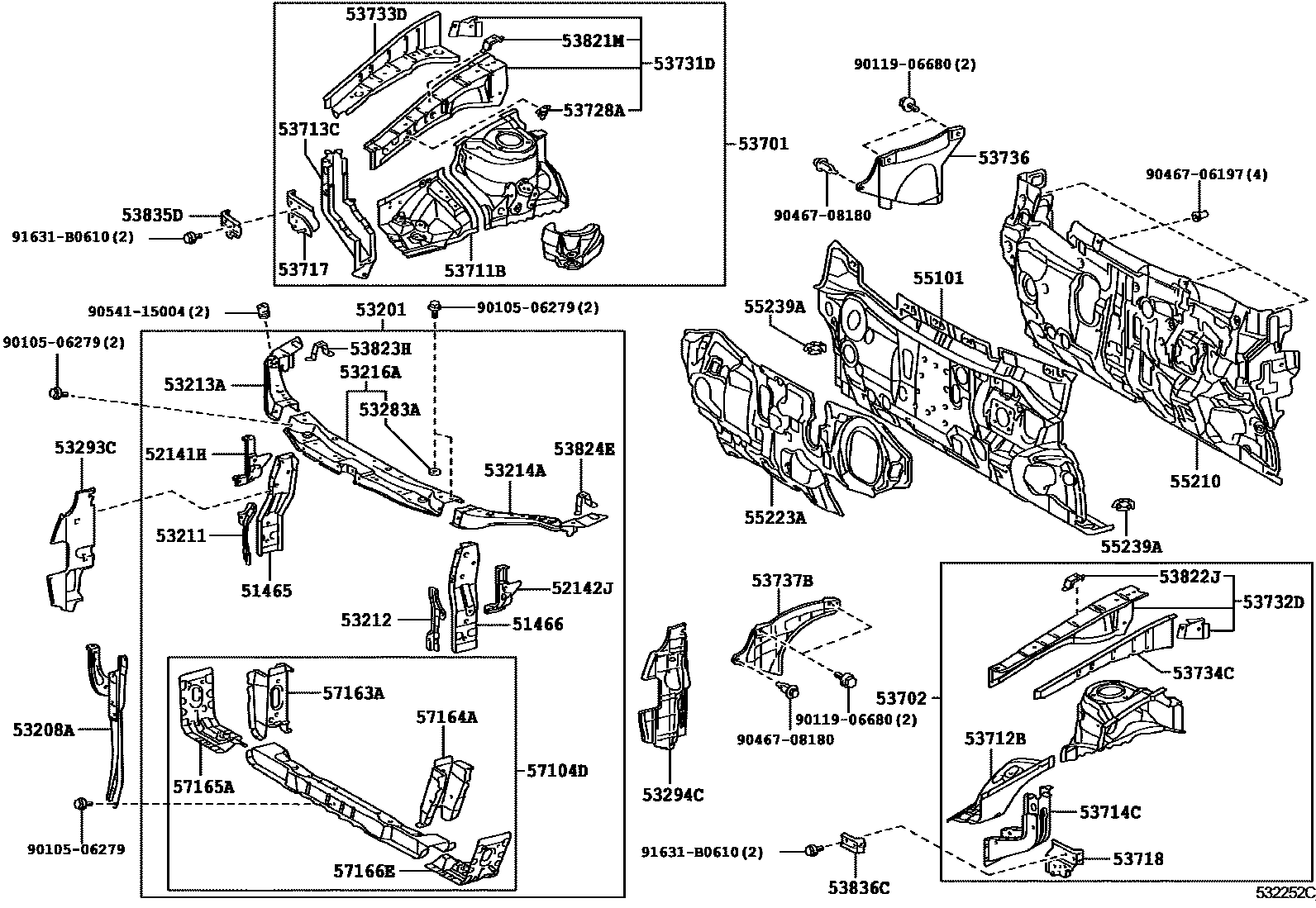

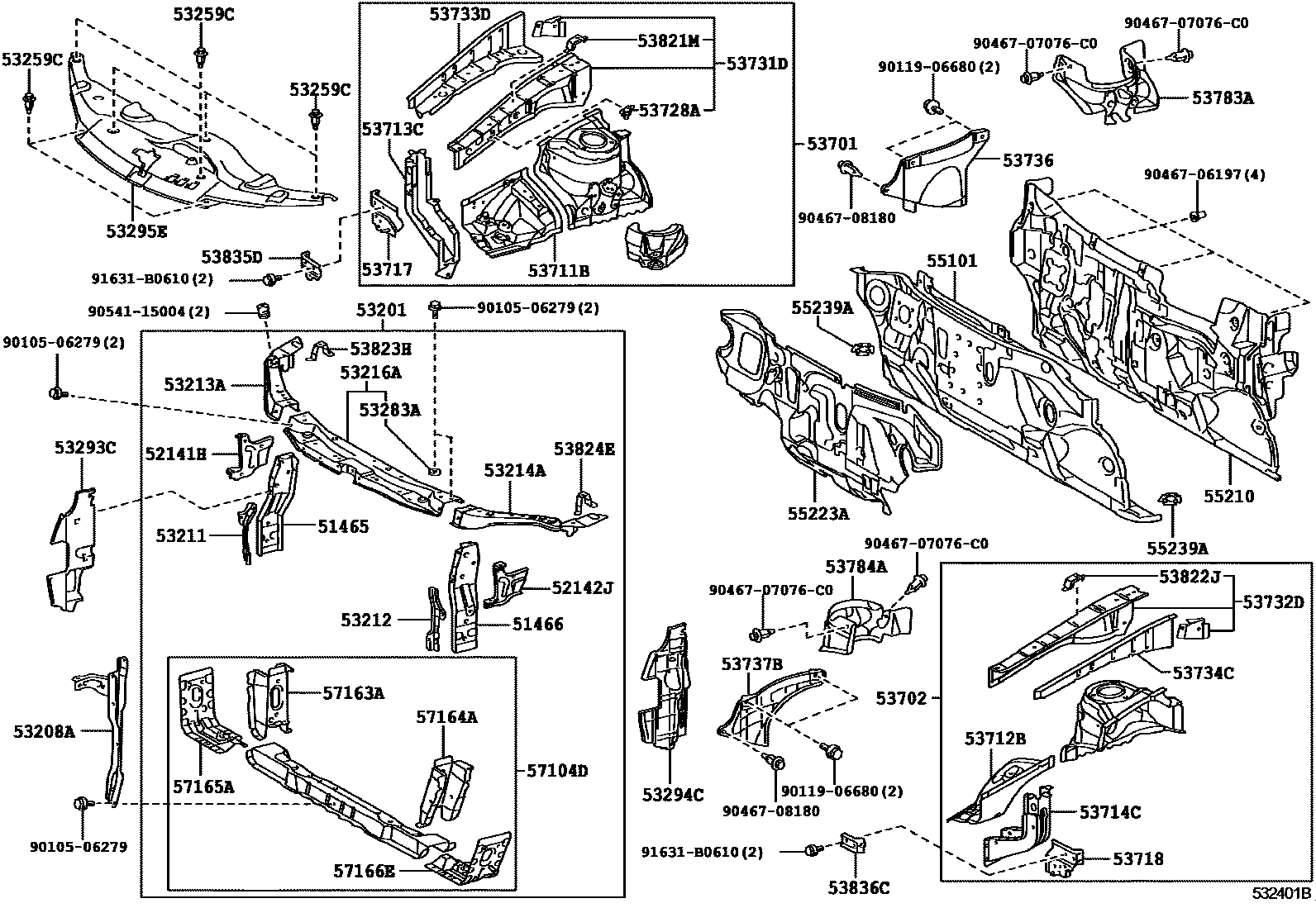

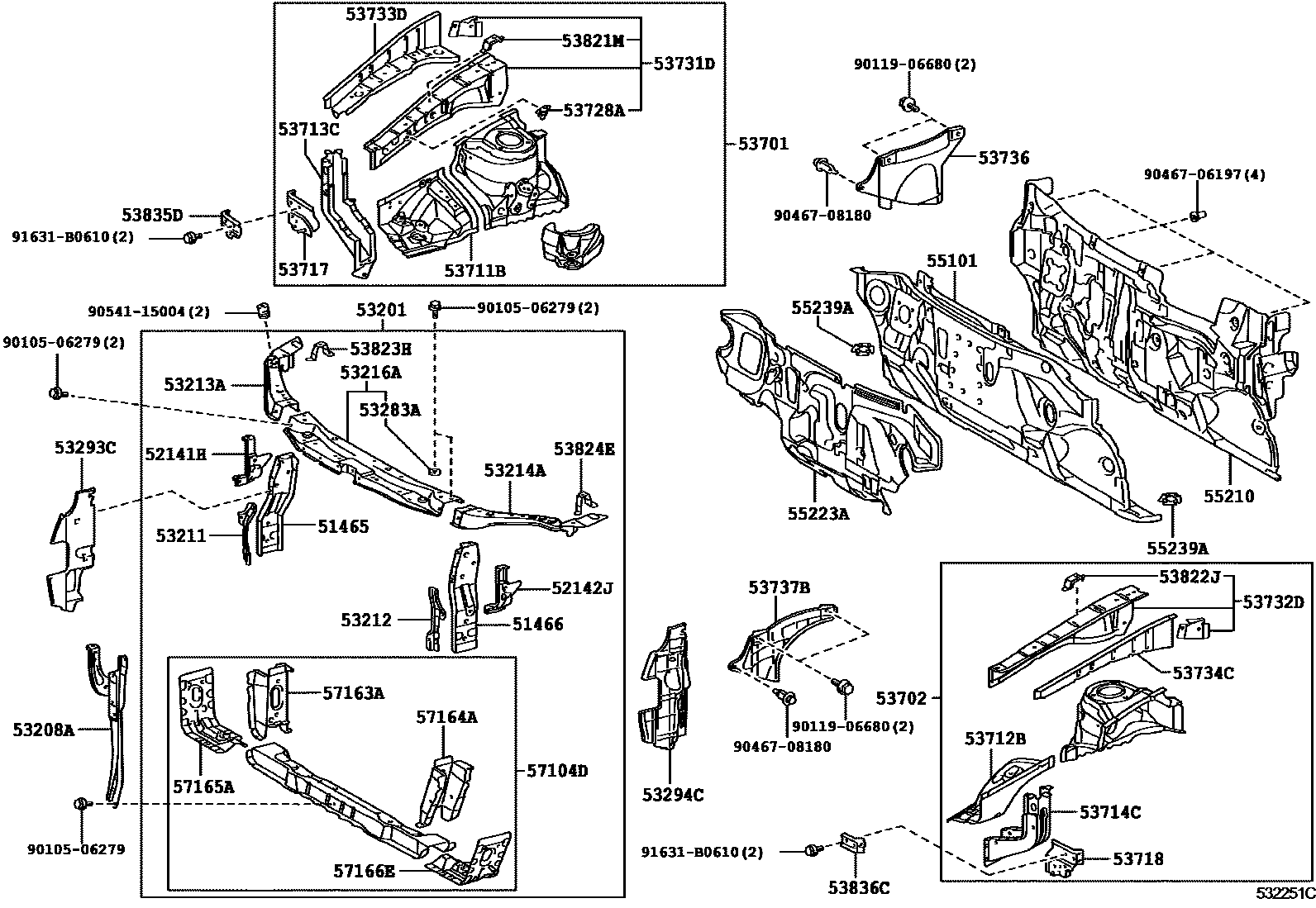

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 5 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51465 | Radiator upper right bracket | 51465-33050 |
| 51466 | Radiator upper left bracket | 51466-33050 |
| 52141H | Front bumper right upper arm | 52141-06050 · 52141-33090 |
| 52142J | Front bumper left upper arm | 52142-06040 · 52142-33070 |
| 53174E | Radiator bracket side bracket | 53174-06030 |
| 53201 | Radiator bracket sub-assembly | 53201-06140 · 53201-06142 · 53201-06150 · 53201-06152 · 53201-06210 · 53201-06212 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-06050 · 53208-06060 |
| 53211 | Radiator right side support | 53211-33080 · 53211-33081 |
| 53212 | Radiator left support | 53212-33080 · 53212-33081 |
| 53213A | Radiator upper right bracket | 53213-06070 |
| 53214A | Radiator upper left bracket | 53214-06070 · 53214-06110 |
| 53216A | Radiator upper bracket | 53216-06110 |
| 53259C | Clip (radiator bracket to frame seal) | 90467-07211 |
| 53274A | Radiator left bracket reinforcement | 53274-33030 |
| 53283A | Radiator lower bracket reinforcement | 53283-30010 |
| 53293C | Radiator right baffle | 53293-06070 · 53293-06080 · 53293-06130 · 53293-06160 · 53293-06190 |
| 53294C | Radiator left baffle | 53294-06060 · 53294-06070 · 53294-06120 · 53294-06150 · 53294-06180 |
| 53295E | Cold air intake pipe seal | 53295-06040 |
| 53701 | Right front fender fender sub-assembly | 53701-06140 |
| 53702 | Left front fender fender sub-assembly | 53702-06130 |
| 53711B | Right front fender front fender | 53711-06090 |
| 53712B | Left front fender front fender | 53712-06060 |
| 53713C | Right front fender fender front extension | 53713-06070 |
| 53714C | Left front fender fender front extension | 53714-06070 |
| 53717 | Right fender fender side panel | 53717-33050 |
| 53718 | Left fender fender side panel | 53718-33040 |
| 53728A | Right fender fender bracket | 53729-06040 |
| 53731D | Right front fender to cowl side upper beam | 53731-06903 |
| 53732D | Left front fender to cowl side upper beam | 53732-06903 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06070 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06070 |
| 53736 | Right front fender fender seal | 53736-06050 |
| 53737B | Left front fender fender seal | 53737-06050 · 53737-06060 |
| 53783A | Right front fender fender vibration isolation pad | 53783-06030 · 53783-06070 |
| 53784A | Left front fender fender vibration isolation pad | 53784-06030 · 53784-06040 · 53784-06080 |
| 53821M | No. 1 right front fender rear bracket | 53821-33030 |
| 53822J | No. 1 left front fender rear bracket | 53822-33020 |
| 53823H | Right front fender corner panel | 53823-33010 |
| 53824E | Left front fender corner panel | 53824-33010 |
| 53835D | Right front side panel bracket | 53835-33060 |
| 53836C | Left front side panel bracket | 53836-33040 |
| 55101 | Front apron sub-assembly | 55101-06350 · 55101-06351 · 55101-06360 · 55101-06361 · 55101-06370 · 55101-06371 · 55101-06380 · 55101-06381 · 55101-06460 |
| 55210 | Front wall insulation pad assembly | 55210-06160 · 55210-06210 · 55210-06220 · 55210-06260 · 55210-33180 |
| 55223A | Front wall outer heat insulation pad | 55223-06180 · 55223-06190 · 55223-06210 · 55223-06211 · 55223-06220 · 55223-06221 · 55223-06270 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-06010 |
| 57104D | Front cross member sub-assembly | 57104-06040 · 57104-06041 |
| 57163A | No. 1 front cross member right reinforcement | 57163-06050 |
| 57164A | No. 1 front cross member left reinforcement | 57164-06040 |
| 57165A | No. 2 front cross member reinforcement | 57165-06040 · 57165-06041 |
| 57166E | No. 2 front cross member left reinforcement | 57166-06040 |
