Toyota CAMRY 发动机盖和前翼子板 — Figure 5302

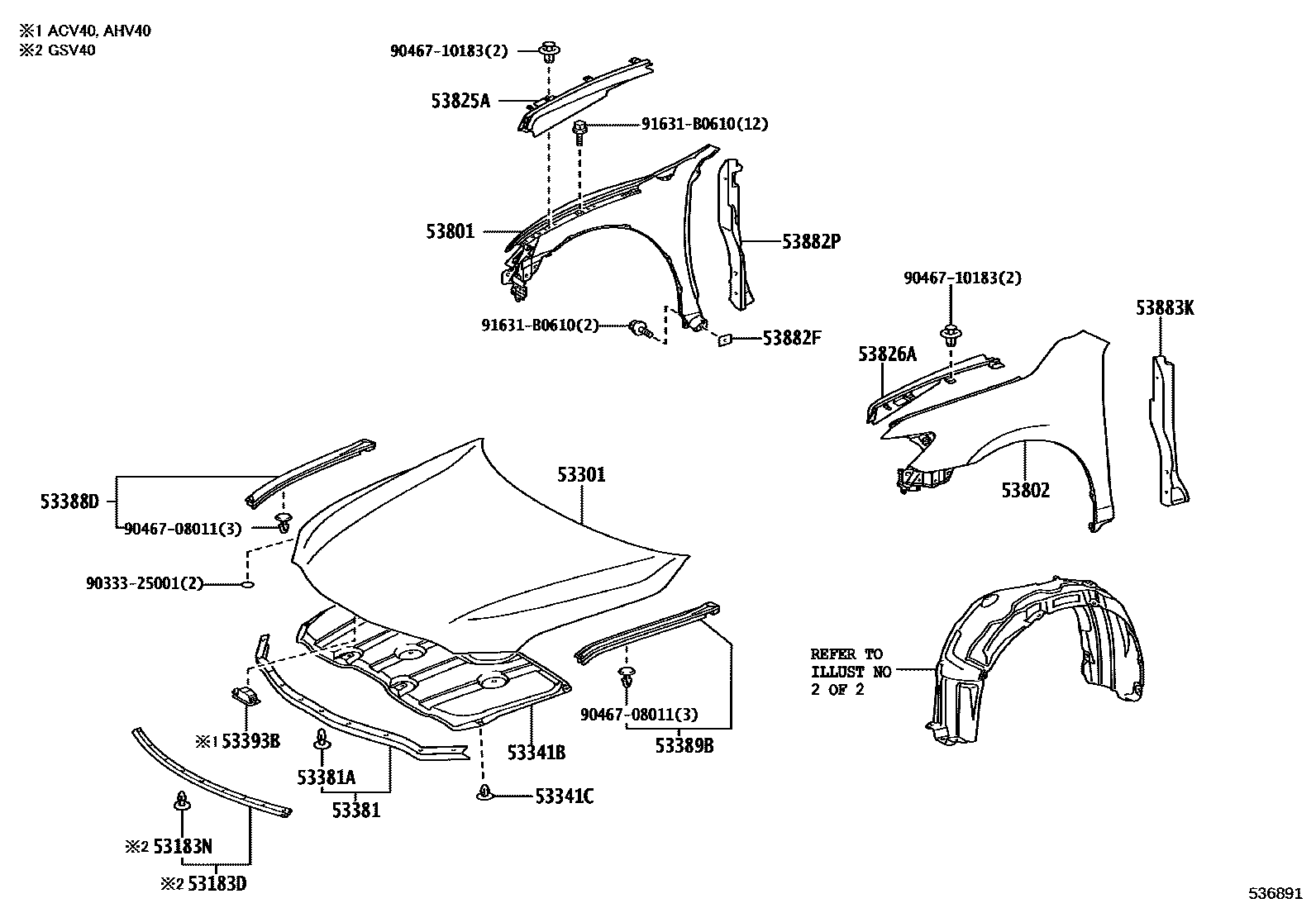

Toyota CAMRY EPC diagram 5302, 发动机盖和前翼子板, with 3 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183D | Headlight cover to engine cover seal | 53183-06050 · 53183-06090 |
| 53183N | Clip (for headlight cover seal) | 90467-08011 |
| 53301 | Engine cover sub-assembly | 53301-06120 · 53301-06130 |
| 53341B | engine cover gasket | 53341-06180 · 53341-06190 · 53341-06200 · 53341-06240 |
| 53341C | Clip (for engine cover gasket) | 90467-09050 |
| 53381 | Engine cover to radiator bracket seal | 53381-33080 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-08011 |
| 53388D | Engine cover to right front fender seal | 53388-06040 |
| 53389B | Engine cover to left front fender seal | 53389-06040 |
| 53393B | Engine cover front protector | 53393-06020 |
| 53801 | Right front fender sub-assembly | 53801-06140 · 53801-06150 |
| 53802 | Left front fender sub-assembly | 53802-06150 · 53802-06160 |

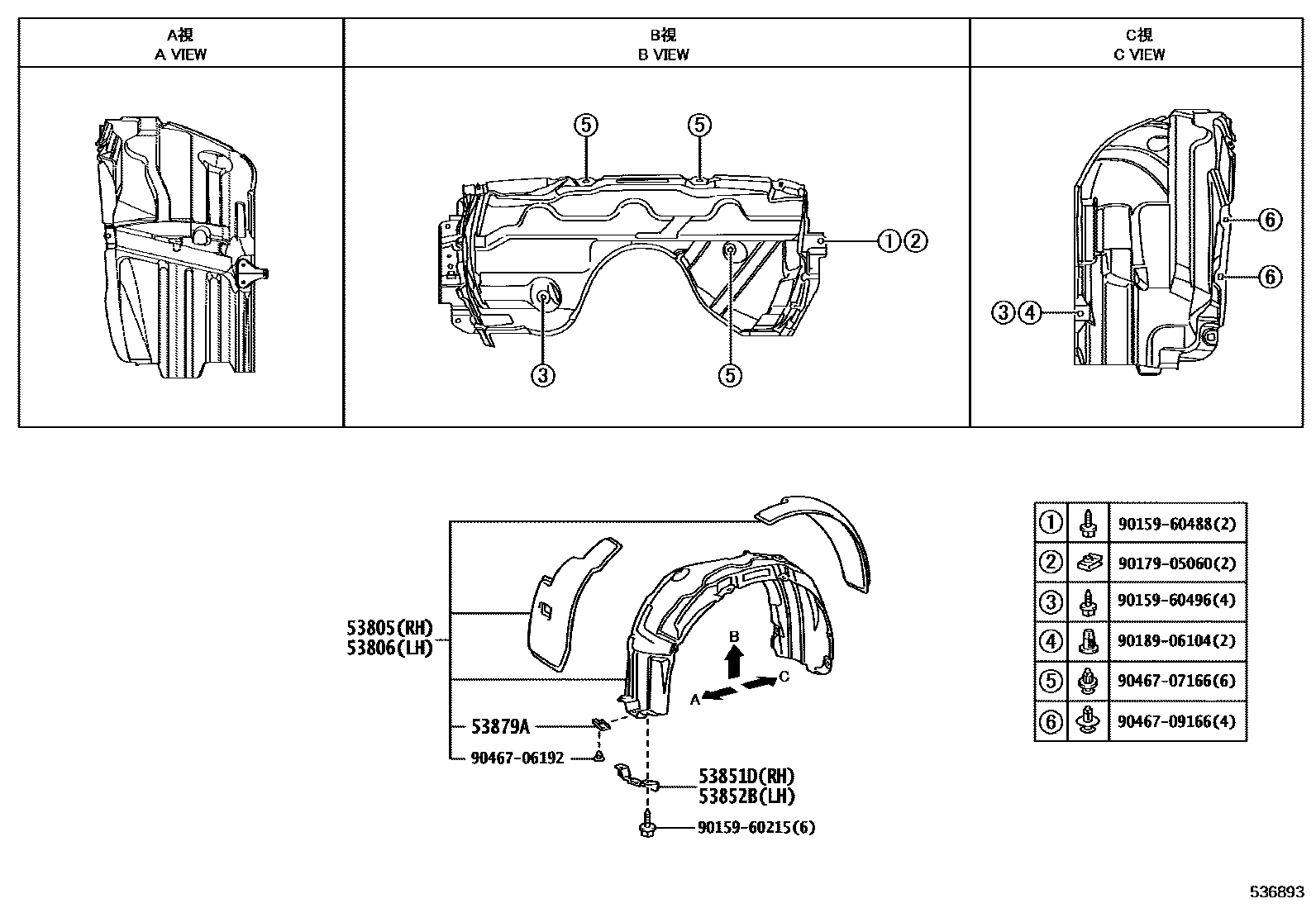

| 53805 | Right front fender splash guard sub-assembly | 53805-33030 |
| 53806 | Left front fender splash guard sub-assembly | 53806-33020 |
| 53825A | Right front fender protection piece | 53825-06050 |
| 53826A | Protection piece on left front fender | 53826-06050 |
| 53851D | Right front fender outer panel pad | 53851-33010 |
| 53852B | Left front fender exterior panel pad | 53852-33010 |

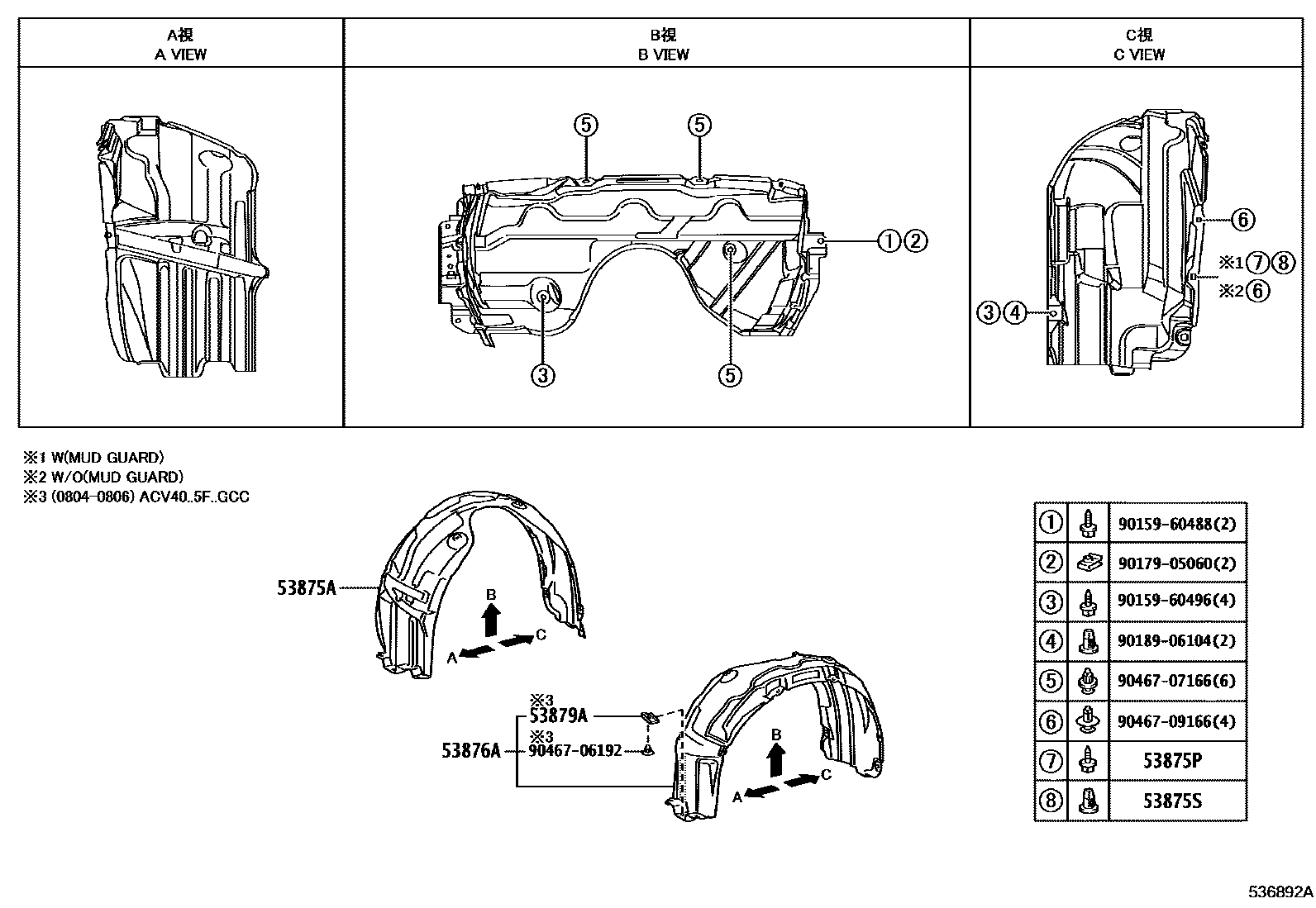

| 53875A | Right front fender lining | 53875-06090 |
| 53875P | Screw No. 1 | 90159-60500 |
| 53875S | Gasket No. 1 | 90189-06065 |
| 53876A | Left front fender lining | 53806-06040 · 53806-33030 · 53876-06090 |
| 53879A | Front fender lining fixing parts | 53879-28040 |
| 53882F | front fender seal | 53882-16030 |
| 53882P | Right front fender seal | 53882-06040 · 53882-06090 |
| 53883K | Left front fender seal | 53883-06040 · 53883-06080 |
