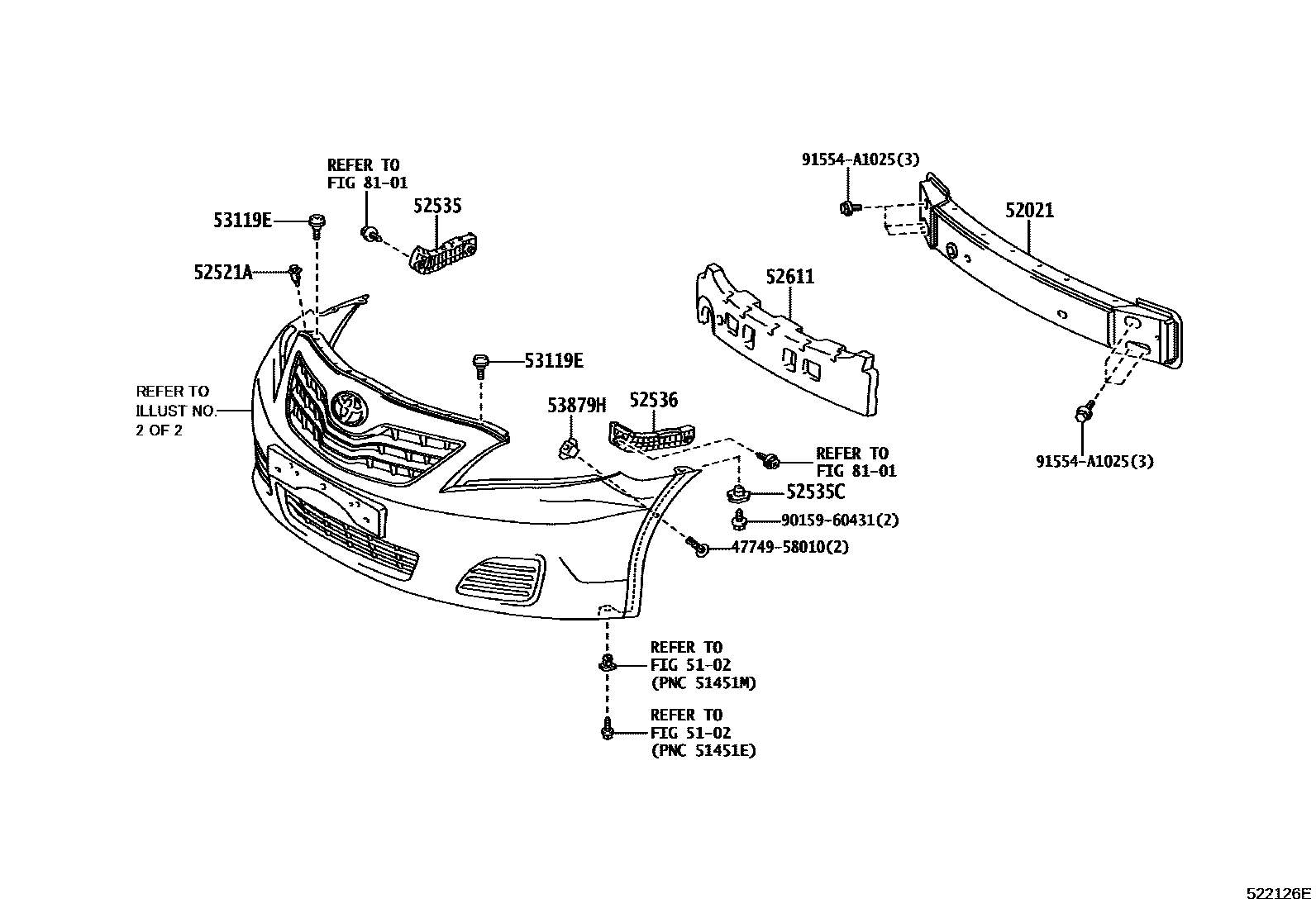

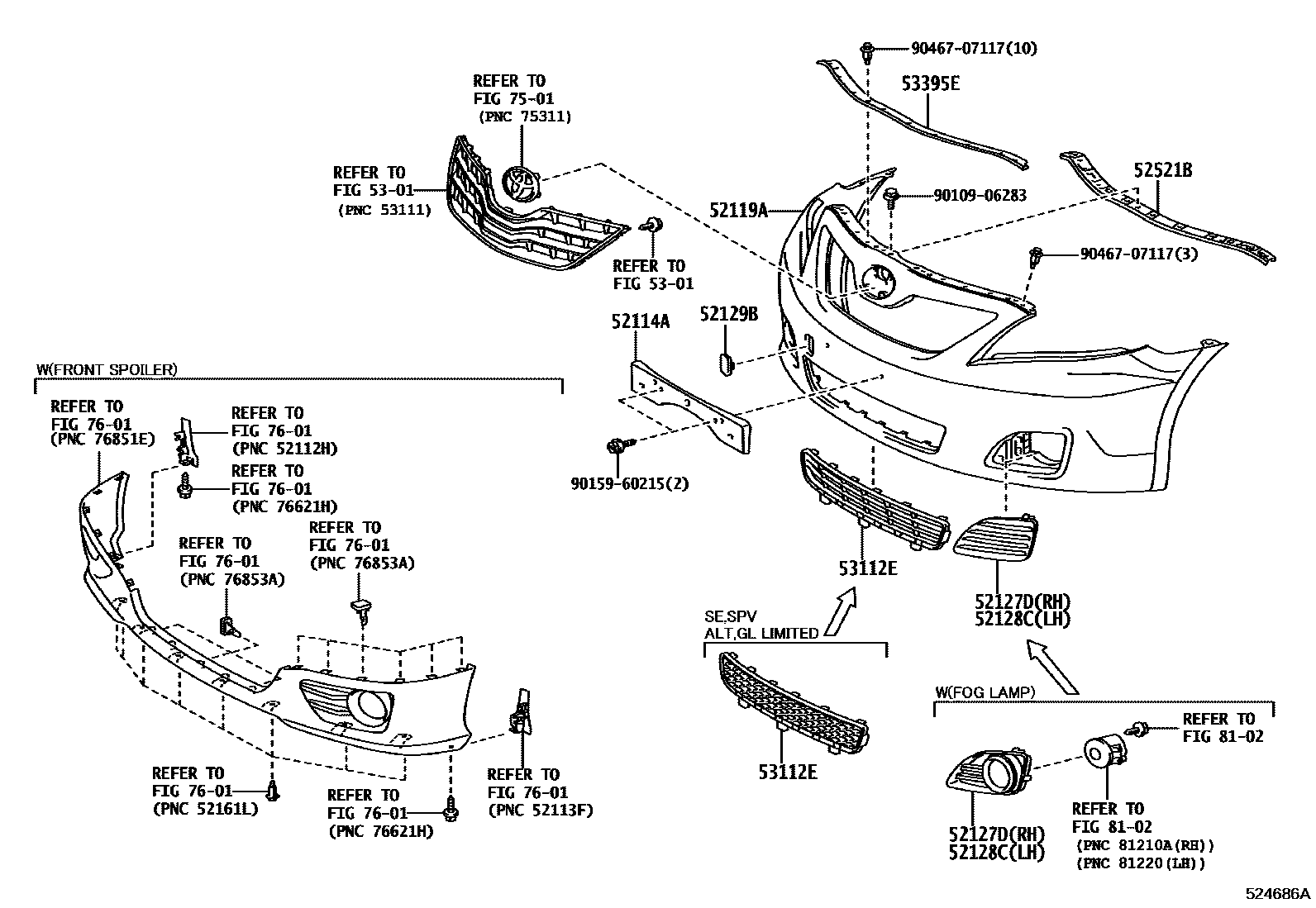

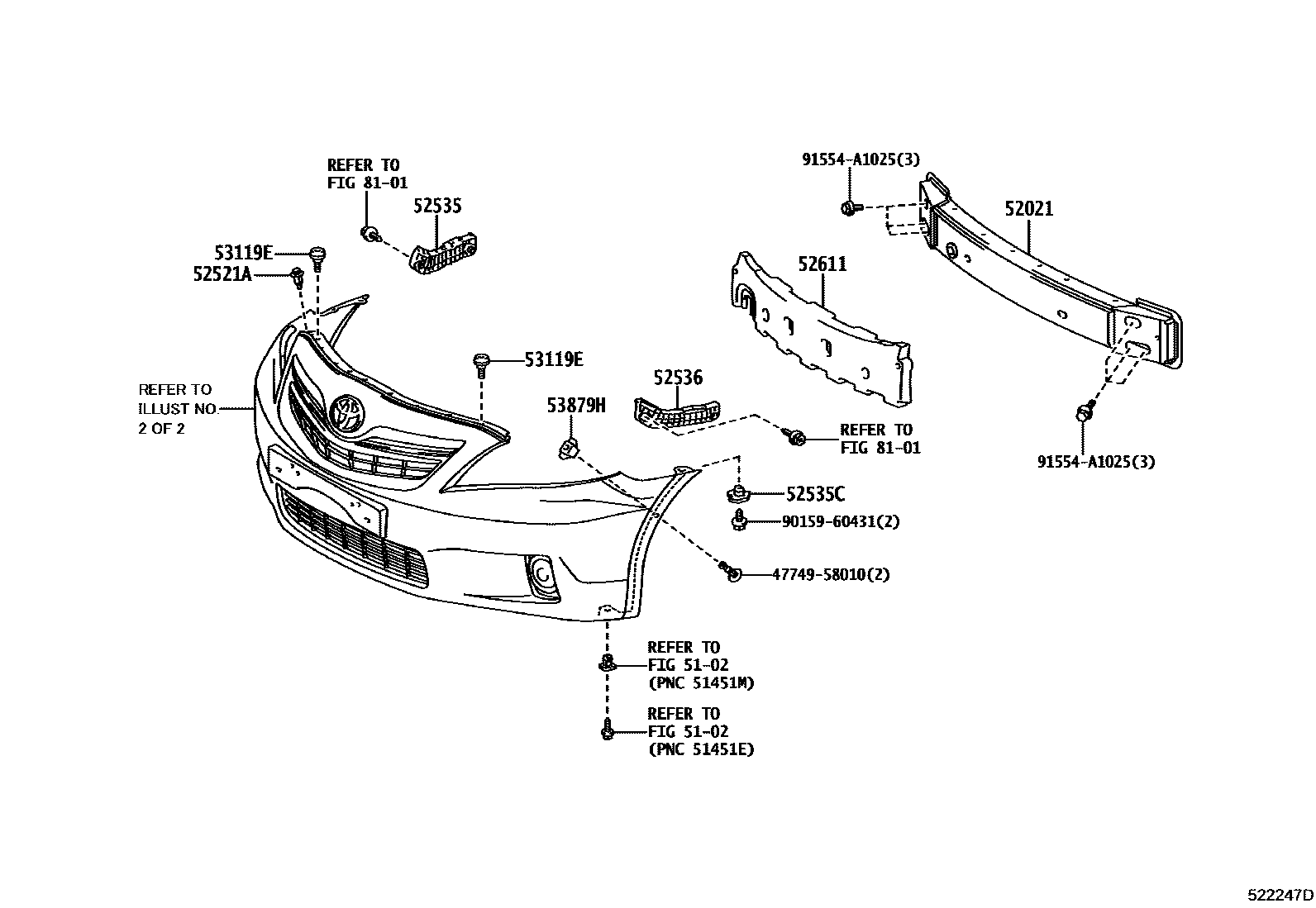

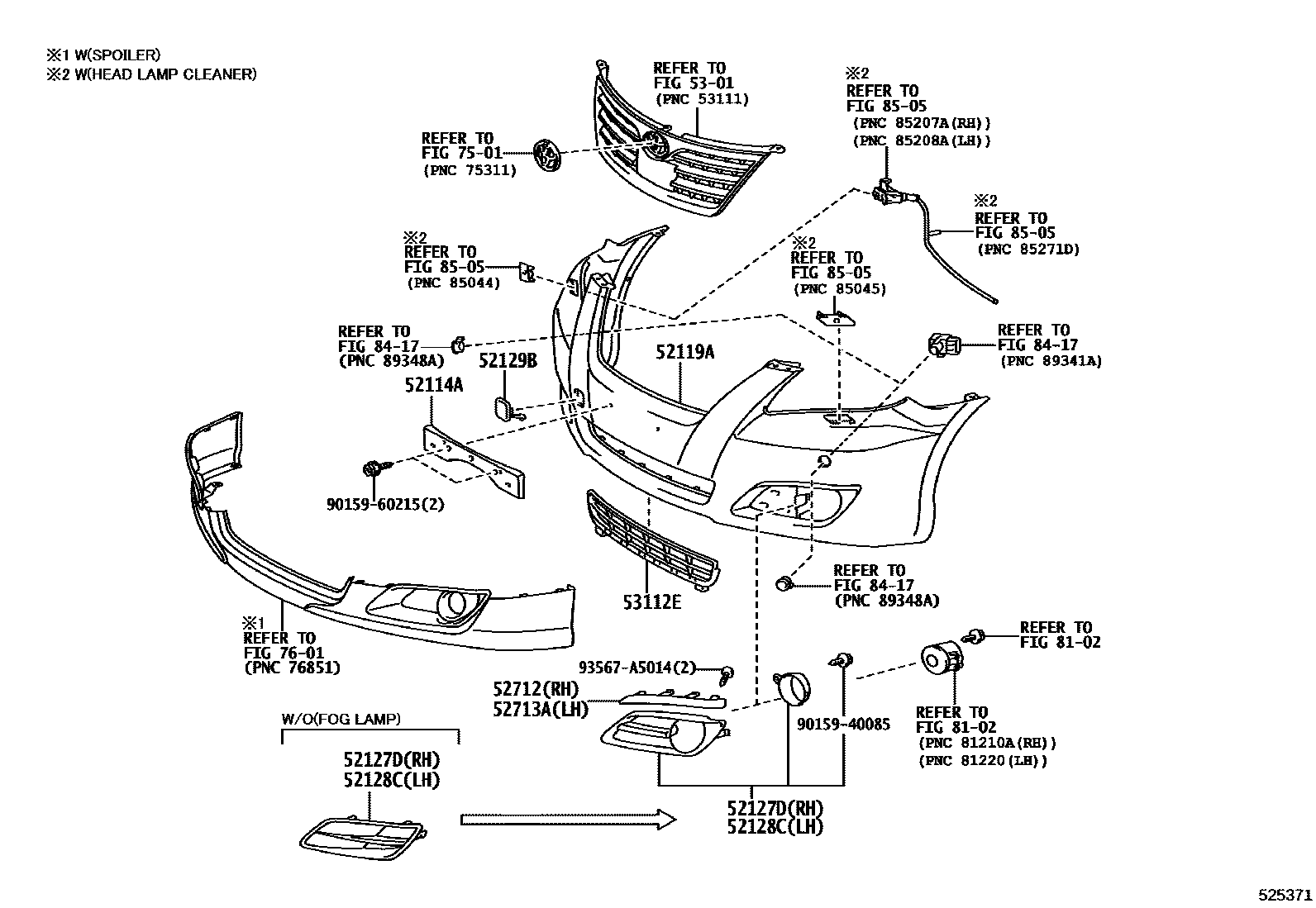

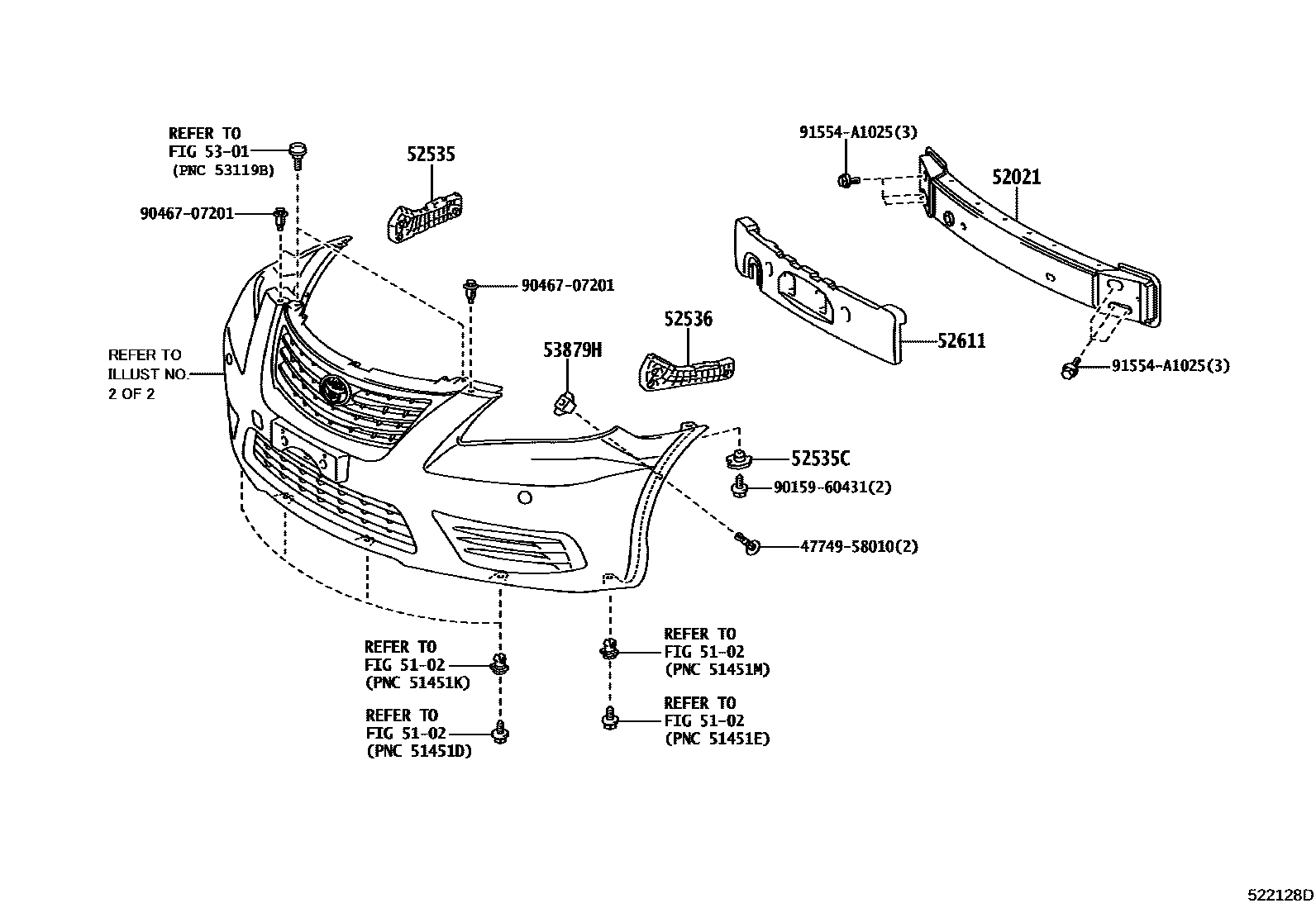

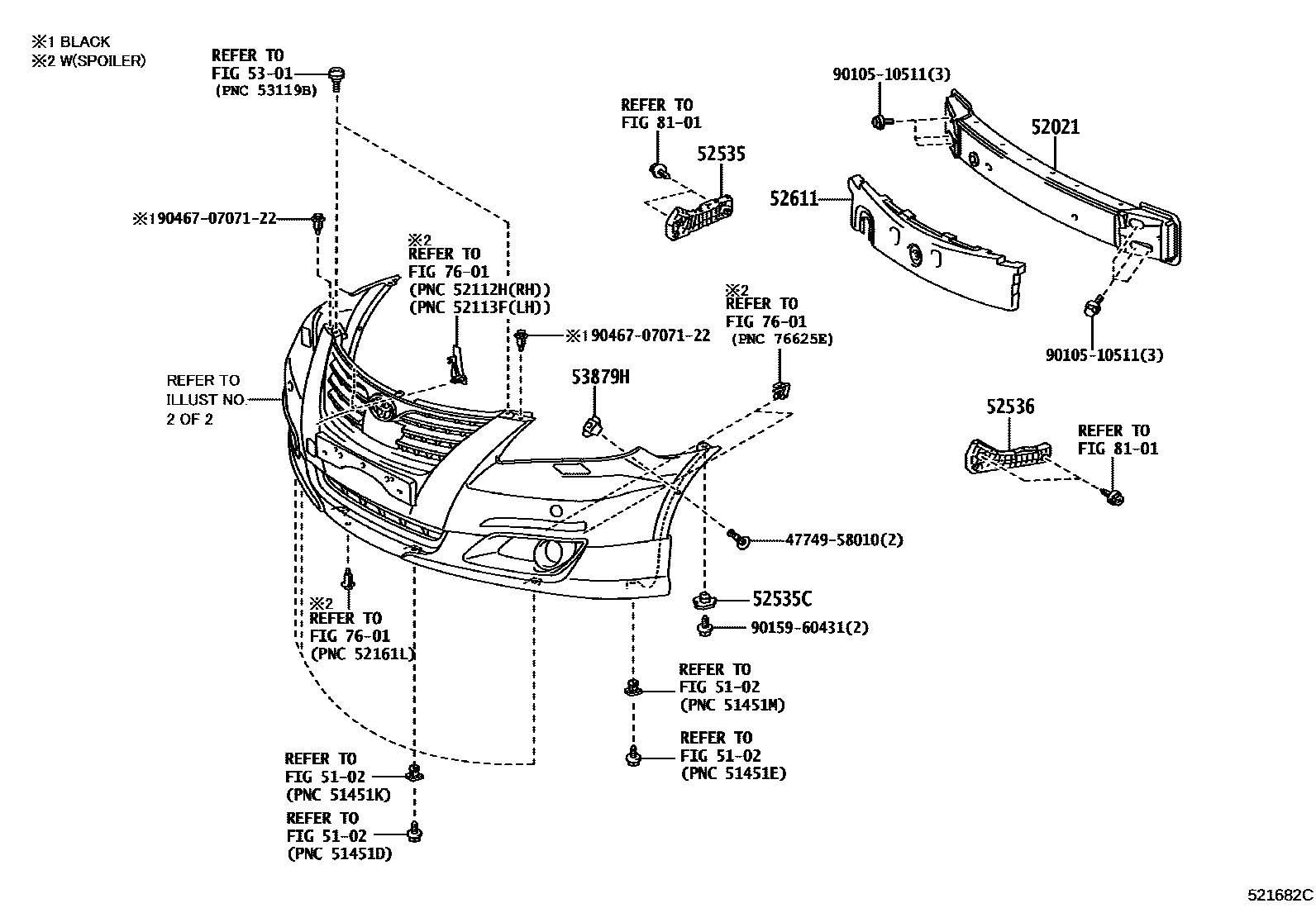

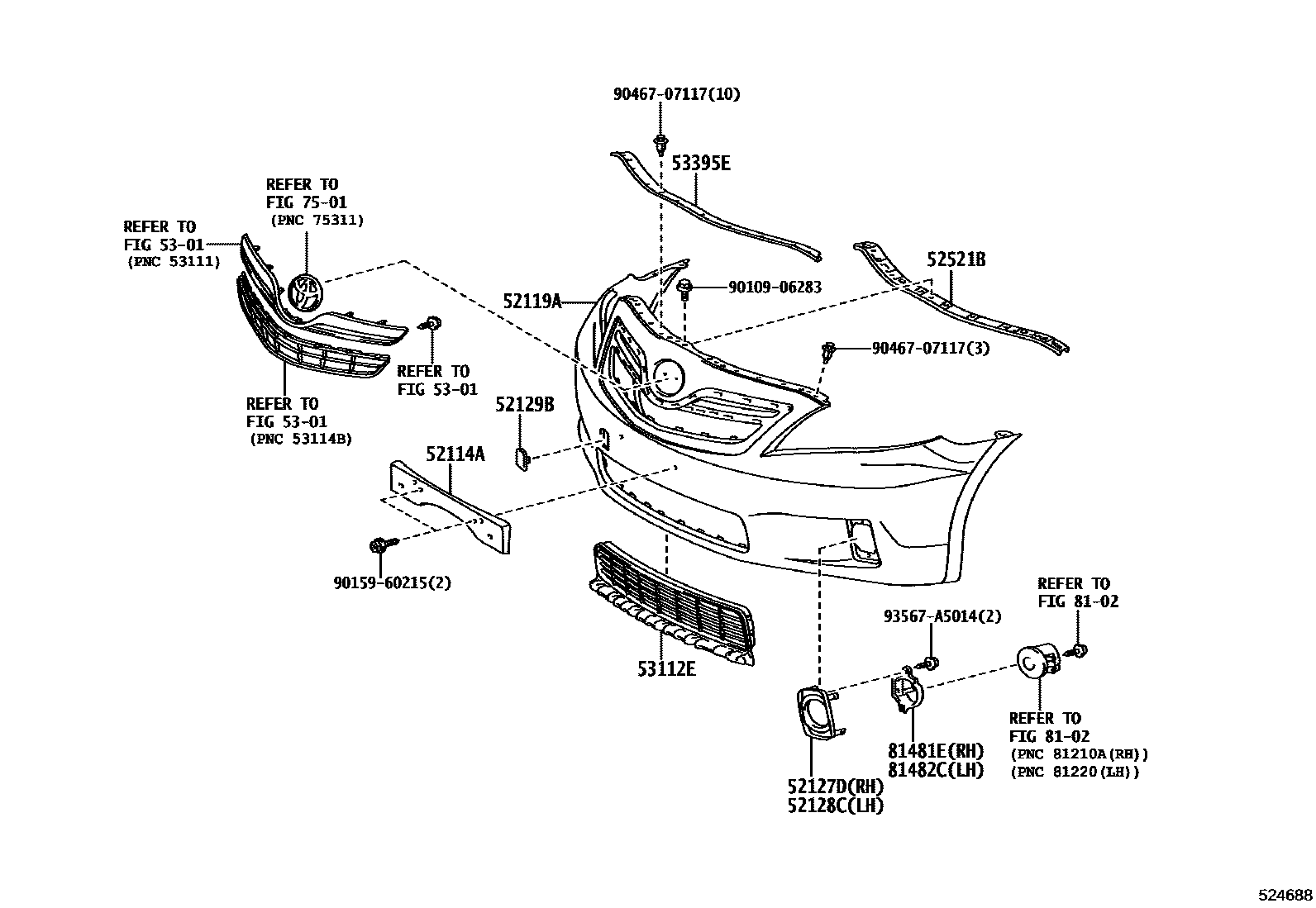

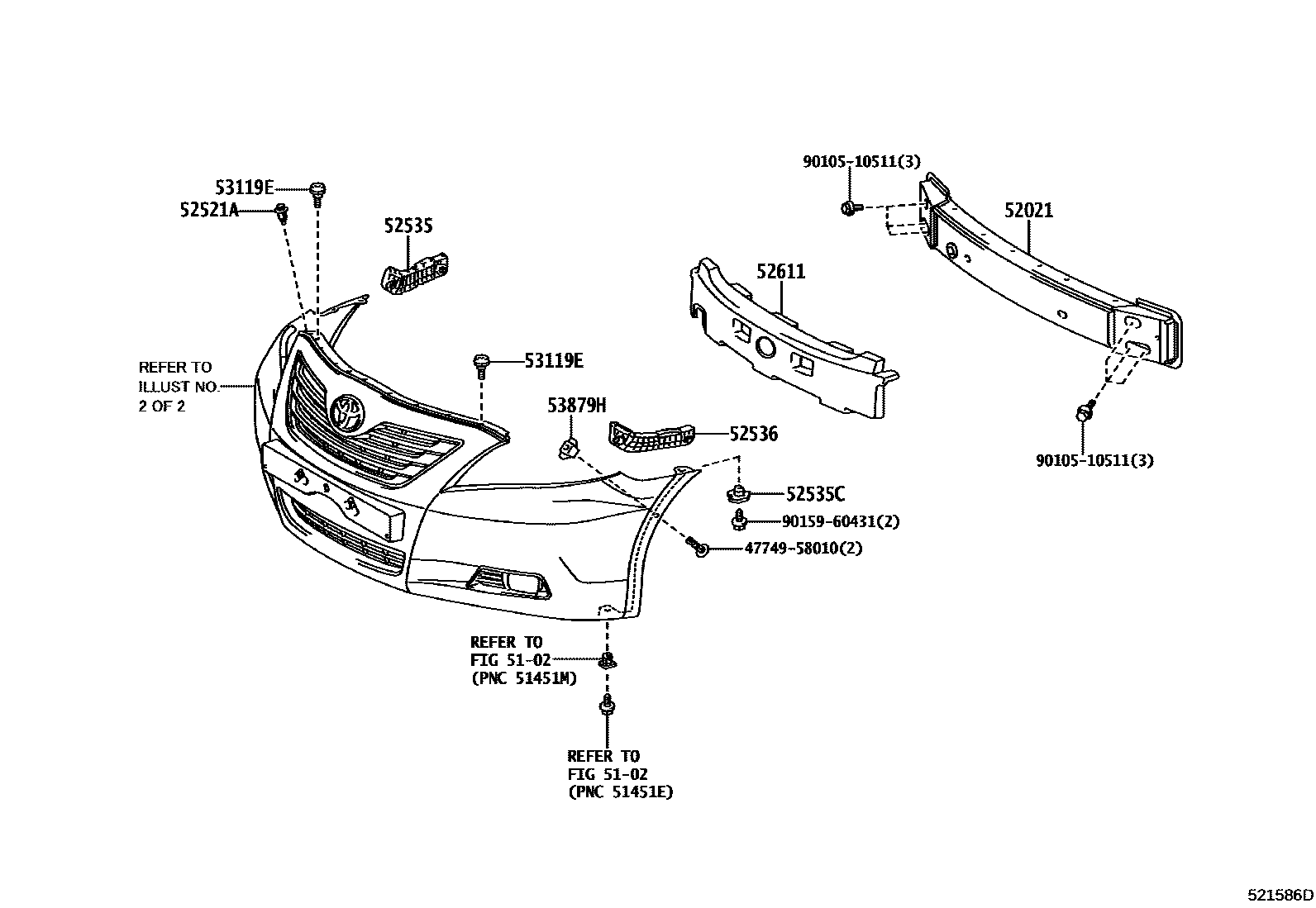

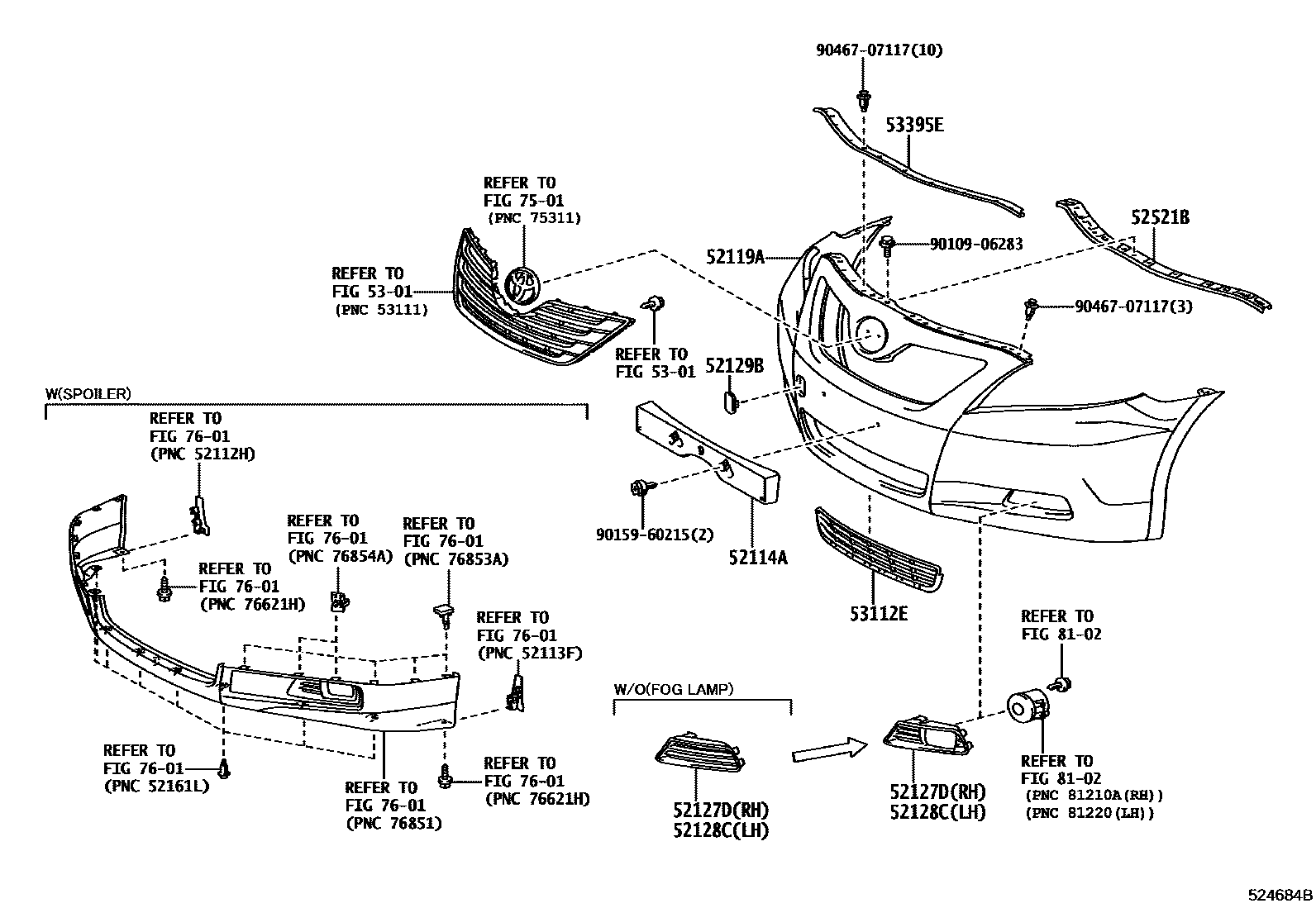

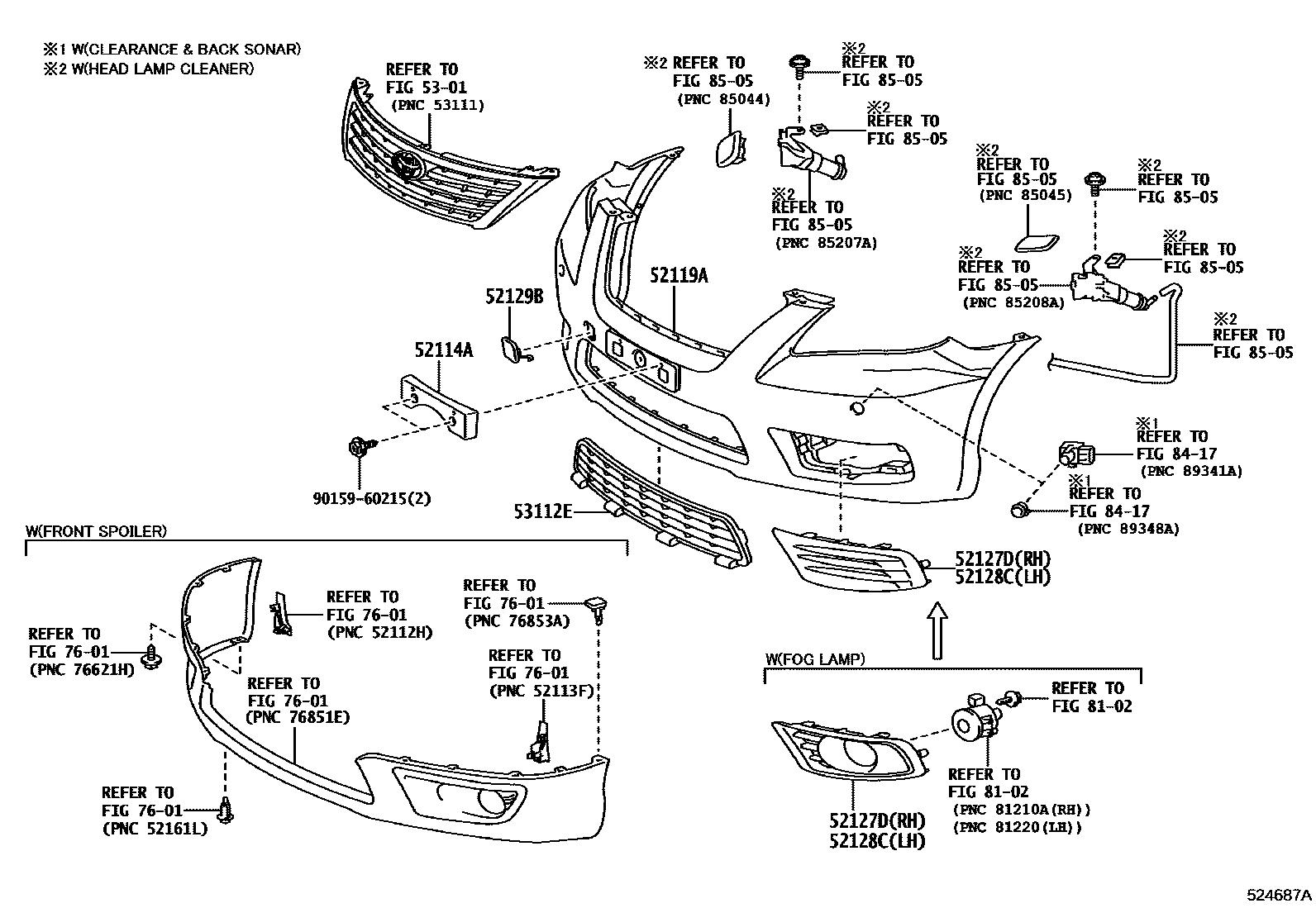

Toyota CAMRY 前保险杠及附件 — Figure 5201
Toyota CAMRY EPC diagram 5201, 前保险杠及附件, with 10 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-06070 · 52021-06071 |
| 52114A | Front bumper extension mounting bracket | 52114-06040 · 52114-06050 · 52114-06110 · 52114-06140 · 52114-06150 |
| 52119A | front bumper cover | 52119-06931 · 52119-06933 · 52119-06934 · 52119-06935 · 52119-06936 · 52119-06939 · 52119-06962 · 52119-06967 · 52119-06969 |
| 52127D | Front bumper right hole cover | 52030-06030 · 52030-06070 · 52030-06120 · 52030-33020 · 52127-06070 · 52127-06080 · 52127-06090 · 52127-06190 · 52127-06230 |
| 52128C | Front bumper left hole cover | 52040-06030 · 52040-06090 · 52040-06120 · 52040-33020 · 52128-06070 · 52128-06080 · 52128-06090 · 52128-06190 · 52128-06230 |
| 52129B | Front bumper lower cover | 52129-06921 · 52129-06922 · 52129-06923 · 52129-06924 · 52129-33903 |
| 52521A | Clip (for front bumper mount) | 90467-08180 |
| 52521B | Front bumper upper fixing bracket | 52521-06040 · 52521-06070 |
| 52535 | Front bumper right side fixing bracket | 52535-06050 · 52535-06060 · 52535-06110 |
| 52535C | Front bumper side fixing bracket | 52535-50060 |
| 52536 | Front bumper left fixed bracket | 52536-06040 · 52536-06050 · 52536-06100 |
| 52611 | front bumper energy absorber | 52611-06060 · 52611-06070 · 52611-06170 · 52611-06200 · 52611-06220 |
| 52712 | Front bumper right side protective strip | 52712-06010 |
| 52713A | Front bumper left protective strip | 52713-06010 |
| 53112E | No. 1 radiator lower grille | 53112-06040 · 53112-06050 · 53112-06080 · 53112-06130 · 53112-06140 · 53112-06180 |
| 53119E | Radiator grille protector | 53119-20120 |
| 53395E | Engine cover to front end plate seal | 53395-06020 · 53395-33010 |
| 53879H | Front fender lining fixing parts | 53879-58010 |
| 81481E | Right fog light cover | 81481-33010 |
| 81482C | Left fog light cover | 81482-33010 |
