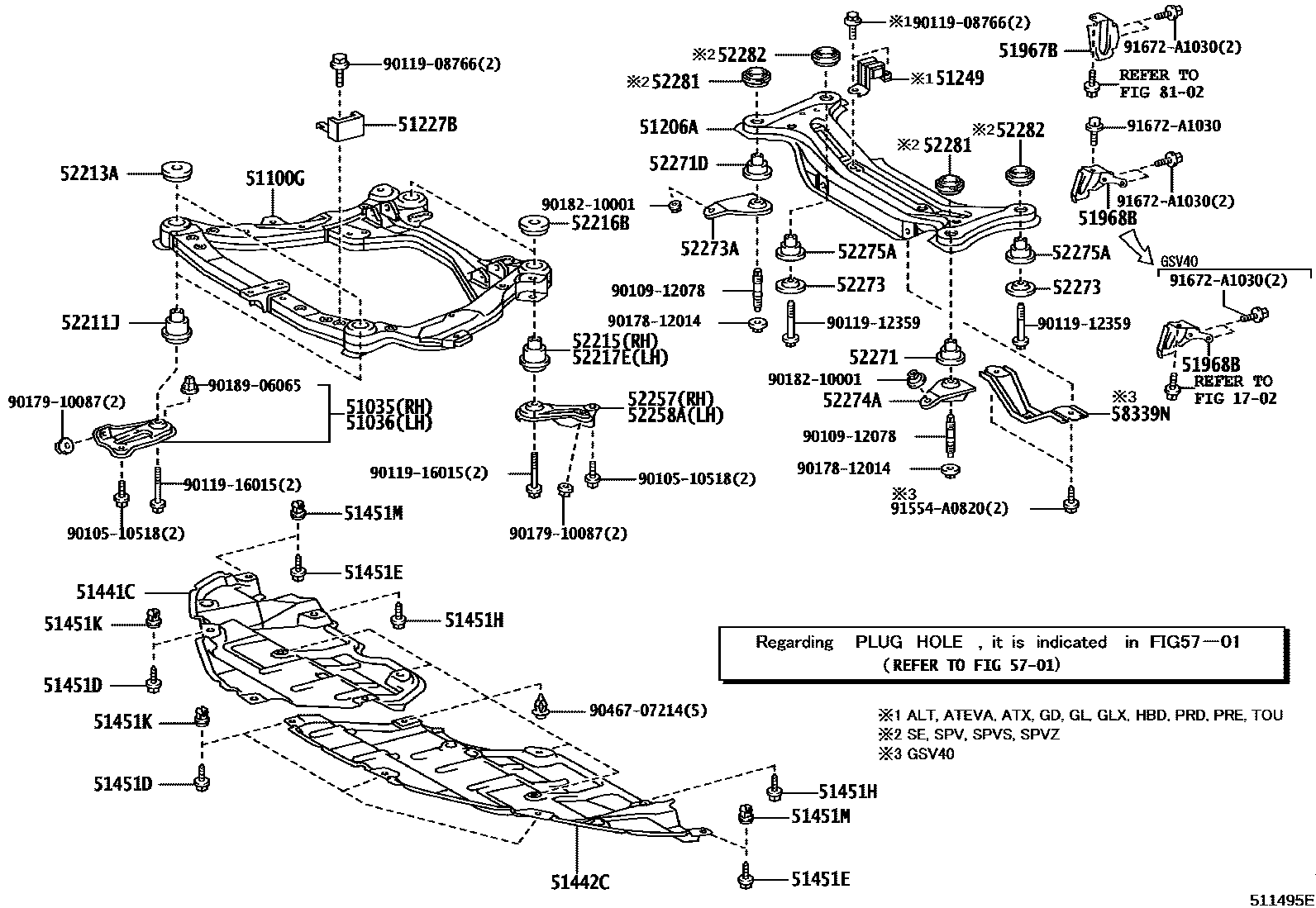

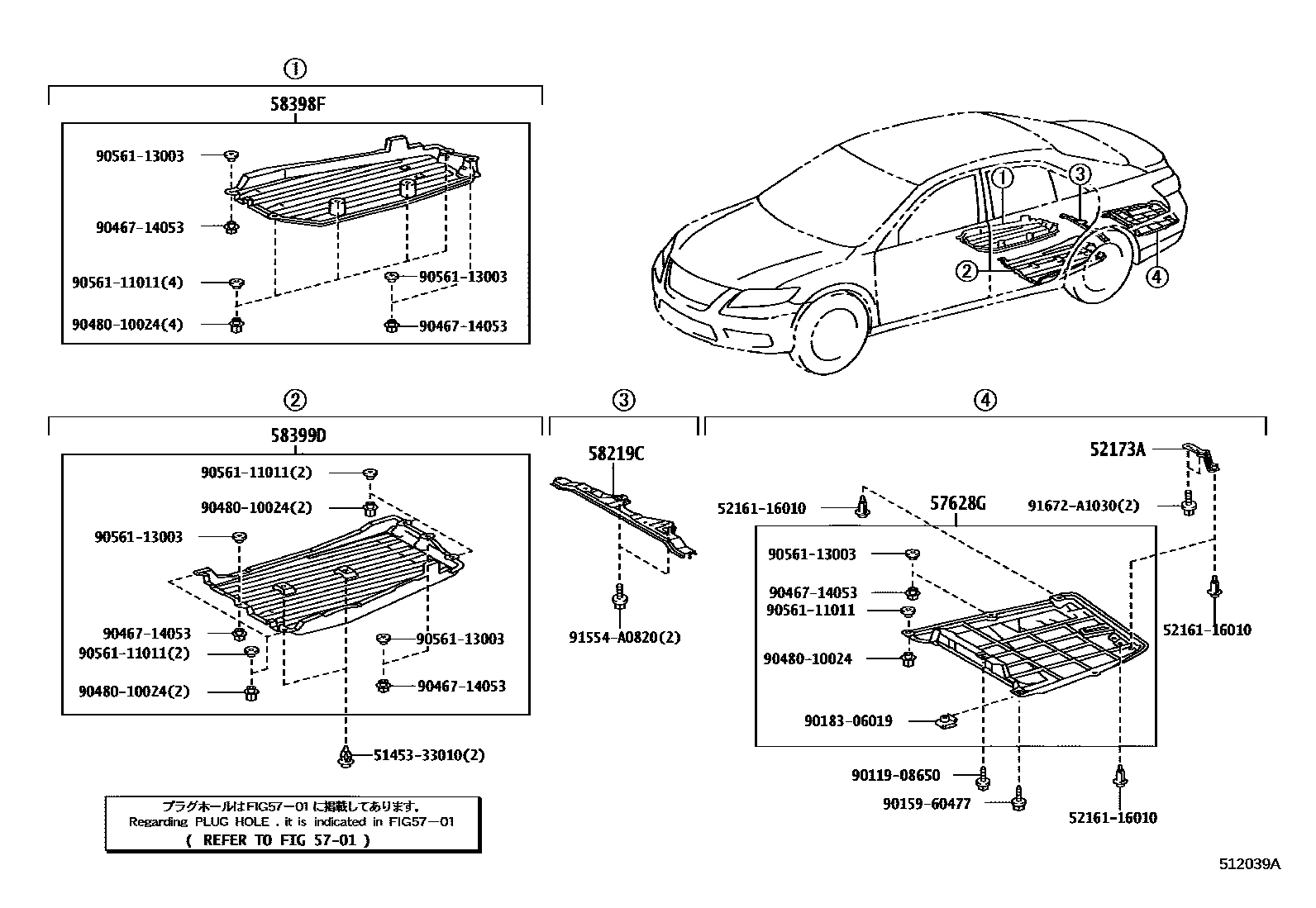

Toyota CAMRY 悬架横梁和发动机底罩 — Figure 5102
Toyota CAMRY EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51035 | Frame right longitudinal beam plate sub-assembly | 51035-06030 |
| 51036 | Frame left longitudinal beam plate sub-assembly | 51036-06030 |
| 51100G | Front frame assembly | 51100-06080 · 51100-06090 · 51100-06120 · 51100-06130 · 51100-06160 |
| 51206A | Rear suspension cross member sub-assembly | 51206-06070 |
| 51227B | Front suspension beam dynamic damper | 51227-06070 |
| 51249 | Rear suspension cross member shock absorber | 51249-06010 |
| 51441C | Engine right bottom cover | 51441-06090 · 51441-06140 |
| 51442C | Engine left bottom cover | 51442-06080 · 51442-06081 · 51442-06130 |
| 51451D | Screw No. 1 | 90159-60525 |
| 51451E | No. 2 screw | 90159-60525 |
| 51451H | No. 3 screw | 90159-60525 |
| 51451K | No. 1 screw seal | 90189-06193 |
| 51451M | No. 2 screw seal | 90189-06193 |
| 51967B | right rear transport hook | 51967-06030 |
| 51968B | Left rear transport hook | 51968-06040 |
| 52173A | rear bumper bezel | 52179-06050 |
| 52211J | Front suspension cross member, front body fixed cushion | 52211-06110 · 52211-06120 |
| 52213A | Front suspension cross member, front body fixed stop | 52213-06110 · 52213-06120 |
| 52215 | Front suspension cross member Rear body fixed cushion | 52215-06090 · 52215-06100 |
| 52216B | Front suspension cross member, rear body fixed stop | 52216-06090 · 52216-06100 |
| 52217E | Front suspension cross member left rear body fixed buffer pad | 52217-06070 · 52217-06080 |
| 52257 | Right front suspension cross member rear bracket | 51023-06030 |
| 52258A | Left front suspension cross member rear bracket | 51024-06030 |
| 52271 | Rear suspension cross member cushion | 52272-06070 · 52272-06080 |
| 52271D | Rear suspension cross member, front body fixed cushion | 52271-06080 · 52271-06090 |
| 52273 | Rear suspension cross member lower block | 52273-06020 |
| 52273A | Rear suspension cross member right lower stop | 52203-33030 |
| 52274A | Rear suspension cross member left lower stop | 52204-33030 |
| 52275A | Rear suspension cross member rear body fixed cushion | 52275-06080 · 52275-06090 |
| 52281 | Differential support beam cushion | 52281-06020 |
| 52282 | Differential support beam upper stop | 52282-06050 |
| 57628G | Rear floor left longitudinal member cover | 57628-33060 |
| 58219C | Center floor rear end panel | 58219-33010 |
| 58339N | Lift the bracket | 58339-06010 |
| 58398F | No. 1 floor under cover | 58398-33010 |
| 58399D | Floor No. 2 lower cover | 58399-33011 |
