Toyota CAMRY 后盘式制动器卡钳和防尘罩 — Figure 4707

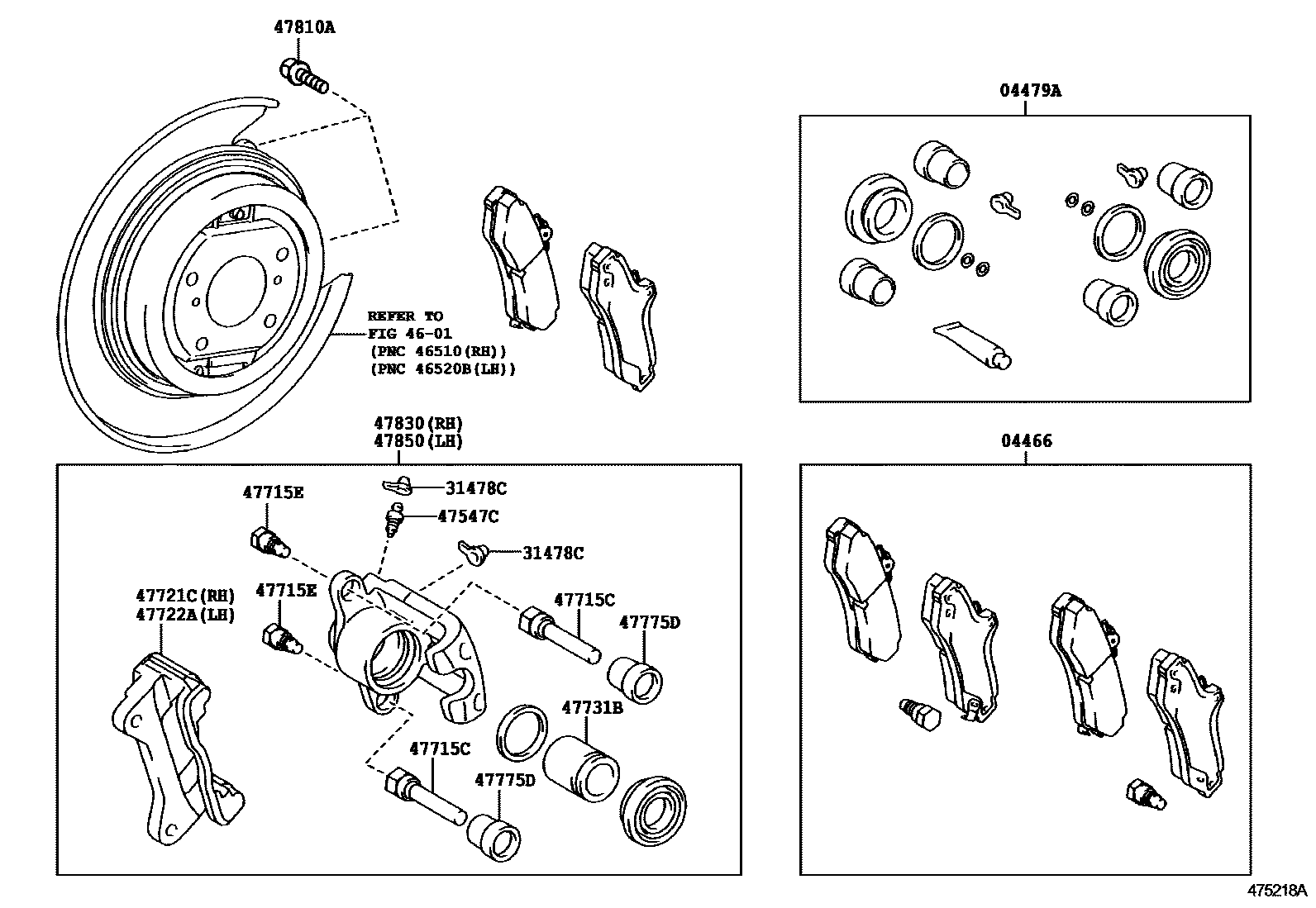

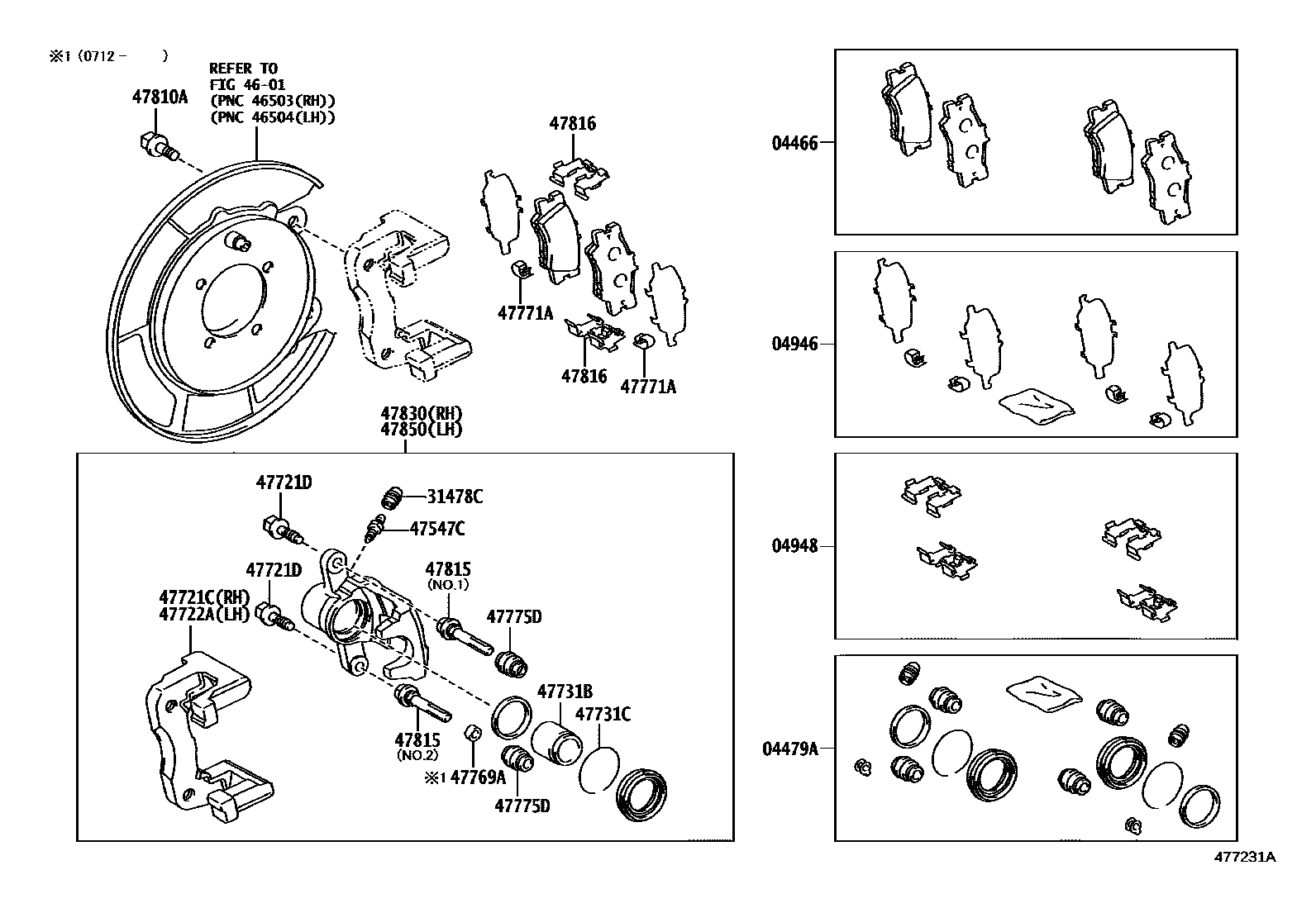

Toyota CAMRY EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-06070 · 04466-06080 · 04466-06100 · 04466-33180 |
| 04479A | Rear disc brake cylinder assembly | 04479-06230 · 04479-06240 · 04479-33310 · 04479-33340 · 04479-33360 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-06050 · 04946-33040 |
| 04948 | Rear disc brake mounting assembly | 04948-06020 · 04948-06021 · 04948-33040 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-06010 · 31478-50020 · 47548-06010 |
| 47547C | Bleed plug (for rear disc brake) | 47547-06030 · 47547-20010 · 47547-8Y001 |
| 47715C | Brake cylinder slide pin (for rear disc brake) | 47715-06140 |
| 47715E | Slide bolt (for rear disc brake cylinder) | 47715-06150 |
| 47721C | Right rear disc brake cylinder retainer | 47721-8Y002 · 47821-06140 · 47821-33211 · 47821-33240 · 47821-33241 · 47821-8Y001 · 47821-8Y002 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA603 · 90105-08164 · 90105-8Y001 |
| 47722A | Left rear disc brake cylinder retainer | 47721-8Y002 · 47822-06130 · 47822-33211 · 47822-33240 · 47822-33241 · 47822-8Y001 · 47822-8Y002 |
| 47731B | rear disc brake piston | 47731-8Y002 · 47831-06090 · 47831-33210 · 47831-8Y001 |
| 47731C | retaining ring (for rear disc brake piston) | 90016-AU501 · 90520-52006 · 90522-8Y002 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47879-06140 · 47879-33211 · 47879-33240 · 47879-8Y001 |
| 47771A | Pad wear indicator disc (for rear disc brakes) | 47771-32030 · 47871-8Y001 |
| 47775D | Bushing boot (for rear disc brake) | 47775-06050 · 47875-8Y001 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90119-10379 · 90119-10445 · 90119-10578 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47814-33210 · 47814-33211 · 47814-33240 · 47815-33240 · 47815-8Y001 · 47815-8Y002 |
| 47816 | Pad support plate No. 1 (for rear disc brake) | 47816-33211 · 47816-8Y001 · 47816-8Y002 |
| 47830 | Right rear disc brake cylinder assembly | 47830-06060 · 47830-06070 · 47830-06071 · 47830-06140 · 47830-33211 · 47830-33240 |
| 47850 | Left rear disc brake cylinder assembly | 47850-06060 · 47850-06070 · 47850-06071 · 47850-06130 · 47850-33211 · 47850-33240 |
