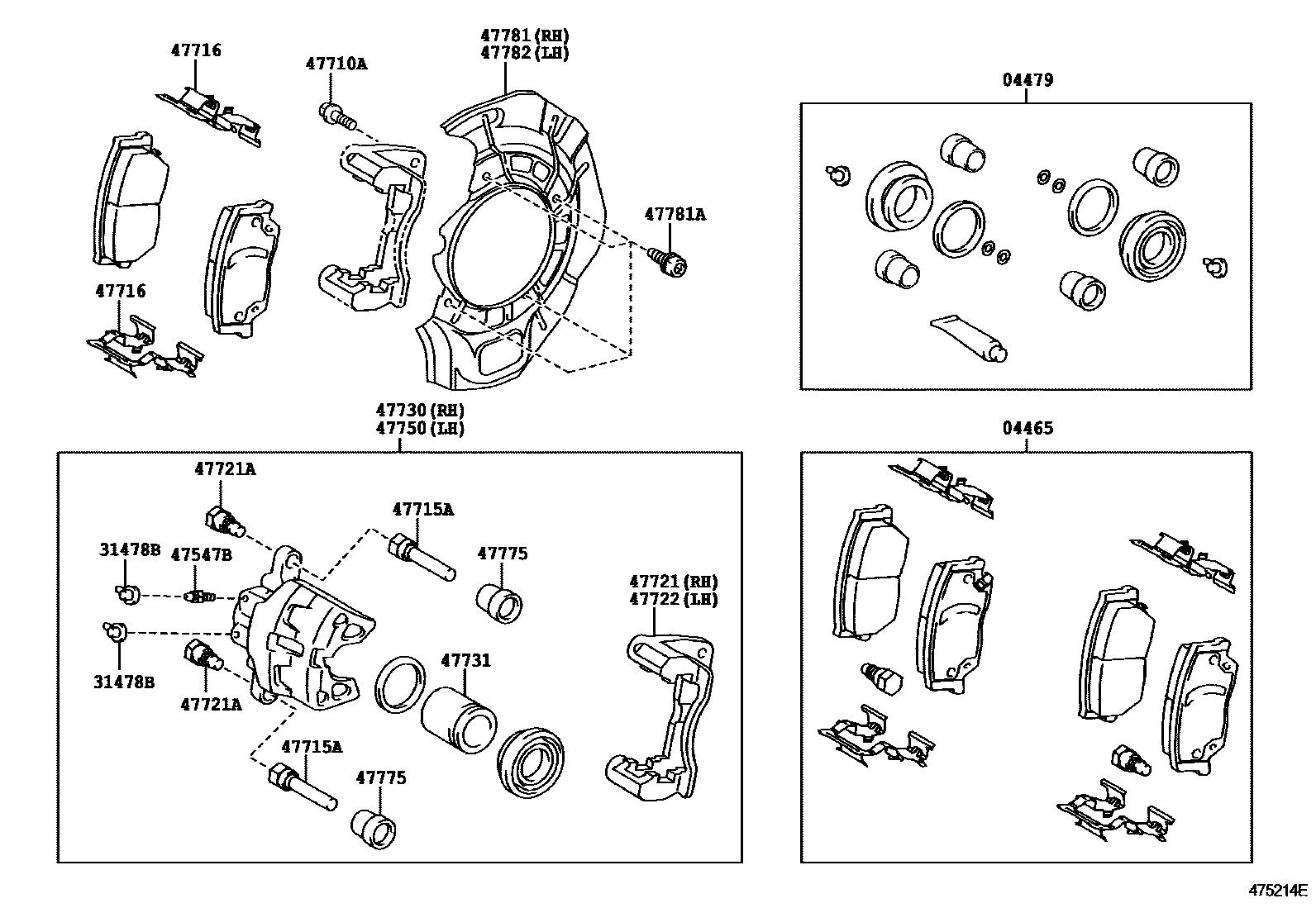

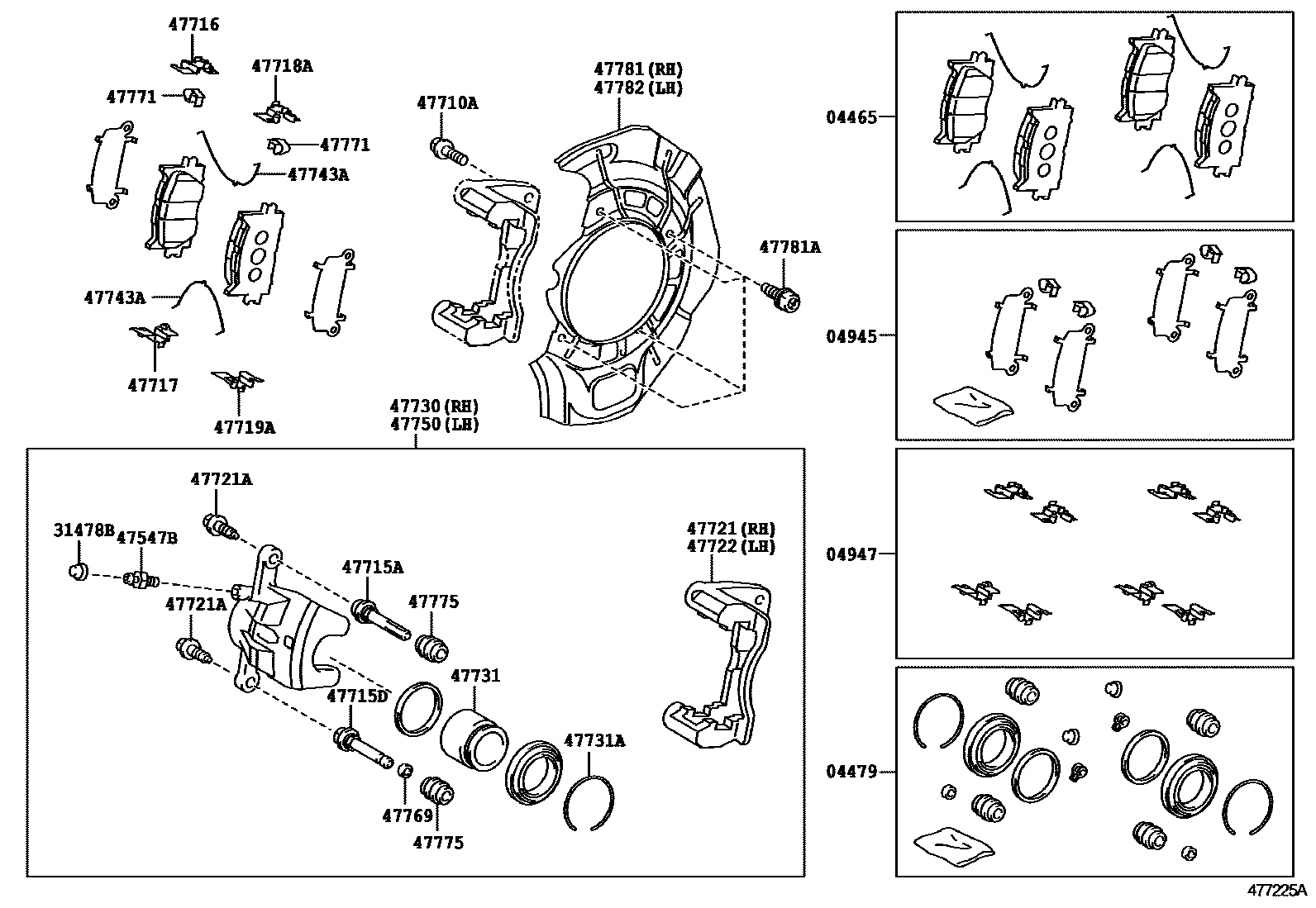

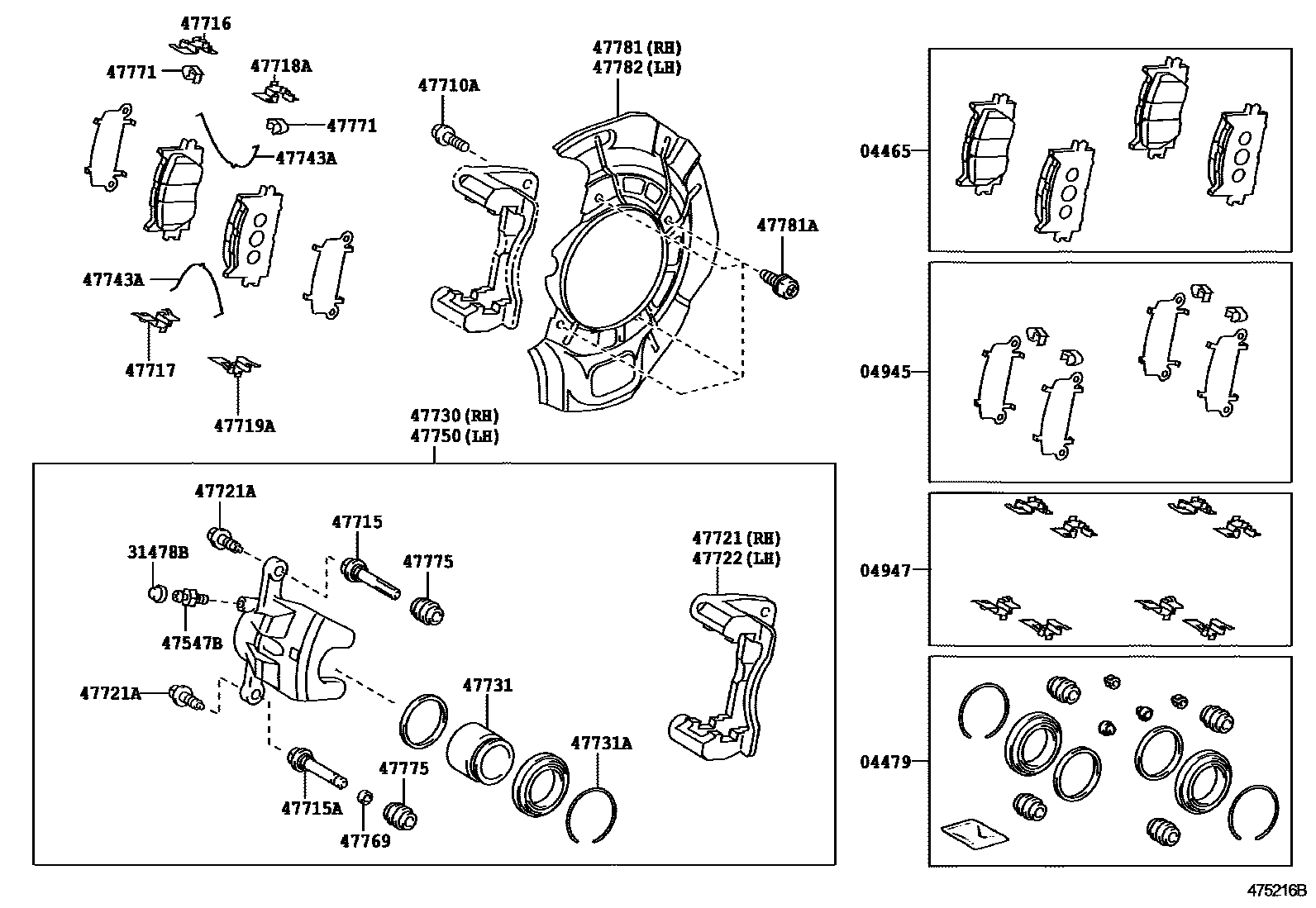

Toyota CAMRY 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota CAMRY EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-06080 · 04465-06090 · 04465-06110 · 04465-33450 |
| 04479 | Front disc brake cylinder assembly | 04478-06200 · 04478-06210 · 04478-06251 · 04478-06252 · 04478-0D160 · 04478-0D161 · 04478-33130 · 04478-33140 |
| 04945 | Front silencer gasket assembly | 04945-06110 · 04945-06120 · 04945-33260 |
| 04947 | Front disc brake mounting kit | 04947-06070 · 04947-06090 · 04947-33240 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0D040 · 31478-30010 · 47548-06010 |
| 47547B | Bleed plug (for front disc brake) | 47547-06020 · 47547-0D030 · 47547-20010 · 47547-8Y001 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715 | Master slide pin (for front disc brake cylinder) | 47715-8Y002 |
| 47715A | Front disc brake cylinder sliding pin | 47715-06120 · 47715-52190 · 47715-8Y003 |
| 47715D | No. 2 front disc brake cylinder sliding pin | 47715-33340 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-06100 · 47717-8Y001 · 47718-33340 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-8Y002 · 47719-33340 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47717-8Y002 · 47718-33340 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47717-8Y001 · 47719-33340 |
| 47721 | Right front disc brake cylinder retainer | 47721-06260 · 47721-33340 · 47721-8Y001 · 47721-8Y003 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 47715-8Y004 · 90016-AA603 · 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47721-8Y001 · 47722-06260 · 47722-33340 · 47722-8Y001 |
| 47730 | Right front disc brake cylinder assembly | 47730-06230 · 47730-06240 · 47730-06260 · 47730-33340 |
| 47731 | Front disc brake piston | 47731-06260 · 47731-33340 · 47731-8Y001 · 47731-8Y003 |
| 47731A | retaining ring (for front disc brake piston) | 90522-76002 · 90522-8Y001 |
| 47743A | Silencer spring (for front disc brake) | 47743-8Y001 |
| 47750 | Left disc brake cylinder assembly | 47750-06230 · 47750-06240 · 47750-06260 · 47750-33340 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-50010 · 47769-8Y001 |
| 47771 | No. 1 pad wear indicator plate | 47771-53060 · 47771-8Y001 |
| 47775 | Bushing boot (for front disc brake) | 47775-06050 · 47775-8Y001 |
| 47781 | Right front disc brake dust cover | 47781-06080 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 |
| 47782 | Left front disc brake dust cover | 47782-06080 |
