Toyota CAMRY 制动总泵 — Figure 4702

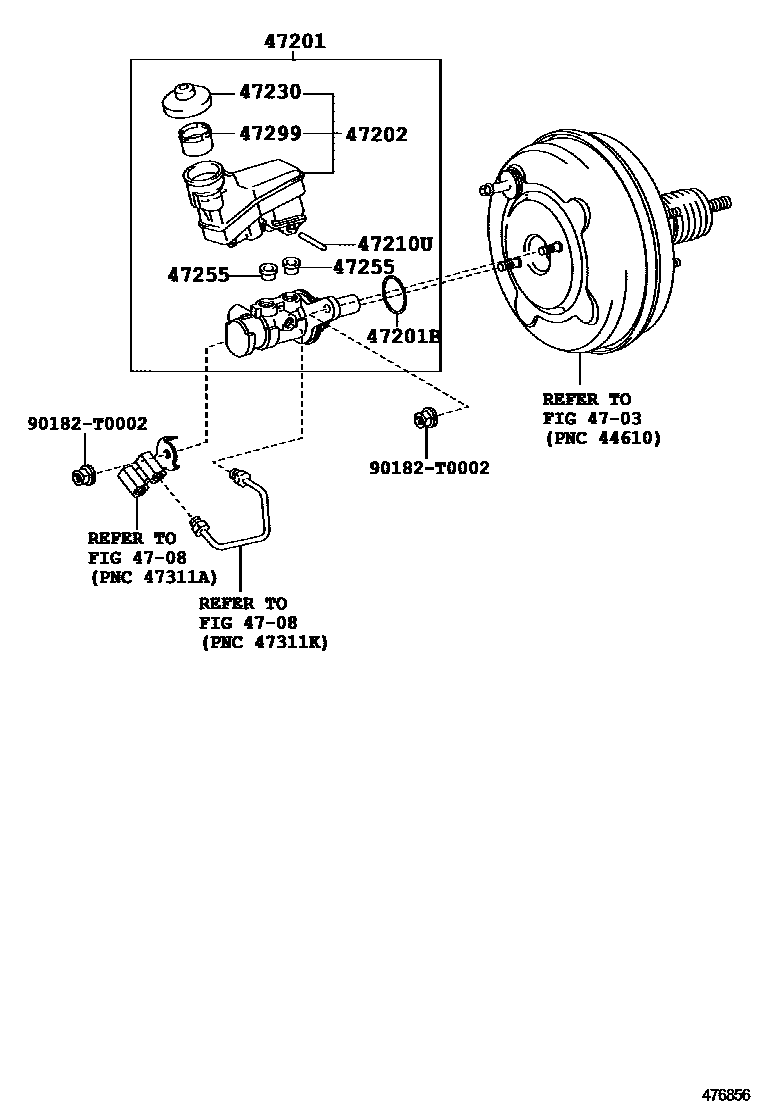

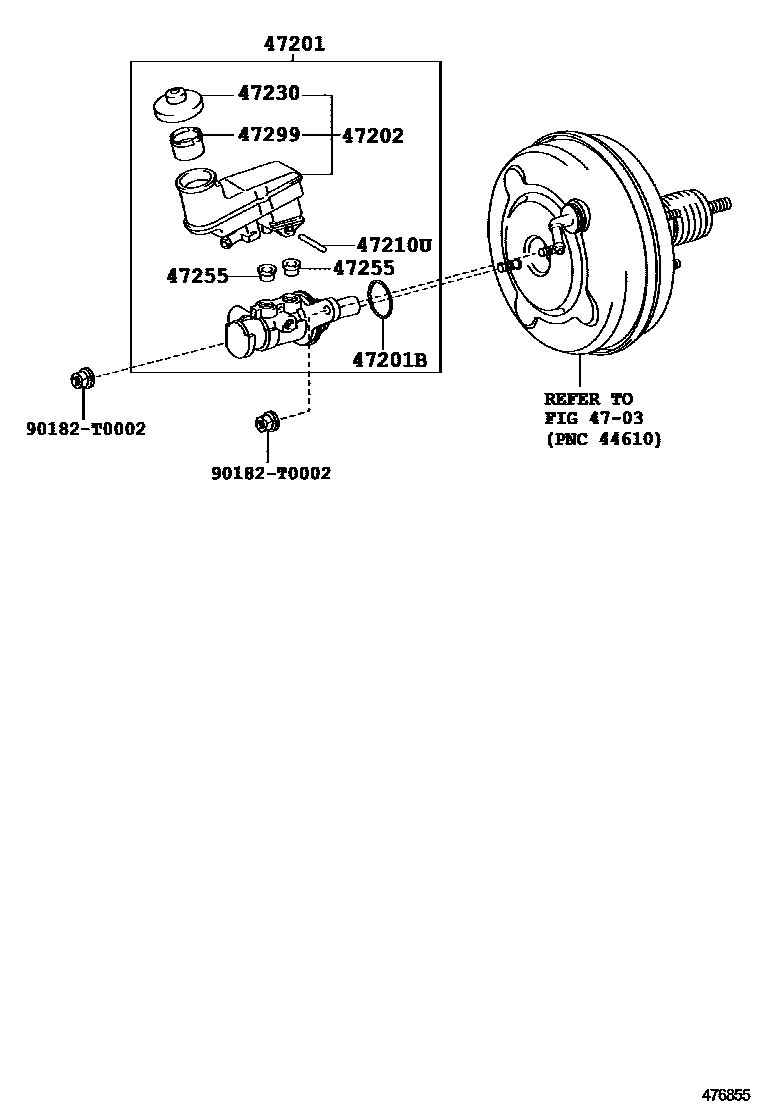

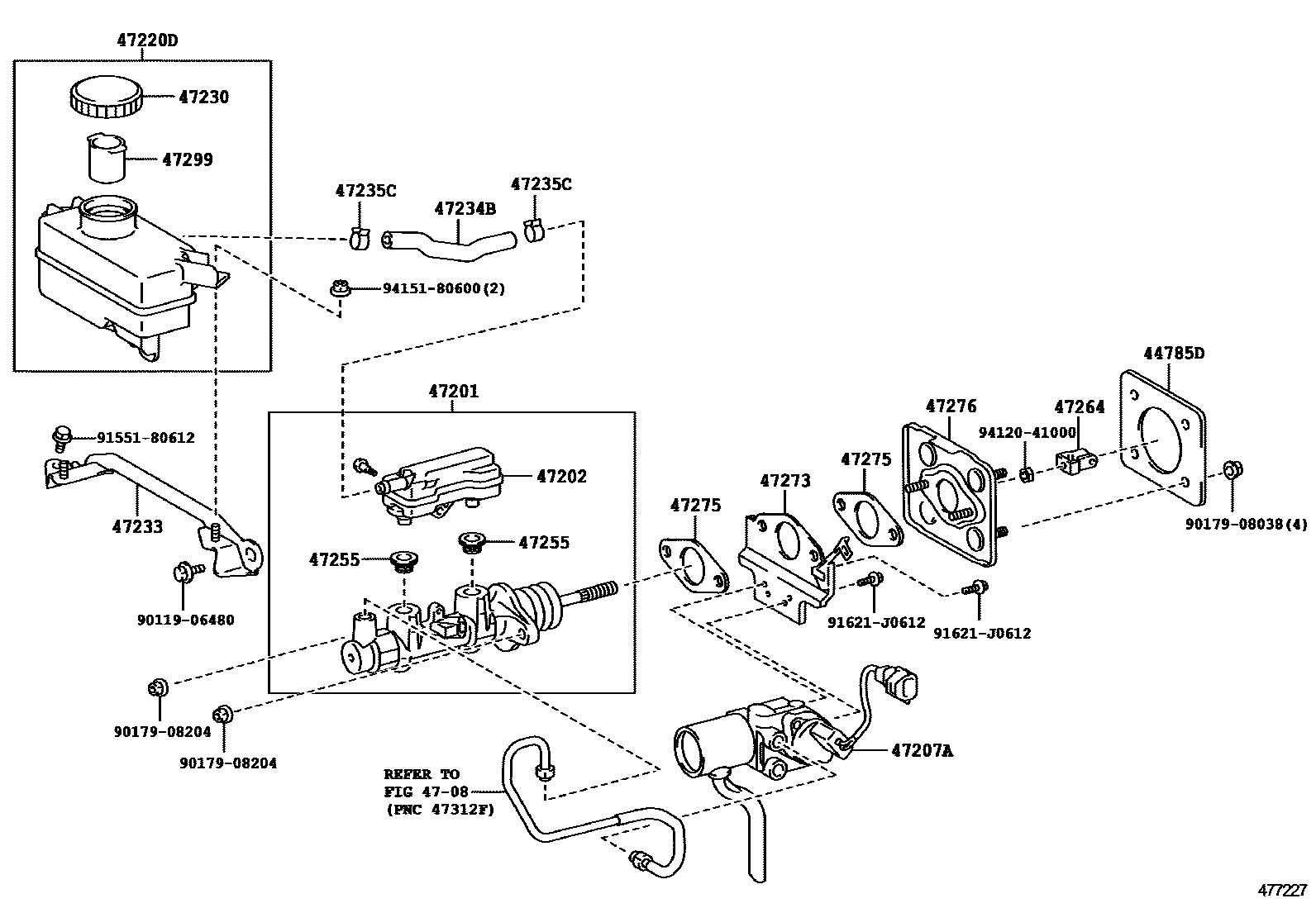

Toyota CAMRY EPC diagram 4702, 制动总泵, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44785D | brake master cylinder gasket | 44785-47010 |
| 47201 | Brake master cylinder sub-assembly | 47201-06210 · 47201-06211 · 47201-06310 · 47201-06320 · 47201-06330 · 47201-06331 · 47201-06340 · 47201-06341 · 47201-06350 · 47201-06351 · 47201-06360 · 47201-06361 · 47201-33540 |
| 47201B | O-ring (for brake master cylinder) | 90029-8Y001 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-06120 · 47220-06150 · 47220-06160 · 47220-06170 · 47221-50080 |
| 47207A | Brake master cylinder stroke simulator sub-assembly | 47207-33020 |
| 47210U | Direct sales (for brake master cylinder) | 90015-AE401 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-33110 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-33071 · 47230-52030 · 47230-58010 |
| 47233 | Reservoir tank bracket | 47233-33030 |
| 47234B | Liquid storage tank pipe No. 1 | 47234-33030 |
| 47235C | Clamp (for brake master cylinder reservoir tank No. 2 pipe) | 96137-41501 |
| 47255 | Master pump reservoir seal | 47255-16010 · 90015-AT001 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-63020 |
| 47273 | Brake master cylinder stroke simulator bracket | 47273-30010 |
| 47275 | brake master cylinder gasket | 47275-12020 |
| 47276 | brake master cylinder bracket | 47276-30040 |
| 47299 | Brake master cylinder reservoir filter | 47299-30190 · 47299-52110 |
