Toyota CAMRY Brake Pedal & Bracket — Figure 4701

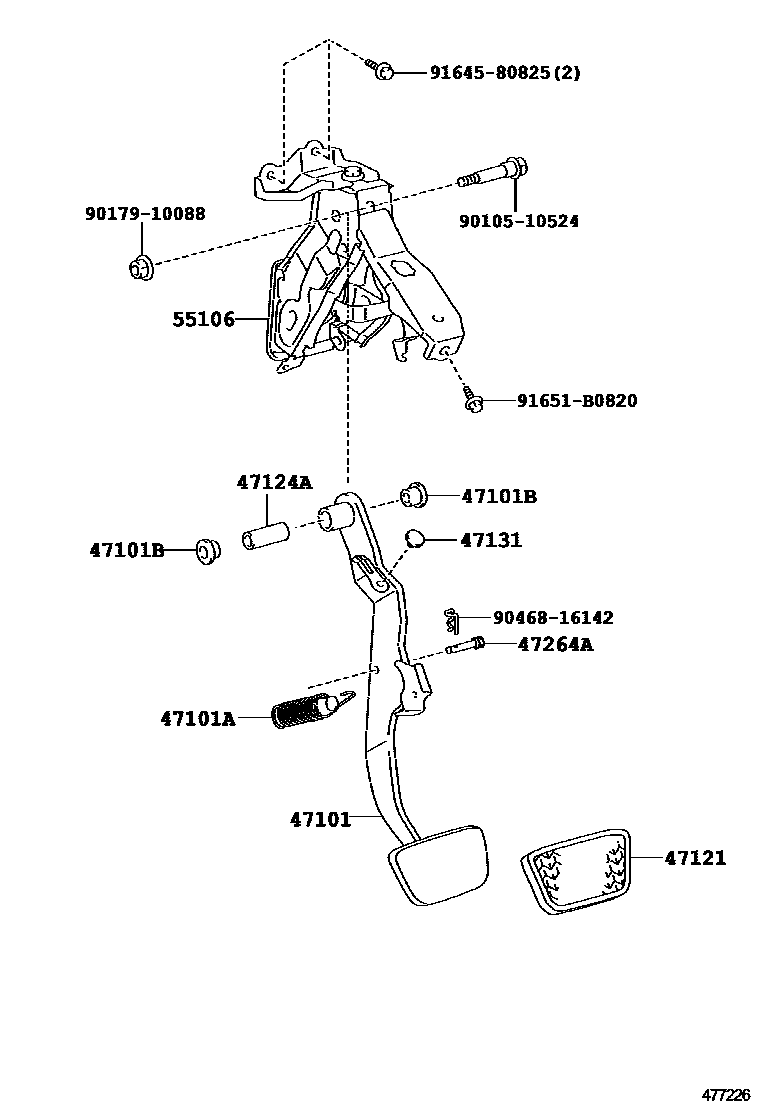

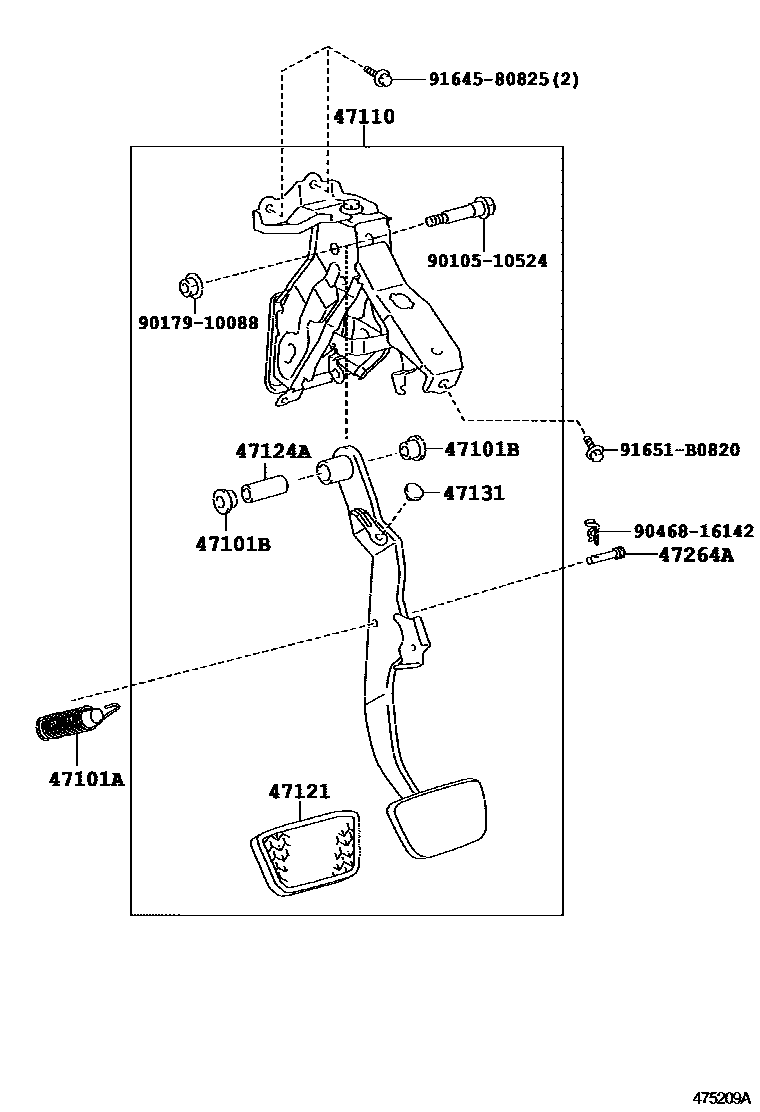

Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-33170 |
| 47101A | Spring (for brake pedal return) | 90507-14036 |
| 47101B | Bushing (for brake pedal) | 90089-38004 · 90386-13015 |
| 47110 | Brake pedal bracket assembly | 47110-06130 · 47110-06140 · 47110-06150 · 47110-06160 · 47110-06170 · 47110-06180 · 47110-06190 · 47110-06200 |
| 47121 | brake pedal pad | 31321-06010 · 31321-52010 · 31321-53010 · 47121-06030 · 47121-50020 · 47121-53010 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47131 | Bump pad (for brake light switch) | 90541-06036 |
| 47264A | Pin (for push rod) | 47148-33011 |
| 55106 | Brake pedal bracket sub-assembly | 55106-33180 |
