Toyota CAMRY 前转向齿轮和连杆 — Figure 4505

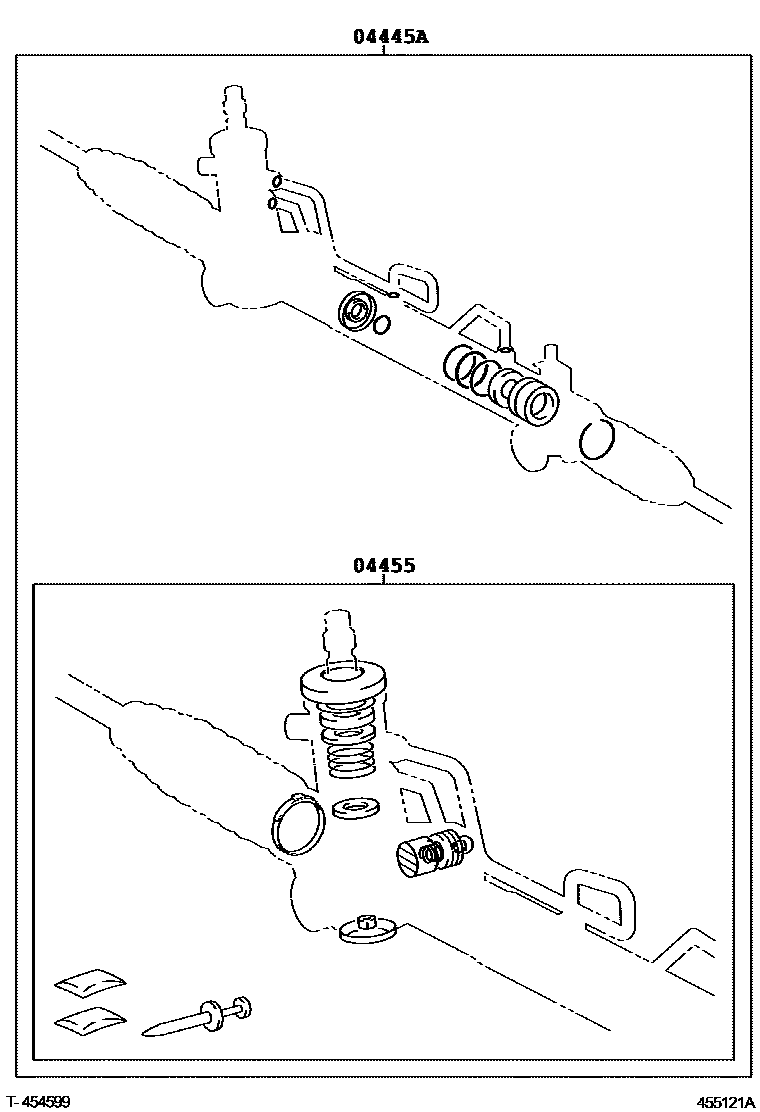

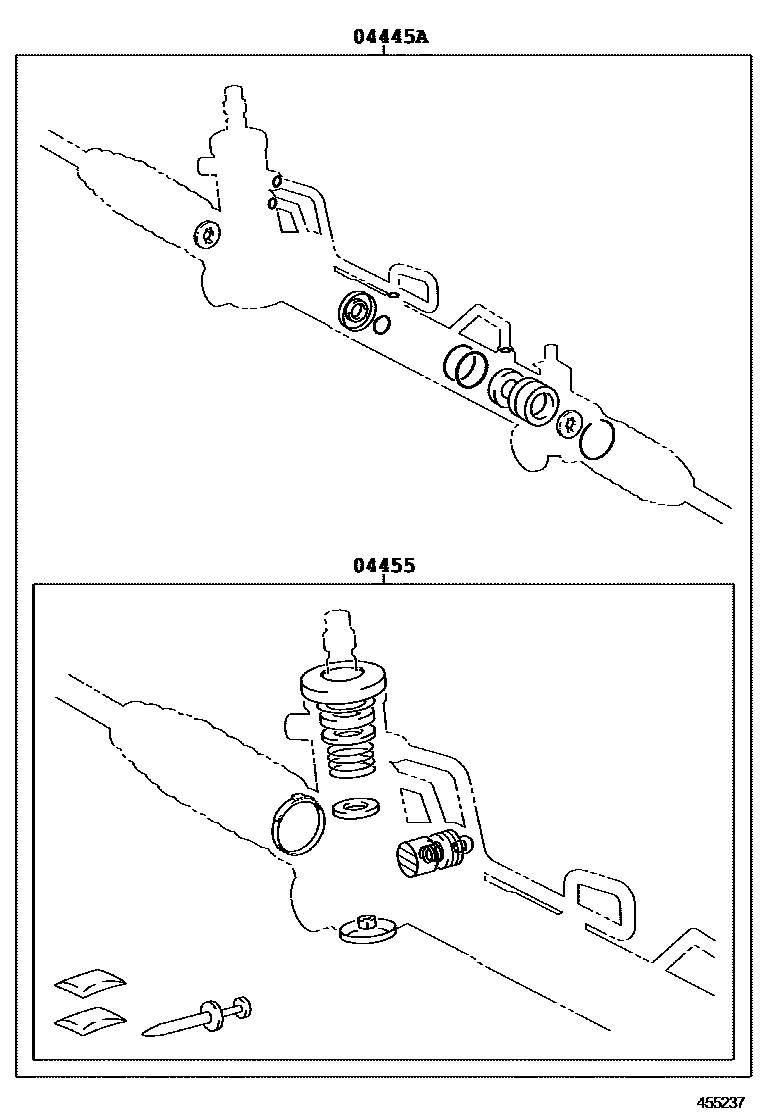

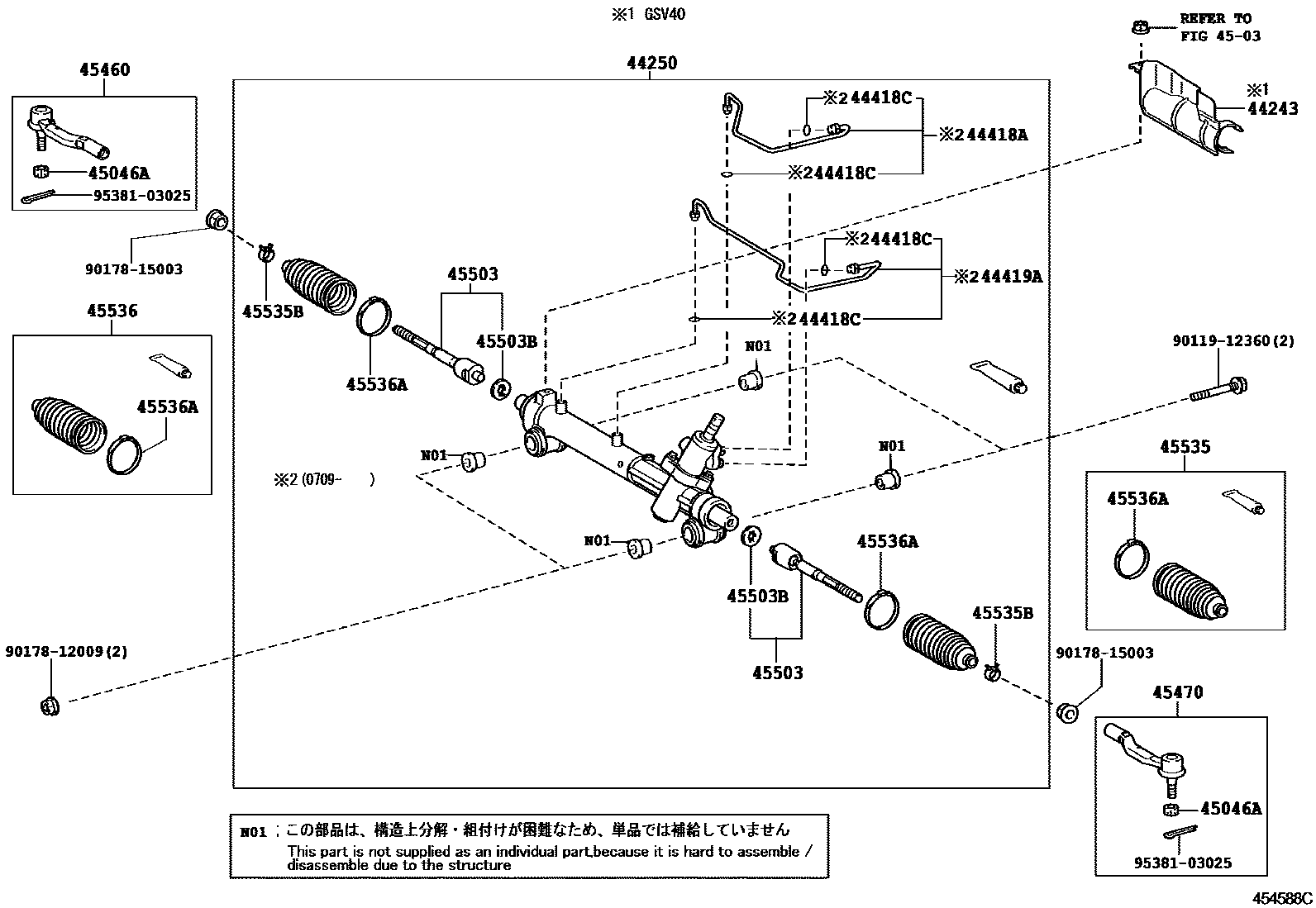

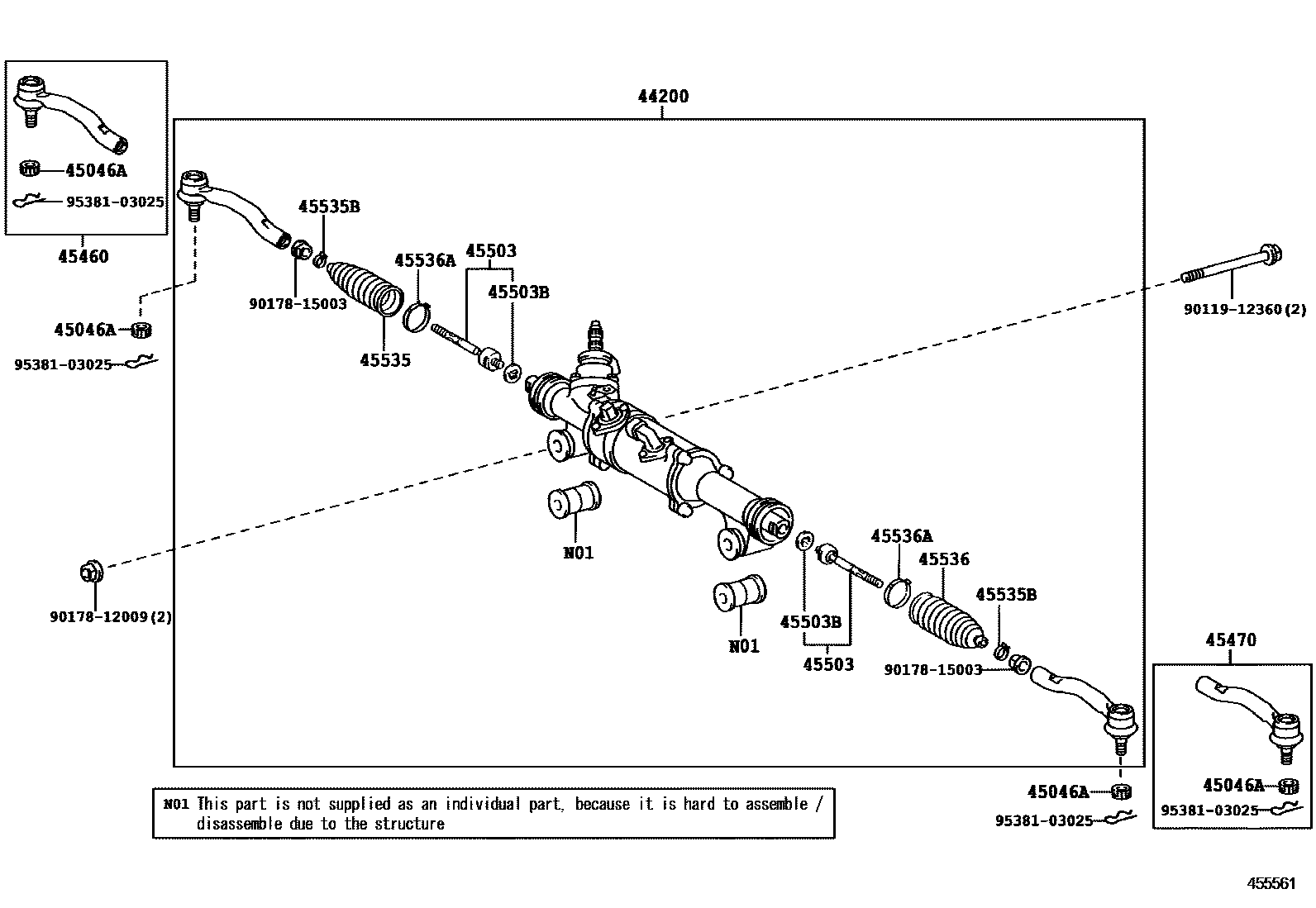

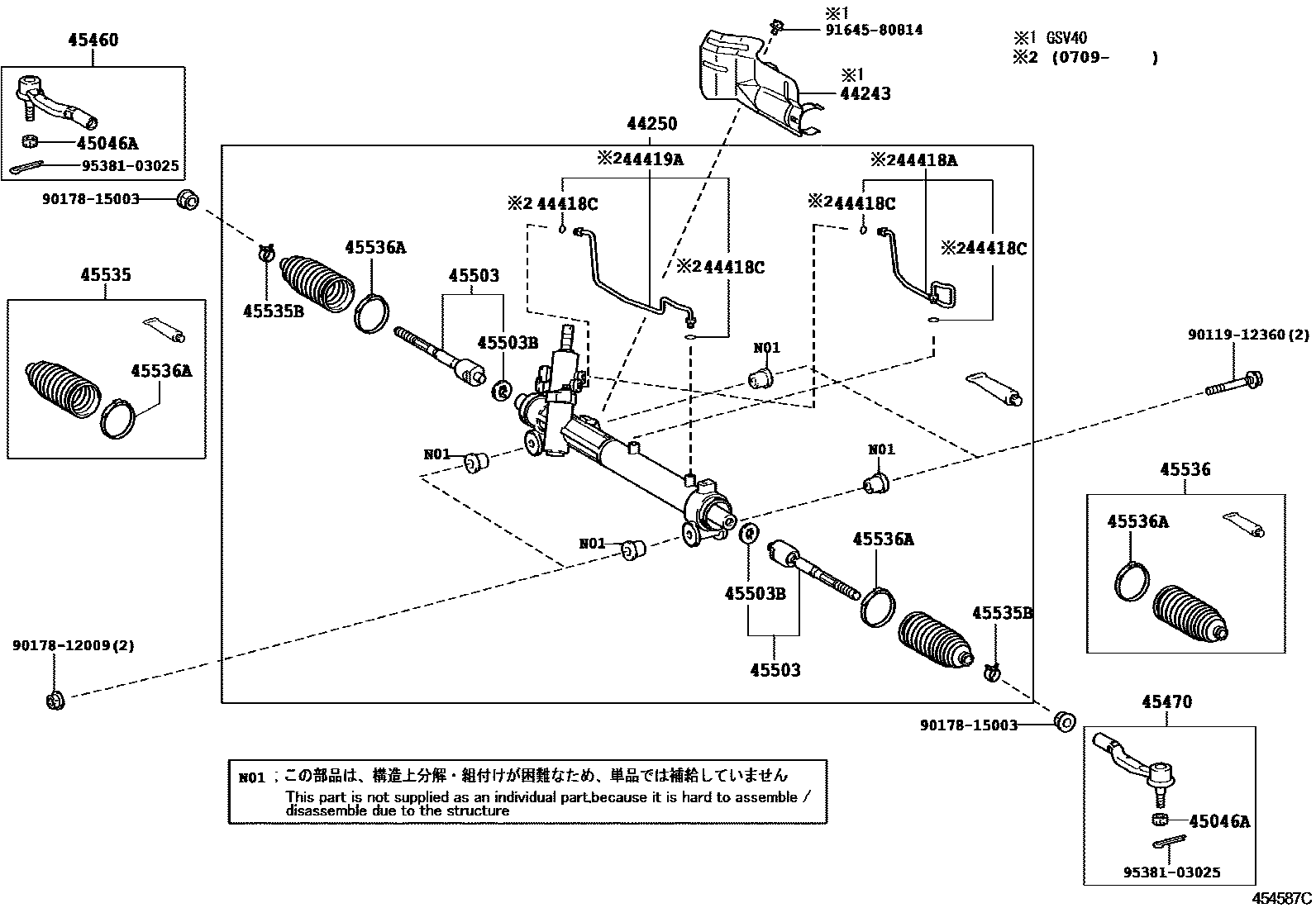

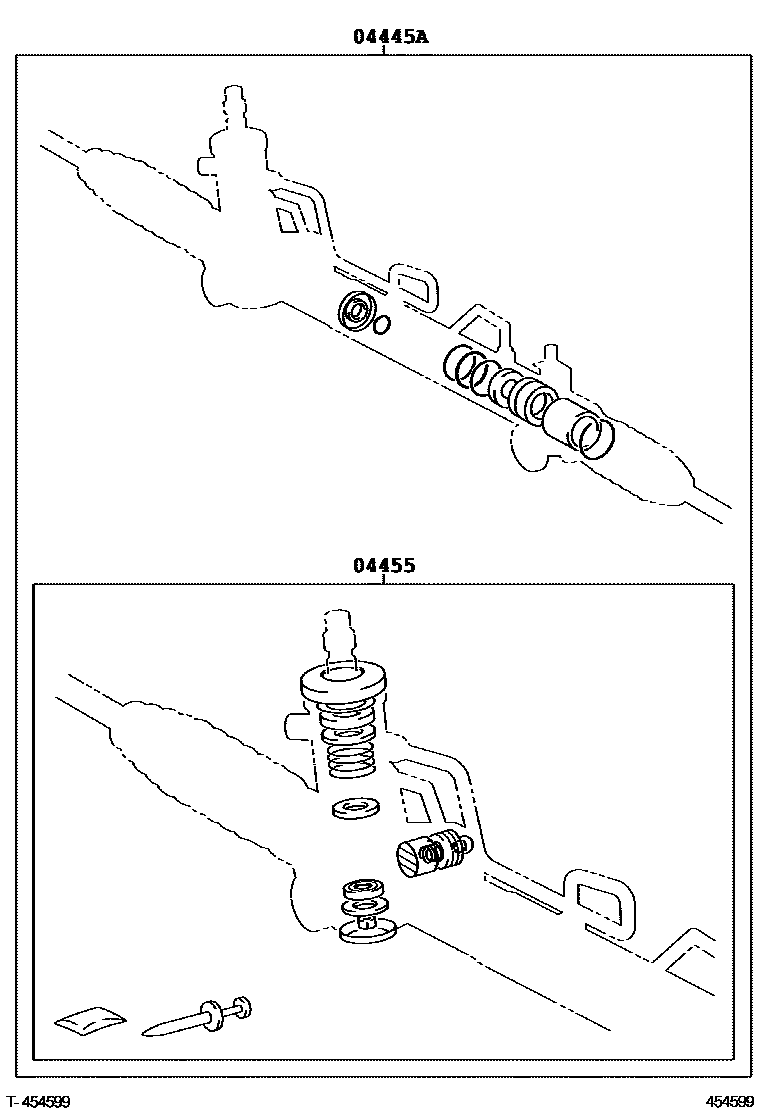

Toyota CAMRY EPC diagram 4505, 前转向齿轮和连杆, with 6 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-06180 · 04445-06181 · 04445-06200 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-06110 · 04455-06111 · 04455-06130 |
| 44200 | Power steering tie rod assembly | 44200-33540 · 44200-33541 |
| 44243 | Power steering rack housing heat insulation pad | 44243-33011 · 44243-33030 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-06270 · 44250-06280 |
| 44418A | Right steering pressure oil pipe | 44418-8Y004 · 44418-8Y005 |
| 44418C | O-ring (for steering pressure oil pipe) | 90301-8Y005 |
| 44419A | Left steering pressure oil pipe | 44419-8Y004 · 44419-8Y005 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45460 | Right tie rod assembly | 45460-39635 |
| 45470 | Left tie rod assembly | 45470-39225 |
| 45503 | Steering rack end sub-assembly | 45503-39275 · 45503-39315 |
| 45503B | Jaw washer (for steering rack end) | 90214-14009 |
| 45535 | No. 1 steering rack dust cover | 45535-09080 · 45535-30030 |
| 45535B | Clamp (for steering rack dust boot) | 90069-48008 · 90467-19019 |
| 45536 | No. 2 steering rack dust cover | 45535-09080 · 45535-30030 |
| 45536A | Clamp (for No. 2 steering rack dust boot) | 90069-8Y003 · 90460-55016 |
