Toyota CAMRY 动力转向配管 — Figure 4503

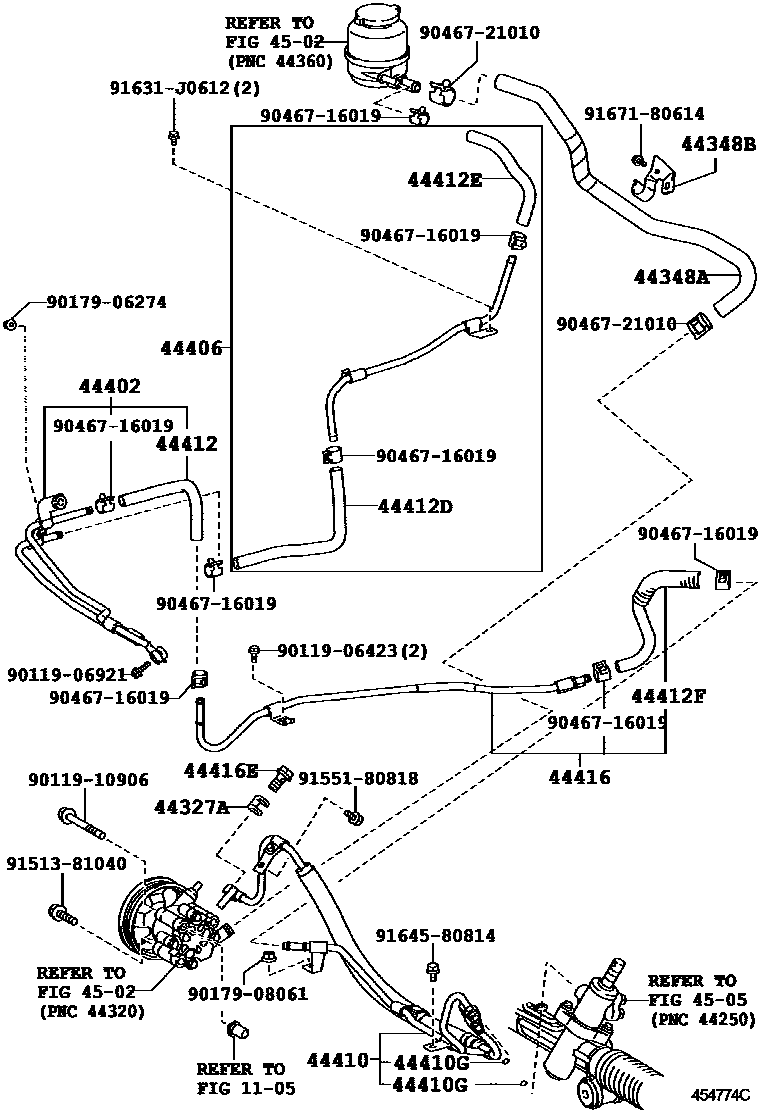

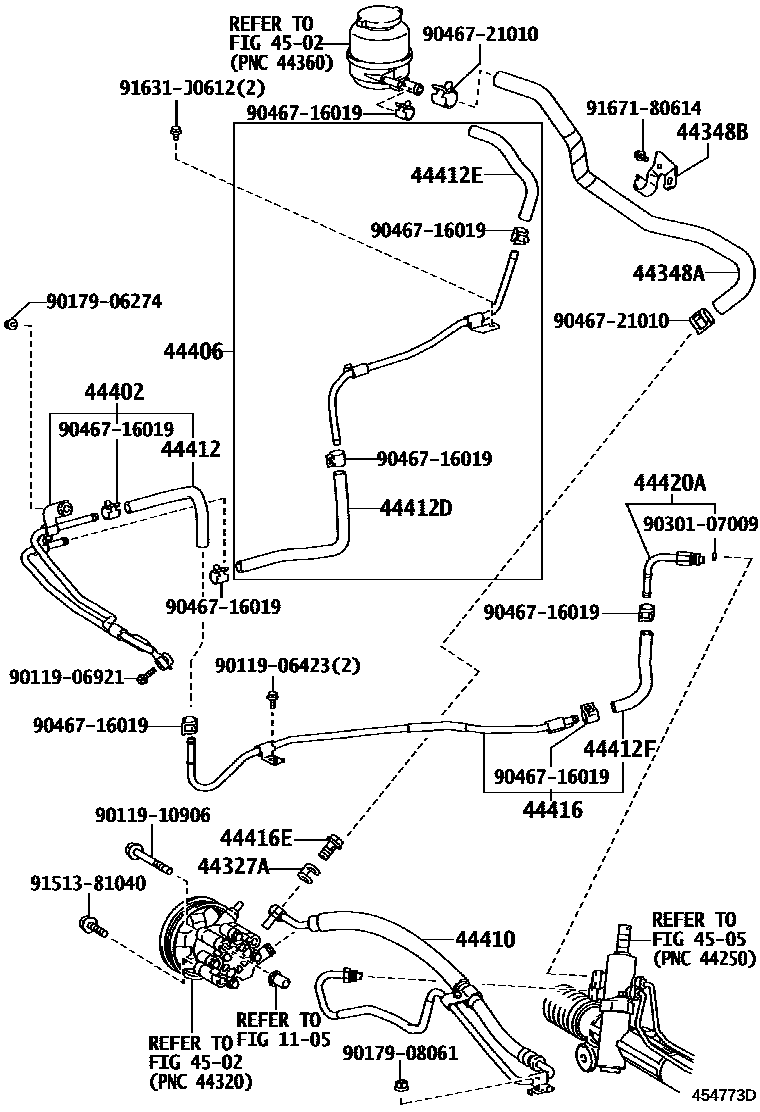

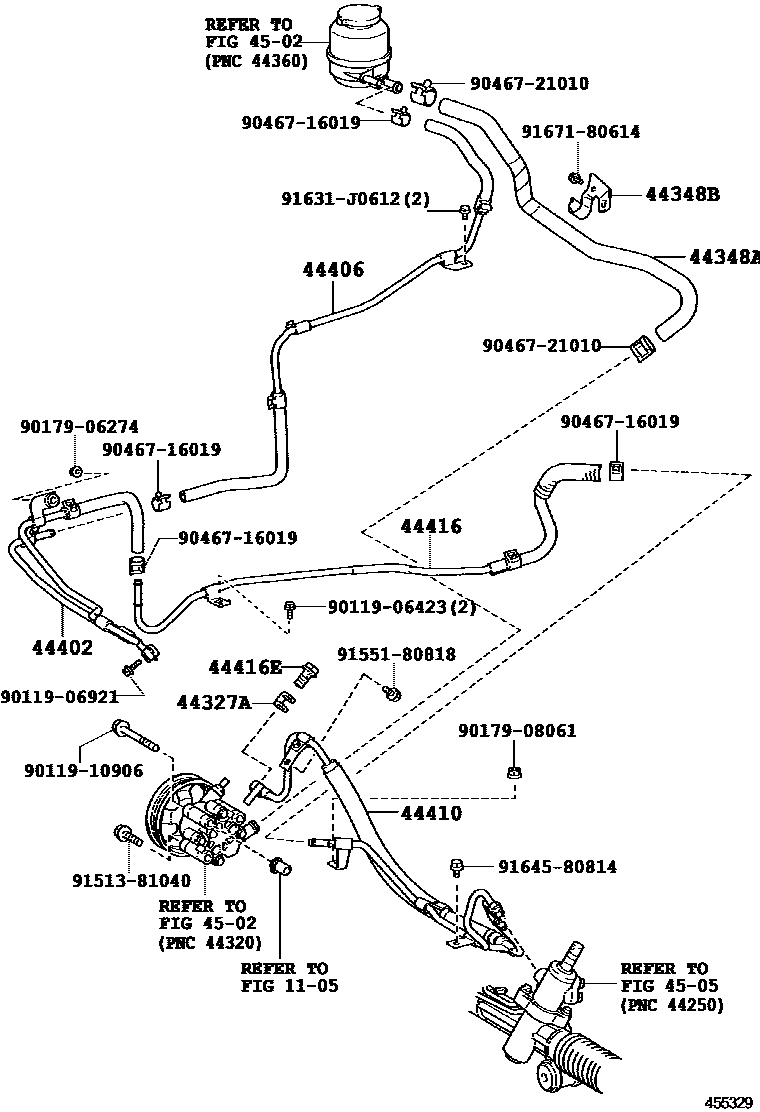

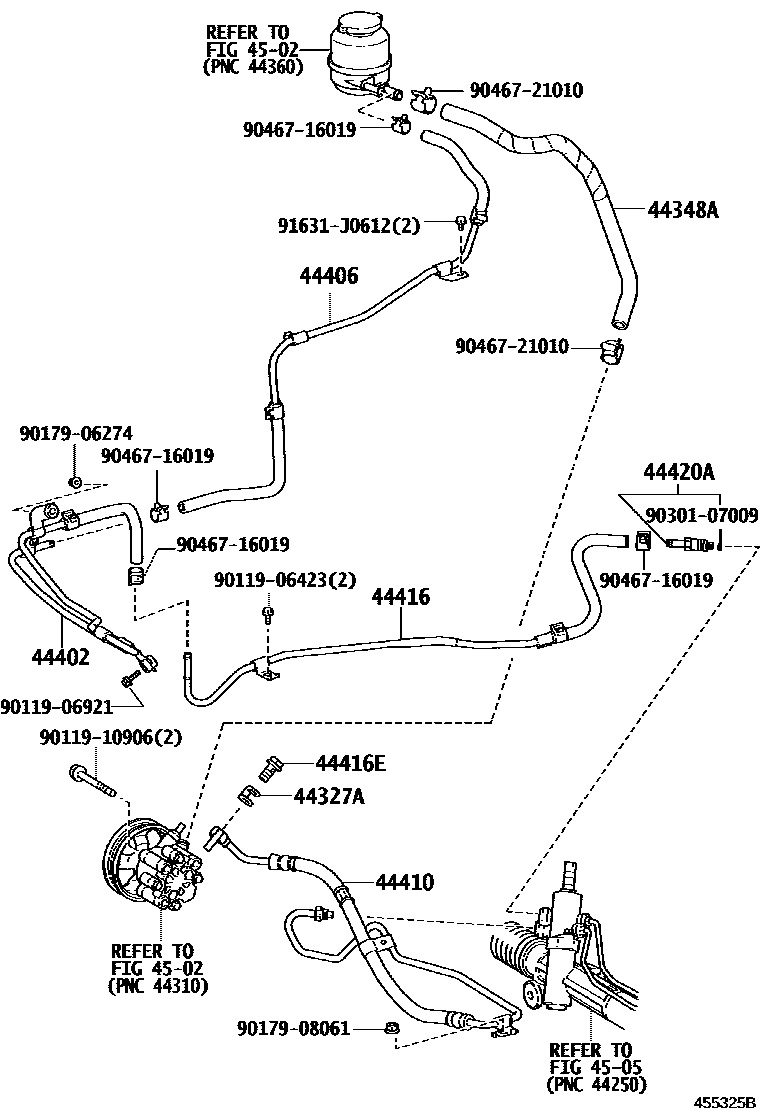

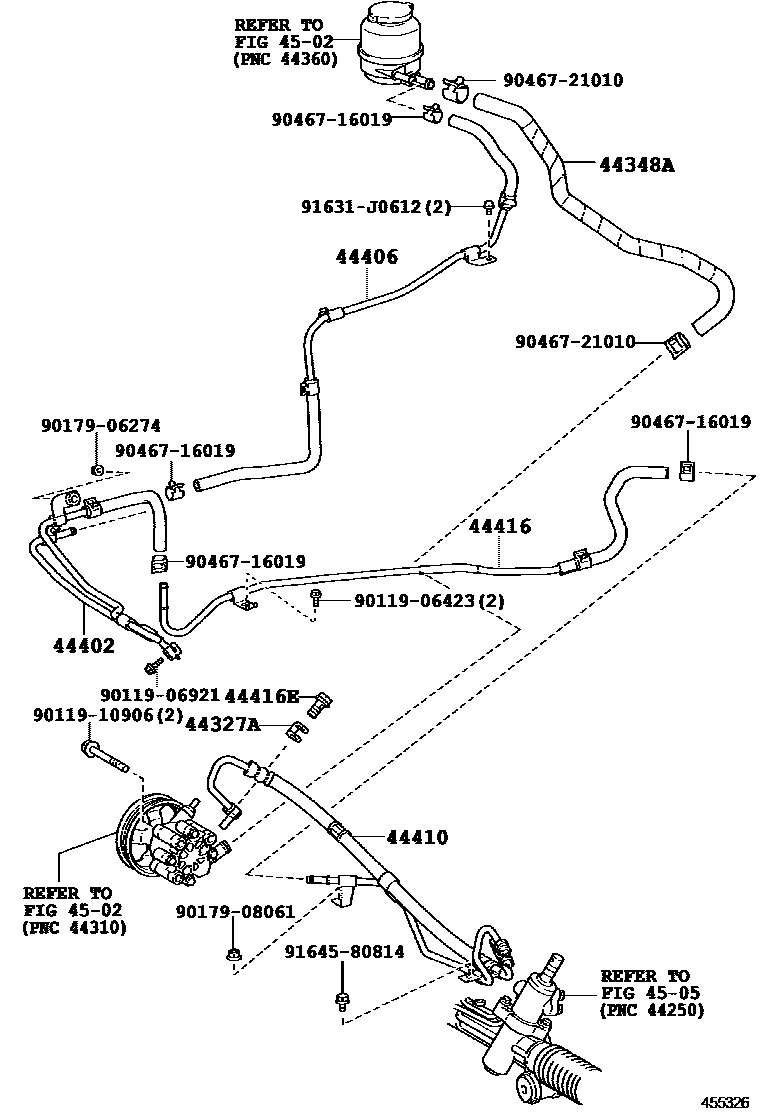

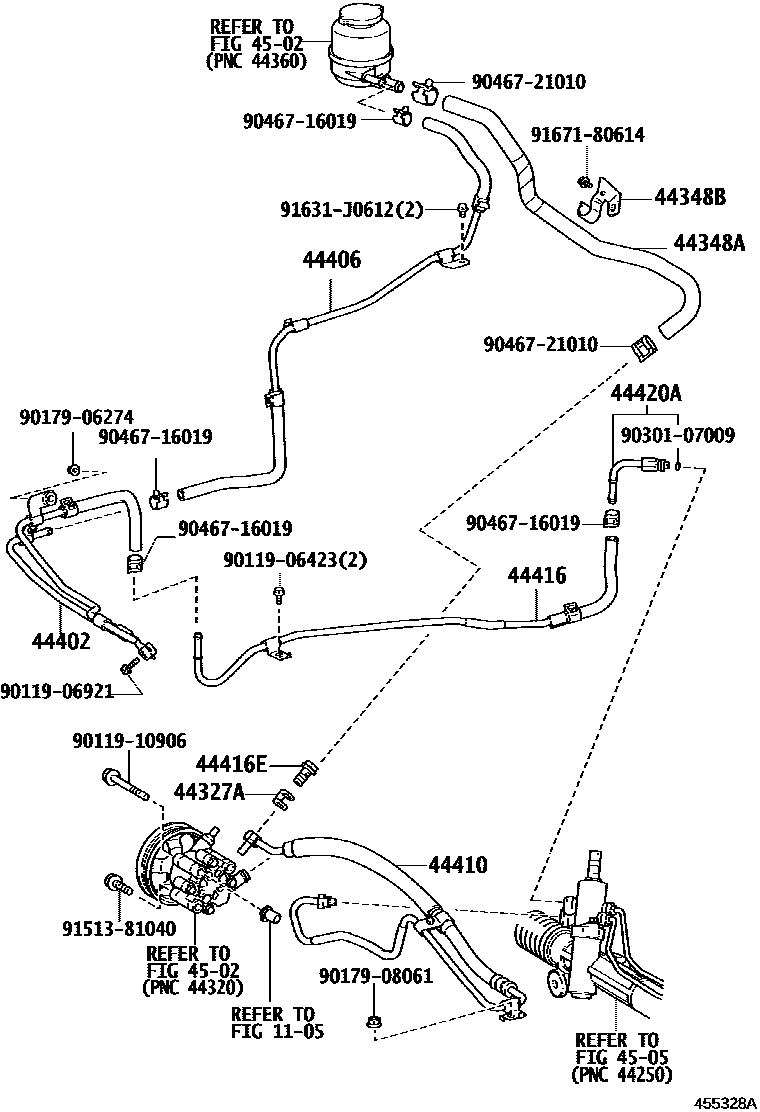

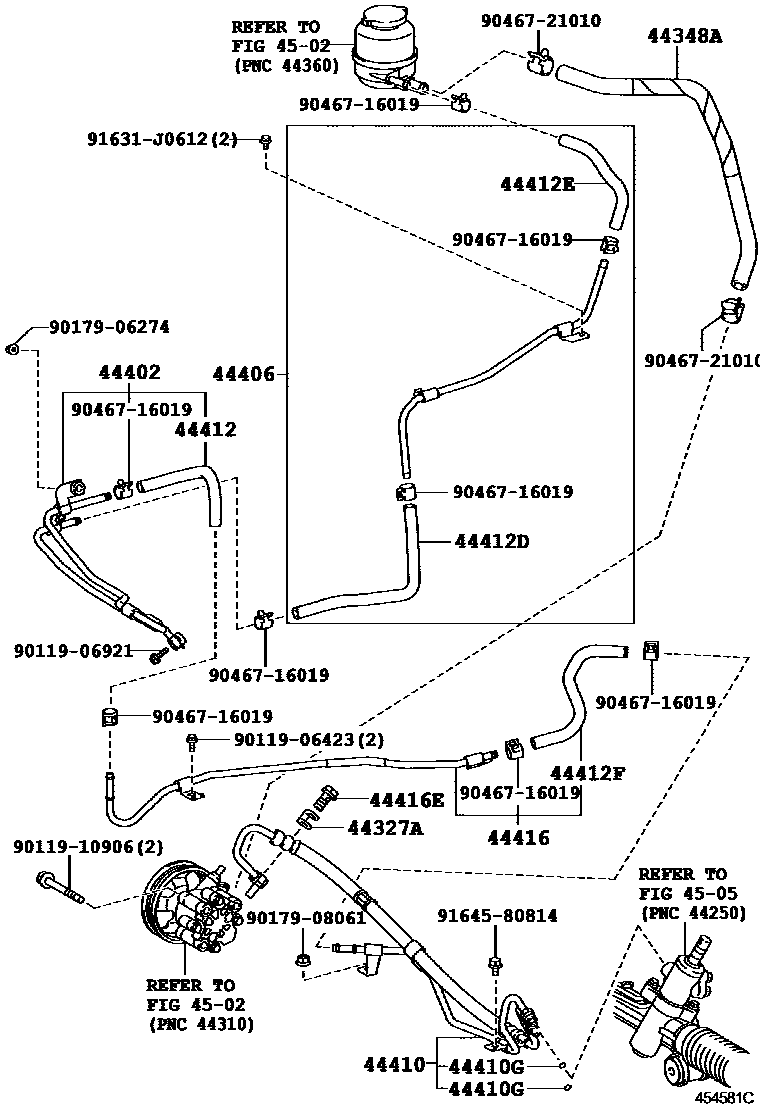

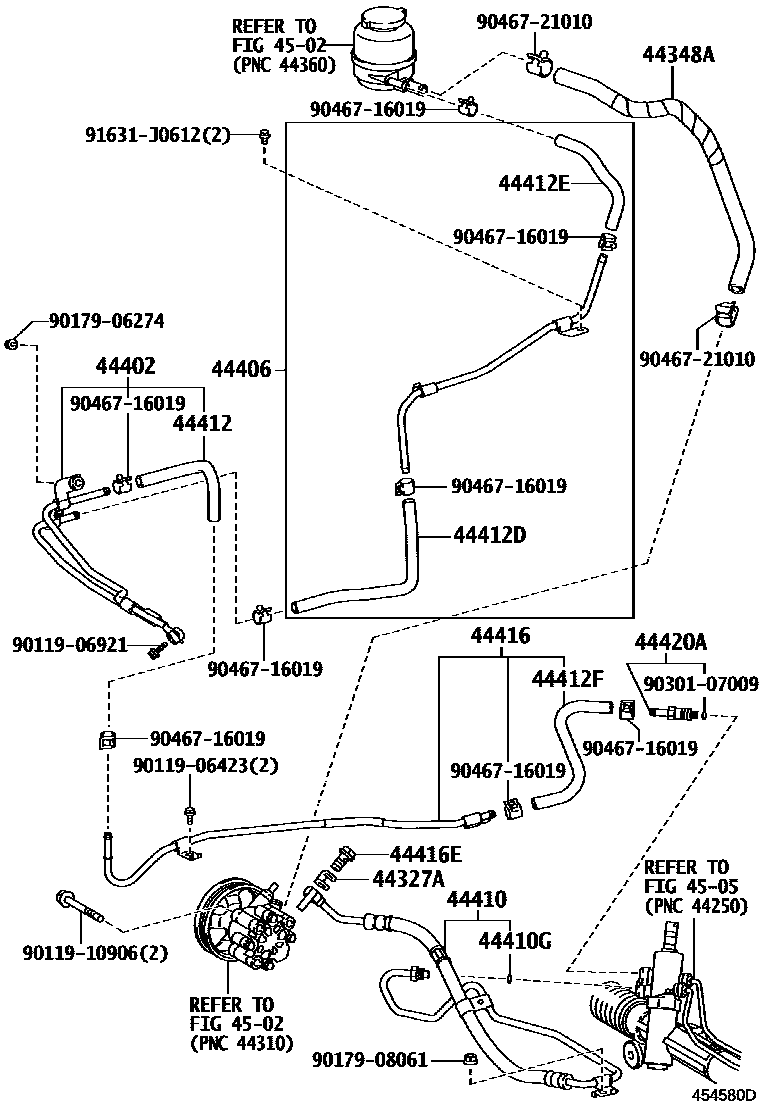

Toyota CAMRY EPC diagram 4503, 动力转向配管, with 8 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-33230 · 44348-33240 · 44348-33250 |
| 44348B | Clamp (for reservoir to pump hose) | 44349-41010 |
| 44402 | No. 1 power steering oil cooler sub-assembly | 44402-06090 · 44402-06091 · 44402-06101 |
| 44406 | Oil return pipe sub-assembly | 44406-06180 · 44406-06200 |
| 44410 | Pressure supply pipe assembly | 44410-06250 · 44410-06260 · 44410-06270 · 44410-06280 · 44410-33182 · 44410-33201 · 44410-33202 · 44410-33241 · 44410-33242 · 44410-33251 · 44410-33252 · 44410-33270 |
| 44410G | O-ring (for pressure supply pipe) | 90301-07009 |
| 44412 | Oil return hose | 44412-8Y006 · 44412-8Y013 |
| 44412D | No. 1 oil return hose | 44412-8Y007 |
| 44412E | No. 2 oil return hose | 44412-8Y008 |
| 44412F | No. 3 oil return hose | 44412-8Y009 · 44412-8Y010 · 44412-8Y011 · 44412-8Y012 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-06180 · 44416-06181 · 44416-06190 · 44416-06191 · 44416-06201 · 44416-06211 · 44416-33161 · 44416-33171 · 44416-33191 · 44416-33201 |
| 44416E | Joint bolt (for oil return pipe) | 96341-41603 |
| 44420A | Oil return pipe assembly | 44420-06010 · 44420-06030 · 44420-17010 · 44420-33020 |
