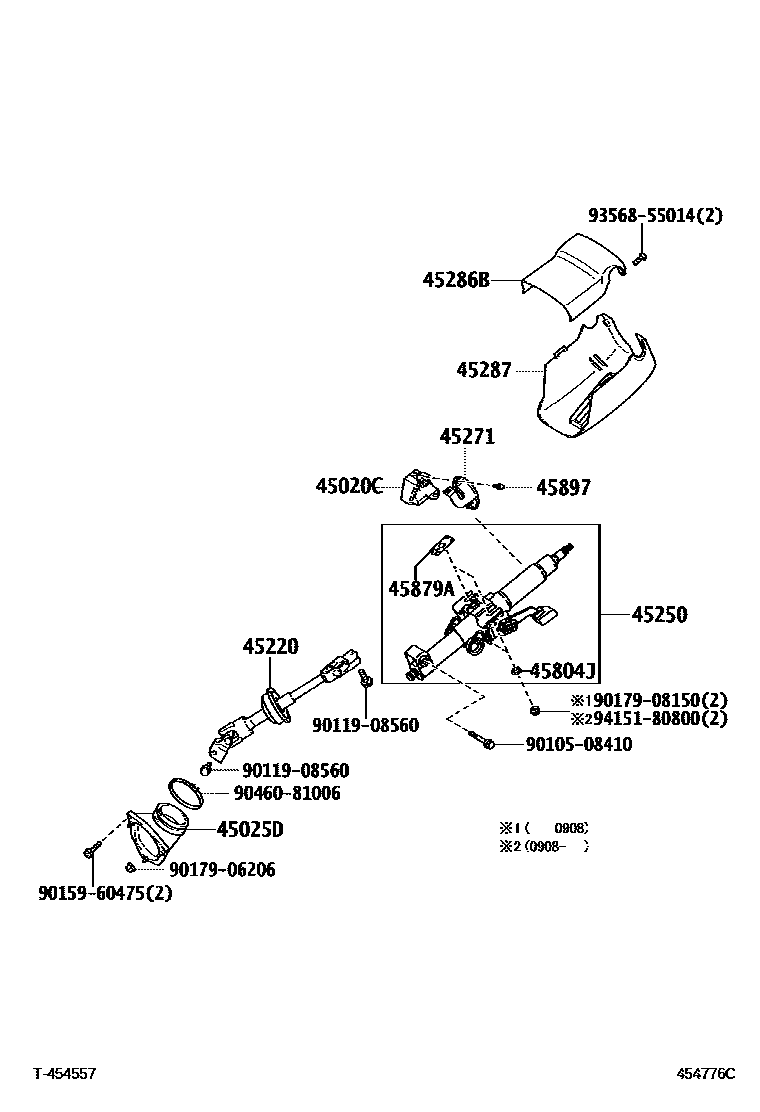

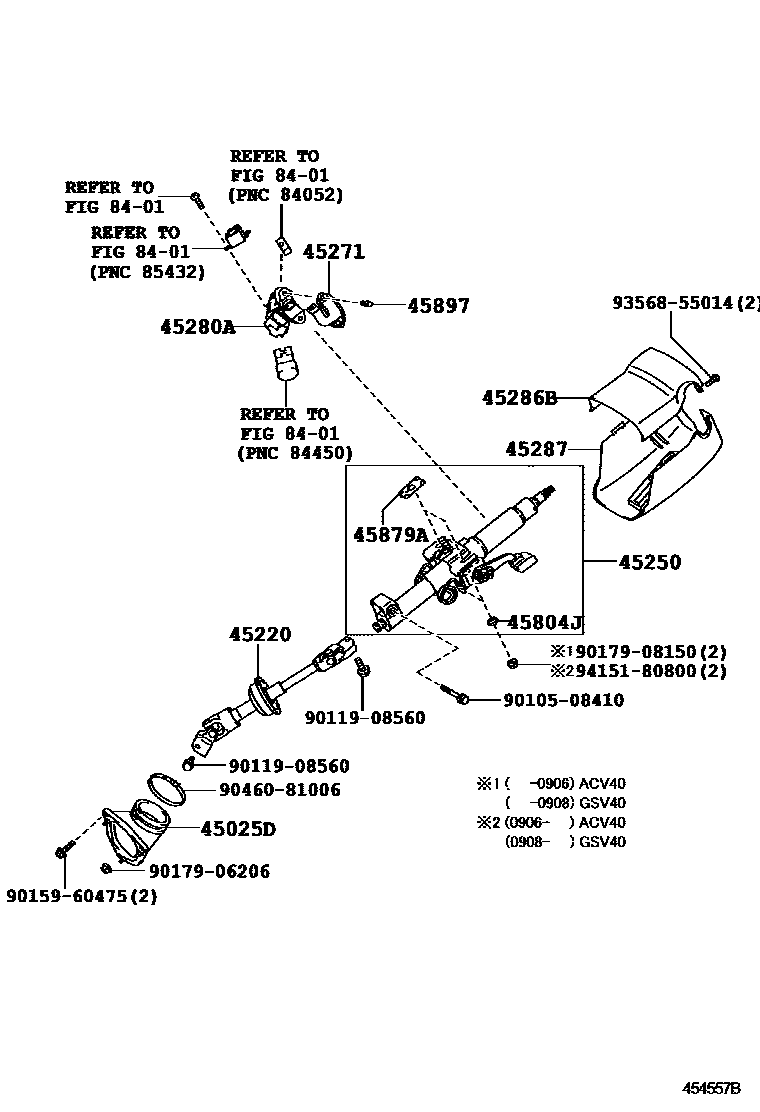

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020C | Steering lock actuator assembly with ECU | 45020-52140 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06070 · 45025-06080 · 45025-33100 · 45025-33110 |
| 45220 | Steering intermediate shaft assembly | 45220-06120 · 45220-06121 · 45220-06122 · 45220-06130 · 45220-06131 · 45220-06132 · 45220-06161 |
| 45250 | Steering column assembly | 45250-06510 · 45250-06520 |
| 45271 | Clamp on steering column | 45271-06040 |
| 45280A | Steering column upper bracket assembly | 45280-06080 · 45280-06100 |
| 45804J | Separate collar sub-assembly | 45804-22030 |
| 45879A | Separate enclosure | 45879-22070 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
