Toyota CAMRY Front Drive Shaft — Figure 4302

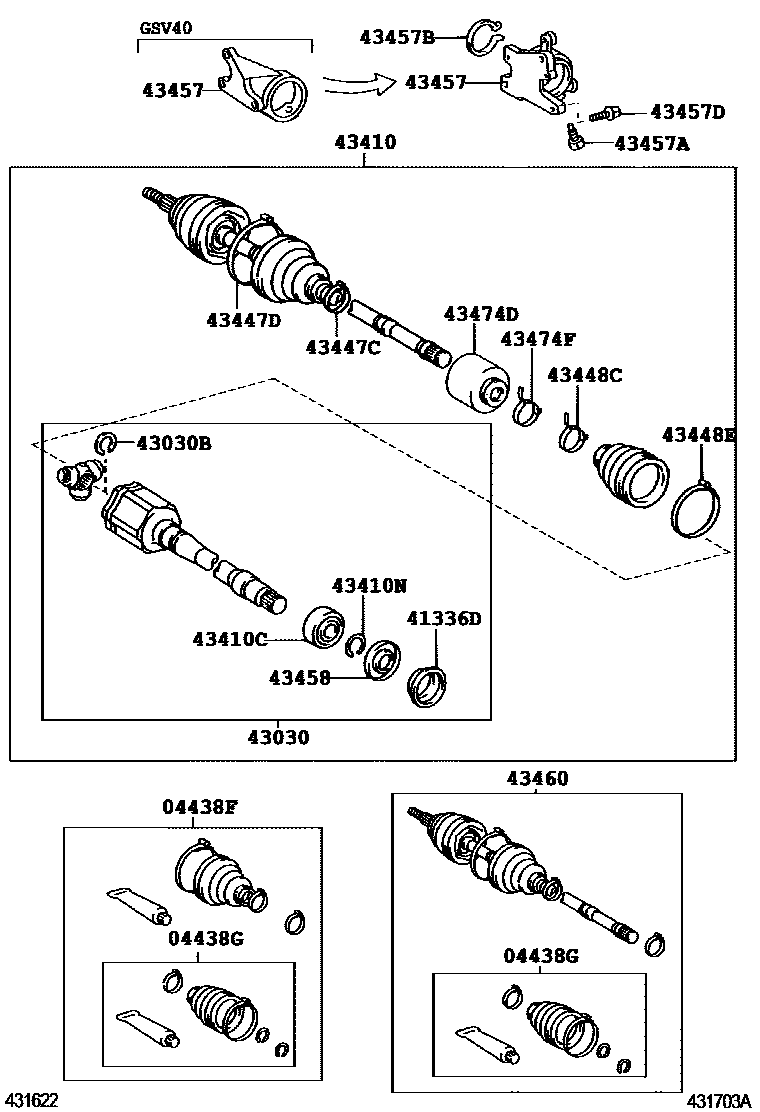

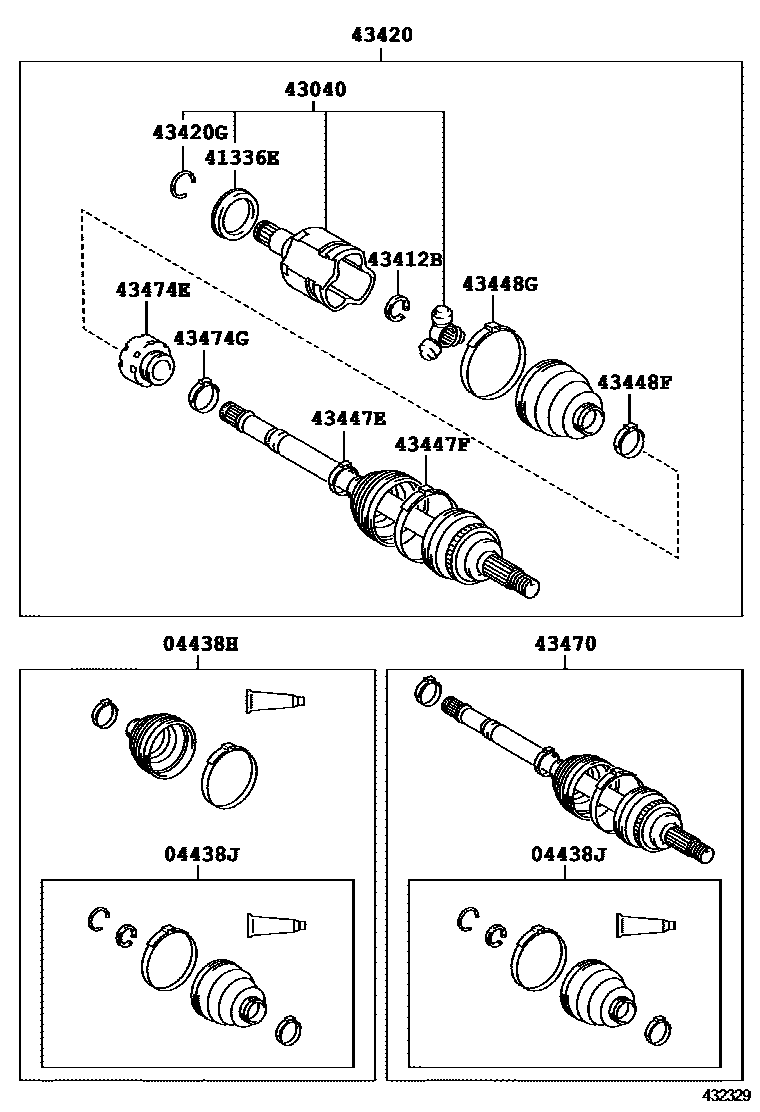

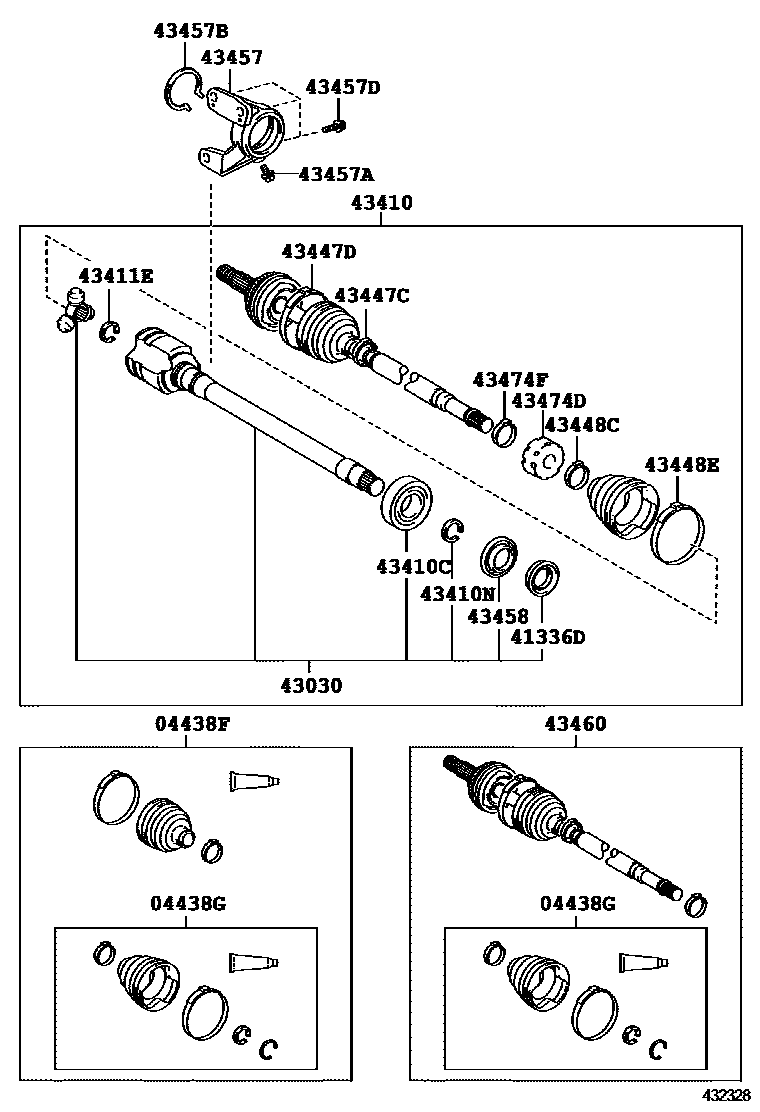

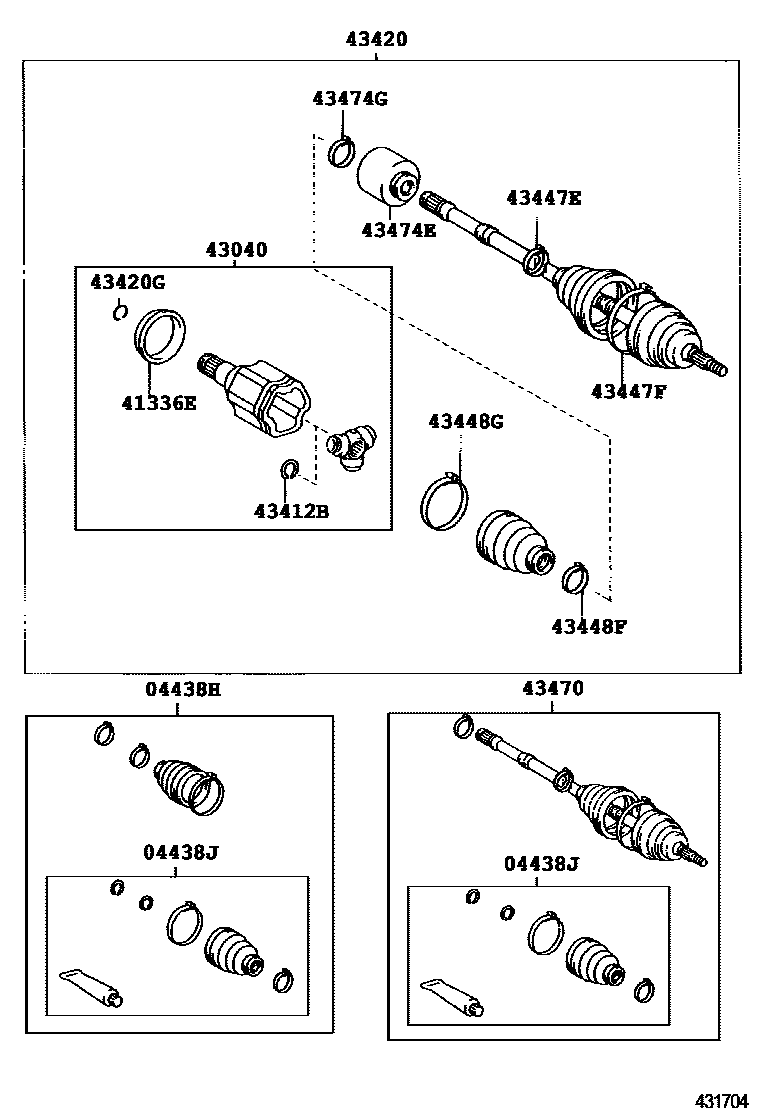

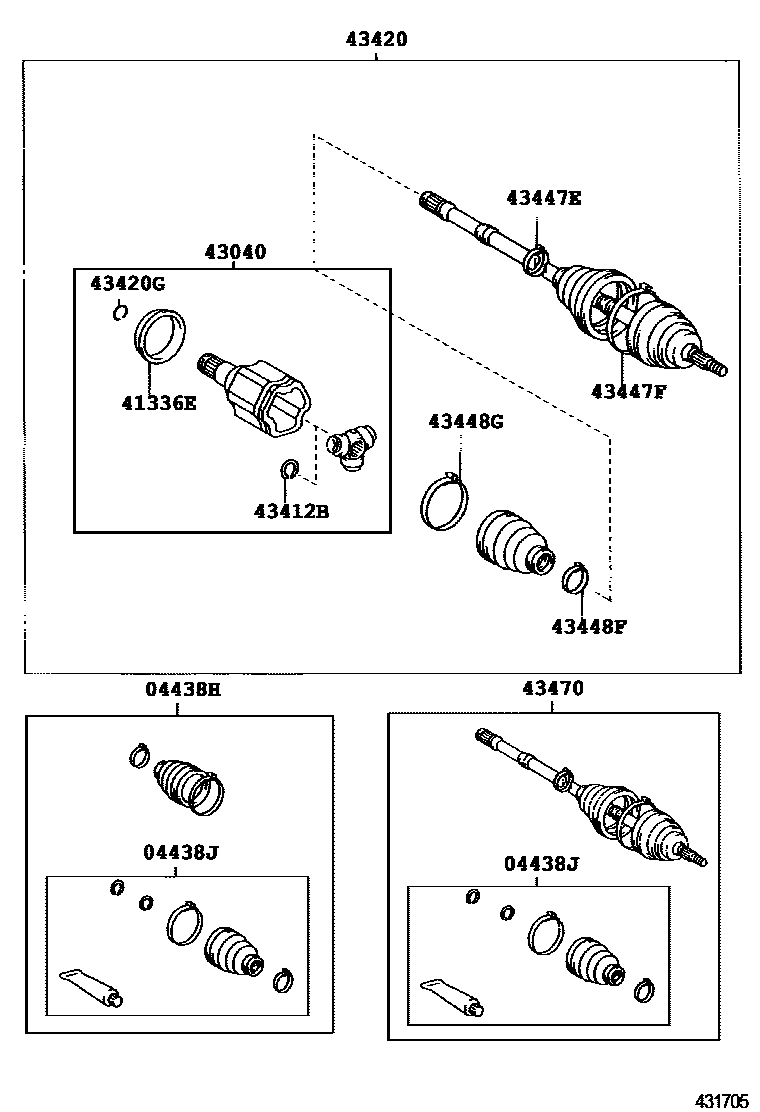

Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 5 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-06360 · 04427-06370 · 04427-06380 · 04427-33030 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-06170 · 04437-06180 · 04437-33040 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-06410 · 04428-06420 · 04428-06430 · 04428-06440 · 04428-33030 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-06590 · 04438-06600 · 04438-33120 |
| 41336D | Right front driveshaft dust cover | 41336-06070 · 41336-12020 |
| 41336E | Left front driveshaft dust cover | 41336-06050 · 41336-28030 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-09020 · 43030-09030 · 43030-33041 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 43425-06020 · 43425-06060 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-09021 · 43040-09030 · 43040-28021 |
| 43410 | Right front driveshaft assembly | 43410-06640 · 43410-06650 · 43410-06660 · 43410-33310 |
| 43410C | Bearings (for front driveshaft) | 90080-36200 · 90363-41003 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-06050 · 90520-38015 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-06020 · 43425-06060 · 43425-28010 |
| 43420 | Left front drive shaft assembly | 43420-06670 · 43420-06680 · 43420-06690 · 43420-06710 · 43420-33270 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-06010 · 90521-33002 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-06140 · 42345-06160 · 42345-20040 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-06150 · 42345-06170 · 42345-06490 · 42345-28020 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-06140 · 42345-06160 · 42345-20040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-06150 · 42345-06170 · 42345-06490 · 42345-28020 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-06120 · 42345-06190 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-06130 · 42345-06460 · 42345-12160 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-06120 · 42345-06190 · 42345-42010 · 90949-01559 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-06130 · 42345-06460 · 42345-12160 |
| 43457 | drive shaft bearing bracket | 43457-06010 · 43457-06040 · 43457-33040 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06030 · 43458-12010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-09R00 · 43460-39285 · 43470-09S20 · 43470-09S30 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-09S10 · 43470-09S20 · 43470-09S30 · 43470-39515 |
| 43474D | Right front driveshaft shock absorber | 43474-06160 · 43474-48020 |
| 43474E | Left front driveshaft shock absorber | 43474-06170 · 43474-48030 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06110 · 42345-42010 · 90949-01559 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06110 · 42345-14010 |
