Toyota CAMRY 车轮和车轮盖 — Figure 4103
Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

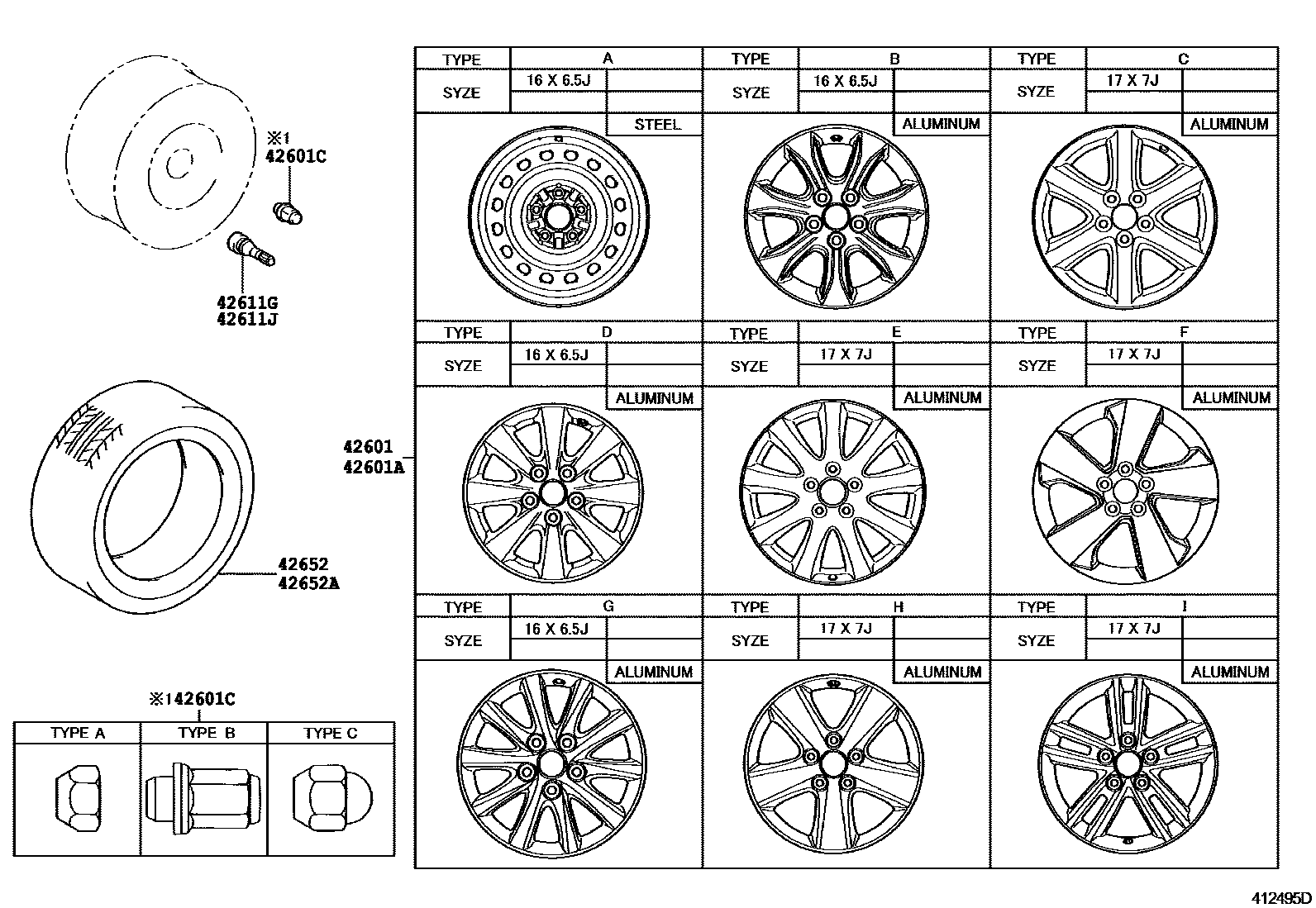

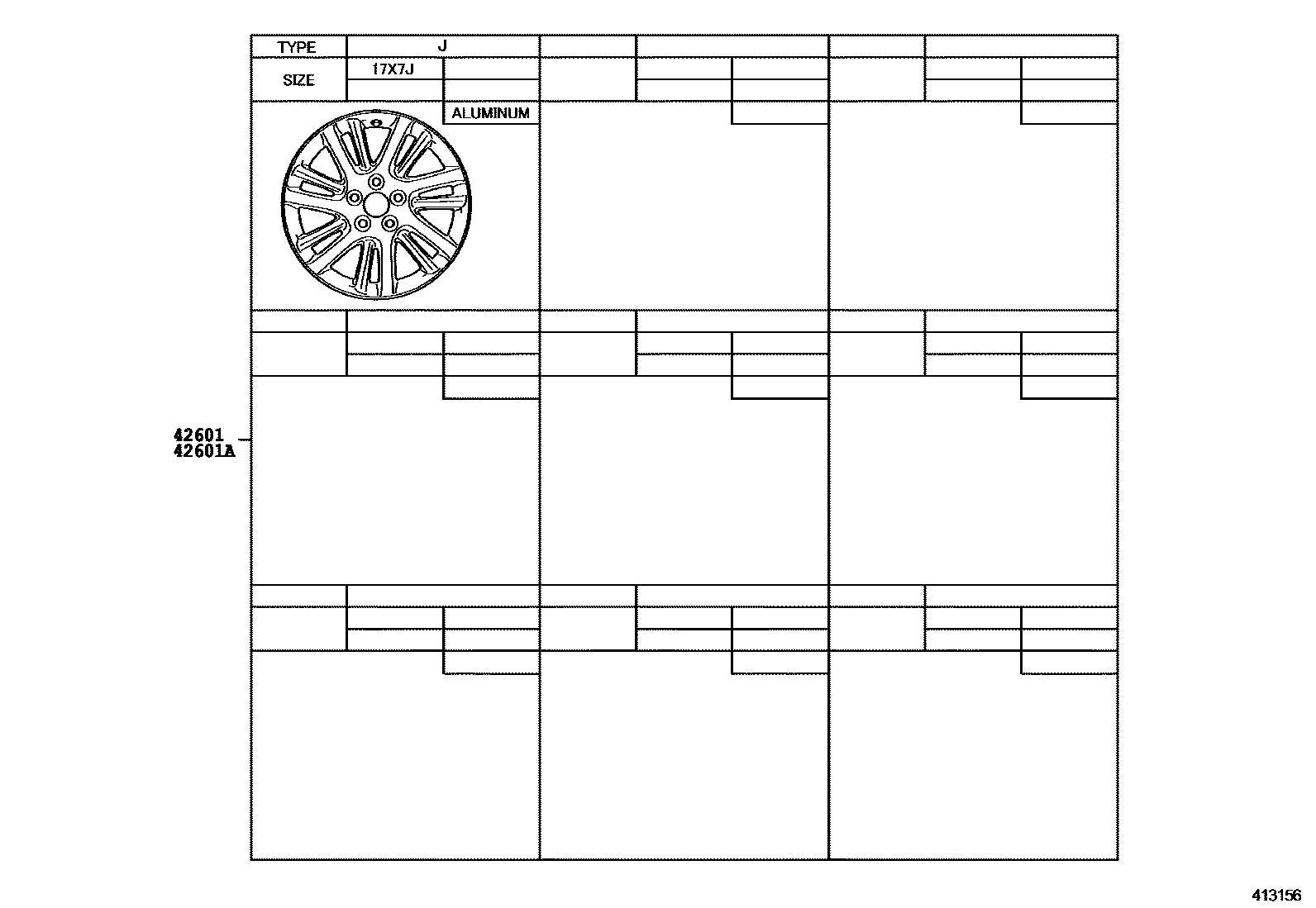

| 42601 | spoke wheel | 42611-06451 · 42611-06452 · 42611-06453 · 42611-06460 · 42611-06470 · 42611-06480 · 42611-06490 · 42611-06500 · 42611-06590 · 42611-06650 · 42611-06660 · 42611-06670 · 42611-06680 |
| 42601A | Spoke wheel (for spare tire) | 42611-06451 · 42611-06452 · 42611-06453 · 42611-06460 · 42611-06470 · 42611-06480 · 42611-06490 · 42611-06500 · 42611-06590 · 42611-06650 · 42611-06660 · 42611-06670 · 42611-06680 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01082 |

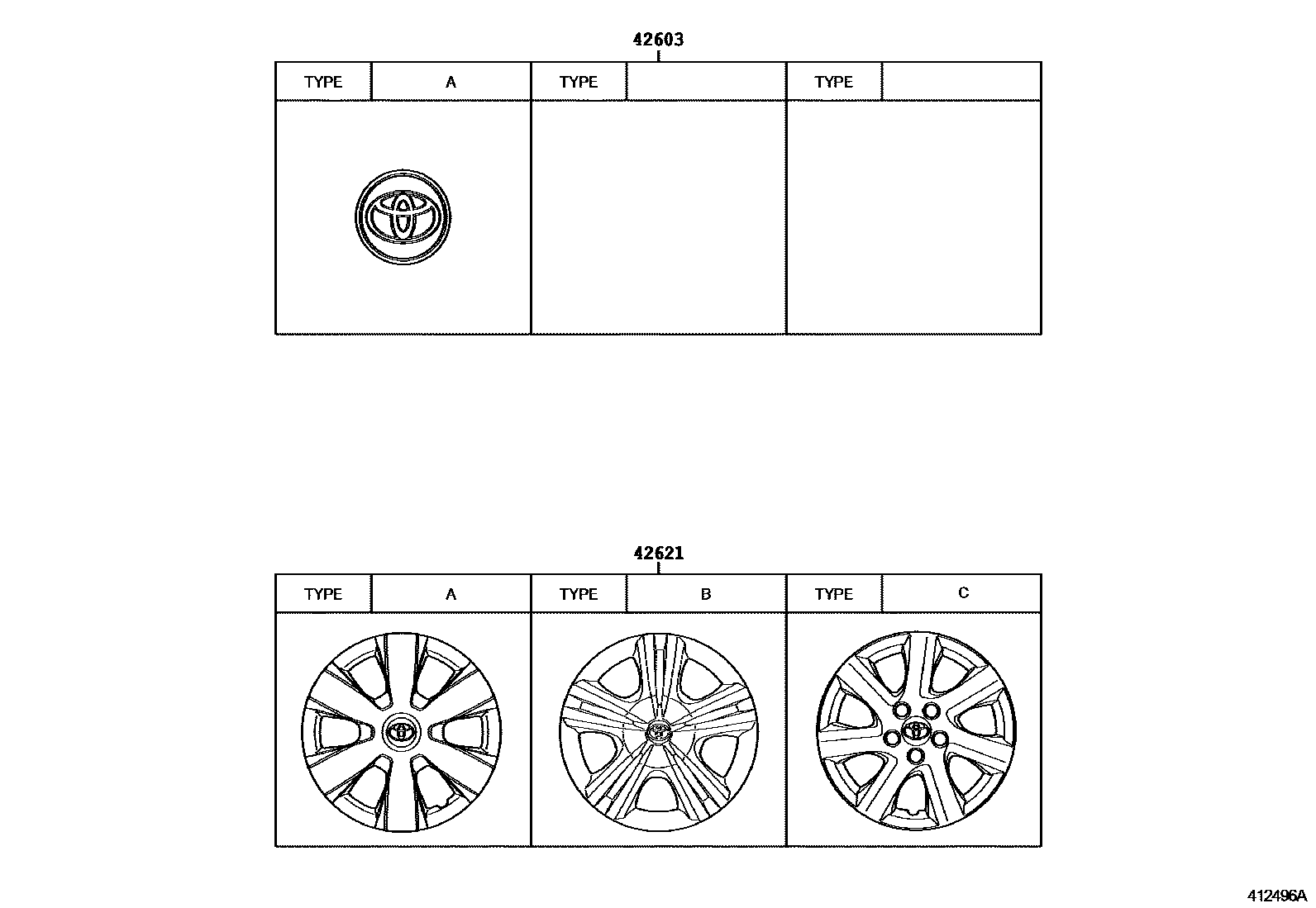

| 42603 | Wheel hub decorative parts sub-assembly | 42603-06110 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-06030 · 42602-06040 · 42602-06060 |
| 42652 | tires | 42652-06810 · 42652-06820 |
| 42652A | Tire (for Spare Wheel) | 42652-06820 |
