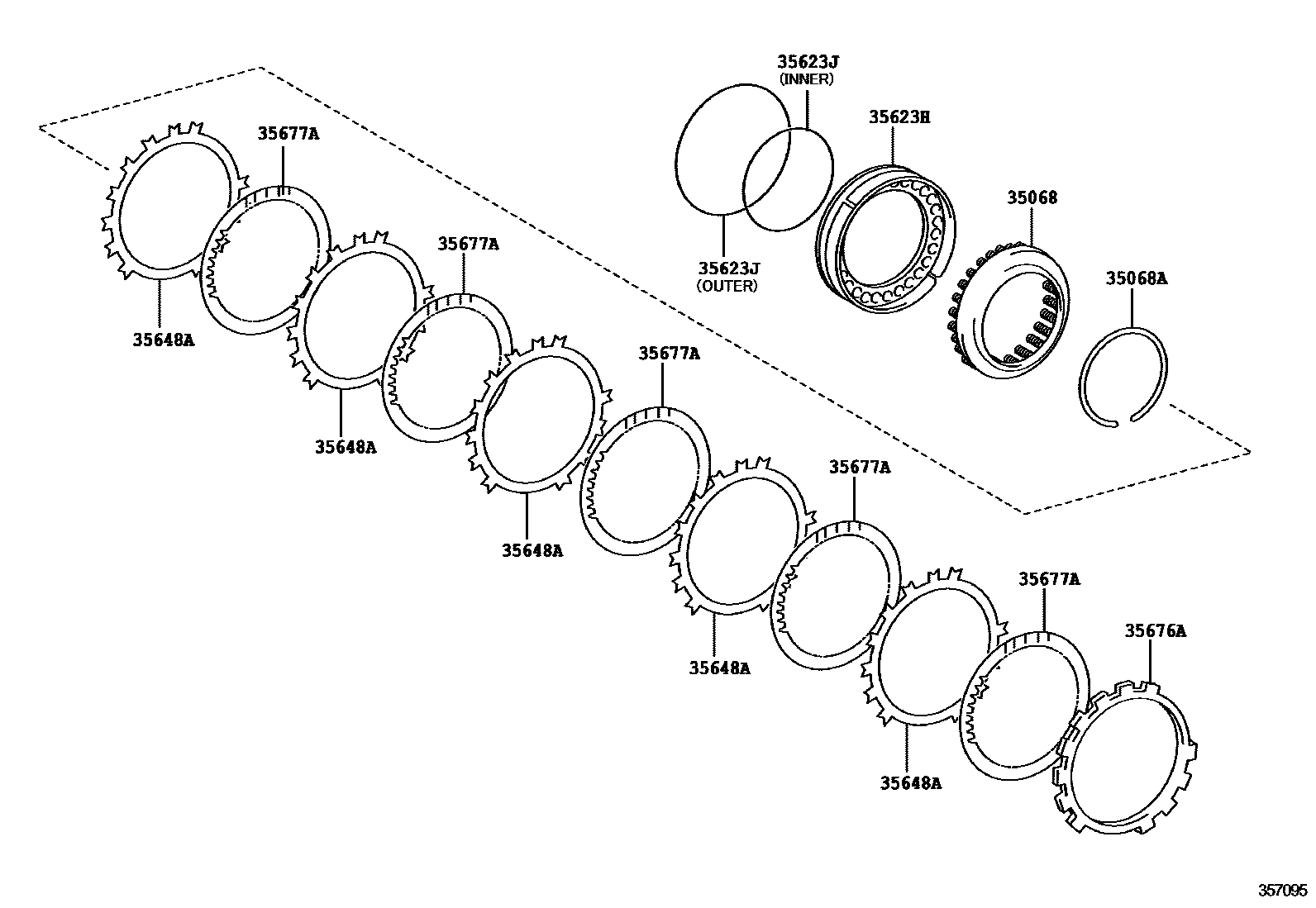

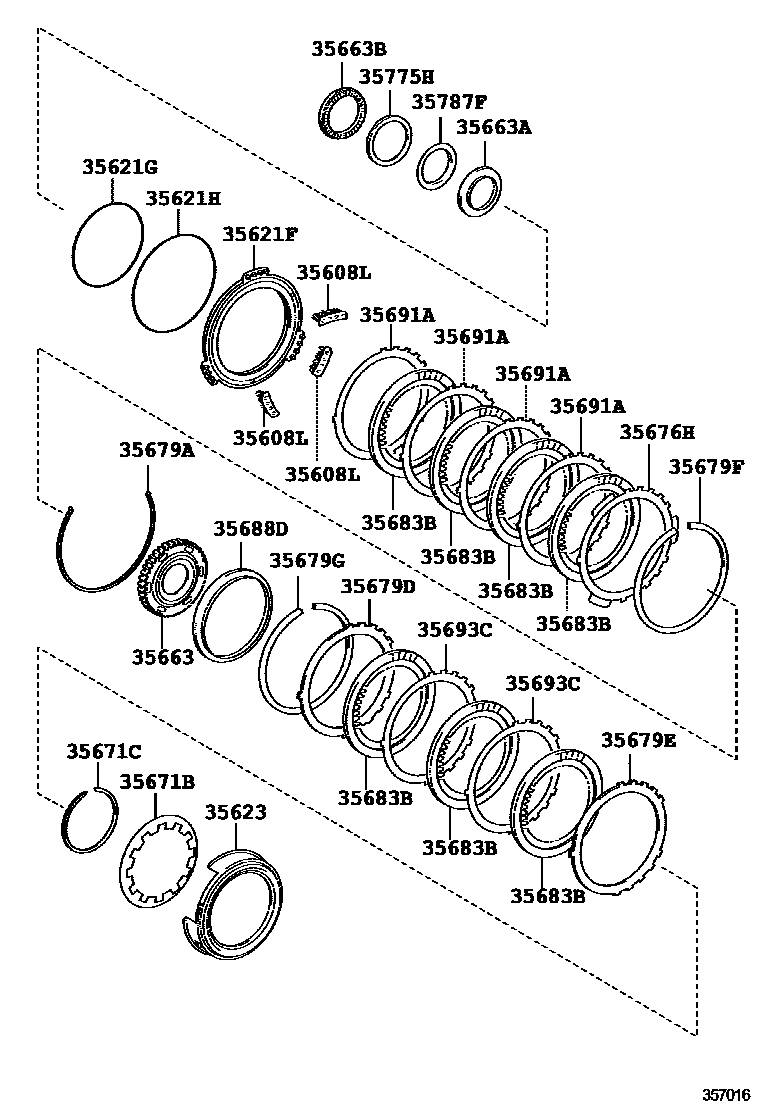

Toyota CAMRY 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota CAMRY EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-21010 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-99035 |
| 35608L | Second gear brake piston return spring sub-assembly | 35608-33030 |
| 35621F | Brake piston No. 1 | 35621-33010 |
| 35621G | Inner O-ring (for brake piston) | 90301-99156 · 90301-99190 |
| 35621H | Outer O-ring (for brake piston) | 90301-99093 |
| 35623 | No. 3 brake piston | 35623-33060 |
| 35623H | First and reverse brake piston | 35623-33050 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99096 · 90301-99098 |
| 35648A | Clutch disc (for first and reverse brakes) | 35692-21011 |
| 35663 | No. 3 brake hub | 35663-33020 |
| 35663A | No. 1 Thrust Needle Roller Bearing | 90374-62001 |
| 35663B | No. 2 thrust needle roller bearing | 90374-64002 |
| 35671B | brake piston return spring | 35671-33010 |
| 35671C | Snap ring (for brake piston return spring) | 90520-99103 |
| 35676A | Brake flange (for first and reverse brakes) | 35678-21010 · 35678-21020 · 35678-21030 · 35678-21040 · 35678-21050 · 35678-21060 · 35678-21070 · 35678-21080 |
| 35676H | No. 1 brake flange | 35676-33020 · 35676-33030 · 35676-33040 · 35676-33050 · 35676-33060 · 35676-33070 |
| 35677A | Clutch disc (for first and reverse brake) | 35682-28010 |
| 35679A | Hole snap ring (for brake flange) | 90521-99136 |
| 35679D | No. 2 brake flange | 35679-33010 · 35679-73010 |
| 35679E | No. 3 brake flange | 35679-33020 · 35679-33030 · 35679-33040 · 35679-33050 · 35679-33060 · 35679-33070 · 35679-73020 · 35679-73030 · 35679-73040 · 35679-73050 · 35679-73060 · 35679-73070 |
| 35679F | Snap ring (for brake flange) | 90520-99116 |
| 35679G | Snap ring (for brake flange No. 3) | 90520-99112 |
| 35683B | No. 3 brake disc | 35683-33010 · 35683-33030 |
| 35688D | Brake snap ring stop | 35688-33010 |
| 35691A | No. 1 brake pad | 35691-33010 |
| 35693C | No. 3 brake pad | 35693-33010 |
| 35775H | No. 5 thrust bearing race | 35775-33010 |
| 35787F | No. 2 thrust bearing race | 35787-33010 |
