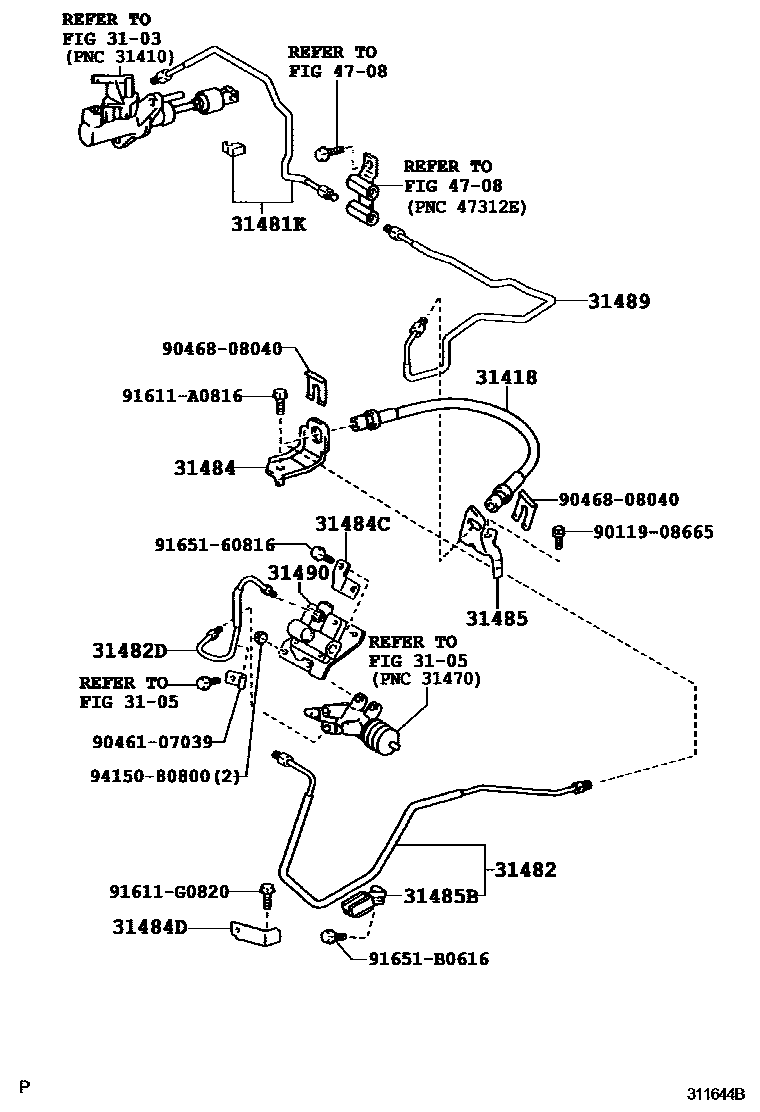

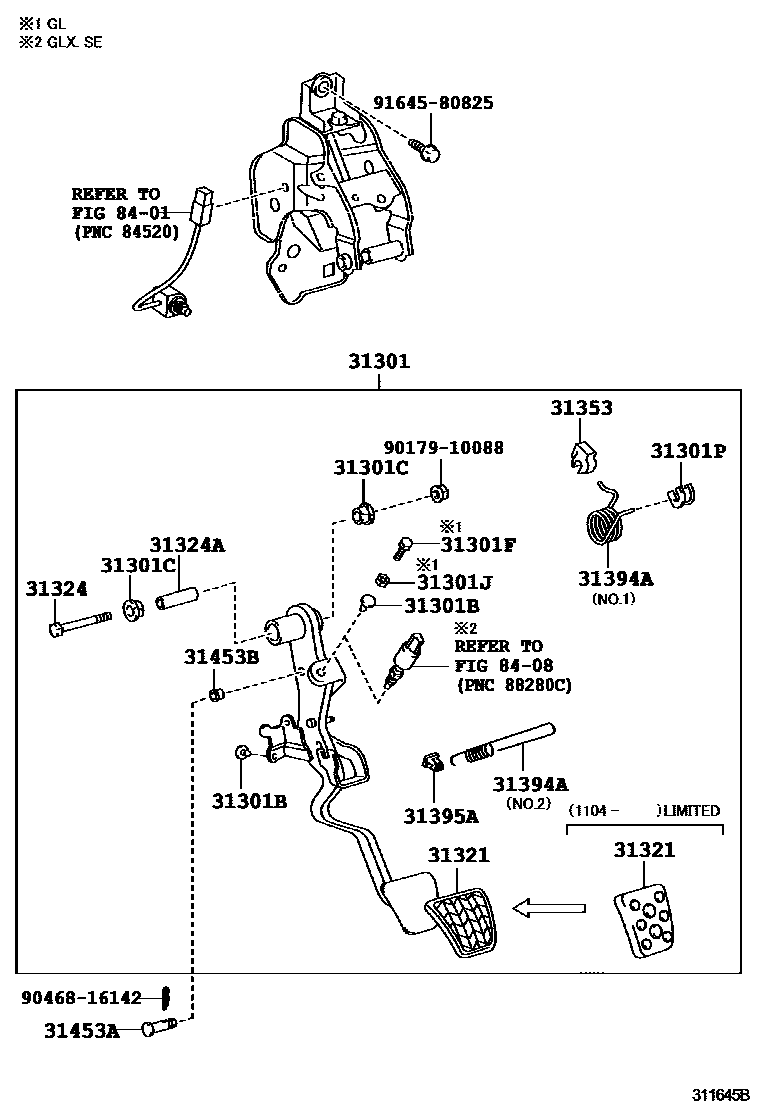

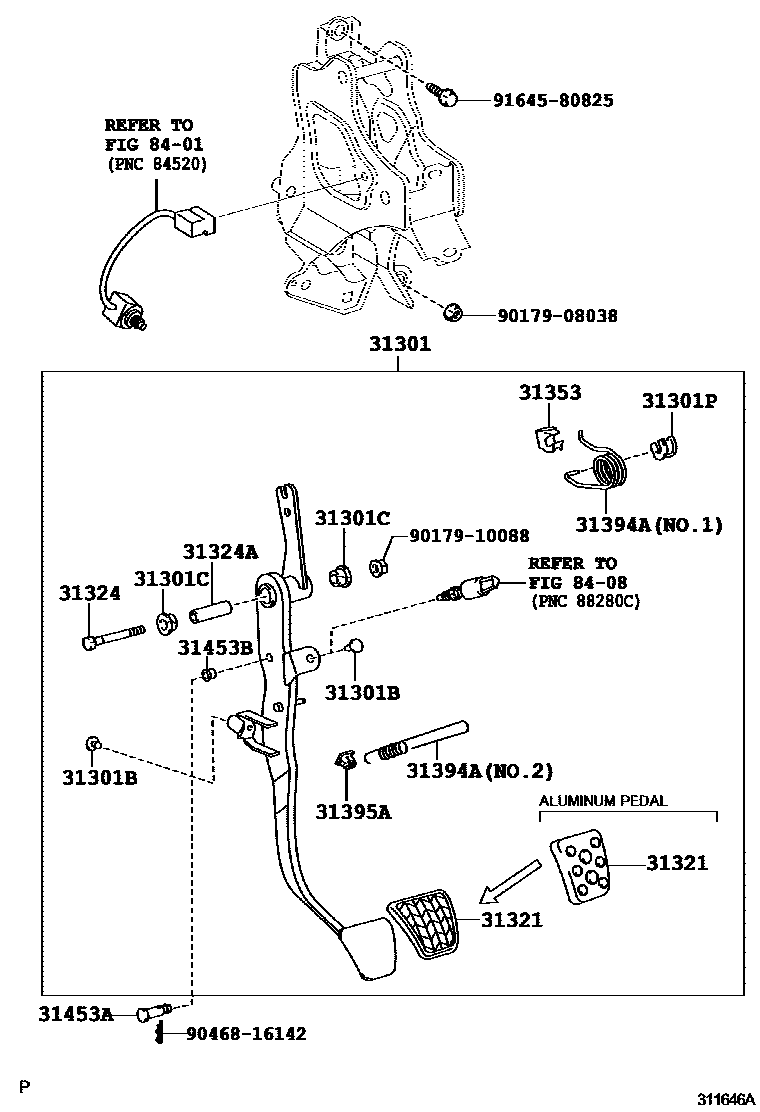

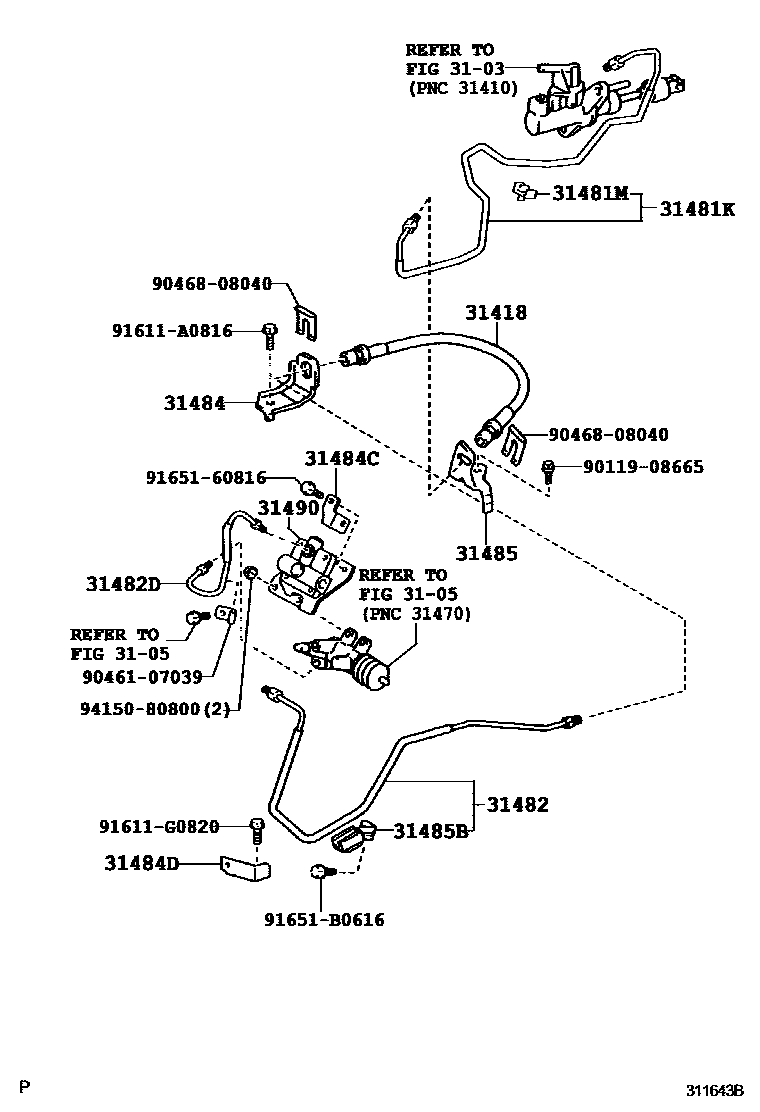

Toyota CAMRY 离合器踏板和挠性软管 — Figure 3102
Toyota CAMRY EPC diagram 3102, 离合器踏板和挠性软管, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31380-06120 · 31380-06130 · 31380-06140 · 31380-06150 · 31380-06160 · 31380-06200 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90089-38004 · 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 94130-61000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-06010 · 31321-52010 · 31321-53010 |
| 31324 | clutch pedal shaft | 90101-10015 · 90101-10164 |
| 31324A | clutch pedal collar | 90387-10003 · 90387-10105 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-06030 · 31394-06040 · 31394-25010 |
| 31395A | Pedal spring hook No. 1 | 31395-33020 |
| 31418 | clutch hose | 90947-02952 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08051 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481K | Master pump to pipe connector pipe | 31481-06070 · 31481-06090 |
| 31481M | Clamp (for clutch master cylinder tube) | 90469-07020 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-06120 · 31482-06121 |
| 31482D | Pipe from clutch release cylinder to pressure accumulator | 31482-33080 |
| 31484 | Flexible hose bracket (for clutch) | 31484-33030 |
| 31484C | No. 1 clutch tube bracket | 31484-42080 |
| 31484D | No. 2 clutch tube bracket | 31484-20320 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31485-33010 |
| 31485B | Pipe clamp bracket | 47386-33040 |
| 31489 | Pipe connector to flexible hose pipe | 31489-06010 |
| 31490 | Clutch pressure accumulator assembly | 31490-42010 |
