Toyota CAMRY Engine Oil Cooler — Figure 1503

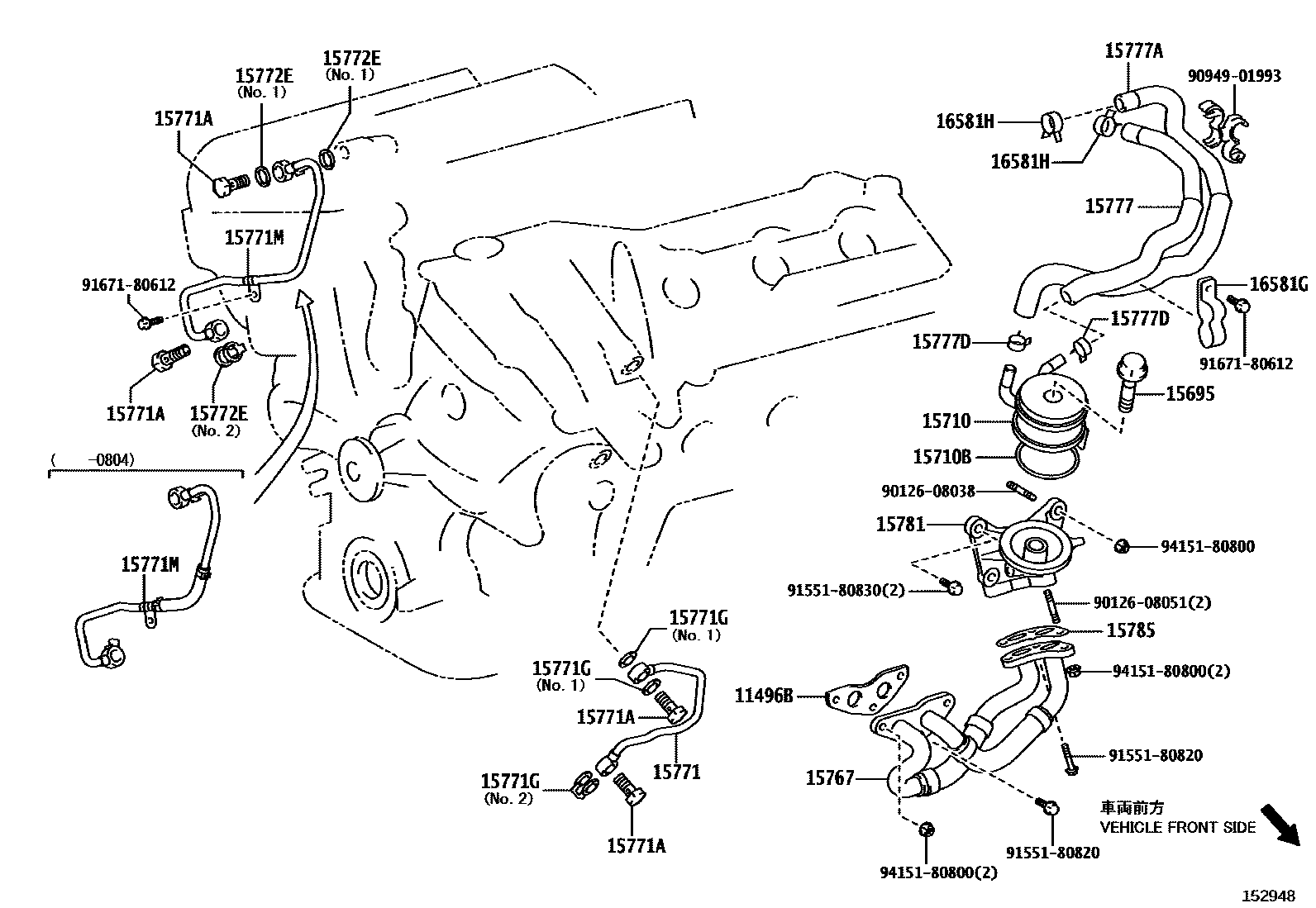

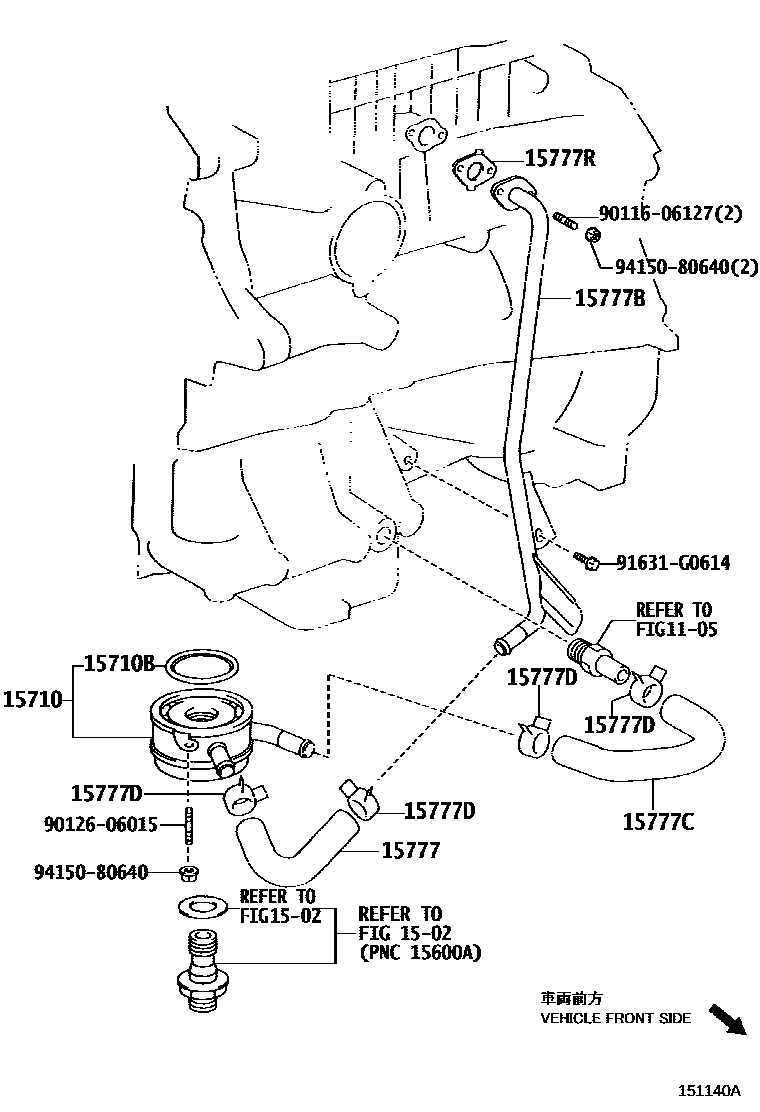

Toyota CAMRY EPC diagram 1503, Engine Oil Cooler, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11496B | Oil hole cover gasket | 11496-31010 |
| 15695 | Oil cooler joint bolts | 15695-31010 |
| 15710 | Oil cooler assembly | 15710-28020 · 15710-31021 |
| 15710B | O-ring (for transmission oil cooler) | 90301-52006 · 90301-67004 |
| 15767 | oil cooler pipe | 15767-31010 · 15767-31020 |
| 15771 | No. 1 oil pipe | 15771-31010 |
| 15771A | Connector (for oil pipe) | 90401-16043 |
| 15771G | padding | 90430-16012 · 90430-16016 · 90430-16017 |
| 15771M | Oil pipe | 15707-31012 · 15772-31030 |
| 15772E | Gasket (for oil pipe) | 90430-16012 · 90430-16016 · 90430-16017 |
| 15777 | oil cooler hose | 16267-28080 · 16281-31030 |
| 15777A | oil cooler hose | 16282-31020 |
| 15777B | oil cooler pipe | 16279-0H010 · 16279-28010 |
| 15777C | oil cooler hose | 16281-28010 |
| 15777D | Hose clamp or clip (for oil cooler hose) | 96134-41900 · 96136-42101 · 96136-52101 |
| 15777R | Gasket (for oil cooler pipe joint bolts) | 16258-0H030 · 16258-28040 |
| 15781 | No. 1 oil cooler bracket | 15781-31010 |
| 15785 | oil cooler gasket | 15785-31010 |
| 16581G | Hose clamp (for oil cooler hose) | 16581-31020 |
| 16581H | Hose clip (for oil cooler hose) | 96136-42101 · 96136-52101 |
