Toyota CAMRY Engine Mounting — Figure 1107

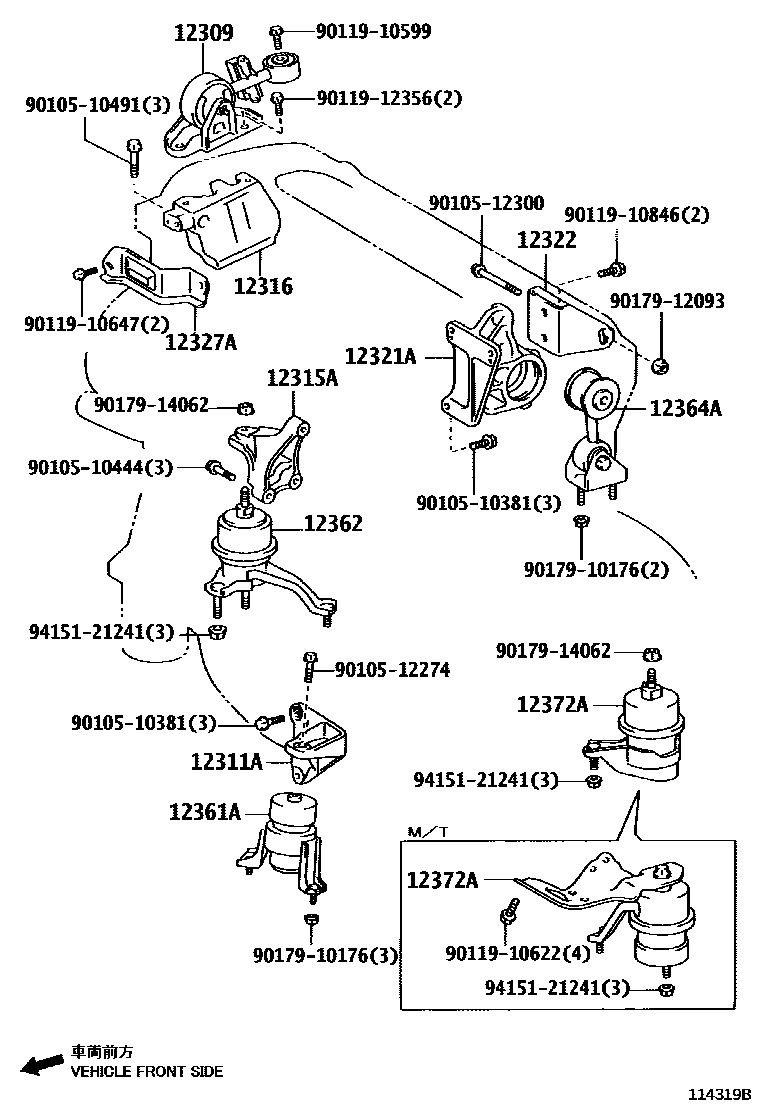

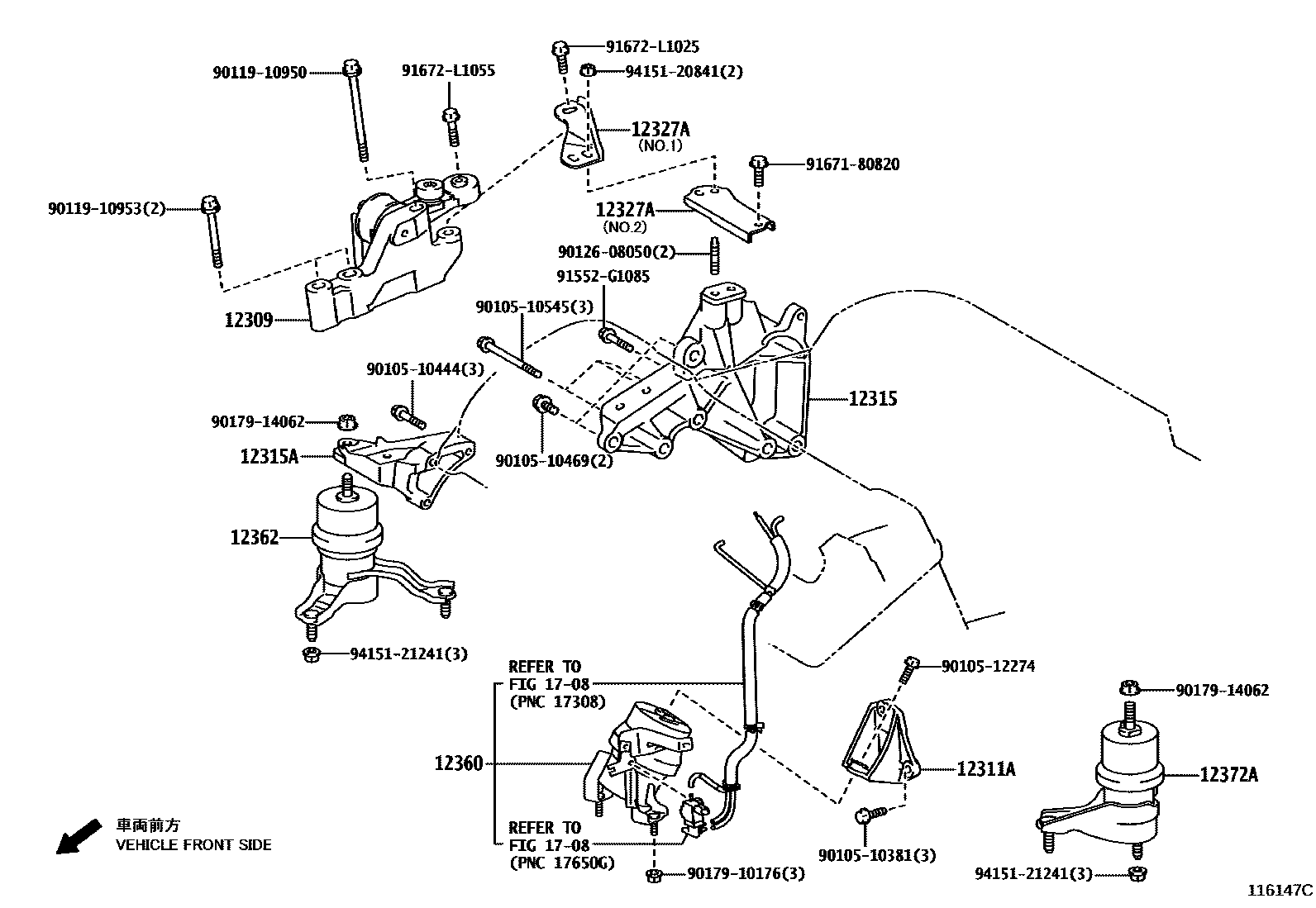

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12309 | Engine motion control lever sub-assembly | 12309-0H080 · 12309-0H081 · 12309-0P030 · 12309-0P031 · 12309-0P032 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0H120 · 12311-31060 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-31091 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0H060 · 12315-0P050 |
| 12316 | Engine No. 2 right side suspension bracket | 12316-28061 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-28020 |
| 12322 | Engine No. 2 rear suspension bracket | 12322-0H020 |
| 12327A | Engine No. 2 right side mounting bracket | 12327-0H040 · 12327-31010 · 12327-31020 |
| 12360 | Engine front mount vibration isolation pad assembly | 12360-31010 · 12360-31011 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-28220 · 12361-28221 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12362-28190 · 12362-28200 · 12362-31040 · 12362-36030 |
| 12364A | Engine lateral control lever | 12308-0H020 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12306-28040 · 12372-0H100 · 12372-28250 · 12372-31010 |
