Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 5 images and 2 PNC and OE references.

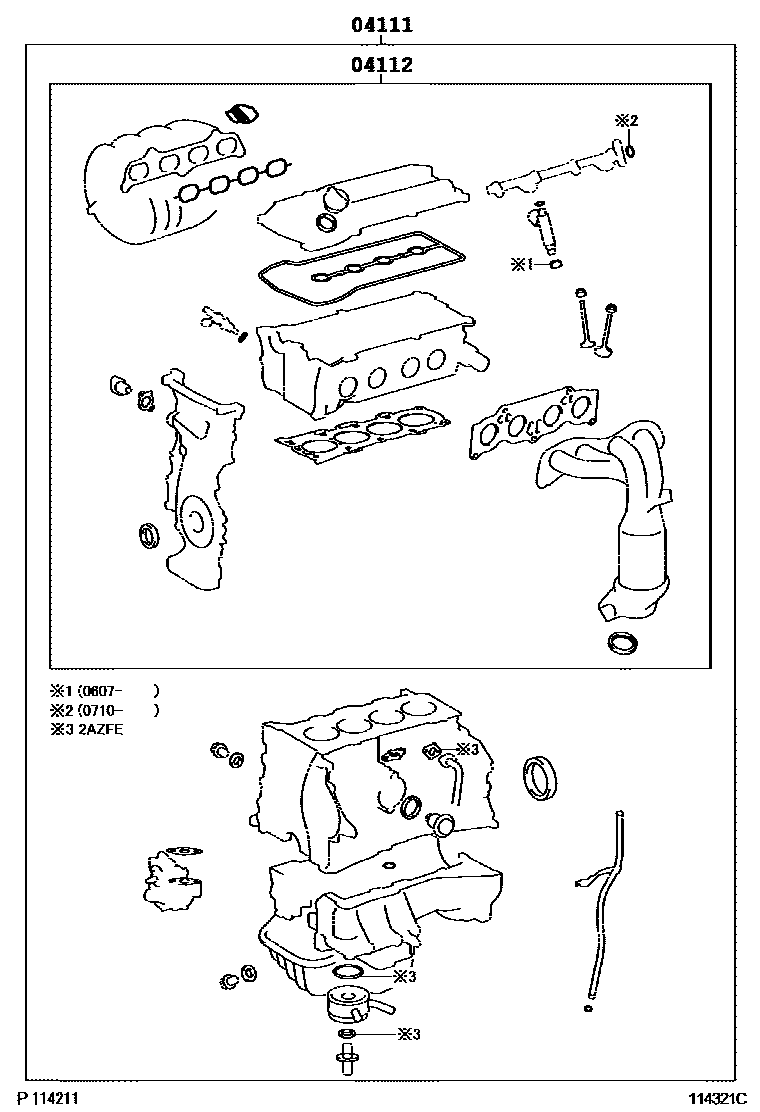

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 114321C
Engine Overhaul Gasket Kit — 114321C (200606 – 999999)

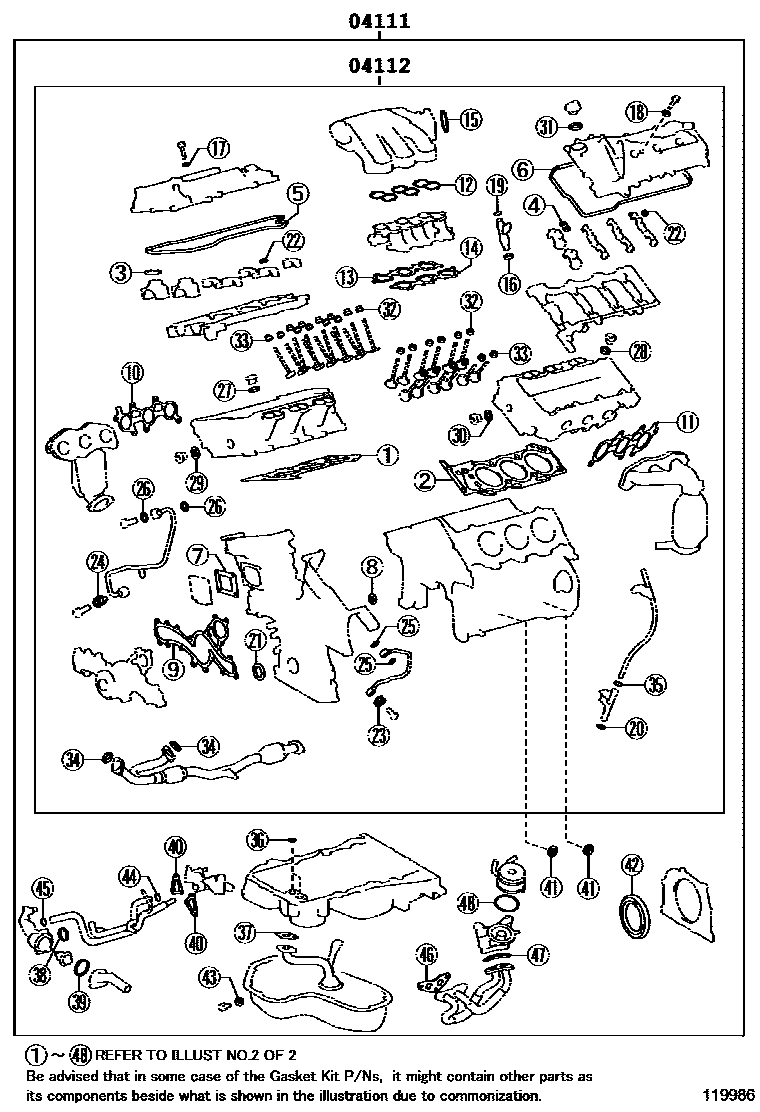

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119986
Engine Overhaul Gasket Kit — 119986 (200610 – 201108)

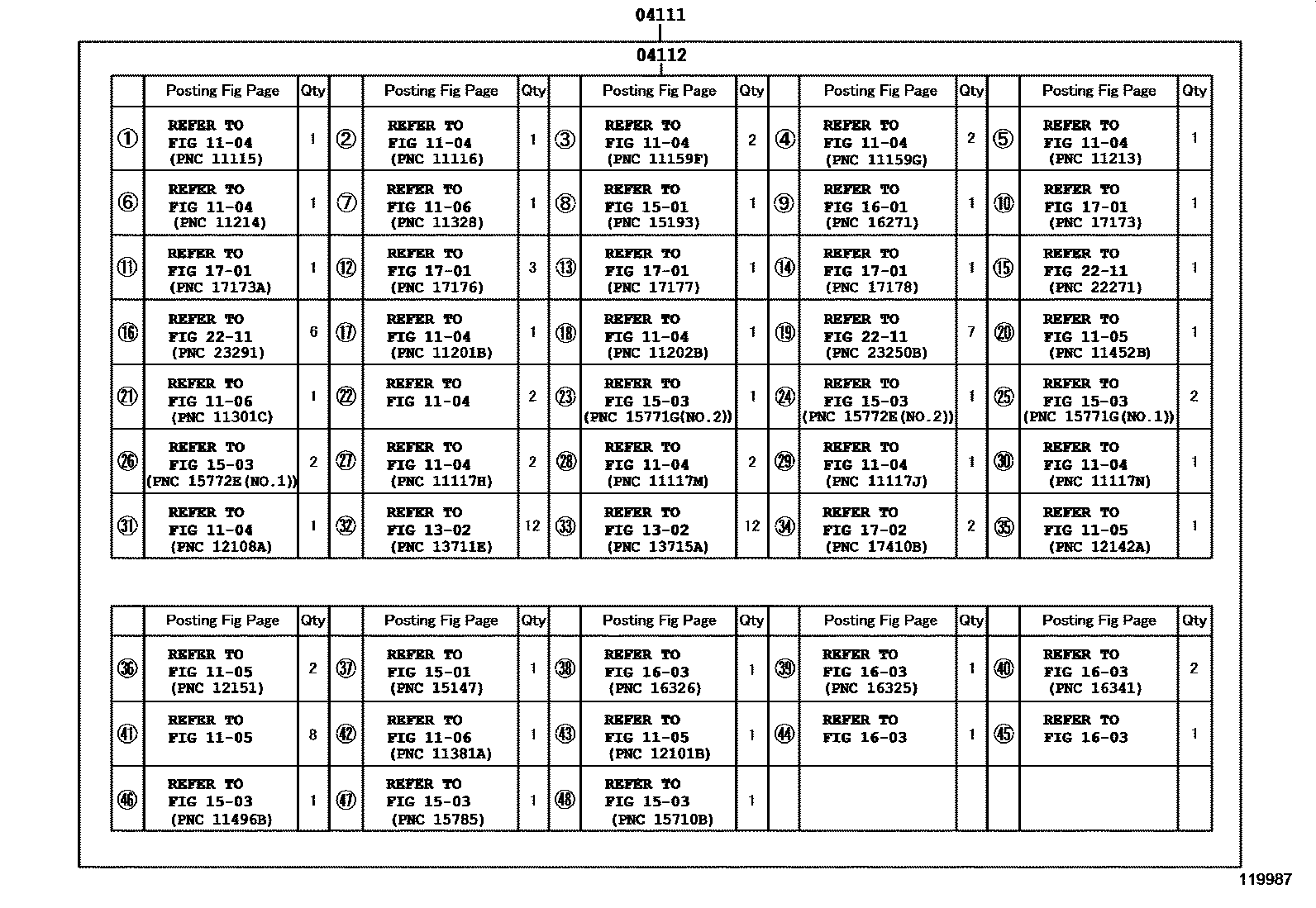

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119987
Engine Overhaul Gasket Kit — 119987 (200610 – 201108)

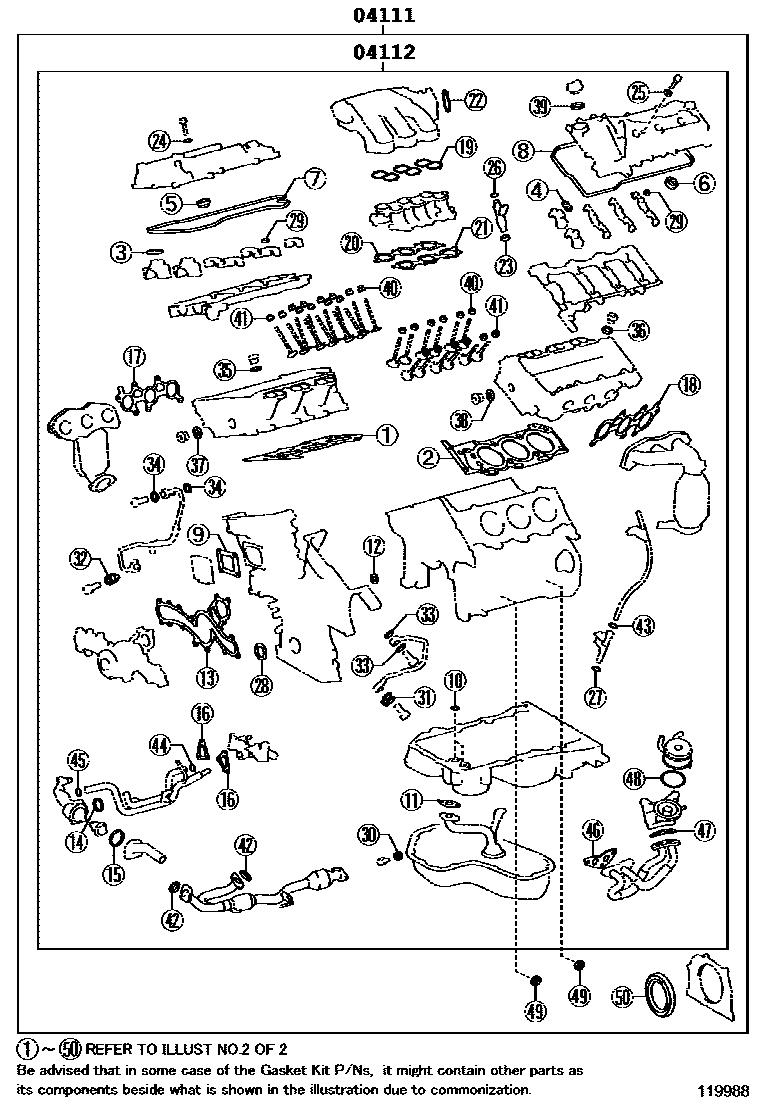

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119988
Engine Overhaul Gasket Kit — 119988 (201108 – 201110)
Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 119989
Engine Overhaul Gasket Kit — 119989 (201108 – 201110)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-28832 · 04111-28880 · 04111-28881 · 04111-28882 · 04111-28883 · 04111-28884 · 04111-31680 · 04111-31681 · 04111-31682 · 04111-31683
04112Engine valve grinding pad assembly04112-28682 · 04112-28730 · 04112-28731 · 04112-28732 · 04112-28733 · 04112-31270 · 04112-31271 · 04112-31272 · 04112-31760
