Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719

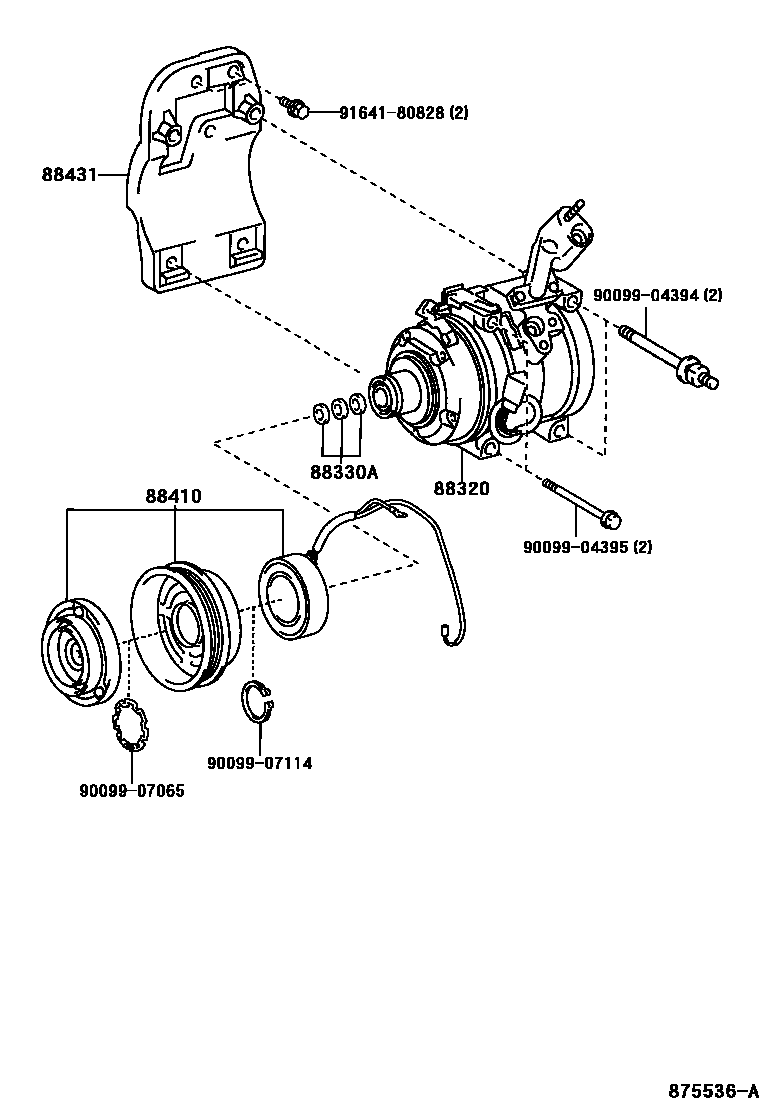

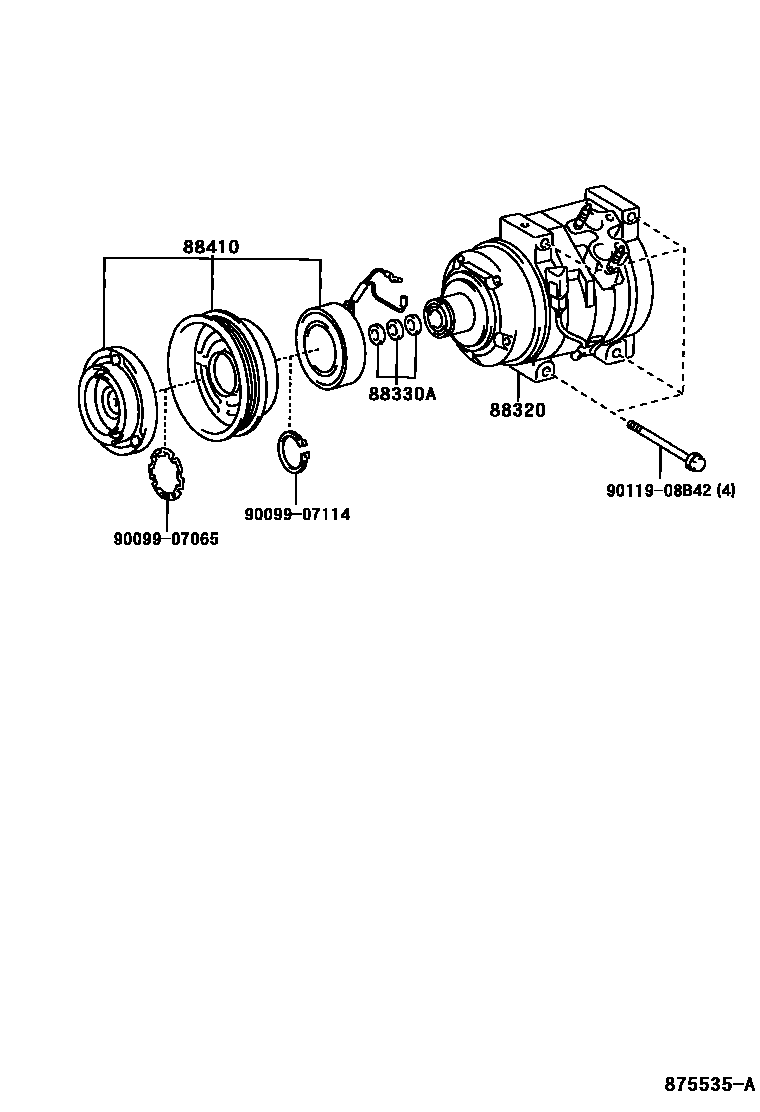

Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88320 | Cooler Compressor Assembly | 88320-YC010 · 88320-YC020 · 88320-YC030 · 88320-YC040 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88410 | Magnetic Clutch Assembly | 88410-YC020 · 88410-YC040 · 88410-YC050 |
| 88431 | Compressor No. 1 mounting bracket | 88431-YC030 |
