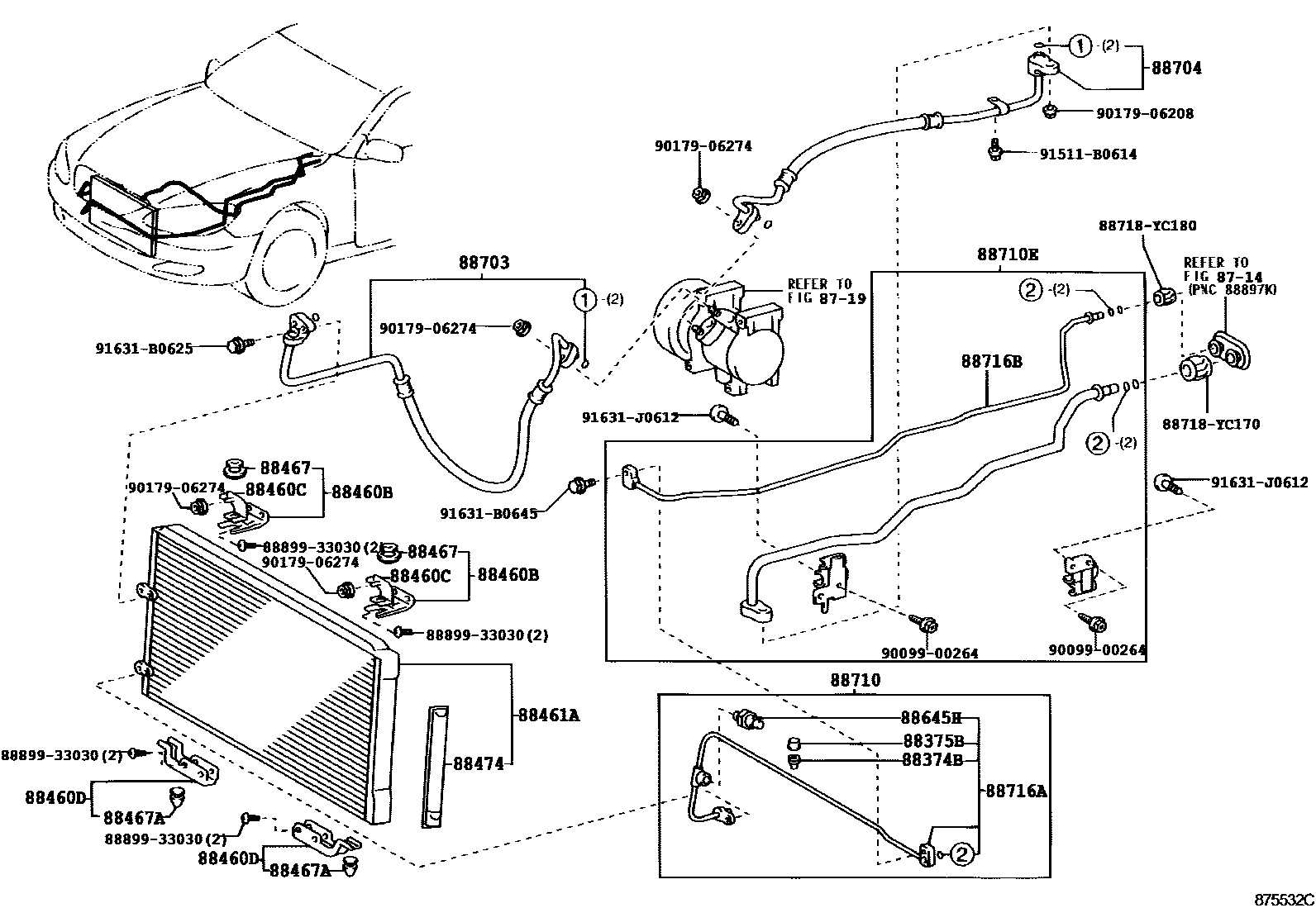

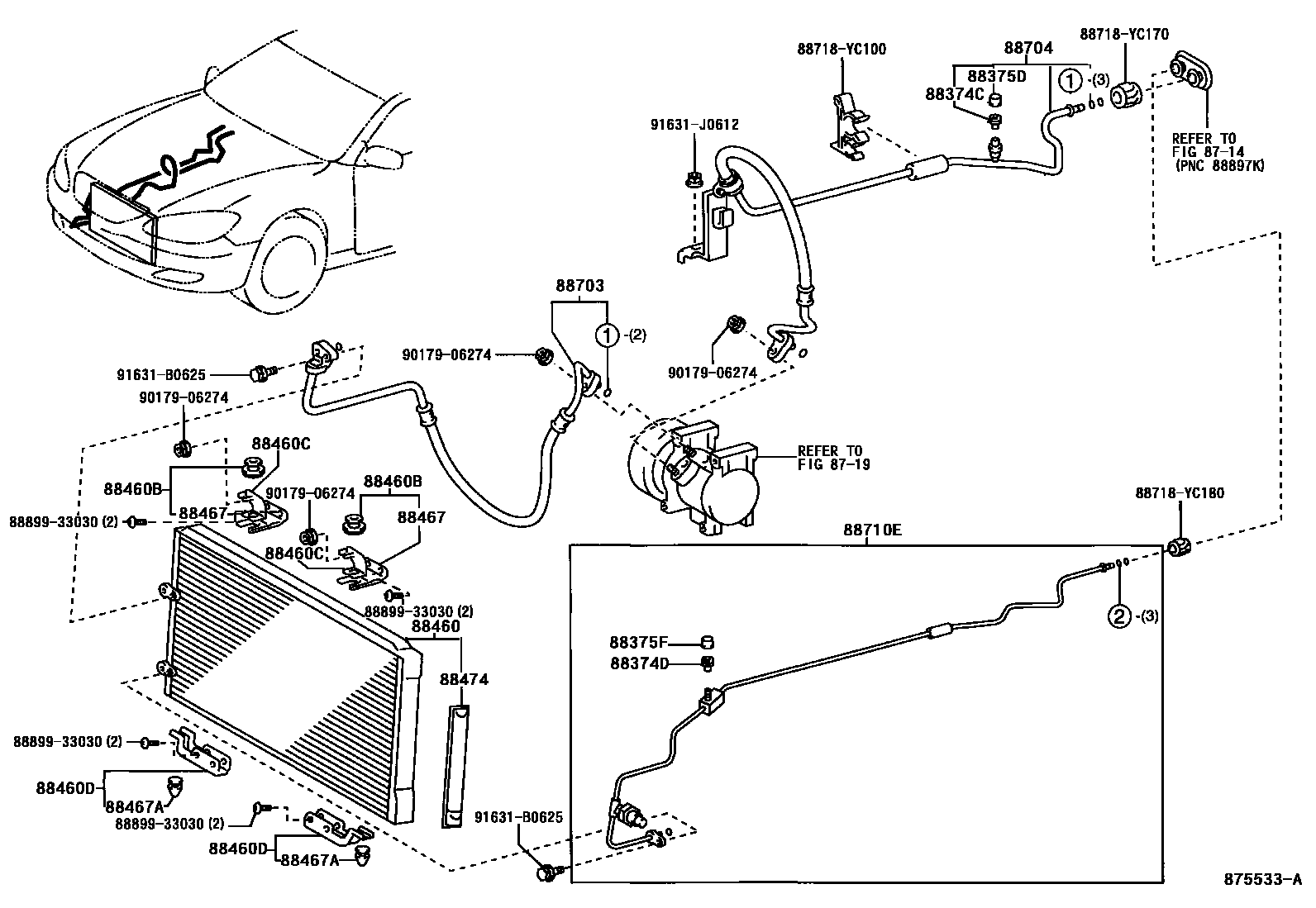

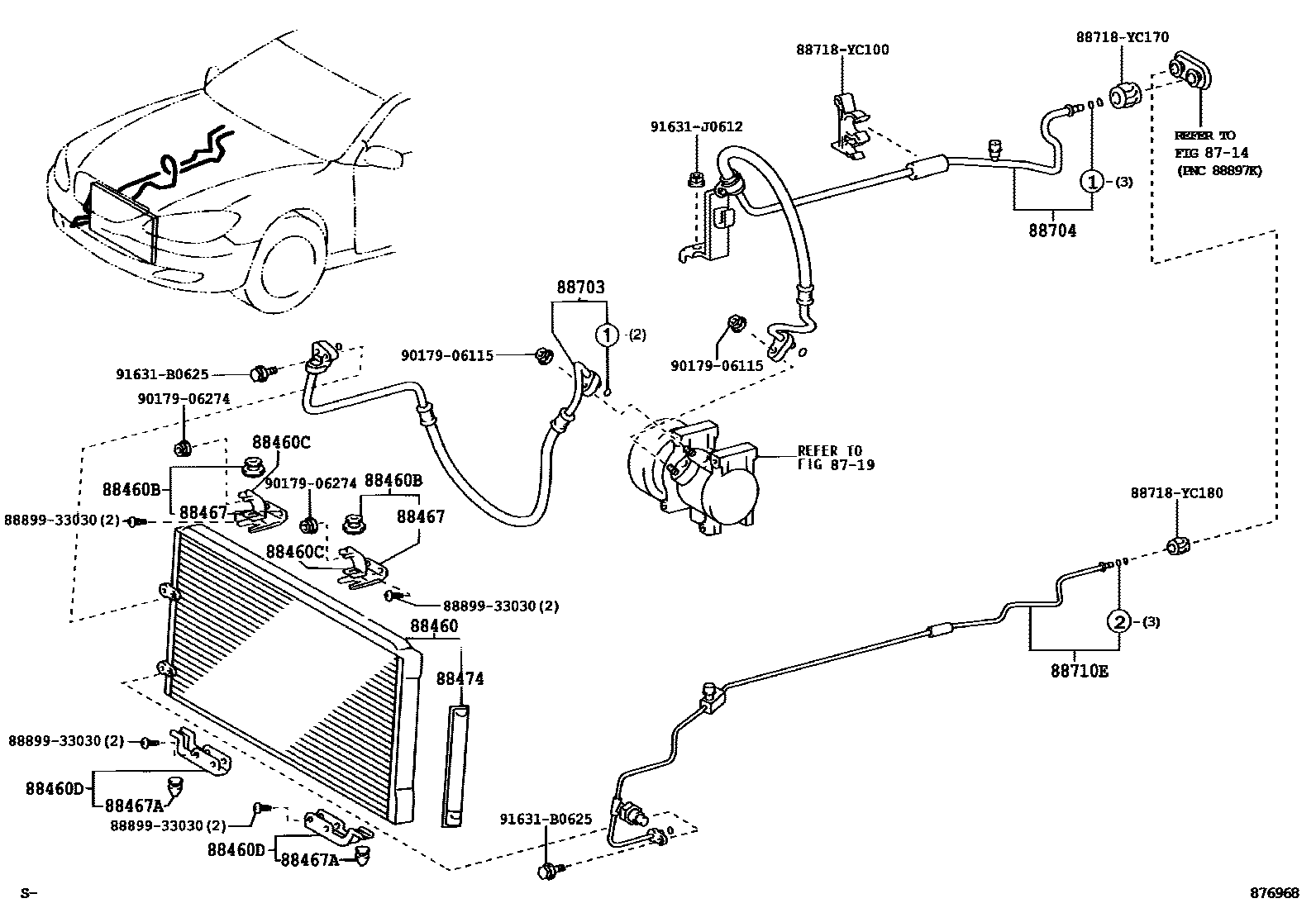

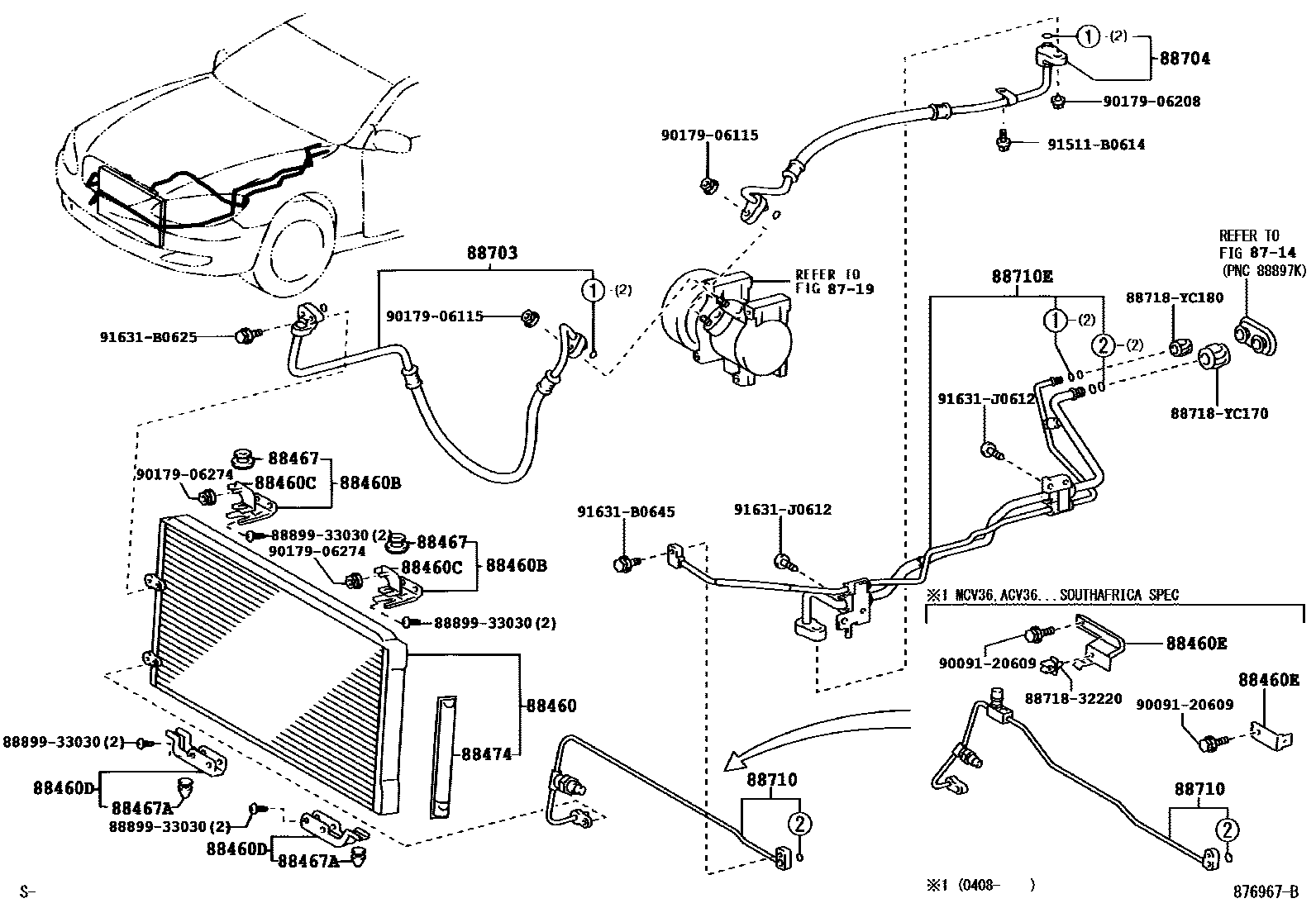

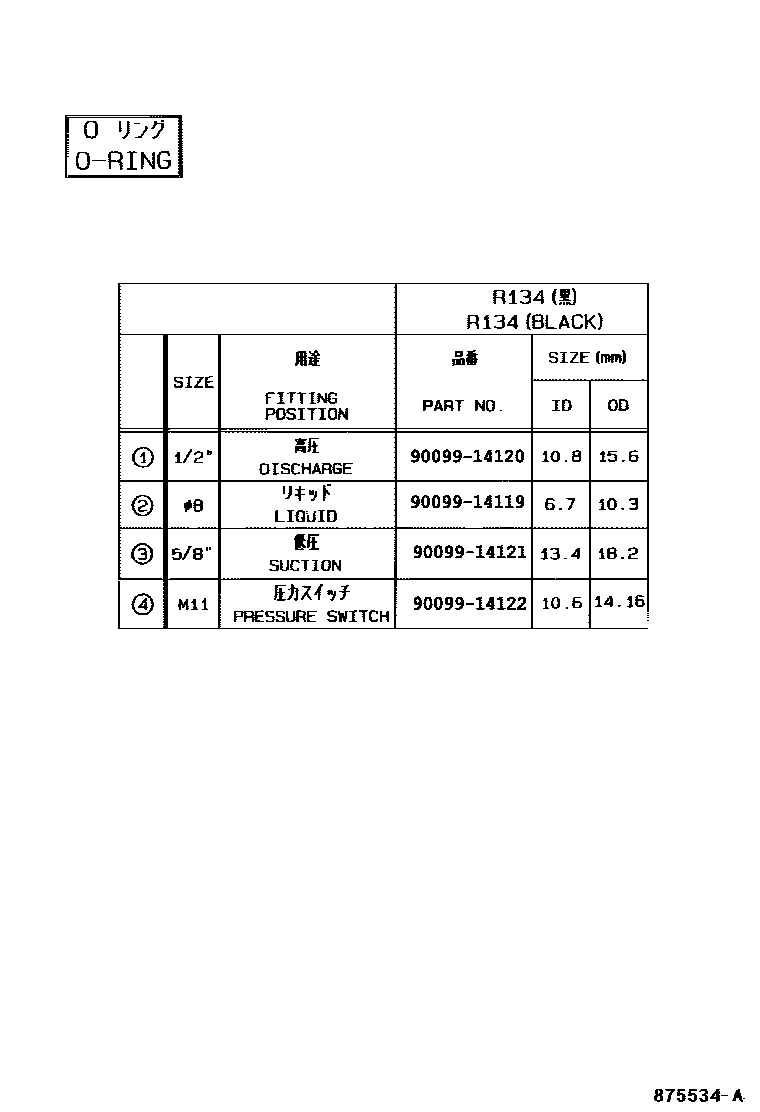

Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88374D | No. 3 maintenance valve | 88374-33070 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88375D | No. 2 maintenance valve cover | 88375-30290 |
| 88375F | No. 3 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88461-YC070 · 88461-YC080 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-YC140 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-YC060 · 88688-YC120 |
| 88460D | No. 3 air conditioner condenser bracket | 88688-YC170 · 88688-YC180 |
| 88460E | Bracket (for air conditioner condenser) | 88688-8Y001 · 88688-8Y002 |
| 88461A | Air conditioning condenser core | 88461-YC080 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-33030 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-YC030 |
| 88474 | cooler dryer | 88474-YC020 |
| 88645H | No. 1 pressure switch | 88645-17020 · 88645-60030 |
| 88703 | Discharge hose sub-assembly | 88703-YC060 · 88703-YC070 · 88703-YC080 · 88703-YC090 · 88703-YC100 |
| 88704 | Oil suction hose sub-assembly | 88704-YC080 · 88704-YC090 · 88704-YC100 · 88704-YC110 |
| 88710 | Air conditioning pipe assembly | 88710-YC010 · 88710-YC020 |
| 88710E | Air conditioning pipe and accessories assembly | 88710-YC100 · 88710-YC110 · 88710-YC111 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-YC030 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-YC010 |
