Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

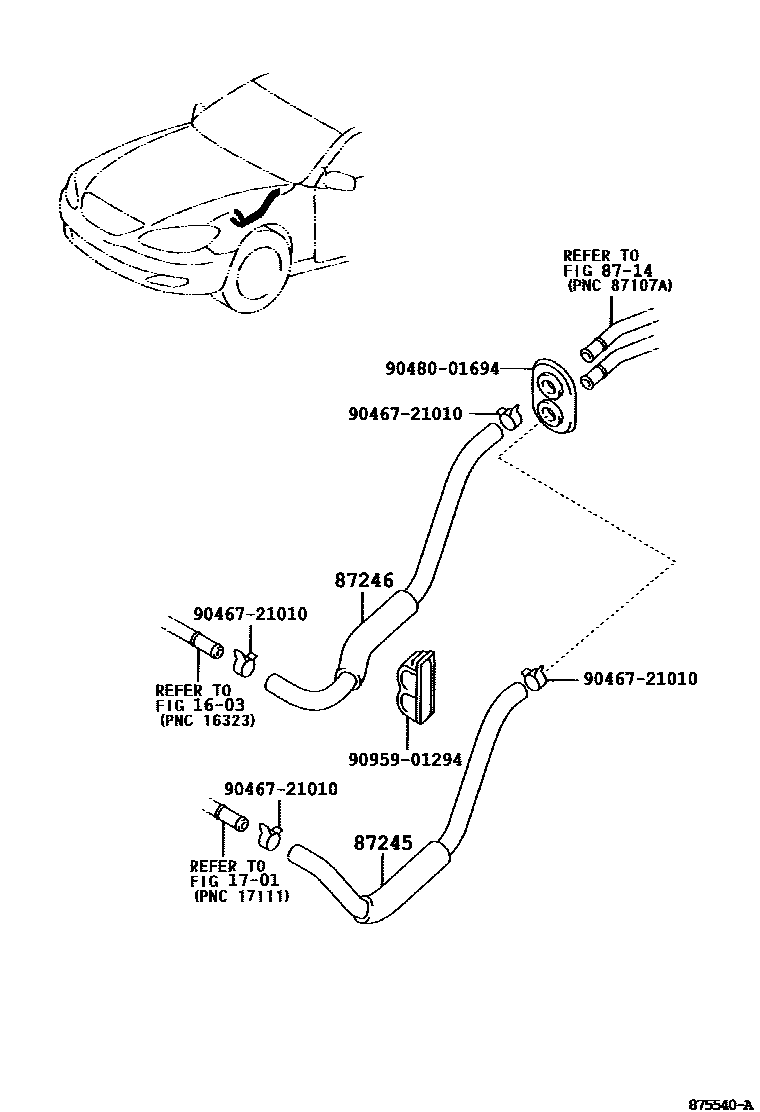

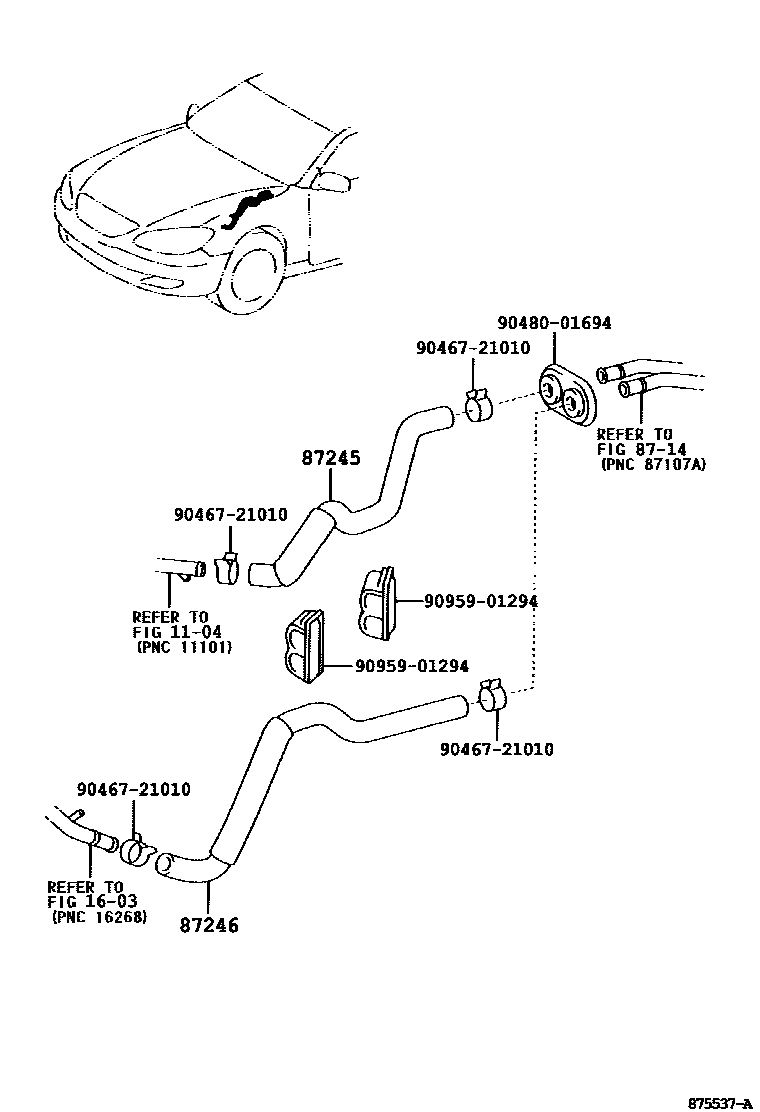

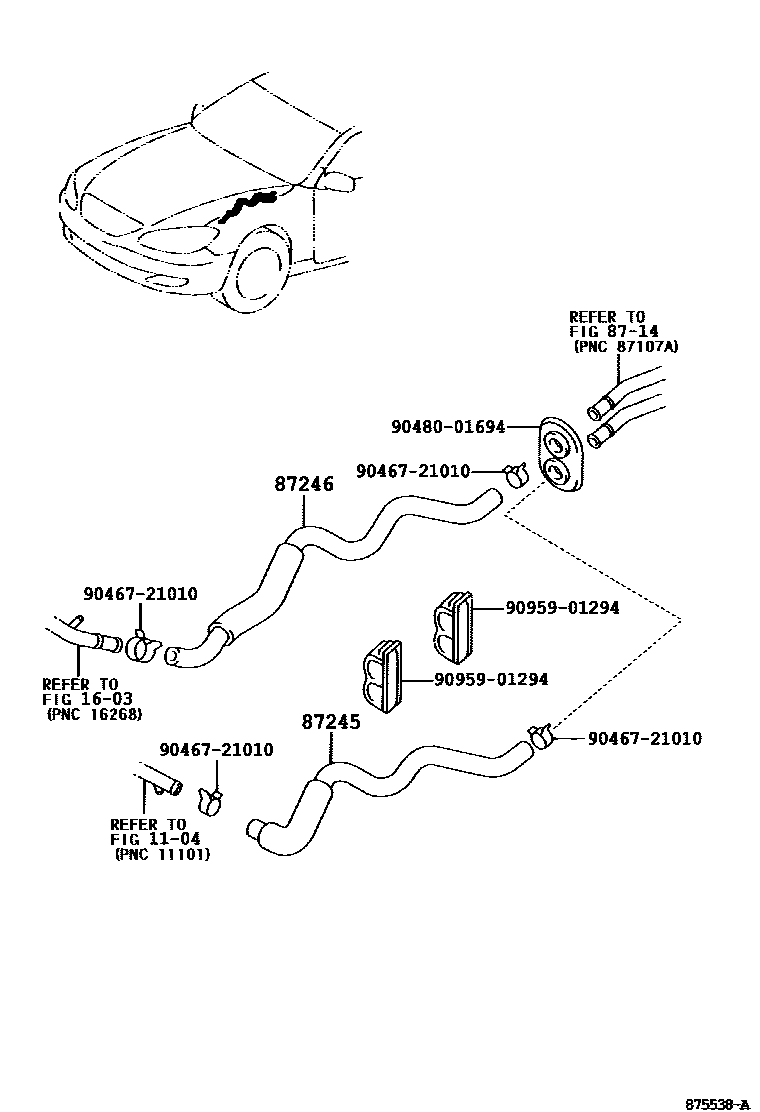

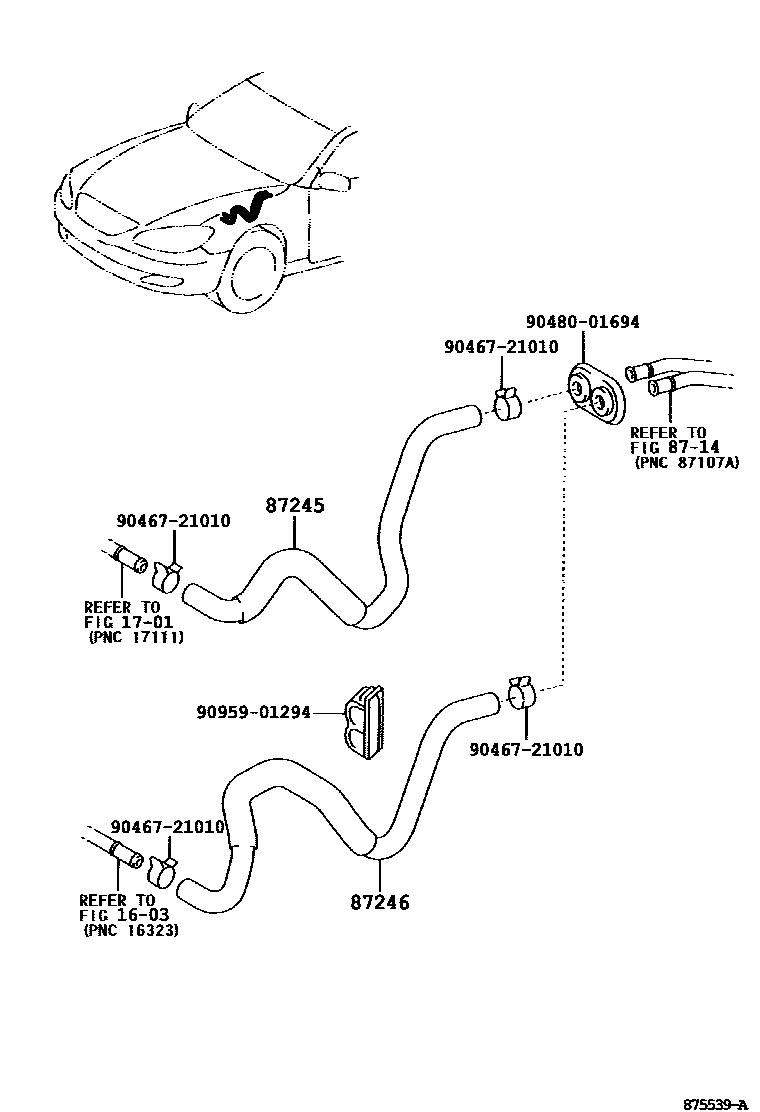

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 4 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87245 | Heater water inlet hose | 87245-YC170 · 87245-YC190 · 87245-YC210 · 87245-YC230 · 87245-YC250 |
| 87246 | Heater outlet hose | 87245-YC180 · 87245-YC200 · 87245-YC220 · 87245-YC240 · 87245-YC260 |
