Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

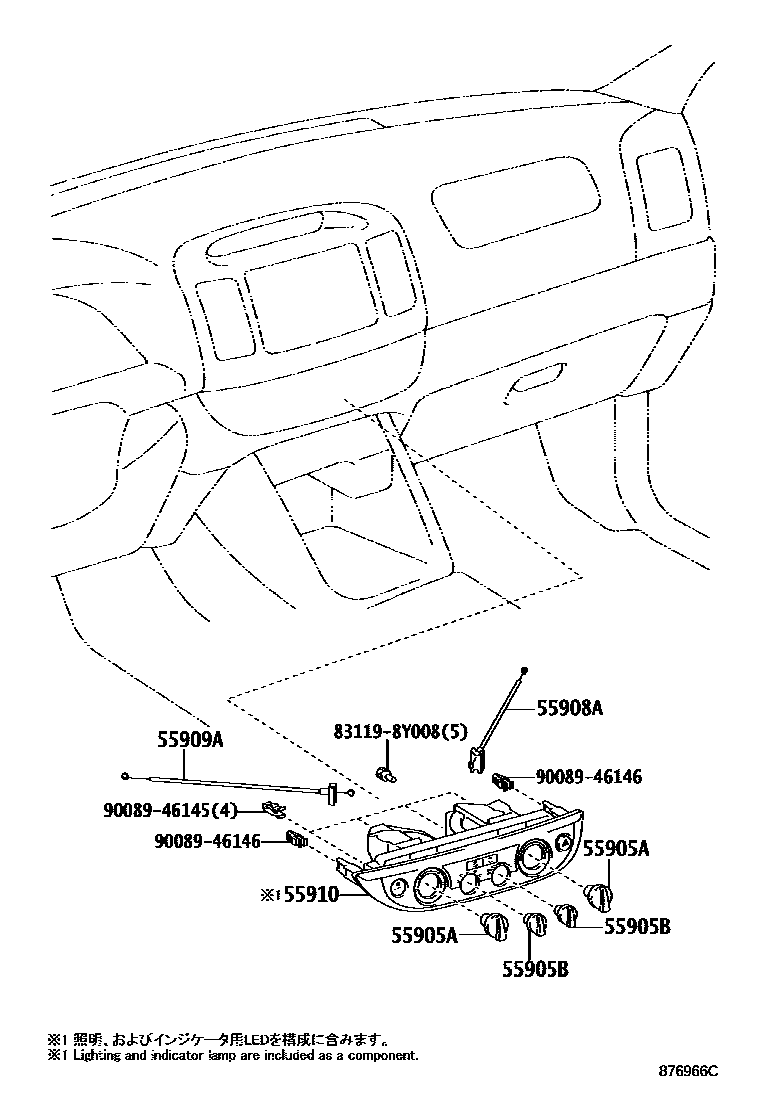

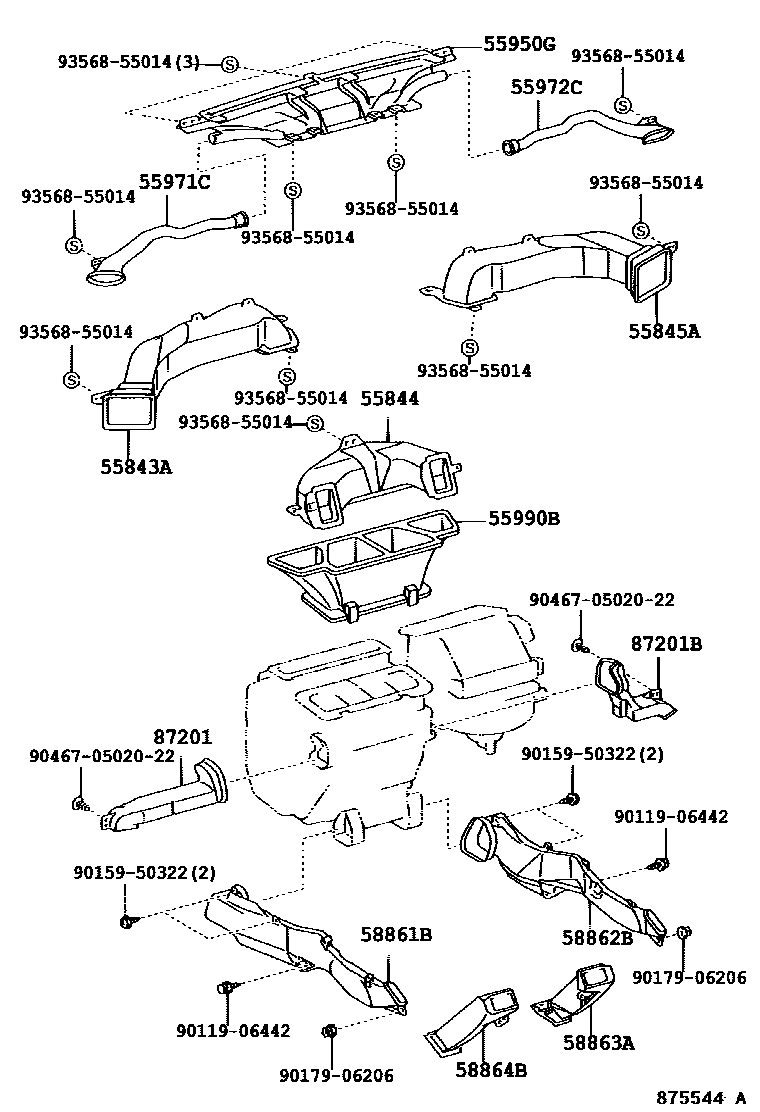

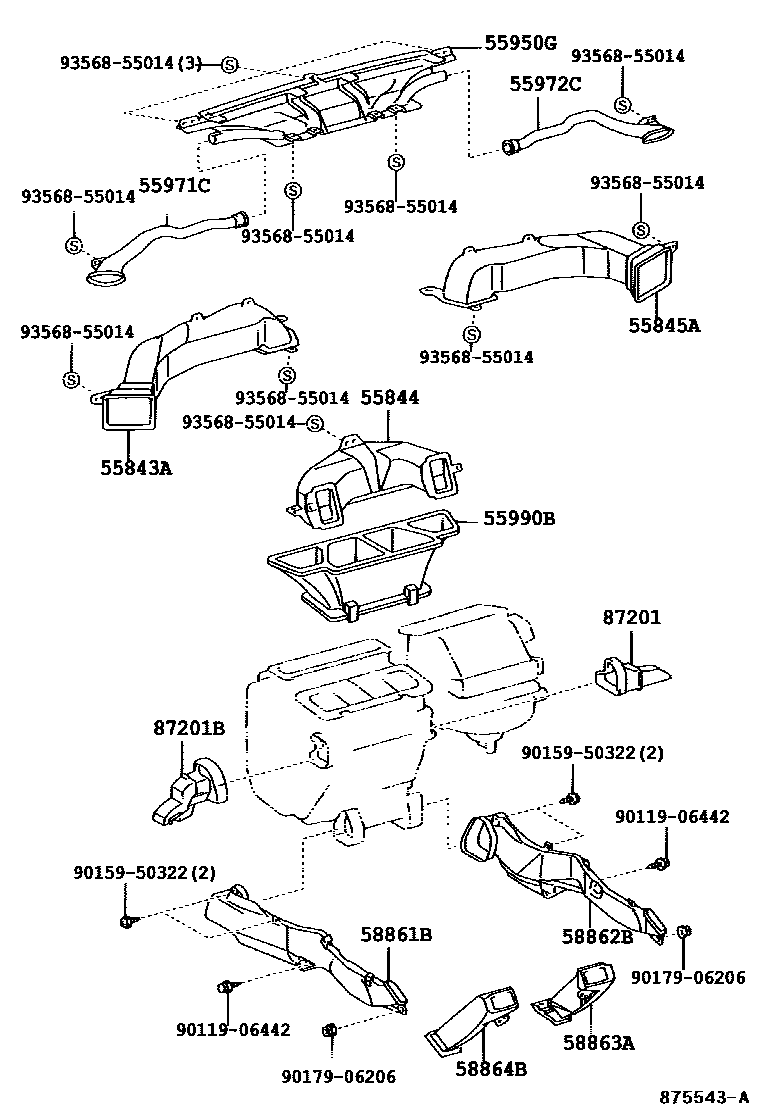

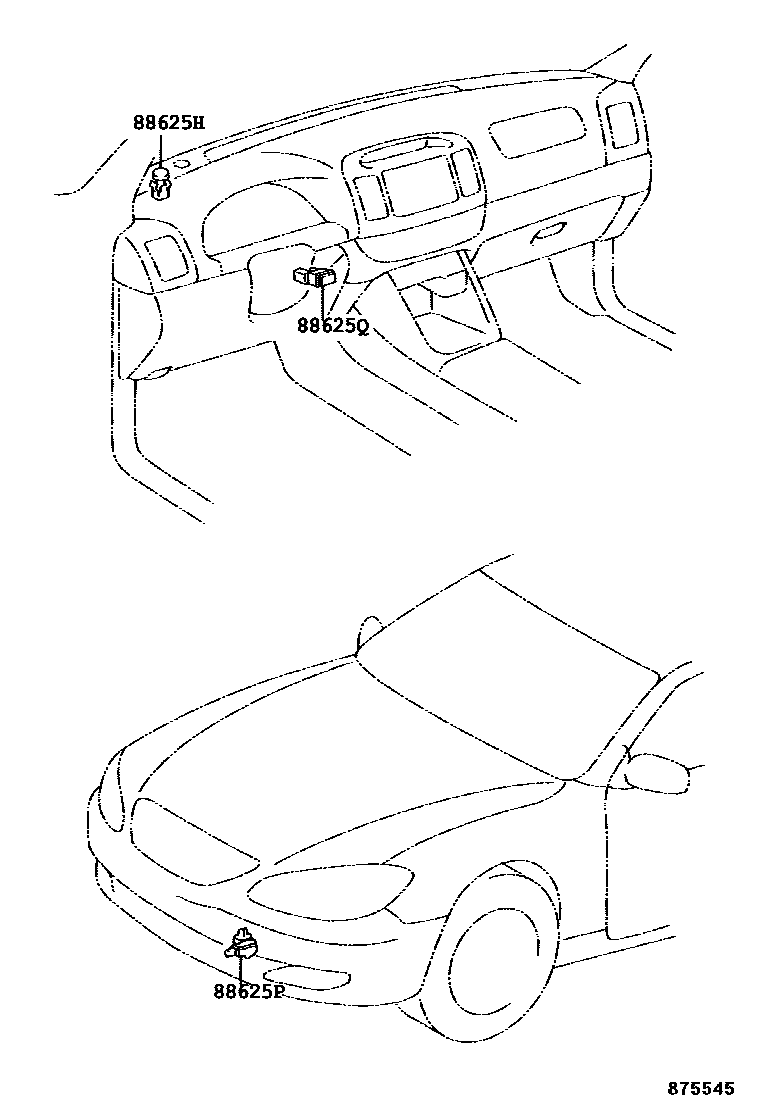

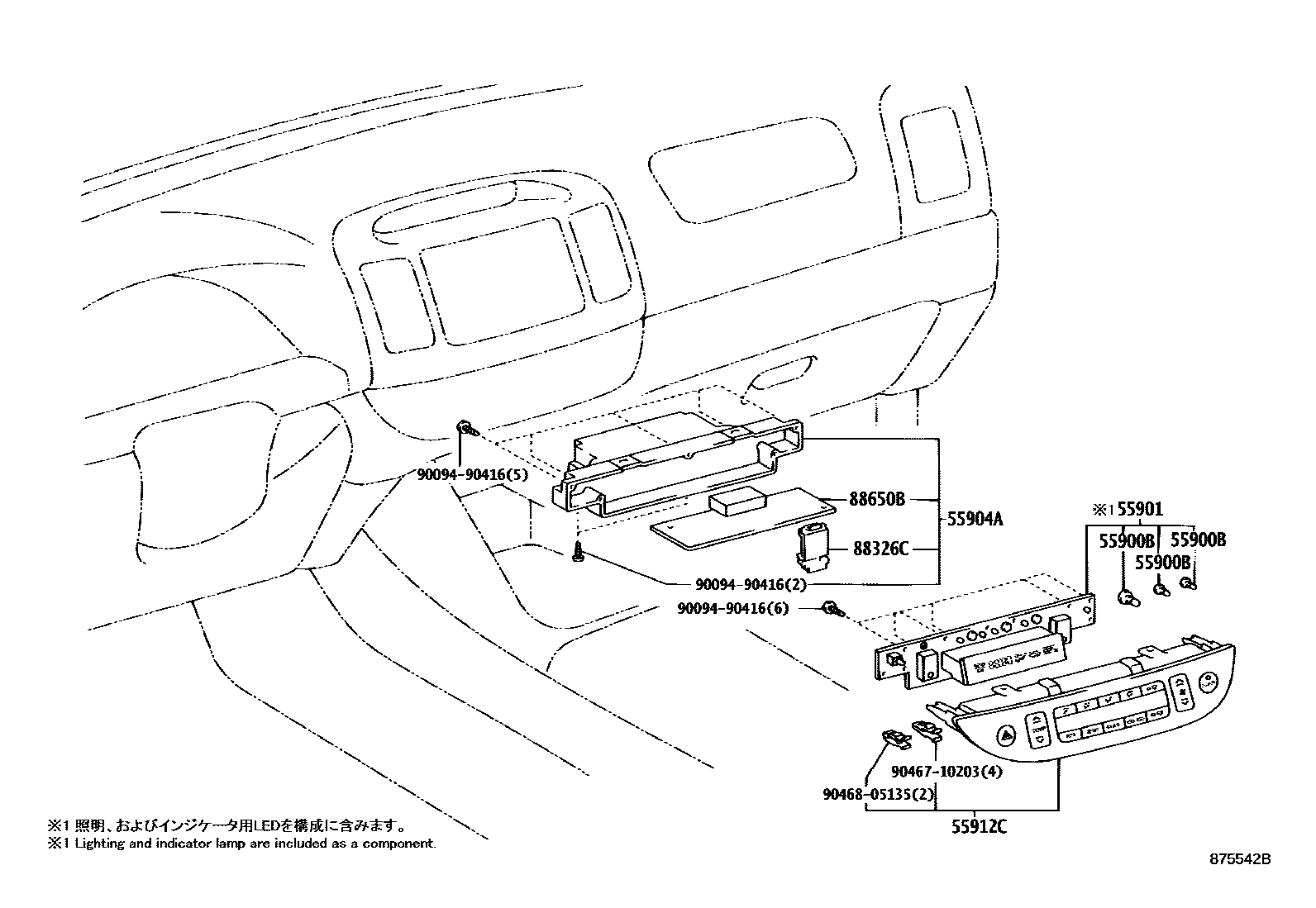

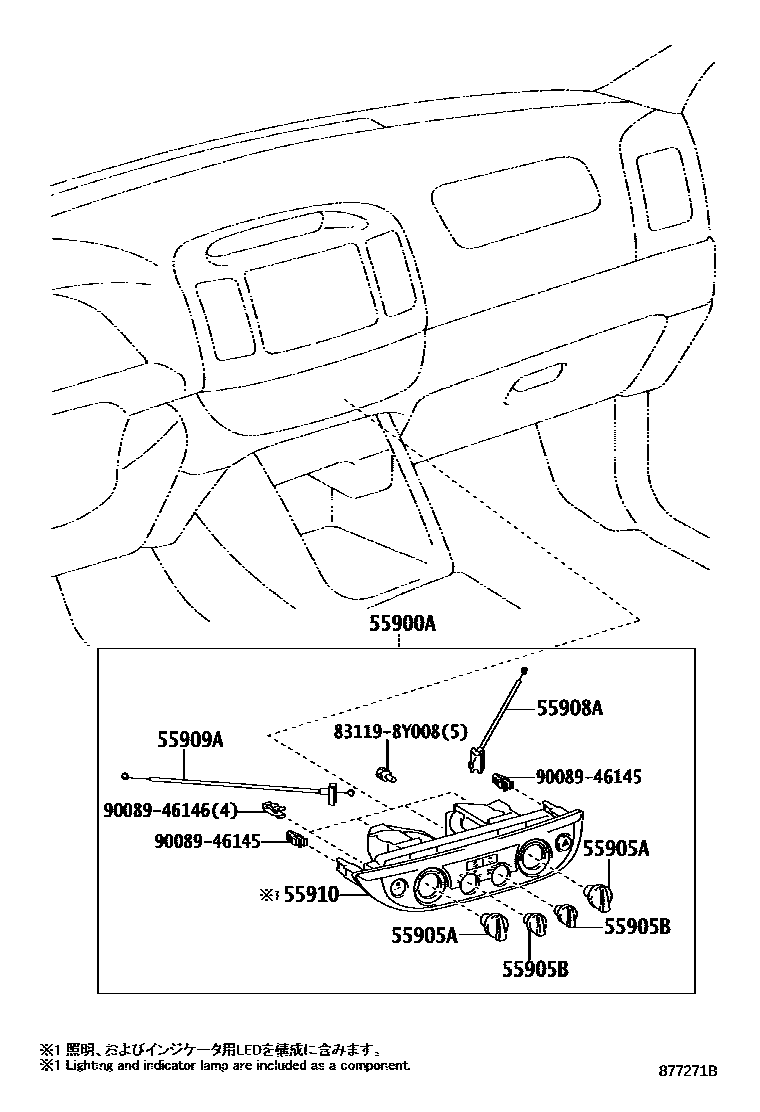

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-YC040 · 55843-YC050 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-YC050 · 55844-YC060 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-YC040 · 55845-YC050 |
| 55900A | Heater control and accessory assembly | 55900-YC050 |
| 55900B | air conditioning control light bulb | 90010-03054 · 90010-03055 · 90010-03056 |
| 55901 | Heater controller base sub-assembly | 55901-33010 · 55901-33020 |
| 55904A | Heater control housing sub-assembly | 55904-33080 · 55904-33140 |
| 55905A | Heater control button | 55905-8Y001 |
| 55905B | Heater control button 2 | 55905-8Y002 |
| 55908A | Intake air valve control cable sub-assembly | 55908-YC040 |
| 55909A | Air mix damper control cable sub-assembly | 55909-YC040 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-8Y001 · 55910-8Y002 · 55910-8Y003 · 55910-8Y004 · 55910-8Y005 |
| 55912C | heater control housing | 55912-33120 · 55912-33170 · 55912-33210 · 55912-33240 · 55912-33440 |
| 55950G | Defroster nozzle assembly | 55950-YC040 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-YC030 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-YC030 |
| 55990B | Lower defroster nozzle assembly | 55990-YC010 · 55990-YC020 |
| 58861B | Air duct No. 1 for armrest box | 58861-YC010 · 58861-YC020 |
| 58862B | Air duct No. 2 for armrest box | 58862-YC010 · 58862-YC020 |
| 58863A | Armrest box No. 3 air duct | 58863-YC010 |
| 58864B | Armrest box No. 4 air duct | 58864-YC010 |
| 87201 | No. 1 air duct sub-assembly | 87201-YC180 · 87201-YC200 |
| 87201B | No. 2 air duct sub-assembly | 87201-YC190 · 87201-YC210 |
| 88326C | Cover plate | 88326-63010 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-YC090 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88625-YC041 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-YC050 |
| 88650B | Air conditioning amplifier assembly | 88650-33460 · 88650-33470 |
