Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

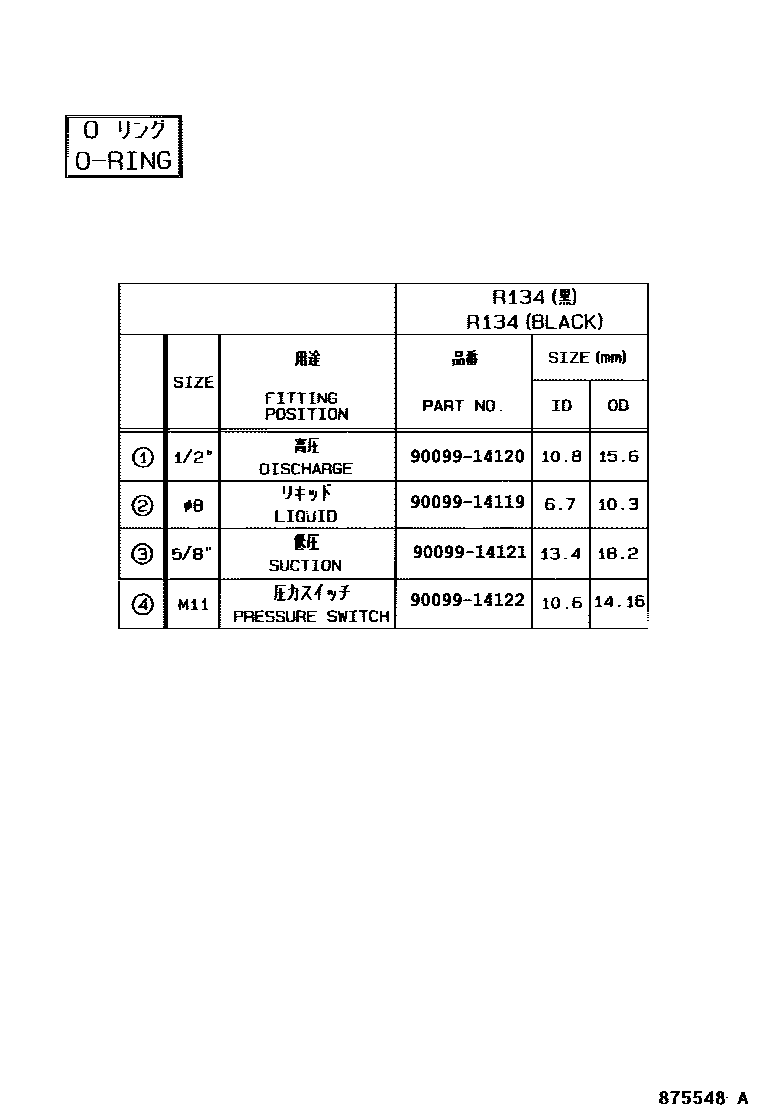

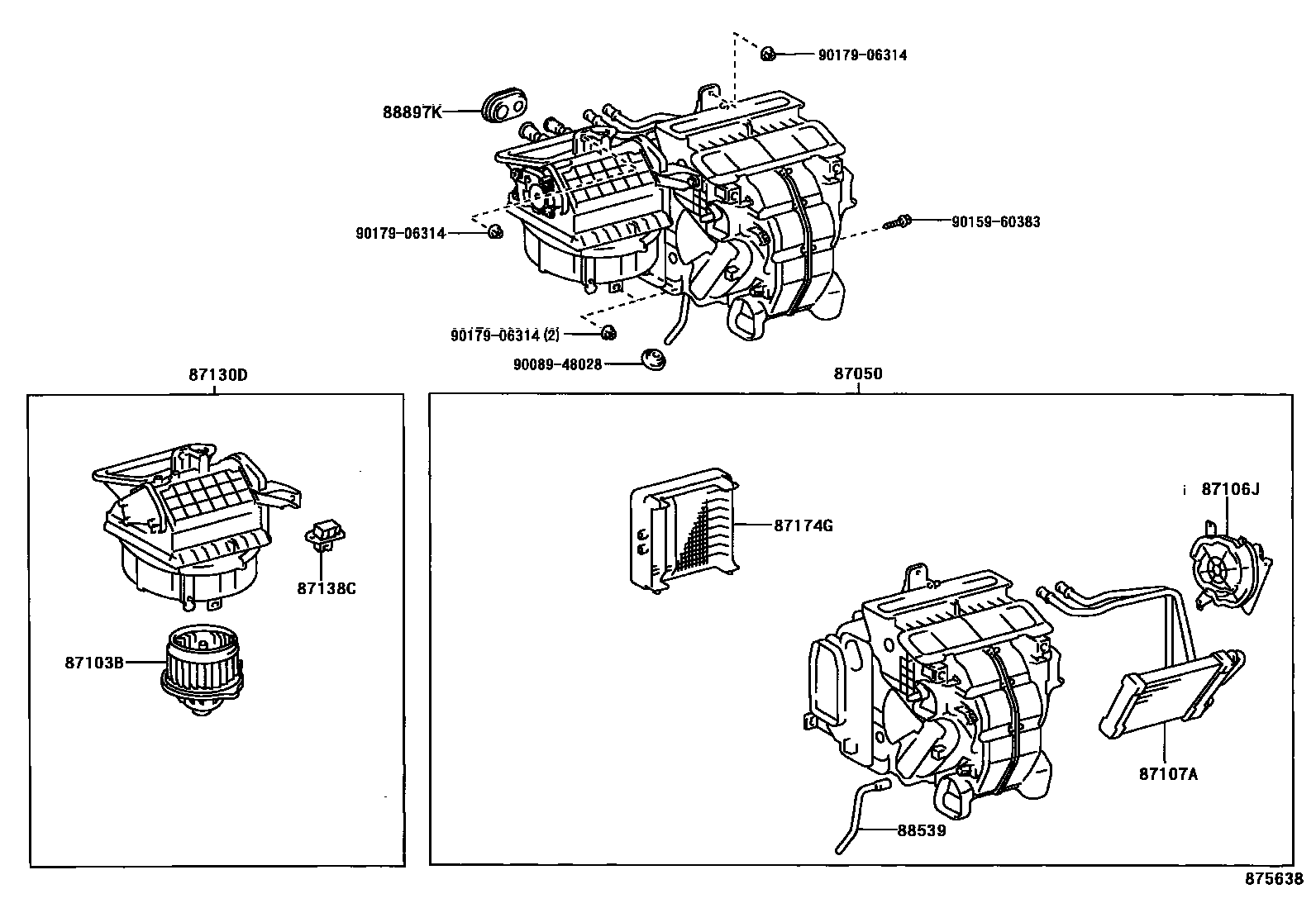

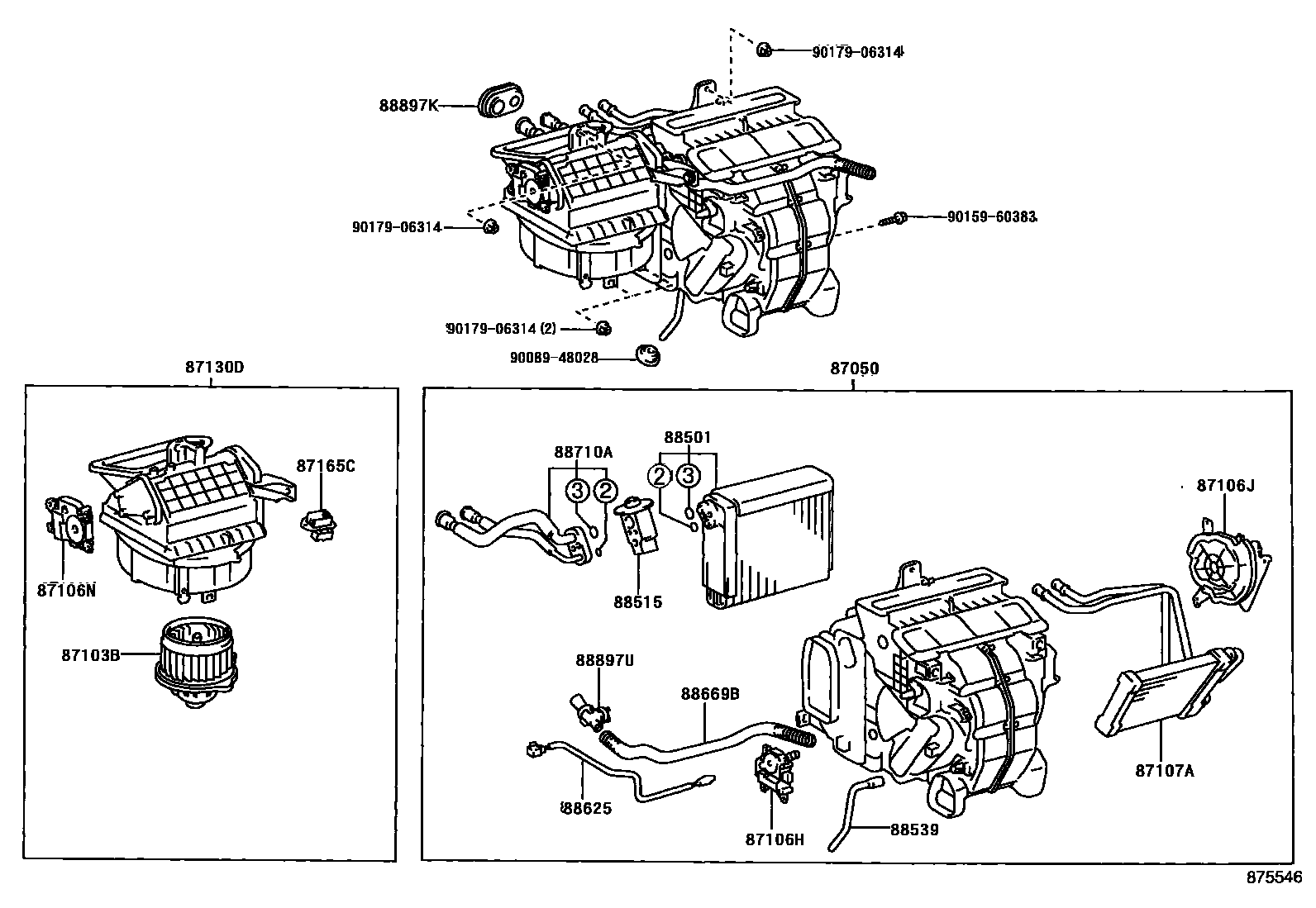

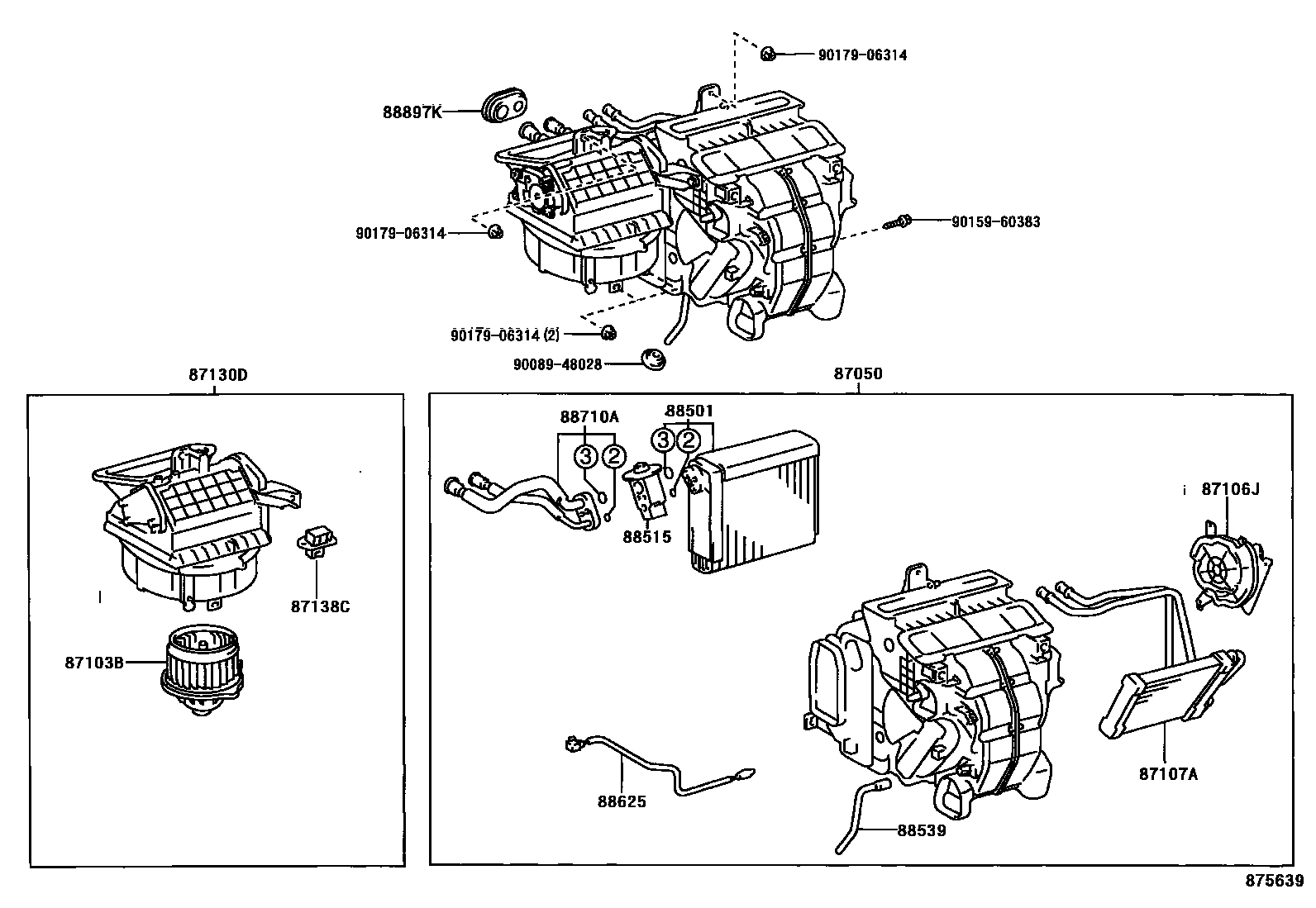

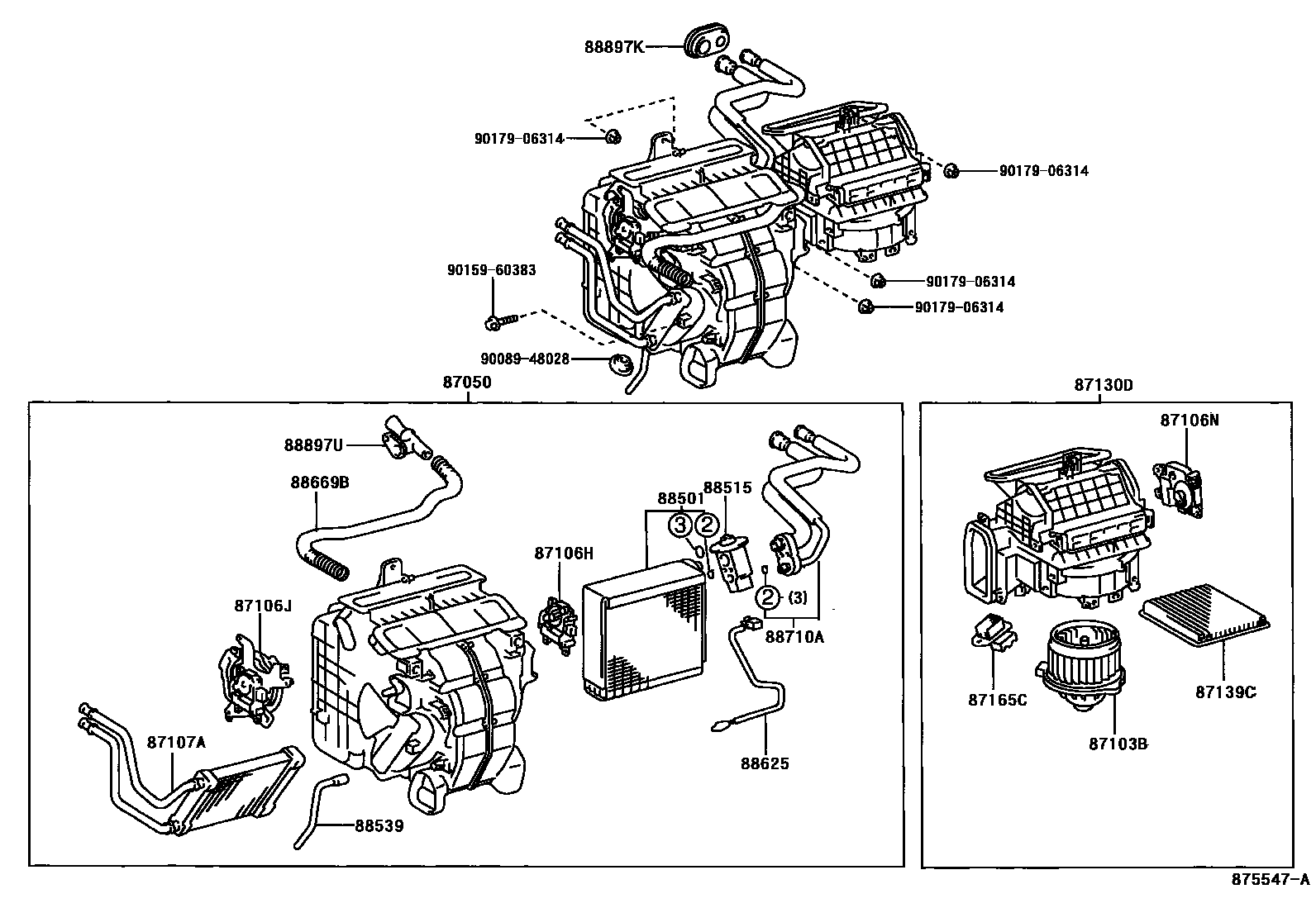

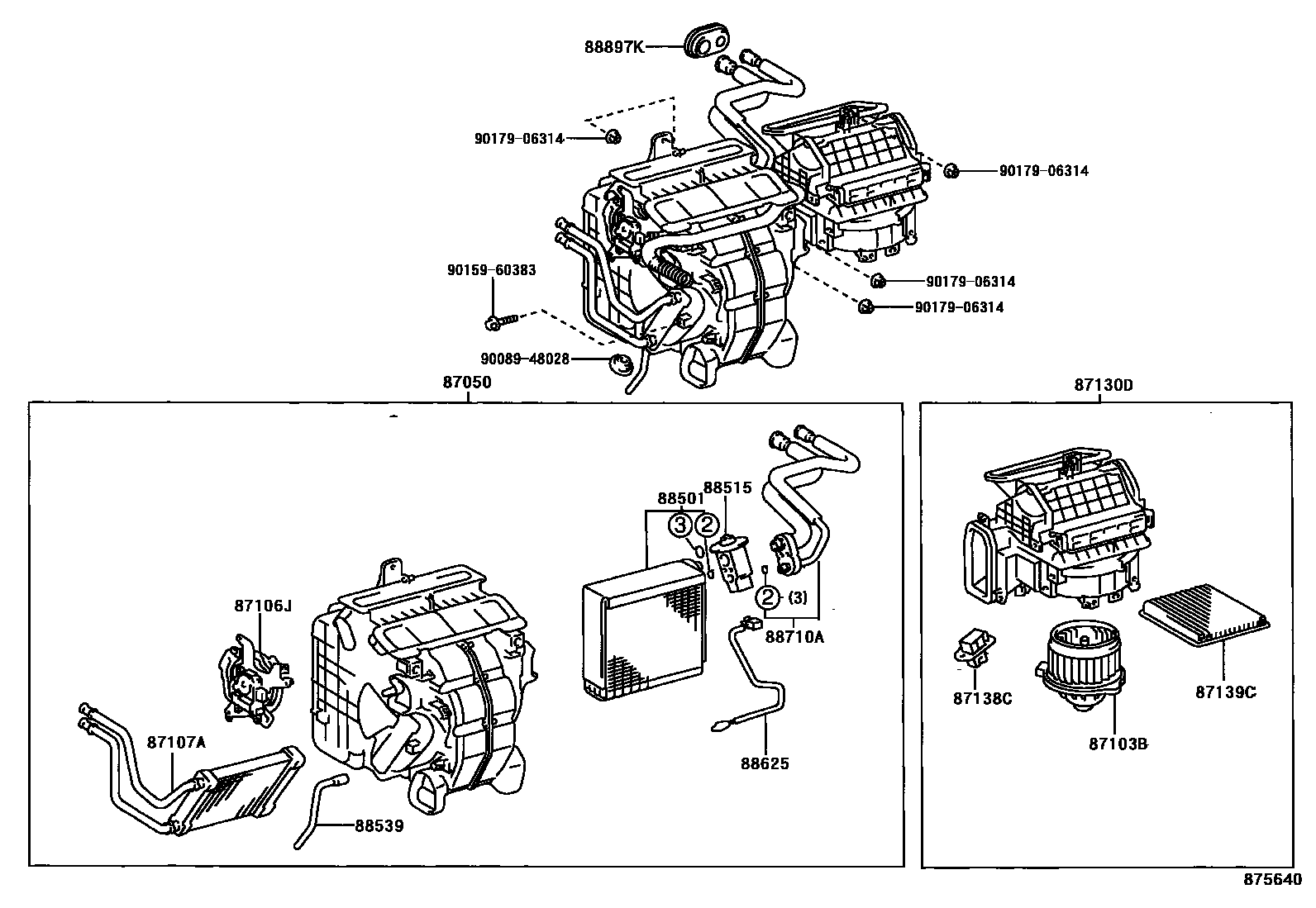

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-YC110 · 87050-YC111 · 87050-YC120 · 87050-YC121 · 87050-YC130 · 87050-YC140 · 87050-YC141 · 87050-YC150 · 87050-YC151 |
| 87103B | Blower motor sub-assembly with fan | 87103-YC040 · 87103-YC050 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-YC140 · 87106-YC150 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-YC080 · 87106-YC090 · 87106-YC120 · 87106-YC130 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-YC160 · 87106-YC170 |
| 87107A | Heater radiator device sub-assembly | 87107-YC040 · 87107-YC050 |
| 87130D | Blower assembly | 87130-YC090 · 87130-YC100 · 87130-YC110 · 87130-YC120 |
| 87138C | Blower resistor | 87138-YC040 · 87138-YC050 |
| 87139C | air purification filter | 87139-32010 |
| 87165C | Blower motor control device | 87165-13010 |
| 87174G | Air heater deflector | 87174-YC010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-YC030 · 88501-YC040 · 88501-YC050 · 88501-YC060 |
| 88515 | Cooler expansion valve | 88515-28160 · 88515-48040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-YC040 · 88539-YC050 |
| 88625 | Cooler No. 1 Thermistor | 88625-17130 · 88625-33170 · 88625-35060 |
| 88669B | Cooler air hose | 88669-33060 · 88669-33070 |
| 88710A | Air conditioning pipe assembly | 88710-YC080 · 88710-YC090 |
| 88897K | Seals (for cooler tubes) | 88897-YC010 · 88897-YC020 |
| 88897U | aspirator tube | 88897-12210 |
