Toyota CAMRY 后视镜 — Figure 8701

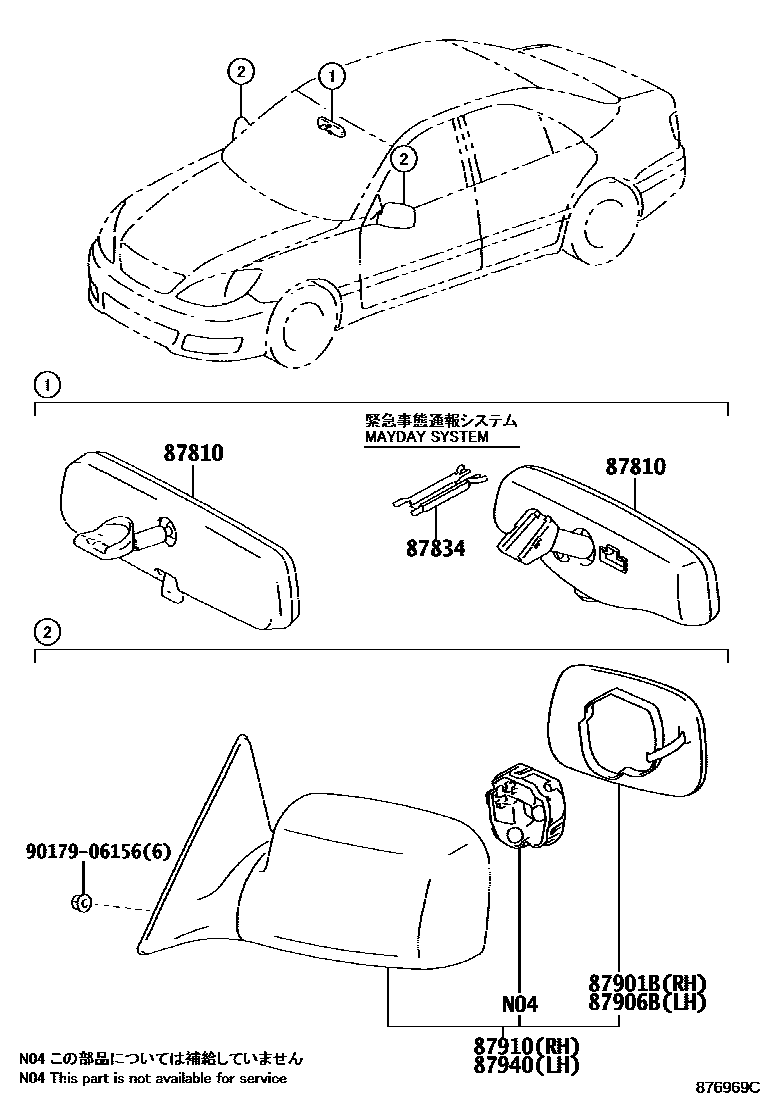

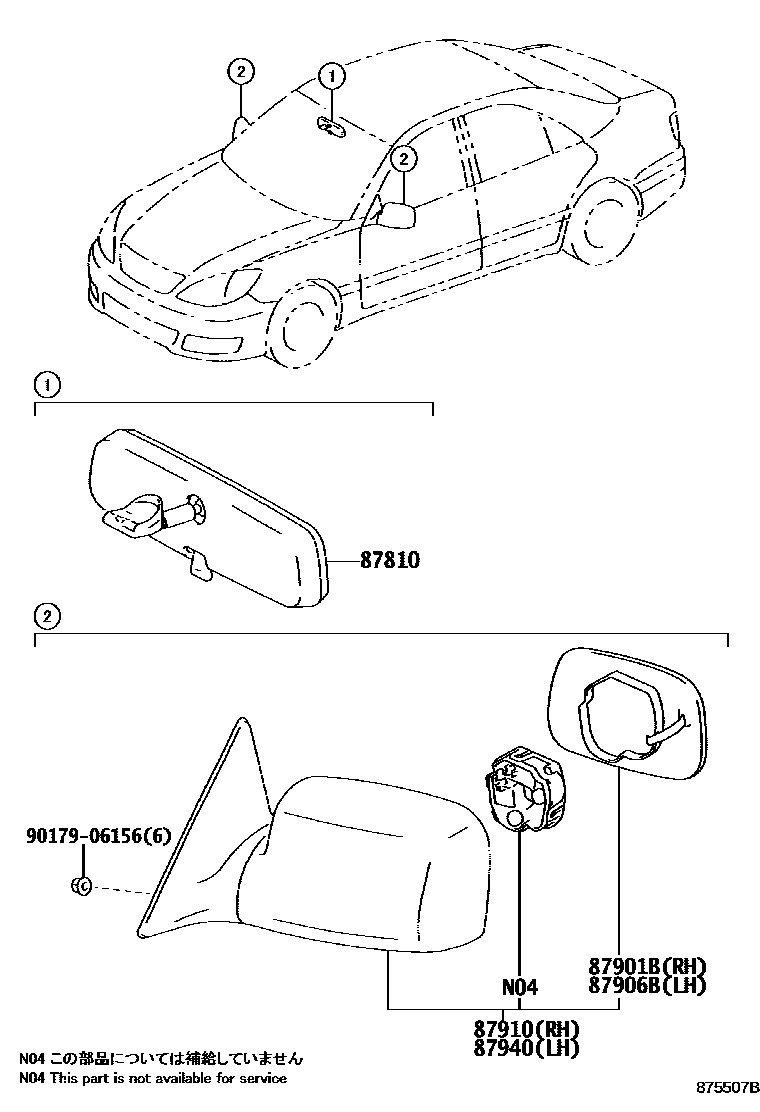

Toyota CAMRY EPC diagram 8701, 后视镜, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-AA011 · 87810-YC040 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-YC020 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-8Y003 · 87931-8Y004 · 87931-8Y005 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-8Y005 · 87961-8Y006 · 87961-8Y007 |
| 87910 | Right exterior rearview mirror assembly | 87910-YC150 · 87910-YC170 · 87910-YC190 |
| 87940 | Left exterior rearview mirror assembly | 87940-YC150 · 87940-YC170 · 87940-YC190 |
