Toyota CAMRY 车载电话和呼救装置 — Figure 8615

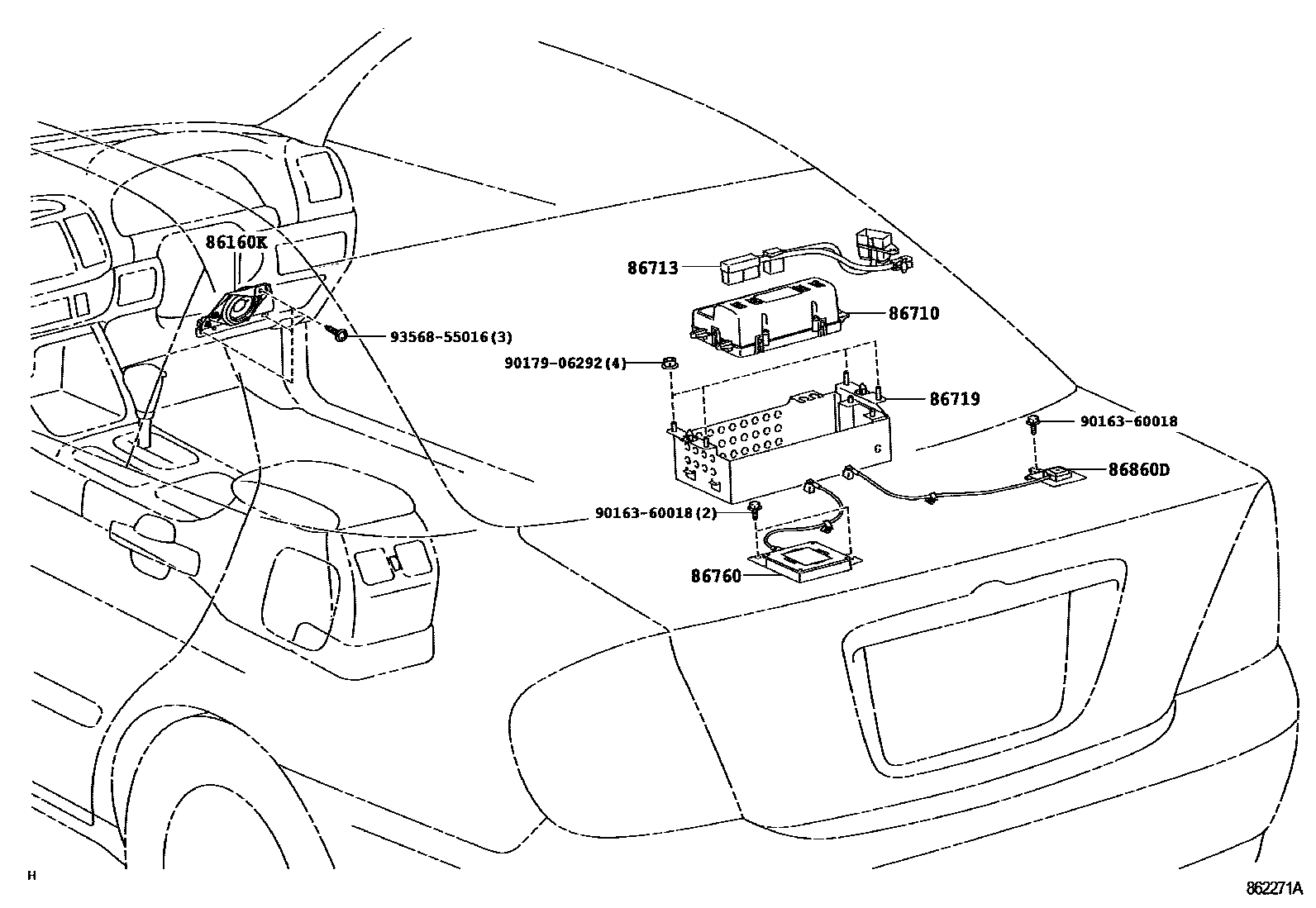

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160K | Radio speaker assembly | 86160-YY010 |
| 86710 | Telephone ECU assembly | 86710-YY050 |
| 86713 | Telephone ECU wiring harness | 86713-YY010 |
| 86719 | phone holder | 86719-YY010 |
| 86760 | Telephone antenna assembly | 86760-YY020 |
| 86860D | navigation antenna | 86860-YY020 |
