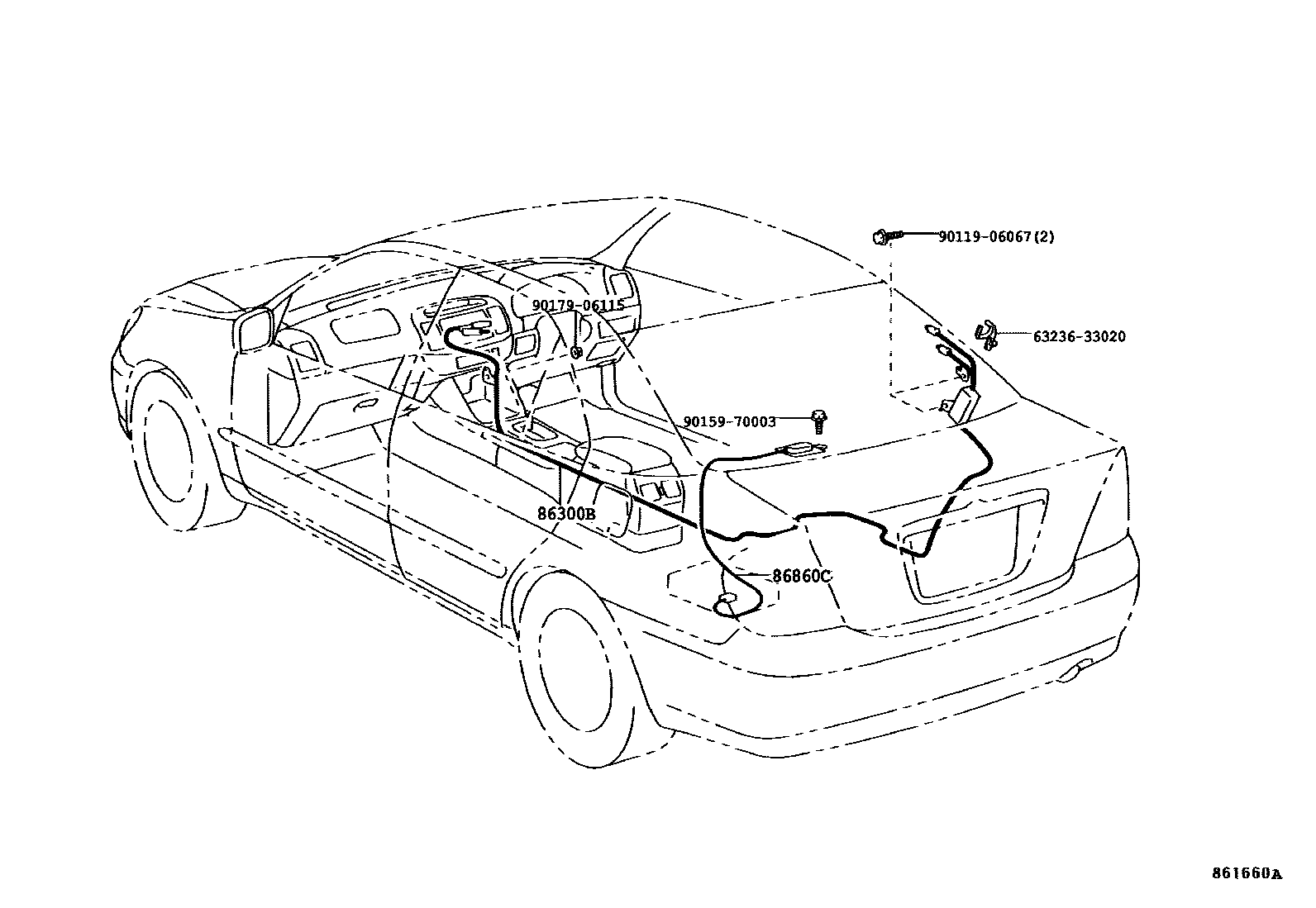

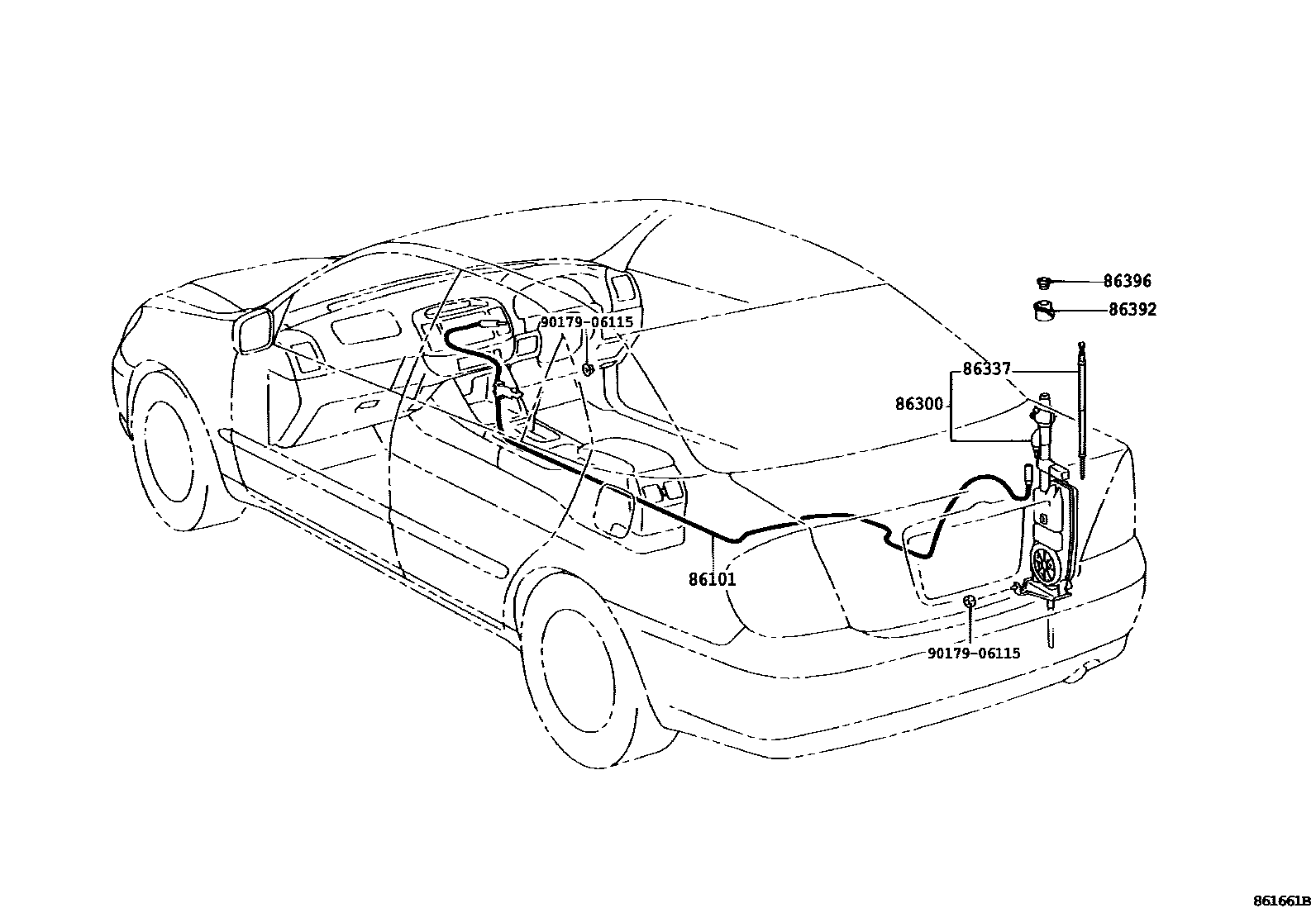

Toyota CAMRY antenna — Figure 8604
Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-YC050 |
| 86300 | Antenna assembly with fixing parts | 86300-YC110 |
| 86300B | No. 1 amplifier antenna assembly | 86300-YC100 |
| 86337 | Sealing rods and sealing tubes with cables | 86337-YC110 |
| 86392 | Antenna decorative parts | 86392-YC040 |
| 86396 | Antenna nut | 86396-06010 |
| 86860C | Navigation antenna assembly | 86860-33050 |
