Toyota CAMRY 导航和前监视器显示屏 — Figure 8603

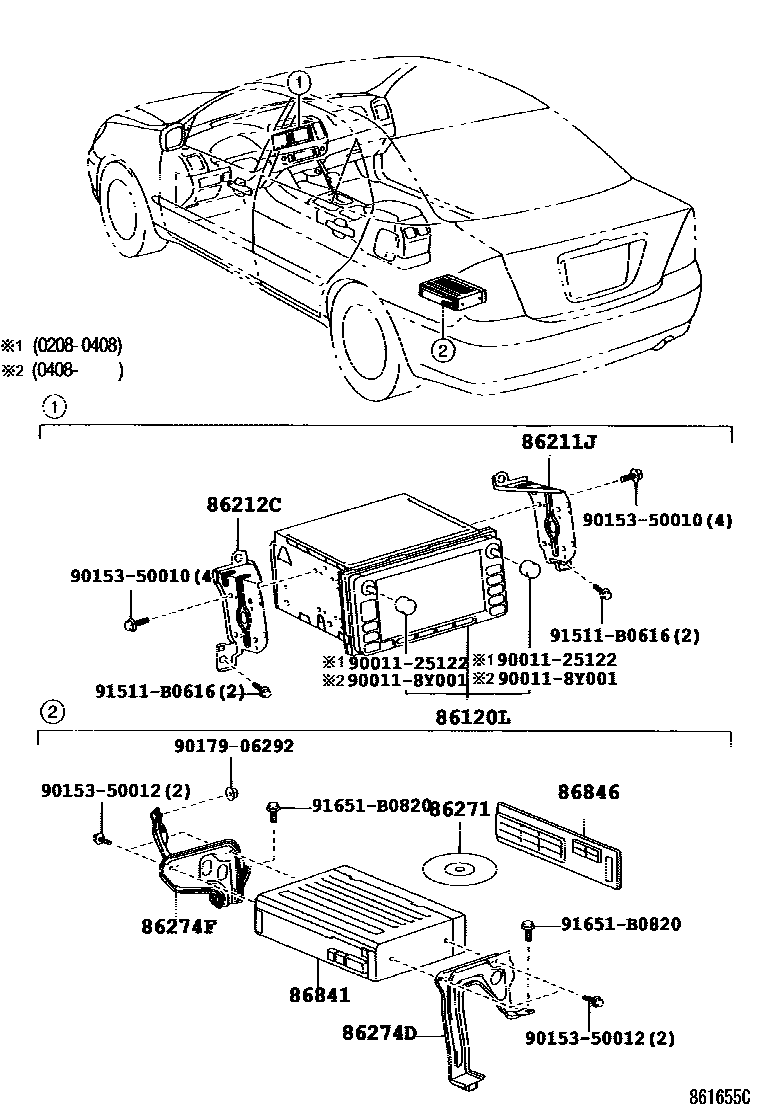

Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-07040 · 86120-33580 |
| 86211J | No. 1 radio bracket | 86211-YC040 |
| 86212C | No. 2 radio bracket | 86212-YC030 |
| 86271 | CD | 86271-24110 · 86271-24111 · 86271-33070 · 86271-33071 · 86271-53010 |
| 86274D | CD player stand | 86274-33190 |
| 86274F | No. 2 CD player stand | 86274-33200 |
| 86841 | Navigation ECU | 86841-24020 · 86841-33070 |
| 86846 | Navigation ECU board | 86846-33020 |
